A Billion-Fold Expansion Technique is Democratizing High-End Microscopy

For centuries, biology has been constrained by a fundamental rule of physics known as the diffraction limit of light. If a cellular structure is smaller than half the wavelength of visible light, a standard optical microscope simply cannot resolve it, rendering the deepest mysteries of the cell as nothing more than a blurry haze.[2][3]

To see the intricate inner workings of life—the folding of proteins, the architecture of synapses, the mechanical machinery of viruses—scientists have historically been forced to rely on electron microscopes. These massive, multi-million-dollar machines fire beams of electrons in a vacuum, requiring highly specialized facilities, immense power, and extensively trained technicians to operate.[2]

But a radical approach pioneered over the last decade has flipped the optical problem entirely upside down. Instead of attempting to build more powerful, increasingly expensive microscopes to peer at tiny structures, researchers asked a deceptively simple question: what if we just made the biological structures bigger?[3]

This is the core premise of expansion microscopy, a technique that physically inflates biological samples. Now, a landmark breakthrough published in the journal Nature has pushed this method to an unprecedented extreme, successfully expanding tissue samples by a staggering one billion times in total volume.[1]

The result is nothing short of a paradigm shift for biological imaging. By stretching protein samples in all directions, researchers can now pull individual molecules far enough apart to visualize their constituent amino acids using only standard, inexpensive light microscopes found in nearly every university lab in the world.[1]

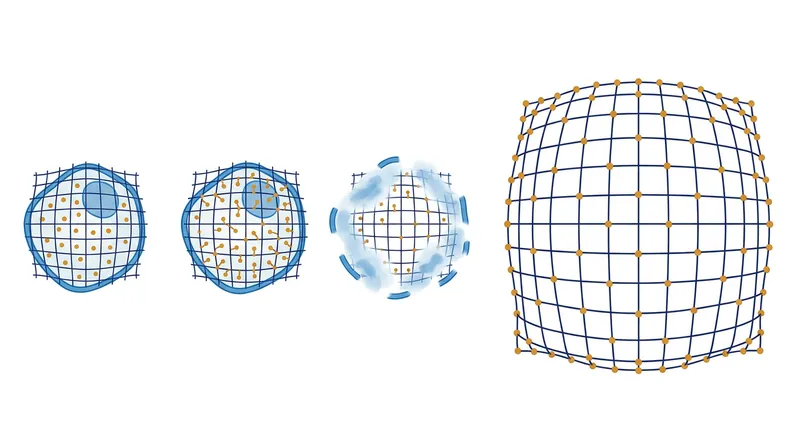

The mechanism behind this physical magnification relies on the exact same polymer chemistry found in everyday baby diapers: superabsorbent hydrogels. Researchers begin by infusing a biological sample, such as a slice of brain tissue or a cluster of cancer cells, with the liquid chemical building blocks of a polyacrylate gel.[3]

Once these chemicals have thoroughly permeated the tissue, they are triggered to link together, forming a dense, microscopic mesh that weaves itself through the entire sample. The researchers then use specialized chemical tags to anchor the specific proteins, RNA, or DNA they want to study directly to this newly formed gel matrix.

The next step in the protocol is perhaps the most counterintuitive: targeted destruction. To allow the tissue to expand without tearing itself apart, scientists must apply powerful enzymes to digest the structural proteins holding the cell together. The biological architecture is essentially dissolved, leaving only the targeted molecules anchored firmly to the gel.[2]

Finally, pure water is added to the sample. The polyacrylate hydrogel rapidly absorbs the water and swells dramatically. Because the gel expands isotropically—meaning it swells equally and uniformly in all three spatial dimensions—the relative spatial relationships between the anchored molecules are perfectly preserved, just scaled up to a massive degree.[3]

Previous iterations of this technique could expand tissues by about 100 times in volume, which equates to roughly 4.5 times in each linear dimension. The new protocol detailed in the Nature paper achieves a jaw-dropping 1,000-fold linear expansion, which translates to a billion-fold increase in total three-dimensional volume.[1]

At this massive scale, the invisible molecular world becomes highly visible. Structures that were once crowded together in a dense molecular thicket are pulled far apart. Researchers can now pinpoint the exact location of specific amino acids—the fundamental building blocks of proteins—without ever needing to power up an electron microscope.[1]

The implications for global science equity are profound. A standard fluorescence light microscope, which costs tens of thousands of dollars and sits comfortably on a regular lab bench, can now achieve the kind of molecular resolution previously reserved for elite, heavily funded institutions in the wealthiest nations.[3]

This democratization of high-end imaging is already accelerating biomedical research. Labs in developing nations or smaller regional universities can now map the intricate wiring of neural circuits, study the precise architecture of tumor biopsies, or examine the surface proteins of emerging pathogens with unprecedented clarity.

However, the technique is not without its specific limitations. The chemical expansion process requires the cells to be chemically fixed and dead; it cannot be used to watch live biological processes or cellular movements unfold in real-time.[2][3]

Furthermore, while the expansion is highly uniform on a macro scale, some imaging purists caution that at the absolute atomic level, minor structural distortions can occasionally occur during the aggressive swelling process. Validating these newly expanded structures against known electron microscopy data remains a crucial quality-control step for researchers.[2][3]

Despite these caveats, the ability to physically inflate the microscopic world represents one of the most clever and impactful workarounds in modern biology. By elegantly sidestepping the rigid laws of optics with polymer chemistry, scientists have opened a new, highly accessible window into the fundamental machinery of life.[1][3]
