What Ultra-Low Velocity Zones Reveal About the Earth's Core-Mantle Boundary

Roughly 2,900 kilometers beneath the surface—a distance roughly equivalent to driving from New York to Denver and back—the solid silicate rock of Earth's mantle collides with the swirling liquid iron of its outer core. At this boundary, the pressure reaches 1.3 million times that of the atmosphere at sea level, and temperatures exceed 3,500 degrees Celsius. It is a transition as abrupt and extreme as the boundary between the ocean and the seafloor.

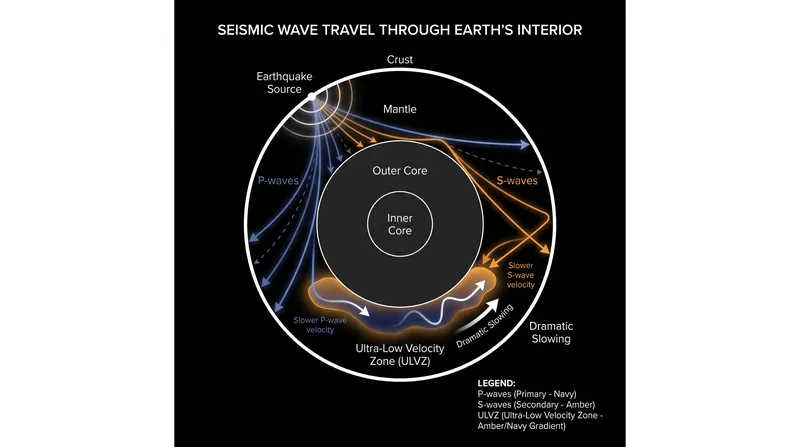

Along this deep frontier, seismologists have identified isolated, anomalous patches where the planet's internal architecture breaks down. When seismic waves generated by massive earthquakes travel through the Earth, they typically move at predictable speeds. But when these waves hit specific zones at the core-mantle boundary, their shear-wave velocities plummet by up to 45 percent.

These patches are known as ultra-low velocity zones, or ULVZs. They are typically hundreds of kilometers in diameter but remarkably thin, often measuring just 10 to 40 kilometers from top to bottom. Since their discovery, their exact composition has remained one of the most stubborn mysteries in geophysics, hidden beneath thousands of kilometers of impenetrable rock.[4]

Because no physical probe can survive the journey or the pressure, scientists map these zones using the planet's own seismic reverberations. Researchers analyze specific waveforms—such as core-diffracted P and S waves, or ScP waves that reflect off the core—to measure how much the material slows the acoustic energy.[5]

The data reveals a paradox. The extreme reduction in seismic velocity suggests that the rock in these zones is highly anomalous, but the waves also indicate that the material is significantly denser than the surrounding mantle. Measurements consistently show a density increase of 5 to 15 percent within ULVZs.[1]

"Mantle plumes beneath major oceanic hot spots appear to be rooted in unusually large structures near the core-mantle boundary, which have markedly reduced seismic wave speeds," researchers noted in a January 2026 paper published in Science Advances. The question is what physical mechanism can simultaneously slow a seismic wave by nearly half while packing more mass into the same volume.[2]

Historically, the dominant hypothesis has been partial melting. In this scenario, the intense heat from the outer core melts a fraction of the overlying mantle rock. Because liquid magma is less rigid than solid rock, it drastically slows shear waves, which cannot travel through pure liquids.[1][3]

However, a comparative analysis of seismic velocity reductions and density requirements reveals a structural flaw in the pure-melt model. To achieve a 5 to 15 percent density excess using silicate melt, the volume fraction of liquid magma would need to reach between 5 and 16 percent.[1][3]

At that concentration, the melt network would likely become gravitationally unstable. The liquid would either drain downward to pool flat against the core or be swept away by the slow, churning convection currents of the solid mantle above it. It struggles to explain how ULVZs maintain their distinct, steep-sided shapes over geological timescales.[3]

The alternative mechanism is chemical rather than thermal: iron enrichment. Iron is substantially heavier than the magnesium and silicon that dominate the lower mantle. If a localized patch of rock contains a high concentration of iron, its density naturally increases, and its seismic velocities drop.[2][5]

Recent waveform complexities recorded beneath eastern and southern Asia support this chemical origin. A February 2026 study in Geophysical Journal International analyzed high-frequency ScP waveforms in regions associated with long-term tectonic subduction. The researchers found that the widespread but laterally variable ULVZ structures in these areas are highly consistent with iron-rich origins.[5]

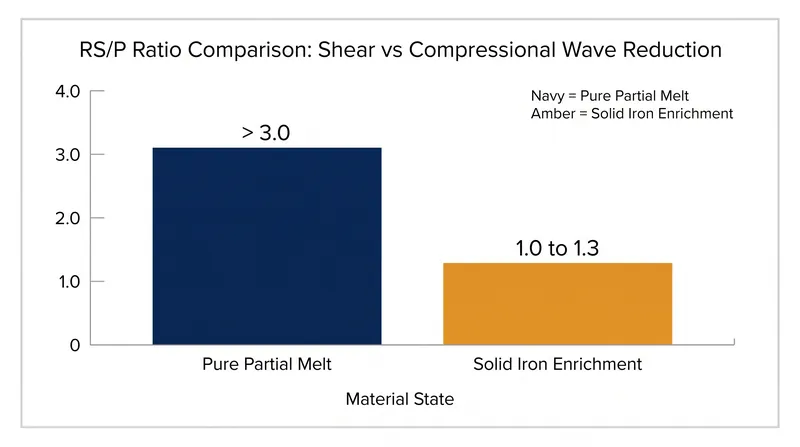

The distinction between melt and iron becomes clearer when analyzing the ratio of shear-wave reduction to compressional-wave reduction, known as the RS/P ratio. In a pure partial melt, shear waves are slowed much more aggressively than compressional waves, typically resulting in an RS/P ratio of 3.0 or higher.[2]

Yet, joint seismic analysis of the "mega-ULVZ" located beneath Hawaii—a massive structure roughly 1,000 kilometers across—constrains its RS/P ratio to between 1.0 and 1.3. This tight ratio is incompatible with a magma-dominated zone. Instead, mineralogical modeling demonstrates that solid iron-rich magnesiowüstite perfectly matches this specific seismic signature.[2][3]

The presence of metallic iron-rich magnesiowüstite does more than just explain the seismic data; it fundamentally alters the thermal dynamics of the deep Earth. Iron enrichment significantly enhances the thermal conductivity of the rock.[2]

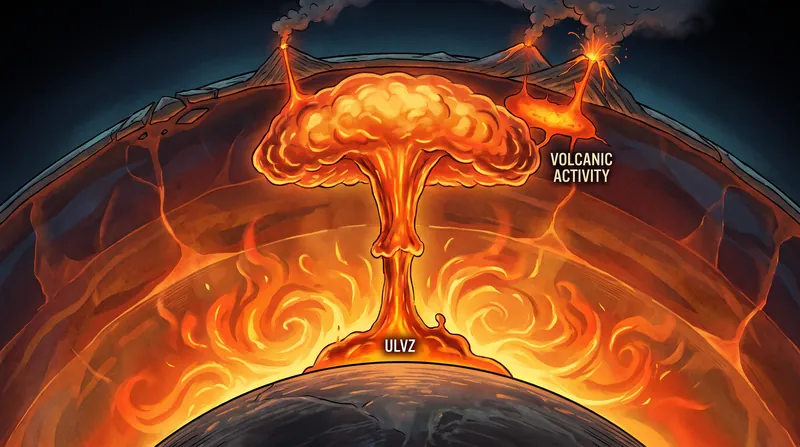

This heightened conductivity allows the mega-ULVZ to act as a massive deep-Earth radiator, efficiently drawing heat from the liquid core and transferring it to the mantle. This localized heating provides the exact mechanism needed to drive mantle plumes—the vertical columns of hot rock that rise to the surface and fuel hotspot volcanoes like those in Hawaii and Samoa.[2]

The origins of this iron remain debated. Some geophysicists argue it is a primordial relic, a dense remnant left over from the magma ocean that covered Earth shortly after its formation 4.5 billion years ago. Others suggest the iron is continuously supplied by the core itself, leaking upward through chemical reactions at the boundary.[5]

A third possibility links the deepest parts of the Earth to its surface. Tectonic plates that subduct beneath the continents eventually sink all the way to the core-mantle boundary. The iron and carbon carried down by these ancient ocean floors could accumulate over billions of years, forming dense, metallic pools that eventually organize into ULVZs.[1][5]

As deep-learning algorithms and denser seismic arrays come online, the resolution of these deep-Earth maps is improving dramatically. A September 2026 analysis utilizing artificial intelligence identified six new continuous bands of irregularities at the boundary that had previously appeared only as sparse, disconnected patches.[4]

The core-mantle boundary is not a simple, smooth dividing line, but a complex, chemically diverse landscape. The ultra-low velocity zones act as the mountains and valleys of this inverted world, dictating the flow of heat that shapes the tectonic surface above. As mapping resolution improves, these dense, iron-rich anchors are shifting from seismic anomalies to the fundamental engines of planetary convection.[3][4]
