Convection, Rotation, and Conductivity: The Three Variables That Sustain a Planetary Dynamo

A liquid iron core is not enough to protect a planet; the mantle above it must extract heat fast enough to force that liquid metal to boil and churn. Currently, Earth's mantle pulls roughly 44 terawatts of heat from the core, maintaining the violent convection required to power our magnetic shield. If that heat flow stalls, the internal fluid stabilizes, the electrical currents dissipate, and the magnetic shield dies. This thermal binding constraint dictates whether a world retains its atmosphere or is stripped bare by stellar radiation.[3]

The mechanism that converts this churning metal into a magnetic field is known as a geodynamo. As outlined by the Encyclopaedia Britannica, the dynamo theory proposes that "a mechanism exists by which the kinetic energy of a conducting fluid is converted into magnetic energy." It is a self-sustaining loop where an existing magnetic field induces electrical currents in a moving conductive fluid, which in turn generate their own magnetic fields, reinforcing the original structure.[2]

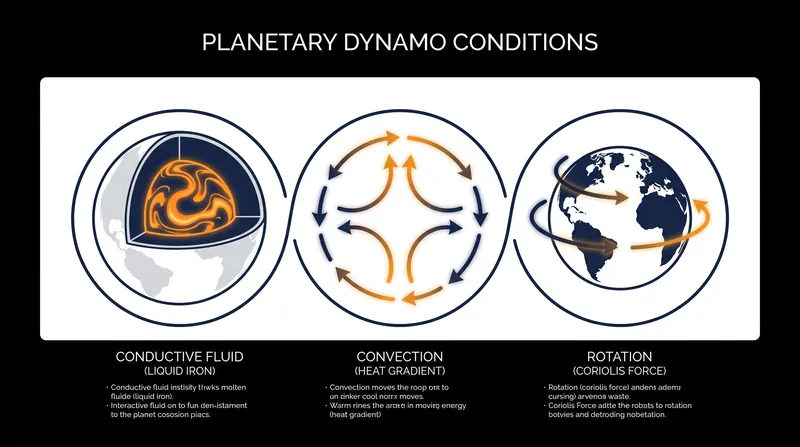

For this self-sustaining loop to ignite and survive, three non-negotiable physical conditions must be met simultaneously. First, there must be a large volume of electrically conductive fluid. Second, there must be a continuous energy source driving turbulent convection within that fluid. Third, the planet must rotate fast enough that the Coriolis force can organize the chaotic boiling into structured, helical coils.[4]

The first condition, electrical conductivity, is satisfied by the bulk composition of terrestrial planets. Earth's outer core, beginning roughly 2,890 kilometers beneath the surface, is a sphere of liquid iron and nickel approximately 2,200 miles thick. At pressures exceeding 135 gigapascals, this molten alloy possesses an electrical conductivity high enough to support massive electrical currents. Without this metallic ocean, no dynamo can exist, which is why rocky bodies that are entirely solid, like Earth's Moon today, lack global magnetic fields.[1]

The second condition, convection, is the engine of the dynamo. Heat must move from the deep interior to the cooler exterior. In Earth's core, temperatures range from 4,000 to 5,000 Kelvin, creating a steep thermal gradient. However, thermal convection alone is often insufficient. As the planet cools, the solid inner core slowly crystallizes at the center. This freezing process releases latent heat and expels lighter elements like oxygen, silicon, and sulfur into the liquid outer core, driving a secondary, highly efficient process called compositional convection.[1][5]

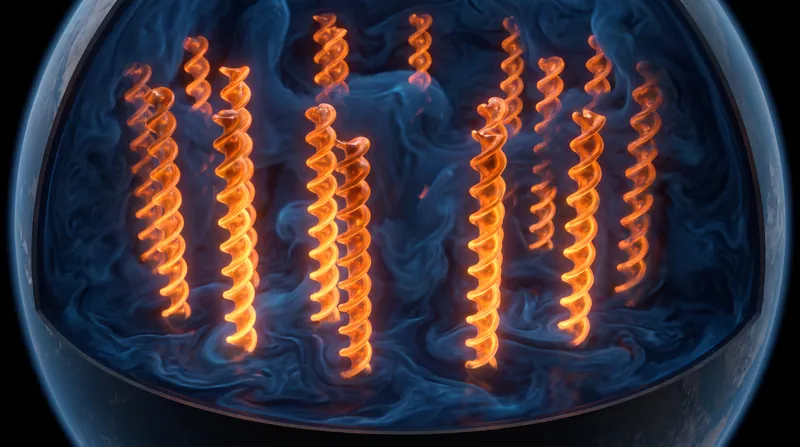

The third condition, rotation, provides the necessary architecture. Boiling fluid in a stationary sphere creates chaotic, disorganized magnetic fields that cancel each other out. A planet must rotate rapidly enough to invoke the Coriolis force. According to Geology Page, "The Coriolis effect, caused by Earth's rotation, organizes these convective motions into spiraling columns" aligned parallel to the axis of rotation. These columns, known as Taylor cylinders, twist the magnetic field lines into the highly ordered dipole structure that stretches out into space.[5]

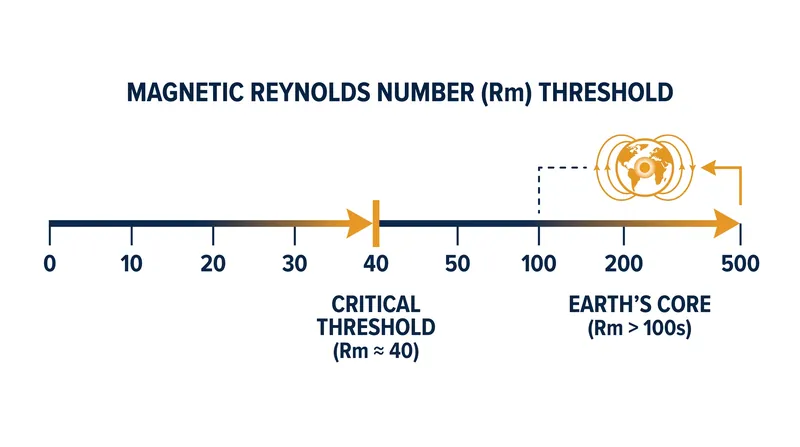

Physicists quantify the balance of these forces using dimensionless numbers. The most critical is the magnetic Reynolds number, denoted as Rm, which measures the ratio of magnetic induction (the creation of the field by fluid motion) to magnetic diffusion (the decay of the field due to electrical resistance). For a dynamo to sustain itself against natural decay, the magnetic Reynolds number must exceed a critical threshold, generally calculated to be around 40. Earth's outer core operates with an Rm in the hundreds.[3]

The theoretical framework for these mechanics was not developed overnight. In 1919, physicist Joseph Larmor first proposed that the Sun's magnetic field was generated by a dynamo mechanism. It took until 1946 for Walter Elsasser to rigorously apply this concept to Earth, proving that the fluid motions in the outer core could sustain the geomagnetic field. Since then, the core requirements of the dynamo theory have become the standard model for planetary physics.[2]

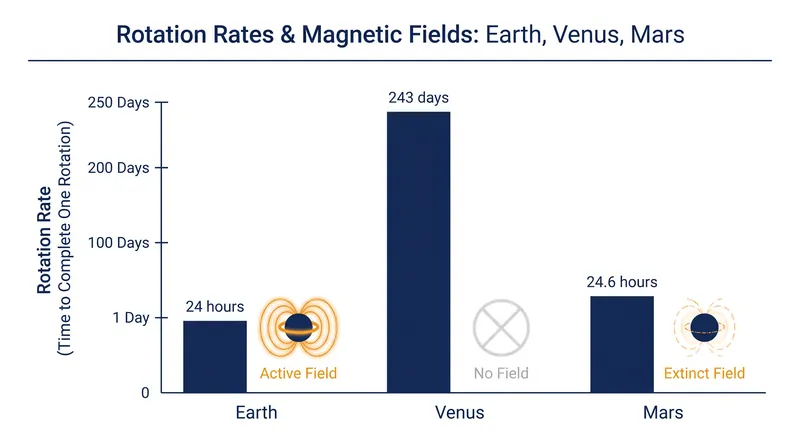

The fragility of these three conditions becomes apparent when comparing Earth to its planetary neighbors. Venus is nearly identical to Earth in size, mass, and bulk composition, and it almost certainly possesses a liquid iron core. Yet, Venus has no detectable global magnetic field. Planetary scientists attribute this failure to two missing conditions: Venus rotates agonizingly slowly, completing one turn every 243 Earth days, which weakens the Coriolis force. More importantly, its mantle does not extract heat efficiently, stifling core convection.[4]

Mars offers a different cautionary tale. Crustal rocks in the Martian southern hemisphere retain strong magnetic signatures, proving that the Red Planet once possessed a robust geodynamo. However, roughly 4.0 billion years ago, that dynamo permanently shut down. Because Mars is significantly smaller than Earth, it cooled much faster. The core likely froze solid, or the temperature gradient dropped below the threshold required to drive convection, killing the magnetic Reynolds number.[3]

Earth's own dynamo has not been a static, unchanging shield. Paleomagnetic data extracted from ancient zircon crystals in Western Australia indicates that Earth has maintained a magnetic field for at least 4.2 billion years. However, the strength of this field has fluctuated wildly, and its polarity has reversed hundreds of times. These reversals occur when the organized Taylor cylinders in the outer core temporarily break down into chaotic turbulence before re-establishing a new dominant polarity.[5]

Modeling these exact fluid dynamics remains one of the most computationally expensive challenges in modern physics. The difficulty lies in the Ekman number, which represents the ratio of viscous forces to the Coriolis force. In Earth's liquid core, the Ekman number is astonishingly small—roughly 10^-15. Current supercomputers can only simulate dynamos with Ekman numbers around 10^-7, meaning our best digital models are still vastly more viscous than the actual iron ocean churning beneath our feet.[4]

To bridge this gap, researchers rely on scaling laws derived from the simulations they can run, extrapolating those trends down to planetary conditions. These extrapolations suggest that the power required to maintain Earth's magnetic field is between 1 and 2 terawatts, a small fraction of the 44 terawatts of total heat flowing out of the core. The vast majority of the energy is lost to thermodynamic inefficiency, highlighting how much raw heat is required to produce a functional shield.[3]

The implications of these three conditions extend far beyond our solar system. As astronomers discover thousands of exoplanets, the search for habitable worlds hinges on identifying which ones possess magnetic fields. A rocky exoplanet in the habitable zone of a volatile red dwarf star will only retain its surface water if it has a dynamo strong enough to deflect the stellar wind.[4]

Verifying these distant dynamos is the next major frontier in astrophysics. Researchers are currently using low-frequency radio telescopes to search for auroral radio emissions from exoplanets, which would serve as direct proof of a magnetic field. Until those signals are detected, the three conditions—a conductive fluid, vigorous convection, and rapid rotation—remain our only guide to predicting which worlds might harbor the protective shields necessary for life.[6]
