The Core Mechanics of Superconductivity: Comparing Type-I, Type-II, and High-Temperature Superconductors

Superconductivity is the ability of certain materials to conduct electricity with exactly zero resistance while simultaneously expelling magnetic fields. This phenomenon is not a single, uniform behavior across all materials, but is instead divided into three distinct mechanical regimes: Type-I, Type-II, and High-Temperature cuprates.

In the simplest terms, Type-I materials perfectly expel magnetic fields but only function at extreme cold; Type-II materials allow magnetic fields to penetrate in microscopic tubes, enabling them to survive much higher magnetic forces; and High-Temperature cuprates break the conventional rules entirely, operating above the critical liquid nitrogen barrier.[8]

The foundation of conventional superconductivity lies in BCS theory, named after John Bardeen, Leon Cooper, and Robert Schrieffer. In a normal conductor, electrons bump into the vibrating atomic lattice, losing energy as heat—this is electrical resistance. But in a Type-I superconductor cooled near absolute zero, a passing electron pulls slightly on the positively charged lattice, creating a tiny ripple of high positive charge.

A second electron is attracted to this ripple, binding the two electrons into a "Cooper pair." Because these pairs act as a single quantum entity (a boson), they glide through the lattice without colliding, resulting in zero electrical resistance.[1]

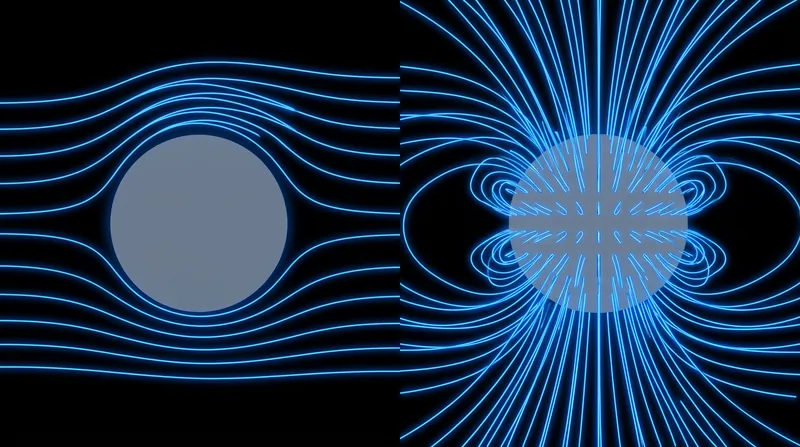

Type-I superconductors also exhibit the perfect Meissner effect: they completely expel magnetic fields from their interior. However, this perfection is their greatest limitation. If the external magnetic field becomes too strong, or if the electrical current running through the material generates too much of its own magnetic field, the Cooper pairs are ripped apart. The superconducting state collapses instantly. Because of this fragility, Type-I materials like pure lead or aluminum are largely restricted to highly controlled quantum computing environments and ultra-sensitive magnetic detectors.[1][8]

To build powerful electromagnets for MRI machines or particle accelerators, engineers rely on Type-II superconductors. These are typically alloys, such as niobium-titanium, which handle magnetic fields differently. Instead of perfectly expelling the field, Type-II materials allow magnetic flux to penetrate their interior in microscopic, quantized tubes called Abrikosov vortices. The material inside the tube reverts to a normal, resistive state, but the material surrounding the tube remains superconducting.[6][7]

This "vortex state" is a brilliant compromise of physics. By allowing the magnetic field to pass through in isolated threads, the bulk of the material can maintain its superconducting properties even under immense magnetic pressure. The primary engineering challenge with Type-II materials is "pinning" these vortices in place.

If the electrical current pushes the vortices so that they move, their motion generates heat and creates electrical resistance. By introducing microscopic defects into the material's crystal structure, materials scientists can trap the vortices, allowing the alloy to carry massive currents in high magnetic fields.[7][8]

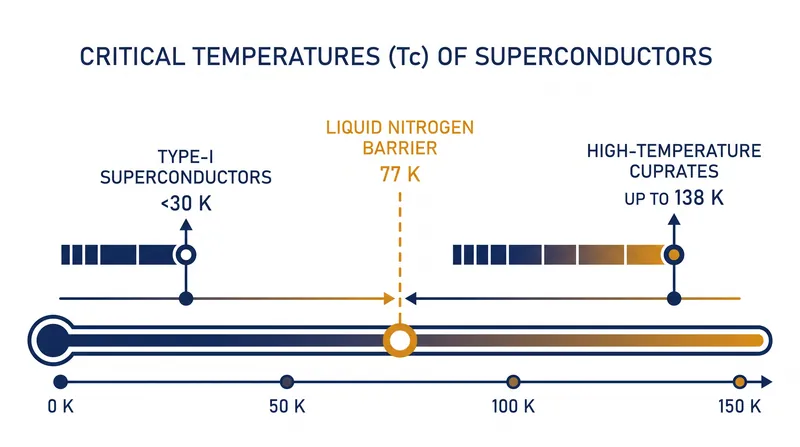

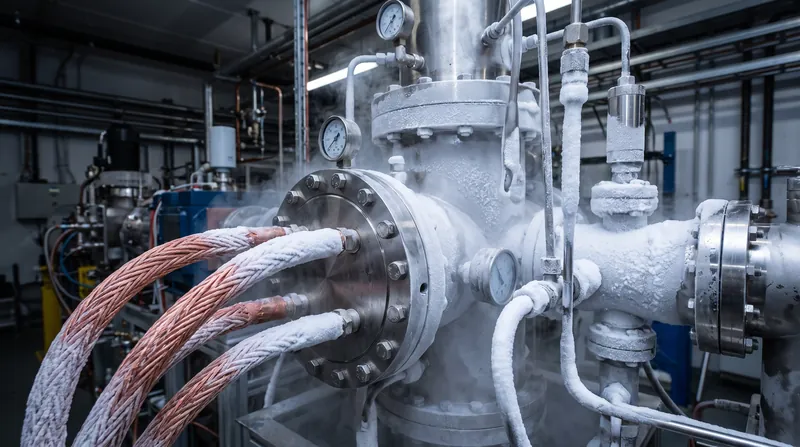

Both Type-I and conventional Type-II materials share a severe operational constraint: they must be cooled to near absolute zero, typically requiring expensive and difficult-to-handle liquid helium. This changed dramatically in 1986 with the discovery of high-temperature superconductors, specifically a class of ceramics known as cuprates. These materials feature alternating layers of copper-oxide planes and can achieve superconductivity at temperatures exceeding 77 Kelvin.[4][7]

The 77 Kelvin threshold is the most important number in applied superconductivity because it is the boiling point of liquid nitrogen. Liquid nitrogen is cheap, abundant, and vastly easier to engineer cooling systems around than liquid helium. Cuprates suddenly made macroscopic applications—like lossless power transmission cables and advanced fusion reactor magnets—economically and technically feasible.[4][6]

However, the mechanism driving high-temperature superconductivity in cuprates remains one of the most profound unsolved mysteries in condensed matter physics. The phonon-mediated pairing of BCS theory cannot explain how Cooper pairs form at such high temperatures; the thermal energy should easily shake them apart. The evidence strongly suggests that the "glue" binding the electrons in cuprates is magnetic rather than structural.[1][2][5]

In the copper-oxide planes of a cuprate, electrons are tightly packed and strongly correlated, meaning the behavior of one electron heavily influences its neighbors. Physicists believe that fluctuations in the magnetic spins of these electrons—rather than vibrations in the atomic lattice—mediate the pairing. When an electron moves through the plane, it leaves a wake of disturbed magnetic spins, which then attracts a second electron.[2][3]

While the broad strokes of this magnetic pairing are widely accepted, the exact mathematical model remains fiercely contested. Researchers have spent decades running complex simulations of the Hubbard model—a mathematical framework used to describe interacting electrons in a lattice—to prove whether it naturally gives rise to superconductivity. Recent computational breakthroughs have provided strong evidence that the Hubbard model does indeed support superconductivity, bringing the mechanism into sharper focus, though a complete, universally accepted theory is still lacking.[2][3][5]

The uncertainty surrounding the cuprate mechanism is not just an academic problem; it is the primary bottleneck in discovering new superconducting materials. Without a predictive theory, materials scientists are largely forced to rely on trial and error, doping different ceramic compounds and measuring the results. If physicists can definitively solve the cuprate pairing mechanism, it could provide the blueprint for engineering a true room-temperature superconductor.[4][5][8]

Until that theoretical breakthrough occurs, the applied world continues to push the limits of known materials. High-temperature cuprates are currently being manufactured into flexible tapes (REBCO) to build the next generation of compact fusion reactors, while conventional Type-II alloys remain the workhorses of medical imaging and particle physics. The mechanics of how electrons pair and flow without resistance may vary wildly across these materials, but their collective impact on energy and technology is absolute.[6][7][8]
