The Shift from Silicon to Light: Why Photonics is the New Moore's Law for AI

The shift from vacuum tubes to silicon transistors saved early computing from collapsing under its own heat by changing the material of the switch. Today, the artificial intelligence industry is confronting an identical physical wall, but the solution requires changing the medium of the signal itself. Copper wiring, the circulatory system of the modern data center, can no longer move electrons fast enough to feed the largest AI models without melting or losing signal integrity. The necessary successor is silicon photonics—transmitting data via light—and this week, the semiconductor industry's heaviest heavyweights formally declared the end of the copper era.[4][6]

On Sunday, Taiwan's Ministry of Economic Affairs announced the formation of the Silicon Photonics Industry Alliance, a coalition of more than 30 leading technology corporations spearheaded by Taiwan Semiconductor Manufacturing Company (TSMC) and Advanced Semiconductor Engineering (ASE). The mandate is explicit: to dominate the global supply chain for co-packaged optics (CPO), a technology that integrates optical communication components directly alongside AI processors. "We will fully dominate this silicon photonics supply chain and achieve true self-reliance," the ministry stated in its announcement.[3][5]

Simultaneously, optical design firm Crealights and semiconductor manufacturer GlobalFoundries announced a deepened strategic partnership on Tuesday to mass-produce 6.4-terabit-per-second near-package optics (NPO) products. By leveraging GlobalFoundries' manufacturing footprint, Crealights aims to deploy high-bandwidth optical interconnects across North American and global AI clusters. A spokesperson for Crealights noted that adding GlobalFoundries' network "ensures a stable supply of next-generation silicon photonic products and completes the commercial closed-loop from local R&D to global delivery."[1][7]

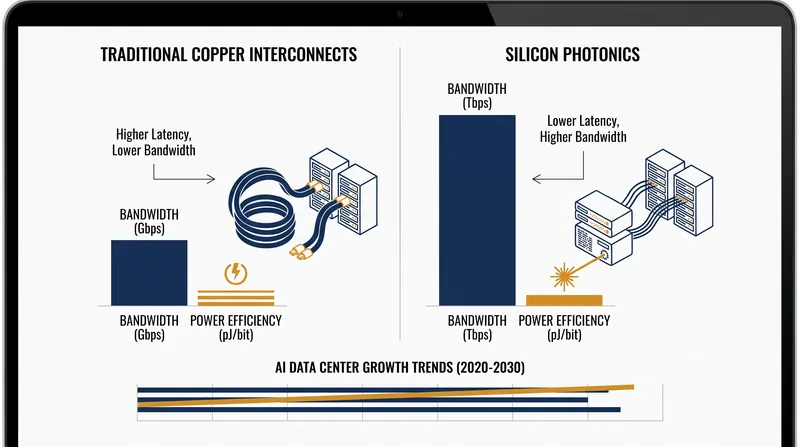

The argument for photonics is no longer a theoretical laboratory exercise; it is a strict mathematical necessity for the survival of AI scaling. As transformer-based models grow exponentially, the bottleneck has shifted from raw compute power to data movement. High-performance AI accelerators are increasingly sitting idle, waiting for data to arrive over resistive, power-hungry copper cables. Silicon photonics promises to cut power consumption by 30 to 50 percent while increasing data transmission speeds by orders of magnitude.[3][6]

The strongest counter-argument to an immediate photonic takeover is the sheer manufacturing complexity of integrating lasers onto silicon substrates. Silicon is an indirect bandgap material, meaning it cannot natively generate light. Consequently, optical components must be meticulously packaged with electronic chips, a process that currently suffers from lower yields and higher upfront costs than mature copper extrusion. Integrating these disparate materials into a single, reliable package remains the central engineering hurdle.[6]

Yet, the capital deployment of 2026 proves the industry is willing to absorb that cost to break the copper ceiling. According to market analysts at IDTechEx, 2026 marks the commercialization of 1.6-terabit optical transceivers, pushing the photonic integrated circuit market toward a projected $50 billion valuation over the next decade. Connection components have surged from 15 percent of data center capital expenditures three years ago to over 30 percent today, elevating optical networking to a co-equal infrastructure layer alongside compute.[6]

For Taiwan, the transition is a matter of national economic security. The island currently commands more than 90 percent of the global market for advanced semiconductor processes at 7 nanometers and below, alongside a 50 percent share of the packaging and testing market. By establishing the Silicon Photonics Industry Alliance, the government intends to extend that monopoly into the optical era, targeting a production output of 15 trillion New Taiwan dollars and the creation of 500,000 jobs by 2040 under President Lai Ching-te's "AI New Ten Constructions" initiative.[3][5]

The timeline for this architectural overhaul is aggressive. TSMC is preparing to validate equipment for its next-generation Chip-on-Panel-on-Substrate (CoPoS) technology this year, aiming for small-scale pilot production in 2027 and full-scale mass production by the second half of 2028. CoPoS will replace traditional 12-inch round wafers with large rectangular panels, raising material utilization above 90 percent to accommodate the complex packaging demands of optical interconnects.[2][3]

The stakes extend beyond corporate market share. The geopolitical reality of the AI arms race means that whichever region controls the high-volume manufacturing of optical interconnects will dictate the pace of global AI development. With hyperscalers demanding millions of reliable components to build out 10,000-card computing clusters, the shift from electrons to photons is now the definitive hardware race of the decade.[5][7]
