33.7% is the Hard Limit: Why the Shockley-Queisser Principle Makes Single-Junction Solar Cells Fundamentally Inefficient

For a solar panel to generate electricity, an incoming photon must carry exactly enough energy to knock an electron loose across a semiconductor material's bandgap. If the photon has too little energy, it passes straight through the cell; if it has too much, the excess energy is instantly lost as waste heat. That fundamental thermodynamic bottleneck—first calculated in 1961 by physicists William Shockley and Hans-Joachim Queisser—dictates that a standard single-junction solar cell can never convert more than 33.7% of the sun's energy into electricity. Today, after decades of rapid manufacturing improvements, the global solar industry is colliding violently with that theoretical ceiling.[4]

The argument here is straightforward: single-junction silicon, the undisputed workhorse of the global energy transition, has reached the end of its thermodynamic runway. Commercial monocrystalline panels currently hover around 24% efficiency in real-world conditions. Pushing them closer to the 33.7% theoretical maximum requires exponentially more expensive manufacturing techniques for rapidly diminishing marginal returns. The alternative is to abandon the single-junction architecture entirely and move to multi-junction or 'tandem' cells—stacking different materials on top of one another to capture different parts of the solar spectrum.[1][4][5]

Tandem architectures mathematically shatter the Shockley-Queisser limit, raising the theoretical ceiling for a two-layer cell to 42%, and a three-layer cell to an astonishing 49%. But this transition trades a solved physics problem for a highly complex manufacturing and durability problem. The strongest counter-argument to the tandem revolution is that a slightly less efficient silicon panel that reliably lasts 30 years is economically superior to a highly efficient perovskite-silicon tandem cell that degrades rapidly in five. Project financiers model risk over decades, and unproven materials introduce variables that make capital markets deeply uncomfortable.[5]

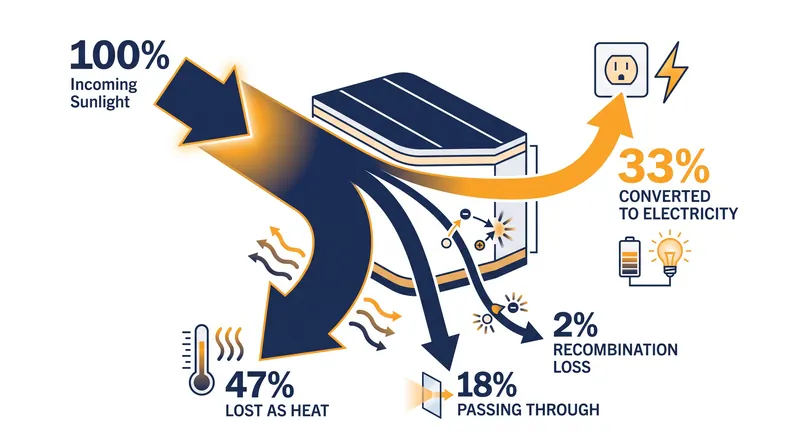

To understand why the industry is forced to make this trade-off, one must look at exactly where the lost energy goes in a single-junction cell. The Shockley-Queisser limit assumes a single semiconductor material with one p-n junction. In a perfect silicon cell with a bandgap of 1.1 electron volts (eV), roughly 47% of the incoming solar energy is lost as heat because the high-energy photons carry far more energy than the bandgap requires. Another 18% of the photons simply pass through the material entirely because they lack the minimum energy to dislodge an electron.[4][5]

The limit is derived using the principle of detailed balance, which assumes that in thermal equilibrium, the rate of photons absorbed by the material must perfectly equal the rate of photons emitted through radiative recombination. Shockley and Queisser modeled the sun as a blackbody radiator at 6,000 Kelvin and calculated that the optimal bandgap for capturing this specific spectrum is roughly 1.34 eV, which yields the 33.7% maximum. Silicon, with a slightly lower bandgap of 1.1 eV, has a theoretical maximum of about 32%.[4]

These are not engineering inefficiencies that can be polished away with better factory equipment or purer materials; they are the immutable laws of quantum mechanics. Even if a manufacturer perfectly eliminates all surface reflection, all internal electrical resistance, and all shading from the metal contacts on the front of the cell, the absolute maximum power output remains capped at 337 watts per square meter under standard AM1.5 solar spectrum conditions, which simulate solar noon during the spring equinox.[1][3][4][5]

This is why the current commercial baseline of 24% is so significant. The gap between 24% and the 33.7% hard limit is less than 10 percentage points. Closing that gap requires mitigating secondary losses—like Auger recombination, where an excited electron transfers its energy to another electron rather than to the external circuit. Researchers have mapped the exact efficiency limits of these imperfect crystals from first principles, proving that the closer a single-junction cell gets to the Shockley-Queisser limit, the more expensive each incremental fraction of a percent becomes.[1][2][4][5]

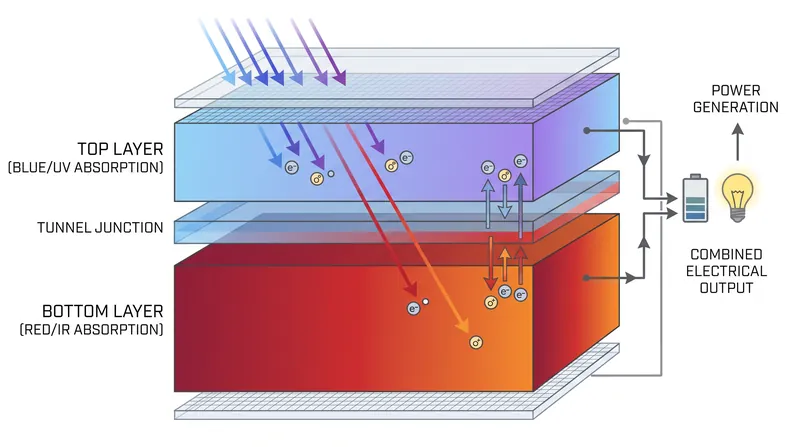

The tandem cell approach bypasses this bottleneck by stacking a high-bandgap material on top of a low-bandgap material. The top layer absorbs the high-energy blue and ultraviolet light, converting it efficiently without losing the excess as heat. The lower-energy red and infrared light passes through the top layer and is absorbed by the bottom layer. By dividing the solar spectrum into distinct segments, a two-layer tandem cell fundamentally rewrites the math, pushing the theoretical efficiency limit to 42%.[2][5]

Silicon-based monolithic tandem cells, which typically pair a traditional silicon base with a top layer of metal-halide perovskite, are currently the most viable commercial candidates. In laboratory settings, these tandem structures have already demonstrated efficiencies exceeding 33%, effectively matching the absolute theoretical limit of a single-junction cell and proving that the multi-junction concept works in practice, though scaling these prototypes to standard two-square-meter panels remains a massive engineering hurdle.[2][6]

However, the case against tandem cells is rooted in the brutal economics of grid-scale deployment. Single-junction silicon manufacturing is one of the most heavily optimized industrial processes on Earth. The economies of scale have driven the cost of solar modules down by more than 90% over the last decade. Introducing a second active layer requires precise control of interface properties, complex tunnel diodes to manage electron flow between the layers, and entirely new deposition techniques that disrupt existing supply chains.[5][6]

More critically, the most promising top-layer materials—perovskites—are notoriously unstable. They degrade rapidly when exposed to moisture, oxygen, and even the very ultraviolet light they are designed to absorb. A solar farm developer modeling the levelized cost of energy (LCOE) over a 25-year lifespan must weigh the immediate boost in power output against the severe risk of premature module failure. Without a guaranteed multi-decade lifespan, the financial math for utility-scale deployment collapses.[6]

If a tandem cell degrades to 80% of its original output within a decade, the lifetime energy yield may actually be lower than that of a standard 24% efficient single-junction silicon panel that degrades at a predictable 0.4% per year. The financial models are unforgiving: the increased efficiency must perfectly offset the increased manufacturing cost and the higher risk premium demanded by project financiers who are wary of unproven technologies operating in harsh outdoor environments.[6]

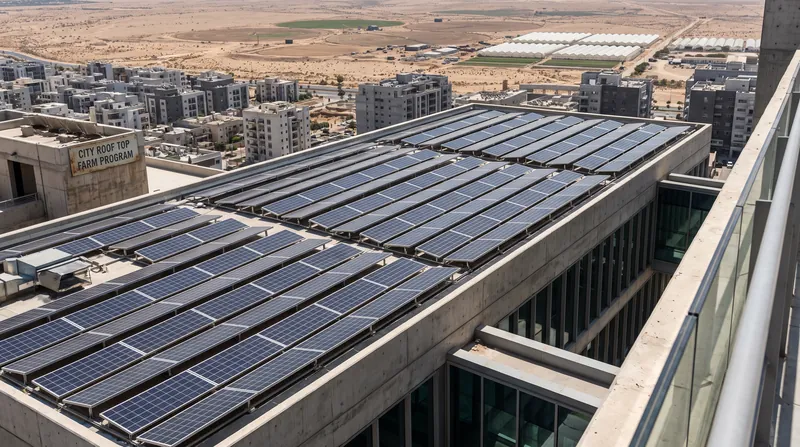

Yet, the spatial constraints of the modern energy grid are beginning to force the issue. In dense urban environments, on commercial rooftops, and in regions with high land costs, the physical footprint of a solar array is the primary limiting factor. When space is constrained, maximizing the power output per square meter becomes significantly more valuable than minimizing the raw cost per watt. A 30% efficient panel generates the same power in substantially less space, fundamentally altering the project's real estate economics.[6]

This is where the Shockley-Queisser limit transitions from an academic curiosity to a binding commercial constraint. If a data center or a green-hydrogen facility requires a specific megawatt capacity to operate, and the available land can only fit a certain number of panels, single-junction silicon simply runs out of room. The 33.7% limit means that no amount of future silicon innovation can shrink the required footprint beyond a certain point, forcing developers to look elsewhere.[3][6]

The transition to tandem architectures is therefore not merely an option; it is a structural mandate for the next phase of the global energy transition. The core engineering challenge has shifted away from extracting the last few drops of efficiency out of a single p-n junction, and toward stabilizing the multi-junction materials that can finally break the 33.7% barrier at a commercial scale. The industry is betting billions that the chemistry of perovskites can be tamed before the physical limits of silicon choke off deployment growth.[2][5][6]

The deciding factor will not be a sudden breakthrough in single-junction physics, because the physics are already solved and sealed. The deciding factor will be the exact year that a major manufacturer offers a bankable 25-year warranty on a 30% efficient tandem module. Until that warranty is signed, the 33.7% limit remains the hardest ceiling in renewable energy, and the industry must continue to build wider rather than better, covering more land to compensate for a thermodynamic boundary it cannot cross.[1][3]
