The Mechanics of Laptop Memory: Comparing Single-Channel vs. Dual-Channel RAM and the Impact of DDR4 vs. DDR5

If you are buying a laptop today, the old rule that you must buy two sticks of RAM to avoid crippling performance no longer applies universally. For DDR4 systems, a single stick still bottlenecks performance by up to 25%. But DDR5 fundamentally changes the architecture, putting two independent channels on a single stick. This means a base-model laptop with one stick of DDR5 will perform within 3% of its dual-stick counterpart for most tasks.[2][3][8]

To understand why, you have to look at the physical connection between the processor and the memory. In a DDR4 laptop, a single stick of RAM communicates over a single 64-bit data bus. The CPU can only read or write data to that stick one operation at a time, creating a strict sequential traffic jam when the processor demands large amounts of information.[4]

Adding a second DDR4 stick opens a second 64-bit lane, creating a 128-bit highway. This dual-channel configuration doubles the theoretical memory bandwidth. For years, this was the most critical upgrade a laptop buyer could make, as running single-channel DDR4 actively starves the CPU of data during intensive tasks.[5]

The real-world penalty for ignoring this is severe. Recent benchmarks of processors running single-channel DDR4 show average performance drops of 14%, with some memory-sensitive applications and games plummeting by up to 25%. Buying a single-stick DDR4 laptop means leaving a quarter of the machine's potential performance entirely unutilized.[3]

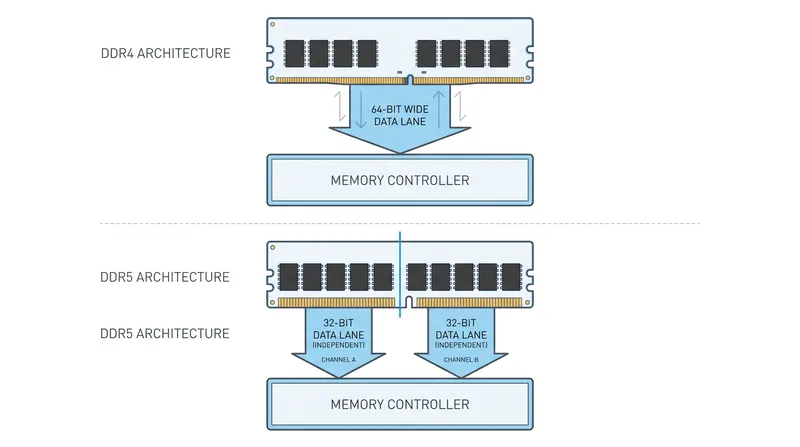

DDR5 rewrites this physical layout. Instead of a single 64-bit channel per stick, every DDR5 module is split internally into two independent 32-bit sub-channels. While the total bus width per stick remains 64 bits, the CPU can now execute two concurrent memory operations on a single stick simultaneously, effectively mimicking dual-channel behavior on a single module.[4]

This internal dual-channel design drastically mitigates the single-stick penalty. When paired with modern processors—particularly those with large onboard caches like AMD's 3D V-Cache chips—a single stick of DDR5 drops performance by less than 3% compared to a dual-stick setup. The processor's cache handles the immediate data needs, while the DDR5 stick's dual 32-bit channels efficiently manage the background flow.[2]

For consumers, this shifts the buying strategy entirely. If a laptop uses DDR4, you must ensure it has two sticks of RAM (for example, 2x8GB rather than 1x16GB) or plan to add a second stick immediately. If the laptop uses DDR5, a 1x16GB configuration is perfectly viable out of the box, allowing you to easily upgrade to 32GB later without discarding the original memory.[1][8]

The transition from DDR4 to DDR5 is not just about channels; it is a trade-off between bandwidth and latency. DDR4 typically runs at speeds between 2400 MT/s and 3200 MT/s with tight latency timings. DDR5 starts at 4800 MT/s and scales upwards, but introduces looser initial latency, meaning it takes slightly longer to initiate a data transfer.[6]

In early DDR5 adoption, this higher latency caused some performance regressions in older applications. However, as laptop processors have evolved to feature larger onboard caches, they rely less on instantaneous memory response times and benefit significantly more from DDR5's massive bandwidth pipeline once the transfer begins.[7]

There is one major caveat to the single-stick DDR5 rule: integrated graphics. Laptops without a dedicated Nvidia or AMD graphics card rely entirely on system RAM for video memory. Integrated GPUs are incredibly bandwidth-hungry and will still benefit noticeably from the true 128-bit bus provided by two physical DDR5 sticks.[5][8]

DDR5 also relocates power management to improve efficiency. On DDR4 laptops, the motherboard controls voltage regulation, which can lead to inefficiencies and heat generation across the board. DDR5 moves the Power Management IC (PMIC) directly onto the memory module itself, allowing the RAM to regulate its own power.[4]

This on-module power management, combined with a drop in base operating voltage from 1.2V in DDR4 to 1.1V in DDR5, improves overall power efficiency. For laptop users, this translates to slightly better battery life and reduced thermal throttling under heavy memory loads, keeping the chassis cooler during extended work sessions.[7]

As software becomes more complex, the baseline memory requirement is shifting from 8GB to 16GB. Because DDR5 handles single-stick configurations so gracefully, buyers can confidently purchase a 16GB (1x16GB) DDR5 laptop today, knowing they have an empty slot for a future 32GB upgrade without suffering a severe performance penalty in the interim.[1][8]

The mechanics of laptop memory have fundamentally changed. The old advice to avoid single-channel memory at all costs remains true for older or budget DDR4 laptops. But for modern machines, DDR5's architectural leap has turned the single-stick configuration from a critical bottleneck into a smart, upgrade-friendly starting point.[2][8]
