The Evidence Pack: How Networked Geothermal is Turning Gas Utilities into Clean Heating Providers

Building heat is a massive source of carbon emissions, primarily driven by the combustion of natural gas and heating oil in residential basements. While individual air-source heat pumps are an excellent solution for many homes, electrifying entire cold-climate cities building-by-building presents a looming infrastructure challenge. As millions of homes switch to electric heating, the winter peak demand on the power grid is projected to skyrocket, requiring billions of dollars in new transmission lines and power plants.[5]

Enter the Thermal Energy Network (TEN), also known as networked geothermal. Instead of relying on millions of individual outdoor air compressors fighting against freezing winter temperatures, this approach reimagines heating and cooling as a shared neighborhood utility. By replacing aging natural gas pipelines with a closed loop of ambient-temperature water, utilities can connect entire city blocks to a single, highly efficient thermal web.[1][4]

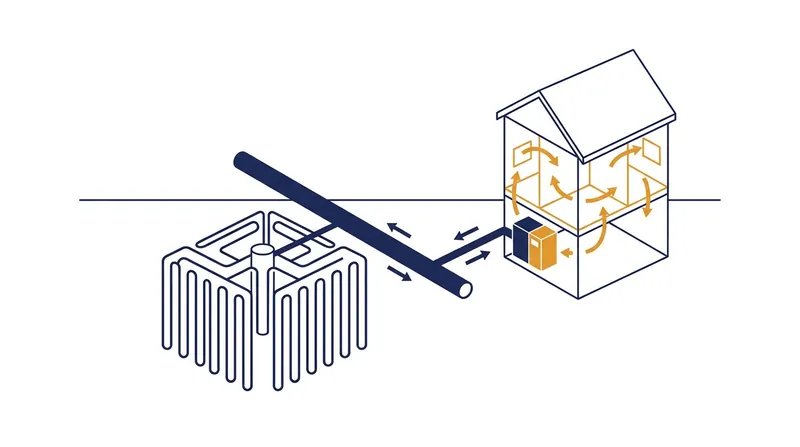

The mechanism begins with the earth itself, which acts as a massive, inexhaustible thermal battery. Just a few hundred feet below the frost line, the ground maintains a constant temperature of roughly 55 degrees Fahrenheit year-round, regardless of blizzards or heatwaves on the surface. To tap into this stable environment, utility crews drill a series of deep, vertical boreholes and insert U-shaped pipes filled with water and an environmentally friendly antifreeze.[1][2][3][4]

This central borefield connects to a horizontal water main running beneath the street—occupying the exact same right-of-way previously used by natural gas pipes. Service lines branch off this main into individual homes and businesses. Inside the building, a ground-source heat pump extracts thermal energy from the water loop, concentrates it using a standard refrigerant cycle, and distributes warm air through the building's existing ductwork.[1][2][6]

In the summer, the system simply runs in reverse. The heat pump pulls warm air out of the house and rejects it into the water loop, which carries the heat back underground to be absorbed by the cool earth. Because the system is exchanging heat with the mild 55-degree ground rather than fighting against sweltering summer air, it requires dramatically less electricity to operate than a traditional air conditioner.[1][2][6]

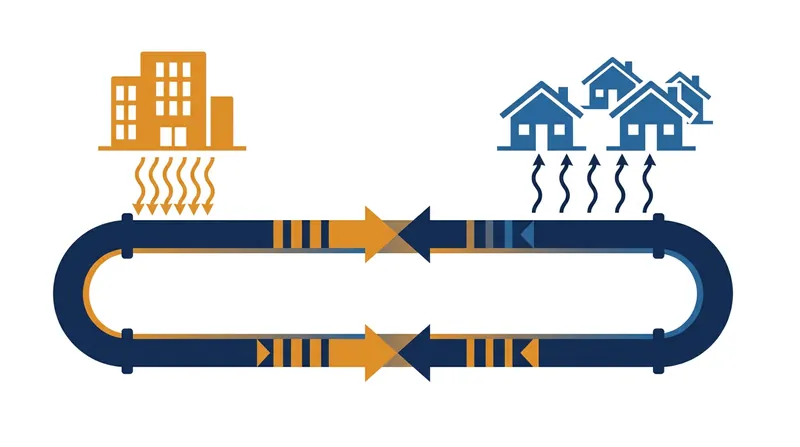

But the true breakthrough of a thermal energy network is "load cancellation"—the ability to share energy between buildings with fundamentally different needs. In a diverse neighborhood, an office building, a grocery store, a data center, or an ice rink might require heavy cooling even in the dead of winter due to internal equipment or refrigeration demands.[1][4]

In a traditional setup, that commercial building would vent its excess heat into the outside air, wasting it entirely. On a thermal network, the building rejects its heat directly into the shared water loop. That injected thermal energy raises the temperature of the loop, and the residential homes down the street immediately absorb that exact same heat to warm their living rooms.[1][4]

This synchronous energy sharing allows thermal networks to achieve staggering efficiencies. While a high-efficiency gas furnace operates at about 95 percent efficiency, and a standard air-source heat pump reaches 250 to 300 percent, a networked geothermal system can achieve efficiencies of 500 to 600 percent. For every one unit of electrical energy used to run the pumps, the system delivers five to six units of heating or cooling.[1][3][7]

This hyper-efficiency translates directly to grid stability. Research by Synapse Energy Economics found that transitioning neighborhoods to thermal energy networks instead of individual air-source heat pumps reduces the winter peak electricity demand by 25 to 62 percent. Scaled across a region, this peak reduction could save ratepayers billions of dollars in avoided electrical grid upgrades and new power plant construction.[5]

Beyond the physics, thermal networks offer a profound socioeconomic benefit: they provide a survival strategy for natural gas utilities and their workforce. As states mandate aggressive decarbonization targets, gas utilities face an existential threat. If customers defect to individual heat pumps one by one, the remaining customers are left paying the maintenance costs of a sprawling, increasingly obsolete gas network.[4][7]

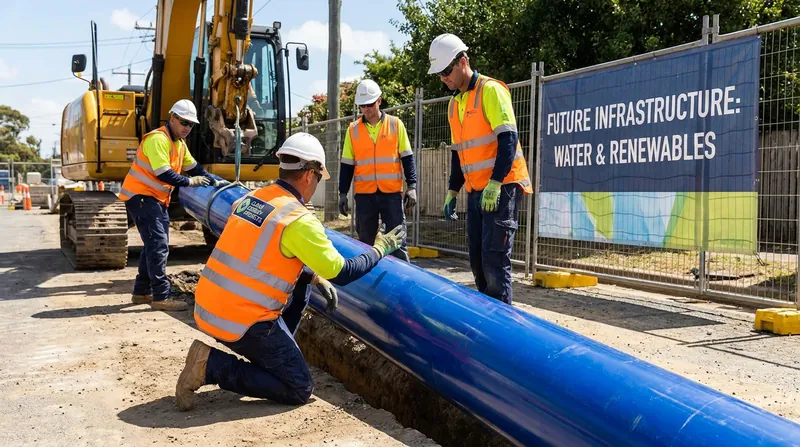

Thermal networks allow these companies to transition from selling combustible gas to selling clean thermal energy. The infrastructure requires the exact same skill sets—trenching streets, laying pipes, welding joints, and managing fluid dynamics—that gas pipefitters and utility workers already possess. It preserves union jobs and leverages existing utility capital to finance the clean energy transition.[3][4][7]

This transition is already moving from theory to reality. In Framingham, Massachusetts, the utility company Eversource recently launched the nation's first gas-utility-owned networked geothermal pilot. The mile-long loop connects 36 buildings, including private residences, a fire station, and a public housing complex, serving 125 customer accounts. Similar utility-led pilots are underway in New York, led by Central Hudson and other regional providers.[2][3][4][7]

For the homeowner, the utility model removes the largest historical barrier to geothermal energy: the upfront cost. In the past, installing a private ground-source heat pump required a homeowner to pay upwards of $30,000 to drill their own private boreholes. Under the network model, the utility finances, owns, and maintains the underground infrastructure, while the customer simply pays a predictable monthly utility bill for their thermal connection.[1][4][7]

Despite the immense promise, scaling these networks presents significant challenges. The upfront capital required to drill borefields and trench city streets is massive, and regulatory frameworks in most states do not yet legally allow gas utilities to sell anything other than gas. State legislatures must pass new laws—as New York, Massachusetts, Colorado, and Maryland recently have—to redefine utility charters and permit the sale of thermal energy.[3][6][7]

As these early pilots generate real-world performance data, urban planners and energy experts are watching closely. If successful, thermal energy networks could rewrite the blueprint for the modern city, transforming the ground beneath our feet into a shared, zero-emission engine for human comfort.[3][4][7]
