The 240W USB-C Era: How GaN Technology is Finally Killing the Heavy Power Brick

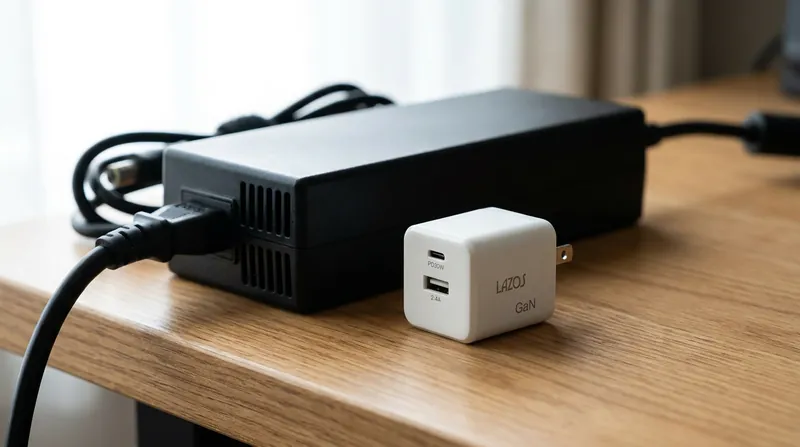

The era of the heavy, proprietary laptop power brick is finally ending. For decades, high-performance laptops required dedicated AC adapters that often weighed as much as the computers themselves. These bulky "power bricks" were a necessary evil, utilizing proprietary barrel jacks to deliver the massive amounts of electricity required by dedicated graphics cards and high-end processors. While ultra-thin notebooks and smartphones transitioned to the universal USB-C standard years ago, power users were left behind.[1][2]

The bottleneck was the USB-C standard itself, which was historically capped at 100 watts. While 100W is more than sufficient to fast-charge a phone or run a standard office laptop, it cannot sustain a gaming laptop or mobile workstation under heavy load. If a user attempted to game while plugged into a 100W USB-C charger, the system would slowly drain the battery to make up the power deficit.[1][2]

In 2026, the convergence of two distinct technologies—Gallium Nitride (GaN) semiconductors and the USB Power Delivery (PD) 3.1 protocol—has shattered that ceiling. The result is the mainstream arrival of 240W USB-C charging. This breakthrough allows a single, pocket-sized adapter to power everything from wireless earbuds to high-end gaming rigs equipped with desktop-class graphics cards, all through a single reversible cable.[3][7]

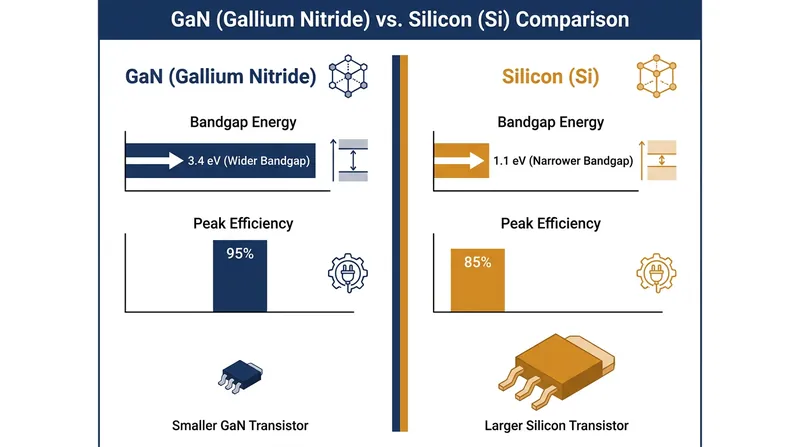

To understand how chargers shrank while more than doubling their power output, one must look at the physics of Gallium Nitride. For over fifty years, silicon has been the foundational semiconductor material for power electronics. However, silicon has a relatively narrow "bandgap" of 1.1 electron volts (eV). When pushed to handle high voltages and rapid switching frequencies, silicon transistors lose significant energy as heat, requiring bulky internal heatsinks to prevent the charger from melting.[4][6]

Gallium Nitride, a wide-bandgap material with a 3.4 eV rating, fundamentally changes this equation. GaN transistors can withstand much higher electric fields and switch at frequencies exceeding 1 megahertz—ten times faster than traditional silicon. This high-frequency switching allows the internal passive components, like transformers and capacitors, to be drastically miniaturized.[4][5]

The result is a charger that is up to 50% smaller than its silicon equivalent, operating at 95% efficiency with minimal thermal waste. Because less energy is lost as heat, manufacturers can pack high-wattage components into a dense, pocket-friendly form factor without the risk of thermal throttling or fire hazards.[5][6]

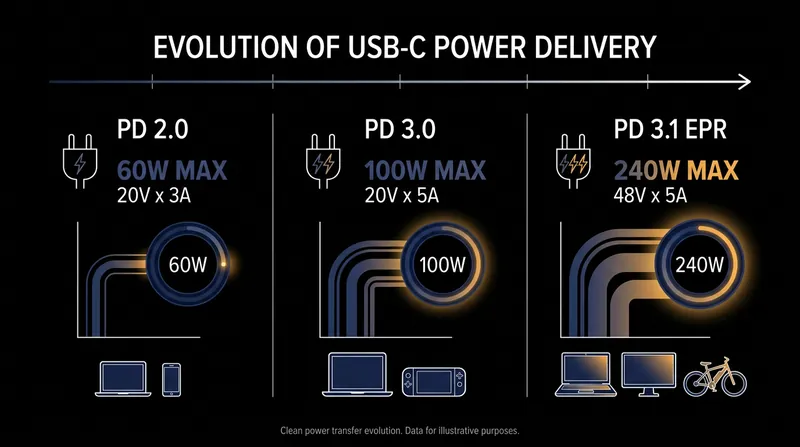

But GaN alone only solves the hardware size. Delivering 240W through a thin, reversible cable required a complete rewrite of the USB-C power handshake, culminating in the PD 3.1 Extended Power Range (EPR) specification. Under the older PD 3.0 standard, power was capped at 20 volts and 5 amps (100W). Pushing more than 5 amps through a standard USB-C cable would generate dangerous levels of heat, risking melted connectors.[7]

Instead of increasing the current, the PD 3.1 EPR standard increases the voltage. It introduces three new voltage profiles: 28V, 36V, and 48V. By delivering 48 volts at the standard 5 amps, the cable safely transmits 240 watts (48V × 5A = 240W). This higher voltage allows for massive power delivery without requiring thicker, heavier copper wiring.[7]

The rollout of true 240W hardware is now accelerating across the industry. Companies like Delta have released single-port 240W adapters that achieve over 95% conversion efficiency, while modular laptop manufacturer Framework integrated 180W and 240W USB-C support into its high-performance Laptop 16. Major gaming brands are following suit, equipping their latest RTX-powered machines with EPR-compatible ports.[2][3]

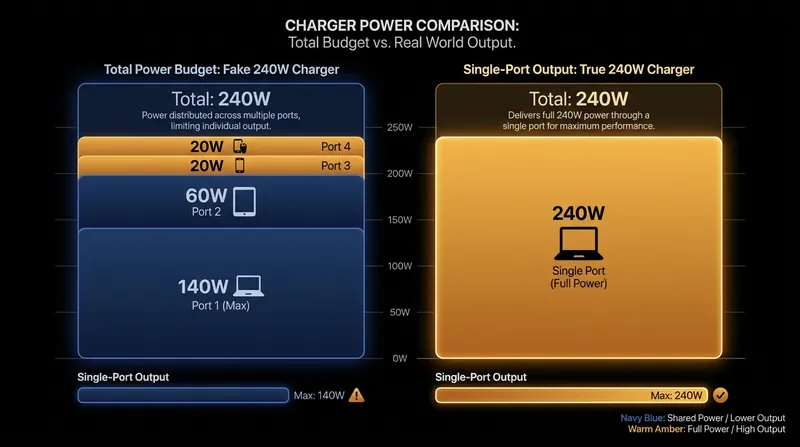

However, the transition is fraught with marketing confusion. Many chargers advertised as "240W" in 2026 do not actually deliver 240 watts to a single device. Instead, they offer a "total power budget" split across multiple ports—such as 140W to a laptop, 60W to a tablet, and 40W shared between two phones. Consumers looking to power a gaming laptop must carefully read the specifications to ensure the charger supports a single-port 240W output.[6][7]

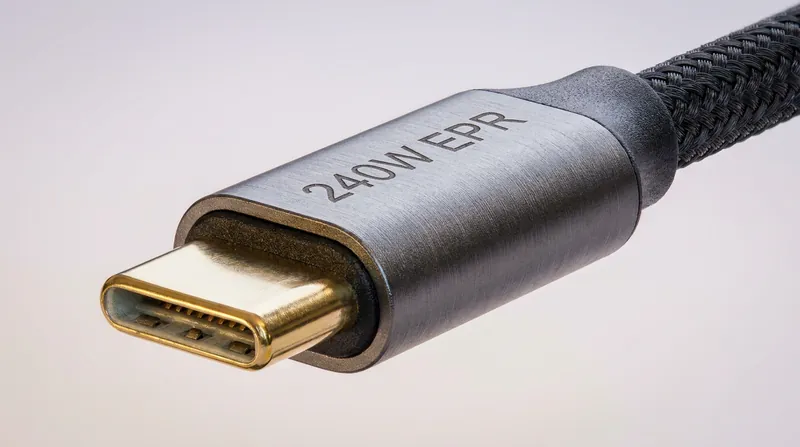

Furthermore, achieving the maximum charging speed requires a strict hardware chain. Consumers must use an EPR-certified cable containing a specific "E-Marker" chip that digitally verifies its 48V/5A capability to the charger and the device. If any link in the chain—the charger, the cable, or the laptop—lacks PD 3.1 EPR support, the system will automatically default to a safe, lower wattage, typically 100W or less.[7]

Despite these growing pains, the shift represents a massive victory for consumer convenience and e-waste reduction. As proprietary barrel jacks disappear, the dream of a truly universal, high-wattage power standard has finally been realized. A single GaN charger can now serve as the only power adapter a user needs to pack, seamlessly scaling from a 15W smartphone trickle charge to a 240W workstation powerhouse.[4][7]
