The 120-Volt Heat Pump Water Heater: How a Plug-in Appliance is Decarbonizing Basements

Water heating accounts for roughly 17% of the total energy used in the average American home, quietly running up utility bills from the basement or garage. For decades, the standard replacements have been natural gas burners or traditional electric resistance tanks—both of which come with significant climate and efficiency costs.[1]

As policymakers and homeowners push to decarbonize residential buildings, the heat pump water heater (HPWH) has emerged as a silver bullet. By moving heat rather than generating it, these systems are up to three times more efficient than traditional electric models and five times more efficient than gas.[1][5]

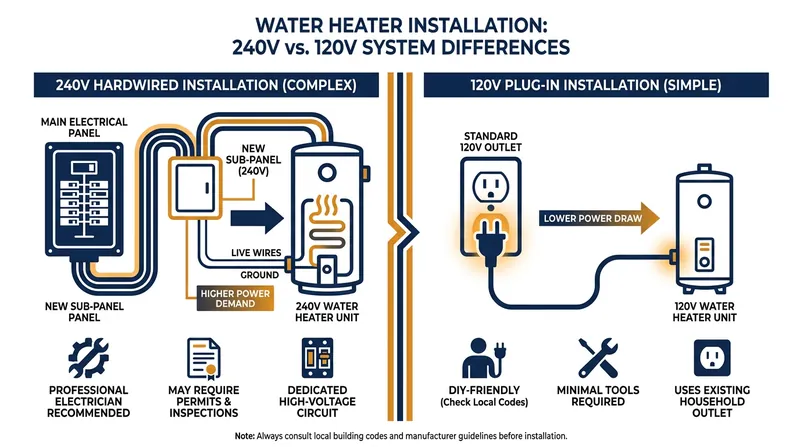

But a major bottleneck has stalled widespread adoption: electrical infrastructure. Traditional heat pump water heaters require a dedicated 240-volt circuit. For the millions of homes currently relying on gas water heaters, switching to a 240-volt electric model often triggers the need for a costly, time-consuming electrical panel upgrade.[2][4][5]

This infrastructure hurdle is especially problematic because water heater replacements are rarely planned. They are typically emergency purchases made when an old tank fails and floods the basement. Faced with the prospect of waiting weeks and spending thousands of dollars for an electrician to upgrade a panel, most homeowners simply opt for another gas heater.[7]

Enter the 120-volt plug-in heat pump water heater. Conceived by a coalition of manufacturers and energy advocates several years ago, this new class of appliance is designed to plug directly into a standard wall outlet. It effectively removes the electrical panel barrier, allowing for same-day gas-to-electric retrofits.[4][5]

The underlying technology works like a refrigerator in reverse. Instead of pulling heat from inside a box and pushing it into a room, the HPWH pulls ambient heat from the surrounding air, compresses the refrigerant to increase its temperature, and transfers that heat into the water tank.[1]

Operating on a standard 120-volt outlet, however, presents a distinct engineering challenge. A standard plug delivers significantly less power than a 240-volt circuit, meaning the unit recovers hot water much more slowly. To prevent households from running out of hot water during morning showers, manufacturers had to get creative.[2][5]

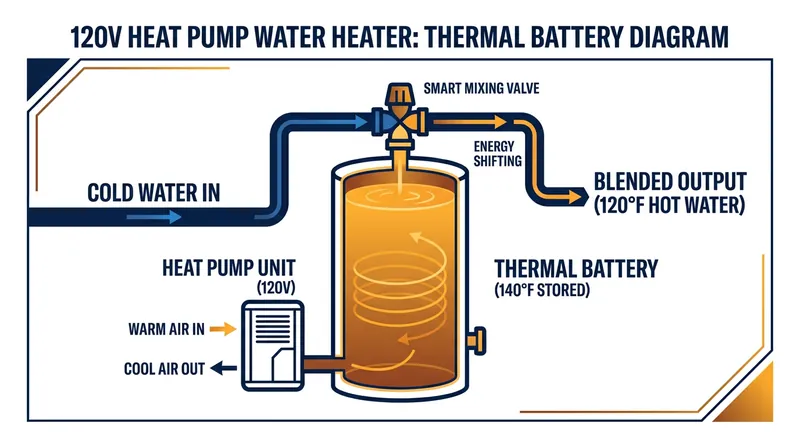

The solution lies in treating the water tank like a thermal battery. Modern 120-volt units are equipped with integrated smart mixing valves. The system heats the stored water to a much higher temperature—often 140 degrees Fahrenheit or more—and then automatically mixes it with cold water to deliver a safe, consistent 120 degrees at the tap.[5]

By storing energy as super-heated water, the 120-volt models can deliver a high volume of usable hot water despite their lower electrical draw. But the critical question for utility planners and consumers has been whether this slower-recovering technology can hold up in the real world, particularly in colder climates where ambient heat is scarce.[2][3]

Recent field studies have provided a resounding answer. In a year-long demonstration project across the Midwest, researchers from Slipstream and Focus on Energy installed 120-volt units in dozens of single-family homes, the vast majority of which were switching from natural gas.[2][3]

The results demonstrated that 120-volt HPWHs can reliably meet the hot water demands of a typical household of four to six occupants, even during the coldest weeks of the Wisconsin winter. Participants in the Midwest study reported a 92% overall satisfaction rate with their new plug-in units.[2][3]

Similar validation is underway in warmer climates. The New Buildings Institute recently completed a field study of 32 installations in California, confirming that the plug-in models are an excellent, drop-in solution for the massive gas-retrofit market. Researchers estimate that transforming the national water heater market in favor of heat pumps could cut emissions by nearly 100 million tons of carbon.[4]

The economics of the transition are also shifting rapidly. While heat pump water heaters carry a higher upfront purchase price than standard gas or electric resistance models, they cost significantly less to operate. Furthermore, the Inflation Reduction Act provides a 30% tax credit—up to $2,000—for the purchase and installation of qualifying HPWHs.[1][6]

Despite the breakthroughs, the technology does have specific installation requirements. Because they draw heat from the air, these units cool and dehumidify the space around them. They require adequate air volume—typically at least 1,000 cubic feet—to operate efficiently.[1][4]

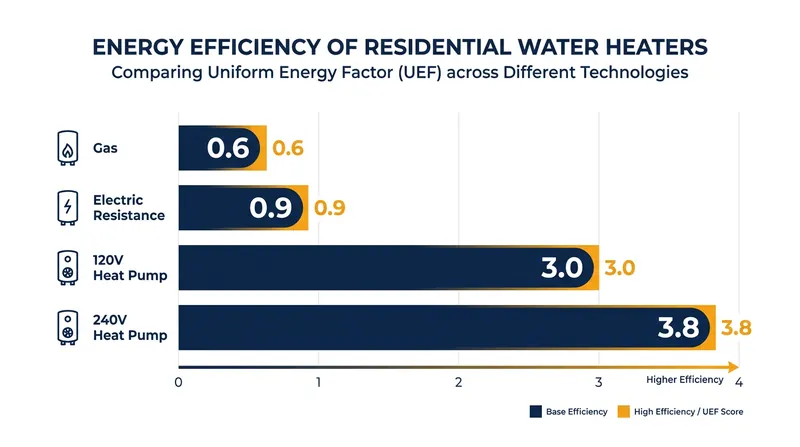

If installed in a confined space like a closet, the door must be louvered to allow air circulation. Additionally, because the 120-volt models store water at higher temperatures and run their compressors for longer periods, they are slightly less efficient overall than their 240-volt counterparts, though still vastly superior to fossil-fuel alternatives.[4][5]

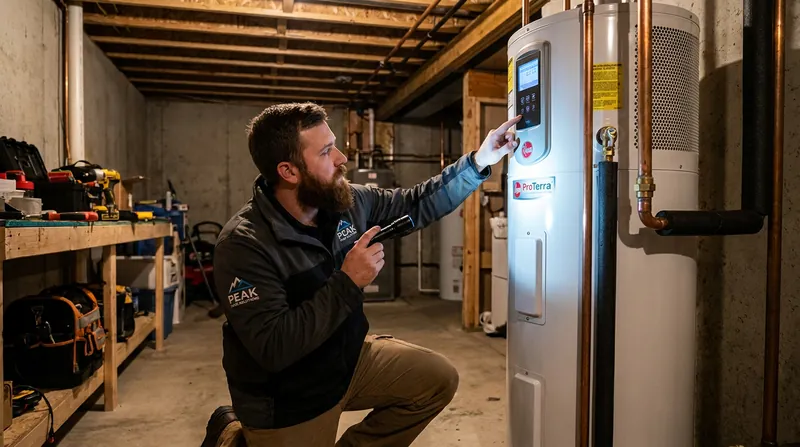

For the plumbing and HVAC industries, the rise of the 120-volt HPWH represents a major shift in standard practices. Contractors accustomed to simply swapping identical gas tanks must now learn to assess air volume, manage condensate lines, and educate homeowners on the benefits of the new technology.[7]

As manufacturing scales up and utility rebate programs expand to include these plug-in models, the 120-volt heat pump water heater is poised to become a foundational technology in the clean energy transition. By turning a complex electrical project into a simple plug-and-play swap, it offers a practical path to decarbonizing millions of homes.[4][7]
