How the Protocol-Host-Port Triple Defines the Security Boundary of a Web Document

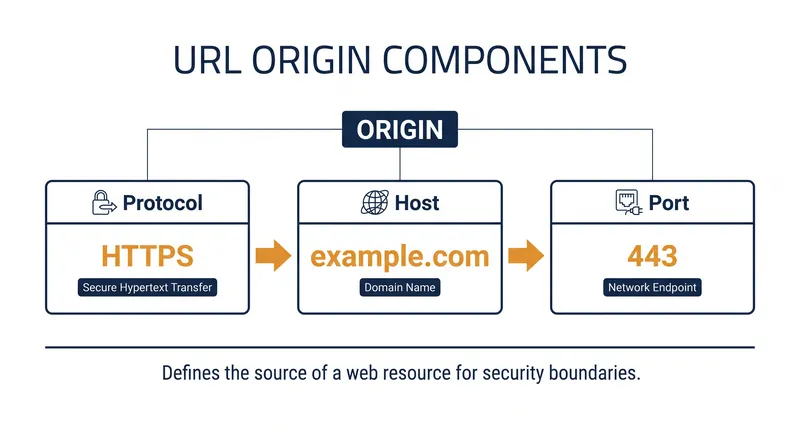

The exact moment a web application's security is determined happens in milliseconds within the browser's network stack, right before a script attempts to read the Document Object Model (DOM). The browser evaluates three specific variables: the protocol, the host, and the port. If this triple matches the origin of the target data, access is granted. If even one variable differs, the browser enforces a hard boundary. This mechanism is the reason a malicious script in one tab cannot quietly read the session cookies of a banking application open in another.[1][2]

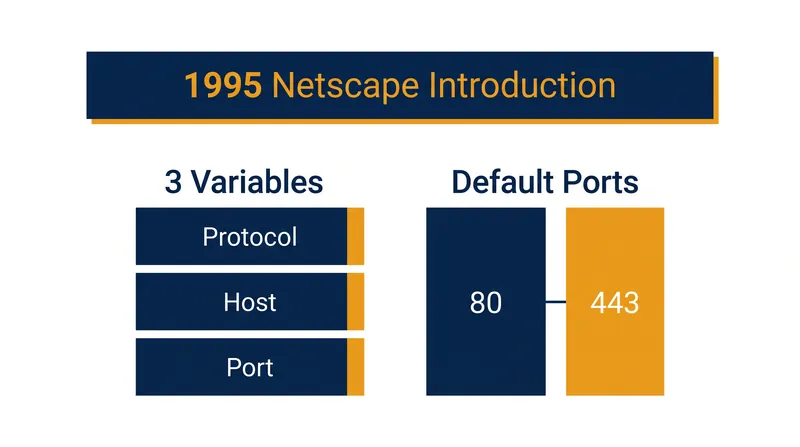

Known formally as the Same-Origin Policy (SOP), this concept was first introduced in 1995 with the release of Netscape Navigator 2.02. Over the subsequent three decades, it has remained the fundamental currency of the web's security model. As the WHATWG HTML standard states, "Two actors in the web platform that share an origin are assumed to trust each other and to have the same authority."[1][5]

The boundary is strictly defined by the tuple. For example, a document loaded from an HTTP connection cannot read data from an HTTPS connection on the same domain because the protocol differs. Similarly, a script running on port 80 cannot access data on port 81 due to a port mismatch, even if the host and protocol are identical.[2][3]

However, the marketing language surrounding web security often presents the Same-Origin Policy as an impenetrable vault. In reality, the architecture is highly porous by design. The policy distinguishes sharply between sending information and receiving it, creating a read/write asymmetry that allows the modern web to function.[2][9]

Browsers routinely permit cross-origin embedding. An HTML document can load images via the image tag, execute scripts, and apply stylesheets from entirely different domains. As the Mozilla Developer Network (MDN) documentation notes, "Cross-origin embedding is typically allowed... Cross-origin reads are typically disallowed."[2][3]

Without this "allow sending" and "allow embedding" exception, the web as a hyperlinked ecosystem would break. If origins could only link to and load resources from themselves, content delivery networks (CDNs) and distributed media would be impossible. The policy specifically targets read access to prevent data exfiltration, rather than isolating the document entirely.[5][8]

This porous nature means developers must actively manage the boundary. When a browser sends an HTTP request from one origin to another, it automatically includes any relevant authentication cookies. If the Same-Origin Policy did not block the reading of the response, a malicious site could easily parse a user's private inbox or financial dashboard.[2][8]

Historically, the implementation of the protocol-host-port triple has not been uniform. Internet Explorer, for instance, famously did not include the port number when calculating the origin tuple. This meant that a script running on port 80 could access data on port 8080 of the same host, a quirk that persisted in enterprise environments for years and required specific workarounds.[8]

To bypass the strict restrictions of the triple when necessary, developers historically relied on the document.domain setter. This allowed subdomains to synchronously access each other's DOMs by truncating their hostnames to a common superdomain, effectively rewriting the host variable of the tuple on the fly.[1][2]

Today, the document.domain approach is actively deprecated. The WHATWG specification warns developers to "Avoid using the document.domain setter. It undermines the security protections provided by the same-origin policy." Modern browsers are phasing out this capability because it breaks the isolation required for shared hosting environments.[1]

Instead, the industry has standardized on Cross-Origin Resource Sharing (CORS). CORS operates via HTTP headers, allowing a server to explicitly declare which external origins are permitted to read its responses. The Access-Control-Allow-Origin header acts as a cryptographic permission slip, relaxing the strict tuple check only when cryptographically verified.[3][4]

As web applications have evolved into complex, multi-threaded software, the basic Same-Origin Policy has proven insufficient against advanced hardware vulnerabilities like Spectre. This has led to the introduction of Cross-Origin Opener Policy (COOP) and Cross-Origin Embedder Policy (COEP).[1][4]

These newer headers enforce "cross-origin isolation," a state where the browser guarantees that a document does not share a memory process with cross-origin content. According to the OWASP HTTP Headers Cheat Sheet, COOP "allows you to ensure a top-level document does not share a browsing context group with cross-origin documents."[4]

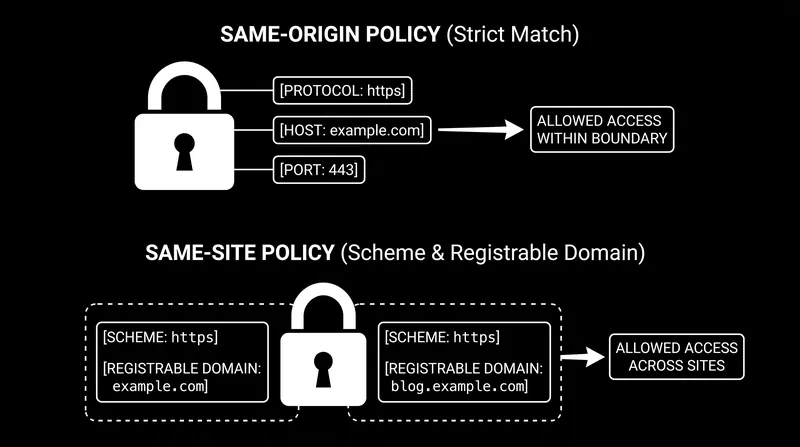

The distinction between "Same-Origin" and "Same-Site" also confuses many implementations. While an origin requires an exact match of the protocol, host, and port, a "site" is defined only by the scheme and the registrable domain. Thus, two different subdomains are cross-origin but same-site, a distinction that dictates how modern cookies are routed.[1][2]

Ultimately, the protocol-host-port triple remains the bedrock of web security. While new headers and isolation modes continue to layer on top of it, the fundamental check—evaluating those three variables before granting DOM access—is the single mechanism keeping the open web from collapsing into a massive data breach.[1][9]
