The $\sigma_{cr} = \frac{\pi^2 E}{(KL/r)^2}$ Formula: Why a Column's Slenderness, Not Its Strength, Sets Its Ultimate Load

At the exact millisecond a compressive load crosses the mathematical threshold defined by $\pi^2 E / (KL/r)^2$, a perfectly straight steel column ceases to be a stable load-bearing member and instantly becomes a mechanism in motion. This failure is not a slow, predictable crush of the material that offers ample warning to the occupants of a building. Instead, it is a sudden, catastrophic lateral deflection known to structural engineers as buckling. It is a mode of failure that routinely destroys massive structures long before the steel itself ever reaches its physical breaking point, defying the common intuition about how heavy materials behave under immense pressure.

The instinct of almost anyone tasked with supporting a heavier load is to simply use a stronger material. If a standard A36 steel column—which yields at 36,000 pounds per square inch (ksi)—is failing under the weight of a new architectural feature, the intuitive solution is to upgrade to A992 steel, which boasts a yield strength of 50 ksi. It is an expensive upgrade, and for a slender column, it is a completely useless one. Throwing higher-grade steel at a buckling problem is a fundamental misunderstanding of the physics at play.

The American Institute of Steel Construction (AISC) formally codifies this reality in the AISC 360-22 specification, published in 2022 and detailed extensively in a February 2026 ToolGrit design guide. The engineering guide states the dynamic plainly: 'A short, stocky column can reach the full yield strength of the steel... while a long, slender column buckles at a stress far below yield, governed by Euler's elastic buckling theory.' The code forces engineers to recognize that material strength is entirely conditional on the physical shape of the member being compressed.[1]

That governing theory was originally derived in 1744 by the Swiss mathematician Leonhard Euler, and despite nearly three centuries of metallurgical advancements, it remains the absolute governing law of slender compression members today. Euler's formula for the critical buckling stress is elegantly simple: $\sigma_{cr} = \frac{\pi^2 E}{(KL/r)^2}$. The brilliance of the equation, and the source of endless frustration for developers trying to value-engineer a skyscraper by swapping out materials, lies not just in the variables it explicitly includes, but in the critical variable it entirely omits from the calculation.[5]

Nowhere in Euler's critical load formula will you find $F_y$, the yield strength of the material. The equation mathematically proves that the exact point at which a slender column bows out of alignment has absolutely nothing to do with how much compressive force the steel can withstand before permanently deforming. A column made of ultra-premium, high-yield aerospace steel will buckle under the exact same load as a column made of the cheapest mild steel, provided their physical dimensions and end restraints are identical.[2]

Instead of yield strength, the numerator of Euler's equation relies entirely on $E$, the modulus of elasticity, which measures the fundamental stiffness of the material rather than its ultimate strength. Herein lies the inescapable trap for structural designers: the modulus of elasticity for virtually all structural steel, regardless of its specific grade, chemical composition, or yield strength, is a constant 29,000 ksi. You cannot buy a stiffer steel; you can only buy a stronger one, and Euler's formula does not care about strength.[1]

Because the modulus of elasticity is a fixed constant, the numerator in Euler's formula cannot be meaningfully changed by upgrading the steel alloy. A premium, high-strength alloy will buckle under the exact same load as the cheapest mild steel because the failure is a function of stiffness, not strength. The only way to increase the buckling capacity of the column is to manipulate the variables found in the denominator of the equation, which represent the physical geometry of the structure.[6]

The denominator of the equation contains the true lever of structural control: the slenderness ratio, expressed mathematically as $KL/r$. This single dimensionless number dictates the fate of every compression member in a high-rise building, serving as the ultimate arbiter of whether a support column will stand firm or violently kick out sideways under a heavy load. Understanding and manipulating this specific ratio is the core task of structural engineering, because it is the only mathematical path available to increase the critical buckling stress of a slender member.[4]

In this critical ratio, $L$ represents the actual unbraced length of the column, while $K$ is the effective length factor, which accounts for exactly how the ends of the column are restrained against rotation and translation. As the RivCut engineering documentation from April 2026 notes, the $K$ factor equals 1.0 for a standard column pinned at both ends, allowing it to rotate freely. However, that factor drops dramatically to 0.5 if both ends are rigidly fixed and embedded in concrete, effectively doubling the buckling capacity without adding a single ounce of steel.[3]

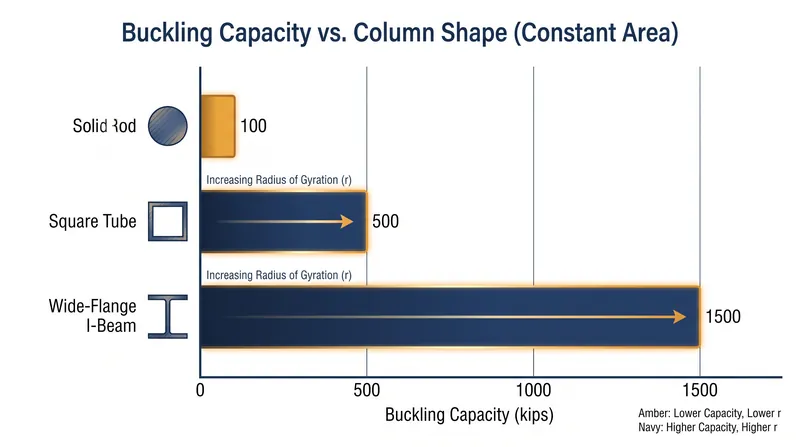

The most critical variable in the denominator, however, is $r$, the radius of gyration. This geometric metric describes exactly how the cross-sectional area of the column is distributed relative to its central buckling axis. A solid steel rod has a very low radius of gyration because all of its mass is clustered tightly around the center. A hollow steel tube or a wide-flange I-beam of the exact same weight has a much higher radius of gyration because the material is pushed as far away from the centroid as possible.[1]

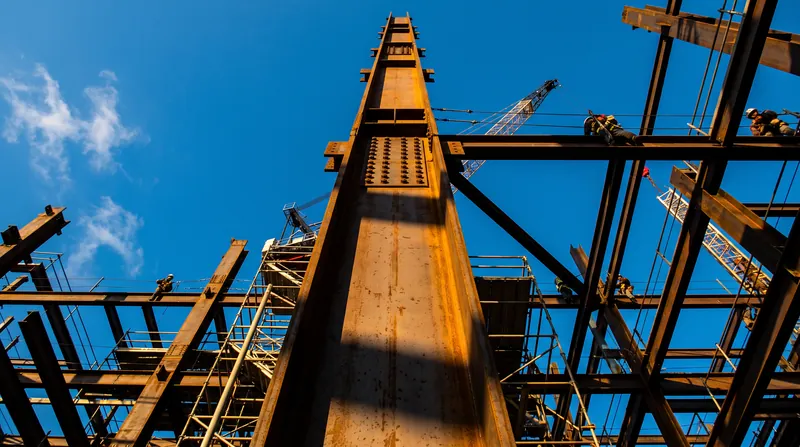

Because the slenderness ratio is squared in the denominator of Euler's formula, even a small increase in the radius of gyration yields an exponential increase in the column's critical buckling load. Moving the steel further away from the center of the column is mathematically vastly superior to using a stronger grade of steel. This is why modern skyscrapers are built using wide I-beams and hollow structural sections rather than solid steel billets; the geometry provides the stiffness that the material alone cannot.[6]

This geometric dominance holds absolute truth until the column becomes sufficiently short and stocky, at which point the physics shift fundamentally from elastic buckling to inelastic buckling. The RivCut engineering data defines the exact mathematical boundary separating these two distinct failure regimes: a slenderness limit defined by the equation $4.71 \sqrt{E/F_y}$. This is the exact threshold where the rules of the structural game change, and the material properties of the steel finally begin to assert their influence over the ultimate capacity of the column.[3]

Below that specific slenderness limit, the column is stout enough that the steel will actually begin to yield and crush under the compressive load before it has the opportunity to bow laterally. In this inelastic regime, the yield strength ($F_y$) finally matters, and upgrading from a standard 36 ksi steel to a high-strength 50 ksi or 65 ksi alloy will legitimately increase the ultimate capacity of the member. For short columns, buying better steel is a perfectly valid engineering solution.[3]

But above that limit, the column operates purely in the elastic regime, where material strength is nothing more than an expensive illusion. As the RivCut calculator documentation explicitly explains, 'long, slender columns buckle elastically at a stress well below yield, governed purely by Euler's formula.' In this slender zone, the material is merely a passenger to the geometry, and the column will violently fail at a stress level that wouldn't even begin to dent a shorter piece of the exact same steel.[3]

The practical implications for construction budgets and architectural design are massive. When architects demand tall, unbraced, slender columns to create open, airy lobbies and dramatic visual spaces, they intentionally force the structural engineers out of the inelastic zone and deep into the elastic buckling regime. They are prioritizing aesthetic slenderness over structural efficiency, which fundamentally limits how the building can be supported and completely neutralizes the value of high-strength materials. In these scenarios, the engineer's hands are tied by the mathematics of the slenderness ratio.[6]

Once trapped in that elastic regime by the architectural design, the engineer cannot solve the load problem by simply specifying a more expensive steel grade. They must either increase the physical footprint of the column to raise the radius of gyration, or introduce intermediate lateral bracing to cut the unbraced length ($L$) in half. The solution is always geometric, never metallurgical, which routinely leads to tense negotiations between the aesthetic design team and the structural engineering team responsible for keeping the building standing.[6]

This mathematical reality is exactly why the ongoing pursuit of ultra-high-strength steel alloys often yields diminishing returns in commercial high-rise construction. Unless the metallurgical industry can discover a way to alter the fundamental atomic bonds of iron to significantly increase its modulus of elasticity—a feat that currently defies the known laws of chemistry and materials science—geometry will remain the undisputed king of compression. Until that impossible breakthrough occurs, steel can only be made stronger, not stiffer, leaving slender columns entirely dependent on their shape.[6]

Euler's 280-year-old formula stands as a permanent, mathematical check on material optimism in the construction industry. It provides a rigorous, unforgiving proof that in the relentless fight against gravity, the physical shape of the structure will always overrule the chemical strength of the steel. The next time a slender column fails under a heavy load, the ultimate solution will not be found in a steel mill producing a newer, more expensive alloy, but on the drafting board where the slenderness ratio was first calculated and approved.[5]
