How the Length of a Microscopic Crack, Not the Load, Sets the Ultimate Failure Point for a Structure

Engineers traditionally designed structures based on overall load and material strength, but catastrophic failures still occurred. The field of linear elastic fracture mechanics reveals that the length of a pre-existing microscopic flaw, amplified by the square root of pi, is the true mathematical boundary between stability and sudden collapse.

By Deniz Kaya

Damage Tolerance Engineering 50%Elastic-Plastic Fracture Mechanics 30%Classical Solid Mechanics 20%
Damage Tolerance Engineering
Assumes all materials contain flaws and focuses on managing crack growth.
Elastic-Plastic Fracture Mechanics
Argues that LEFM is too conservative for highly ductile materials.
Classical Solid Mechanics
Focuses on bulk material properties like yield strength and ultimate tensile strength.

Perspectives this story doesn't cover

  • Non-Destructive Testing (NDT) Technicians
  • Additive Manufacturing Material Scientists

Common questions

Why doesn't a structure fail as soon as a crack forms?

A crack will only propagate when the stress intensity factor at its tip exceeds the material's fracture toughness. Until it reaches that critical length, the crack remains stable.

How do engineers find these microscopic cracks?

They use non-destructive testing (NDT) methods like ultrasonic scanning, eddy current testing, and X-ray radiography to detect flaws before they reach the critical length.

Does the square root formula apply to all materials?

It applies primarily to brittle materials or thick components where linear elastic fracture mechanics (LEFM) is valid. Highly ductile materials require more complex elastic-plastic models.

The short answer

  • Structures often fail at loads far below their theoretical yield strength due to microscopic flaws.
  • The stress intensity at a crack tip scales with the square root of the crack's length, not just the overall load.
  • Fracture toughness (KIc) is the critical threshold where a stable crack becomes a catastrophic failure.
  • Modern aerospace and civil engineering rely on damage tolerance, assuming flaws exist and managing their growth.

When an engineer calculates the failure point of a steel beam, the nearest comparable case is simple yield strength: dividing the maximum expected load by the cross-sectional area to ensure the stress remains below the material's innate limit. The single respect in which real-world failure differs from this textbook calculation is that materials are never perfectly uniform. They contain microscopic voids, inclusions, and scratches that fundamentally alter how force moves through the solid.[6]

The argument that bulk strength dictates structural integrity falls apart the moment a flaw is introduced. If yield strength were the only variable, a massive ship hull or an airplane fuselage would only tear when the overall load exceeded the steel or aluminum's capacity. Yet, history is littered with catastrophic failures—like the Liberty ships of World War II—that fractured in half while sitting at anchor under minimal stress.[6]

The transparent truth is that structures do not fail because the overall load is too high; they fail because the local stress at the tip of a microscopic crack approaches infinity. This mechanism is governed by Linear Elastic Fracture Mechanics (LEFM), a framework that shifts the engineering paradigm from asking how strong a material is to asking how large of a crack it can tolerate before rupturing.[4]

The foundation of this argument rests on the work of Alan Arnold Griffith, an aeronautical engineer who, in 1920, noticed a glaring discrepancy in the strength of glass. Theoretical calculations suggested glass should withstand stresses of roughly 1,000 megapascals (MPa). In practice, it shattered at a mere fraction of that load.

Griffith proposed that microscopic flaws were concentrating the stress. He formulated a thermodynamic criterion: a crack will propagate when the reduction in potential energy from the crack growing is greater than or equal to the increase in surface energy from the creation of new crack faces. It was a brilliant theoretical leap, but difficult to apply to everyday engineering problems.

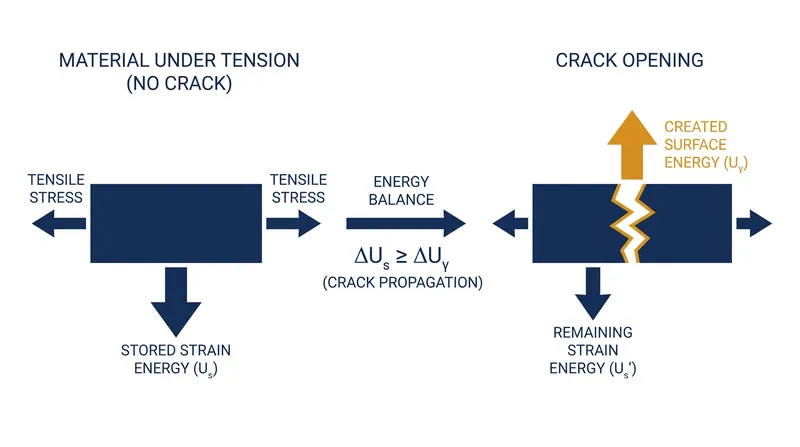

Griffith's criterion balances the release of stored strain energy against the energy required to create new crack surfaces.

While Griffith's energy balance was elegant, it was George Irwin in the 1950s who translated it into the mathematical tool engineers use today: the stress intensity factor, denoted as K. Irwin demonstrated that the stress field near a crack tip is completely determined by a single equation: K = Y σ √(πa).[3]

In this formula, σ represents the remote applied stress, Y is a dimensionless geometric factor, and a is the crack length. The inclusion of the √(πa) term is the critical departure from classical mechanics. It proves mathematically that the severity of a flaw scales with the square root of its length, multiplied by pi, rather than scaling linearly with the load.[3]

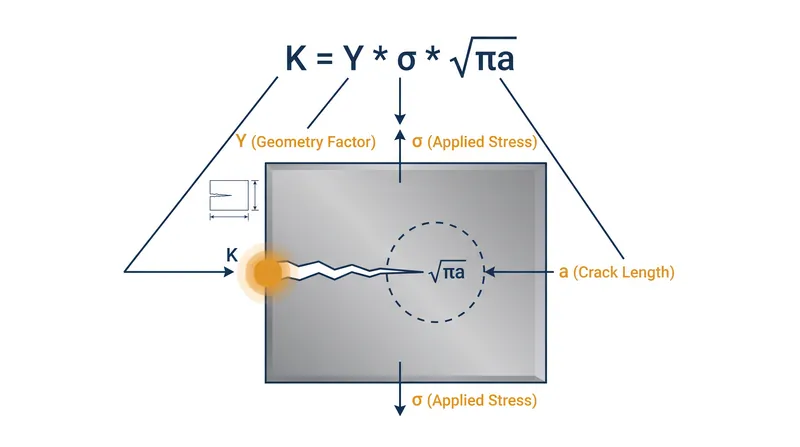

George Irwin's formula demonstrates that stress intensity scales with the square root of the crack length.

The strongest counter-argument to relying solely on LEFM is that it assumes the material behaves elastically right up to the point of fracture. In highly ductile materials, like warm structural steel, the material at the crack tip will yield and deform plastically, blunting the crack and absorbing massive amounts of energy before it can propagate.[5]

The strongest counter-argument to relying solely on LEFM is that it assumes the material behaves elastically right up to the point of fracture.

This plastic zone acts as a shield. As researchers debate the boundary between these concepts, they acknowledge that LEFM becomes overly conservative when this plastic zone is large. As framed in a ResearchGate engineering discussion: "What's the major difference between toughness and fracture toughness?" The answer lies in that plastic shield: toughness measures total energy absorption, while fracture toughness measures specific resistance to a sharp crack.[5]

However, when the material is brittle, or when a ductile material is constrained by thickness or low temperatures, that plastic shield vanishes. The material enters a state of plane strain. Under these conditions, the stress intensity factor K reaches a critical threshold known as the fracture toughness, or KIc.[1]

As Thermal Processing Magazine notes in its testing guidelines, "Linear-elastic fracture toughness testing is used to determine the critical stress intensity factor, KIc, of a material." This value is an inherent material property, much like density or melting point, but it dictates the exact moment a microscopic flaw becomes a macroscopic catastrophe.[1]

Consider a titanium alloy used in aerospace, with a KIc of 60 MPa√mm. If the component is subjected to a continuous stress of 300 MPa, the √(πa) term allows engineers to calculate the exact critical crack length. Rearranging the formula reveals that a crack just 12.7 millimeters long will trigger instantaneous, explosive failure.[3][7]

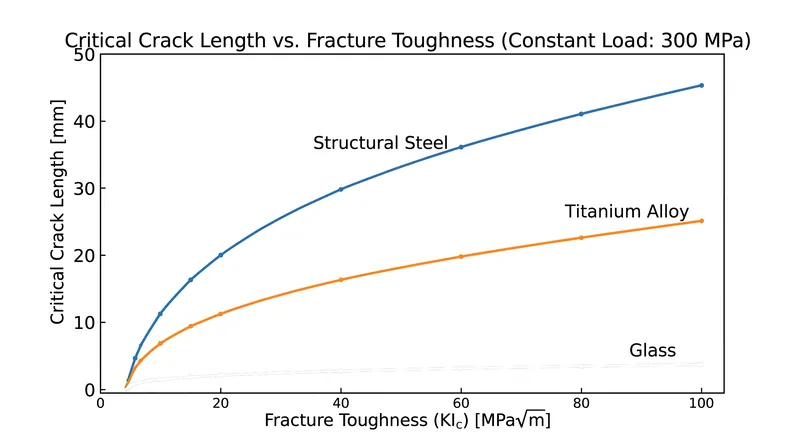

At a constant load, a material's fracture toughness dictates exactly how long a crack can grow before catastrophic failure.

This mathematical reality dictates modern inspection schedules. An aircraft fuselage undergoes thousands of pressurization cycles, causing microscopic fatigue cracks to grow by fractions of a millimeter per flight. The maintenance schedule is not based on the age of the aluminum, but on the time it takes for a crack to grow from a detectable size to the critical length a.[6]

The medical field relies on the exact same principles for orthopedic implants. A titanium hip replacement must endure millions of loading cycles from walking. Biomechanical engineers use LEFM to ensure that any manufacturing defects—pores or scratches—are strictly smaller than the critical crack length required to initiate failure under the patient's body weight.[2]

The principles of fracture mechanics extend beyond metals. In civil engineering, the behavior of concrete and rock under stress is heavily influenced by pre-existing micro-cracks. While these materials are highly compressive, their tensile strength is notoriously low precisely because the √(πa) term dominates their failure mechanics when pulled apart.[2]

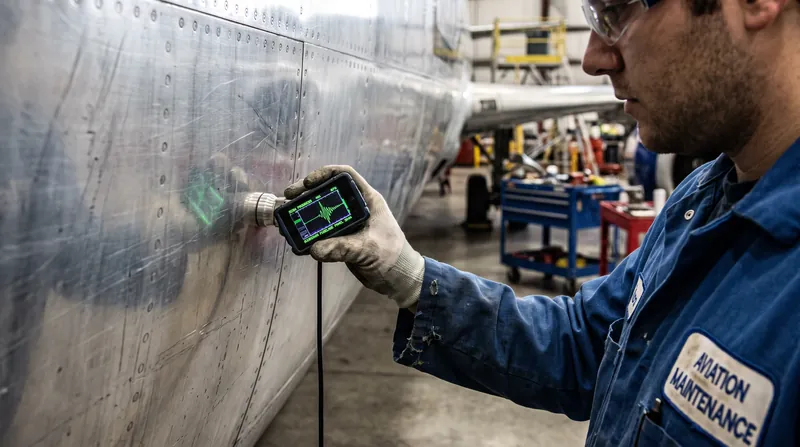

Aerospace maintenance schedules are dictated by the time it takes for a microscopic flaw to reach its critical length.

The ultimate takeaway from the √(πa) term is a humbling one for structural design. You cannot build a flawless structure. The goal is not to eliminate cracks entirely, but to select materials with a high enough KIc that the inevitable cracks remain stable between inspection intervals.[4]

As materials science advances into composites and 3D-printed alloys, the debate over fracture mechanics continues. Additive manufacturing introduces unique layer-by-layer defects that challenge traditional LEFM models, requiring engineers to adapt Irwin's equations to account for anisotropic flaw distribution.[1]

Yet, the fundamental truth established by Griffith and Irwin remains unbroken. The failure of a structure is rarely a story of overwhelming force. It is the story of a microscopic imperfection, quietly amplified by the square root of its own length, until it tears the material apart from the inside out.[3]
