Next-Gen Console Chips Tape Out, Xbox Helix Leaked at 56 TFLOPS vs. PS6 at 40

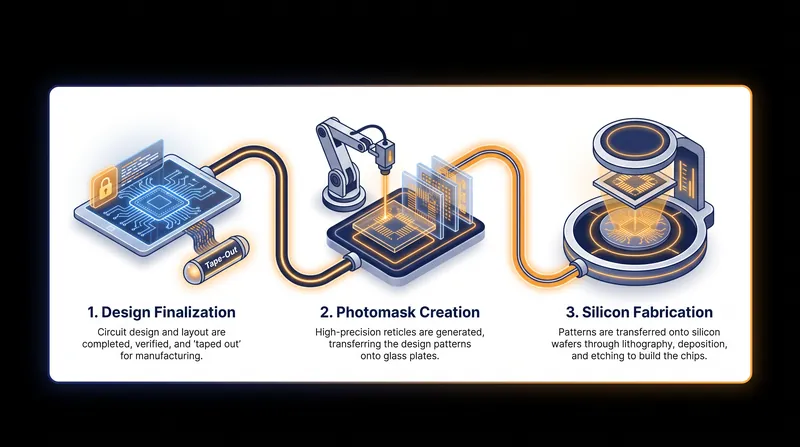

On September 23, 2026, the silicon designs for Sony's PlayStation 6 and Microsoft's next-generation Xbox, internally codenamed "Project Helix," reportedly reached the critical semiconductor milestone known as "tape-out." This industry term indicates that the hardware architecture has been finalized and the blueprints have been sent to foundries for physical manufacturing. The milestone effectively locks in the core capabilities of both systems, ending the primary design phase for the consoles. "From here on, the hardware behind both systems is effectively fixed," reports OC3D, noting that any future silicon revisions will be strictly to address bugs rather than alter specifications. This keeps both platforms on schedule for an anticipated late 2027 launch window.[1][2][3][4]

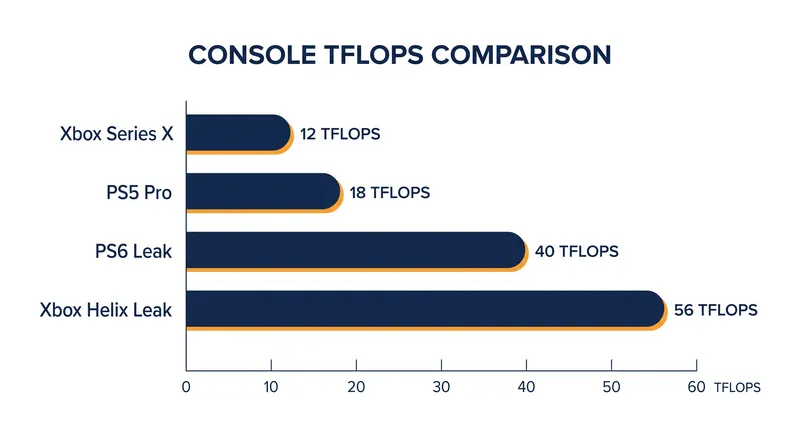

Alongside the tape-out confirmation, prominent hardware leaker KeplerL2 published the targeted compute performance for both systems, revealing a massive theoretical gap. The PlayStation 6 is reportedly aiming for 40 tera floating-point operations per second (TFLOPS) of raw compute power, while the Xbox Helix targets a staggering 56 TFLOPS. If accurate, these figures represent an enormous leap over the hardware currently sitting in living rooms. For context, the standard PlayStation 5 operates at 10.28 TFLOPS, the recently announced PS5 Pro peaks at 18.05 TFLOPS, and the Xbox Series X sits at 12 TFLOPS. On paper, Microsoft's next machine boasts a 40 percent performance advantage over Sony's offering.[1][2]

However, a 40 percent advantage in raw mathematical throughput does not automatically translate to a 40 percent advantage in frame rates or visual fidelity. TFLOPS measure only peak floating-point execution—specifically Fused Multiply-Add (FMA) throughput—ignoring the complex system bottlenecks that dictate real-world gaming performance. As VideoCardz notes, "Actual performance depends on many factors, including how developers use the available hardware." Comparing TFLOPS across different architectural generations is notoriously misleading, as it fails to account for how efficiently the silicon actually moves data and renders pixels.[1]

The actual capability of these consoles will rely heavily on their underlying architecture and custom silicon features. Both systems are expected to utilize a combination of AMD's Zen 6 processors and the upcoming RDNA 5 graphics architecture. The PlayStation 6 is rumored to feature 30 gigabytes of GDDR7 memory operating on a 160-bit interface, delivering 640 gigabytes per second of bandwidth. Microsoft's exact memory configuration remains unknown, but the Xbox Helix is reportedly integrating a dedicated Neural Processing Unit (NPU) to handle advanced upscaling tasks, which could offset or amplify its raw compute advantage.[1][2]

When these consoles are officially unveiled, marketing departments will likely lean heavily on the TFLOPS metric, as it provides a simple, digestible number for consumers to compare. Yet, modern rendering relies increasingly on dedicated ray tracing accelerators and AI-driven image reconstruction rather than brute-force rasterization. "Ray tracing, path tracing, and AI features also have different hardware requirements, and TFLOPS do not account for how many Ray Accelerators the chip has," VideoCardz reports. If both consoles utilize AMD's next-generation upscaling technologies efficiently, the visual differences in multi-platform games may be difficult for the average player to discern, regardless of the 16-TFLOPS gap.[1][2]

The sheer scale of these silicon designs raises immediate questions about consumer pricing and market viability. The current console generation has already seen unprecedented price increases, driven by rising component costs and a global memory shortage exacerbated by the artificial intelligence sector's insatiable demand for data center hardware. A console pushing 56 TFLOPS with advanced GDDR7 memory will require a substantial thermal cooling solution and an expensive bill of materials. This has led gamers and analysts alike to worry about what these powerful new systems will cost at retail, with some fearing base prices well above historical norms.

Reaching the tape-out stage does not mean the consoles are ready to ship tomorrow; rather, it marks the beginning of a lengthy and expensive validation process. "At this stage, we generally do not expect major specification changes unless testing uncovers problems that require further silicon revisions," VideoCardz explains. Foundries will now produce early silicon samples, which engineers will test extensively for thermal output, power draw, and architectural bugs. Any subsequent revisions will focus entirely on fixing these hardware defects rather than altering the fundamental specifications or adding new features.[1][2]

With the silicon effectively locked, the battleground shifts from hardware engineering to software optimization and manufacturing yields. Both Sony and Microsoft now face the daunting challenge of producing these massive chips at a volume and price point that the consumer market can sustain. The hardware specifications are now set in stone for the next decade of gaming; the retail pricing, the acoustic cooling solutions, and the exclusive games that will justify the consumer investment remain the next major variables to be uncovered.[2][3]
