Researchers Engineer 0.42nm Transistor Interface, Pushing Chips Beyond Silicon Limits

When headlines claim the semiconductor industry has cracked the "0.42-nanometer chip," they are confusing a microscopic materials measurement with a commercial product node. No foundry has built a sub-1nm processor, and Moore's Law has not suddenly leaped two decades into the future. What researchers actually accomplished is far more specific—and scientifically, much more vital.[3]

In a study published in Nature Electronics, a joint team from TSMC and Taiwan's National Yang Ming Chiao Tung University (NYCU) demonstrated a new way to build the insulating layer inside a next-generation transistor. They successfully engineered an aluminum oxide buffer exactly 0.42 nanometers thick on top of a two-dimensional semiconductor.[1][2][4]

To understand the claim, one must look at the physical wall approaching the chip industry. Today's advanced processors rely on silicon channels to carry electrical current. But as those channels shrink below five nanometers, silicon's bulk properties break down due to quantum tunneling—electrons leak, and the transistor's "gate" loses its ability to turn the current on and off reliably.[3][5]

The proposed successor to silicon is a class of two-dimensional materials, specifically transition metal dichalcogenides like molybdenum disulfide (MoS2). Because an MoS2 layer is only a single atom thick, quantum confinement is built into its geometry, preventing the leakage that plagues ultra-small silicon.[5]

However, the evidence for 2D materials has always carried a massive asterisk: the gate dielectric problem. A transistor requires an insulating layer—the dielectric—between the gate electrode and the channel. In traditional silicon manufacturing, engineers have spent decades perfecting how to grow this oxide layer smoothly.[2][7]

Two-dimensional materials break those traditional methods. Because an MoS2 surface lacks "dangling bonds" (unpaired electrons to attach to), depositing a standard high-k dielectric directly onto it creates a chaotic, defective interface. These defects act as traps, scattering electrons and destroying the very carrier mobility that made the 2D material attractive in the first place.[4][7]

For years, researchers faced a brutal trade-off: use a thick dielectric to prevent leakage but lose electrostatic control, or use a thin dielectric and ruin the channel's performance with interface defects. The TSMC and NYCU team bypassed this entirely by redesigning the boundary itself through epitaxial interface engineering.[2][5]

Using ultra-high vacuum technology, the researchers deposited an ultrathin layer of aluminum directly onto the MoS2 surface. Because it was grown epitaxially, the aluminum aligned perfectly with the crystal structure below it. They then carefully oxidized this metal, converting it into a pristine layer of aluminum oxide (Al2O3) just 0.42 nanometers thick.[1][6]

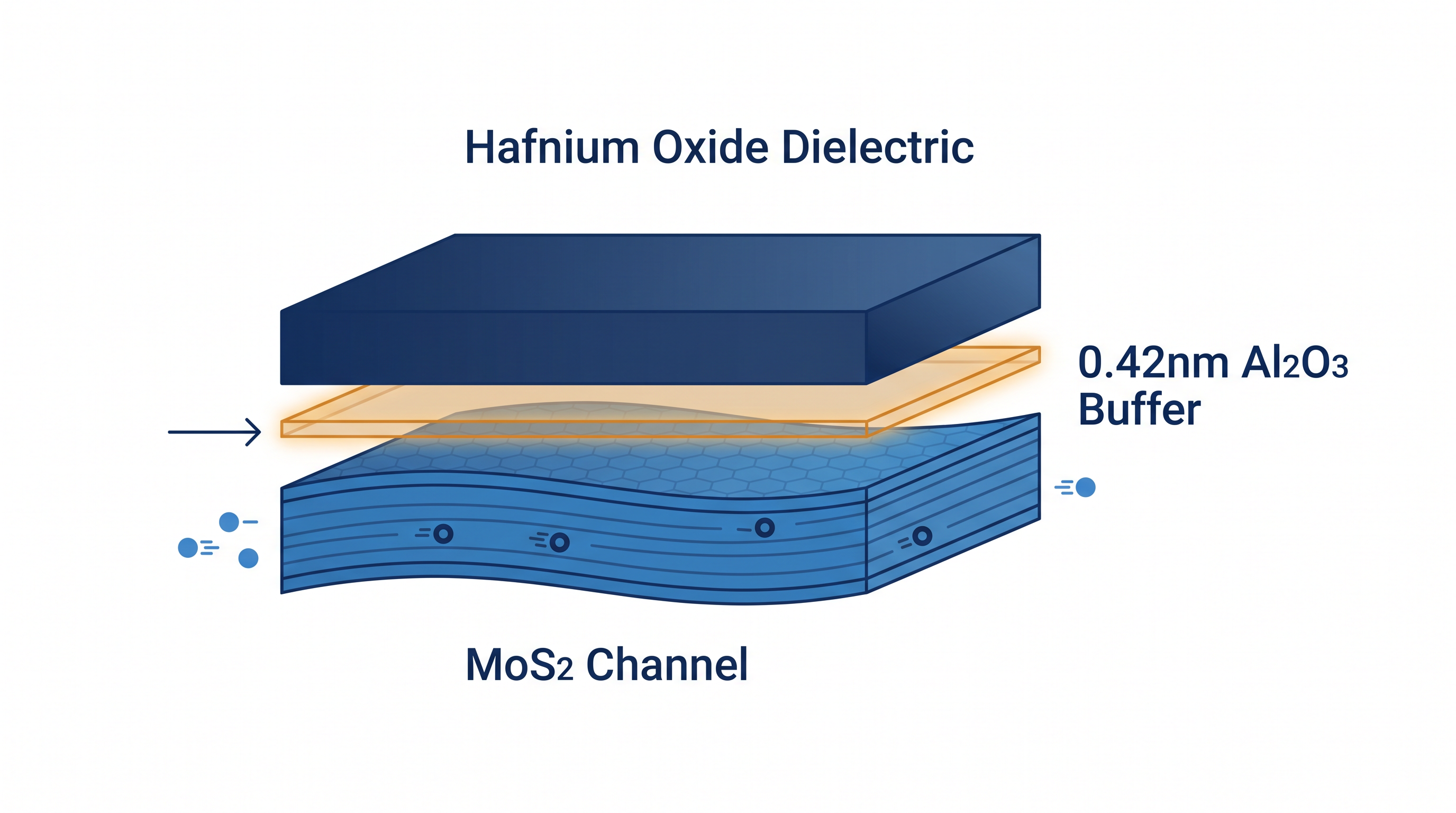

This microscopic layer acts as an atomic buffer. It provides a smooth, continuous template for a standard hafnium oxide dielectric to be deposited on top, while shielding the delicate MoS2 channel from the chemical violence of that deposition process.[2][5]

The resulting device achieved an equivalent oxide thickness (EOT)—a metric comparing the layer's capacitance to standard silicon dioxide—of roughly 1 nanometer. Crucially, it maintained a high transconductance of 0.45 mS/μm, proving that strong electrical control and high electron mobility can finally coexist in a 2D transistor.[5][7]

Yet, the uncertainty remains vast. This is a laboratory demonstration of a single component—the gate stack—on an n-type MoS2 channel. It is not a fully integrated circuit, nor is it a manufacturing process ready for a fabrication plant.[3]

Moving from a pristine lab environment to high-volume, wafer-scale manufacturing involves solving entirely different problems. Engineers must still figure out how to build complementary p-type transistors with equal performance, how to lower contact resistance at the metal terminals, and how to ensure the delicate 0.42nm buffer survives the extreme heat of subsequent manufacturing steps.[7]

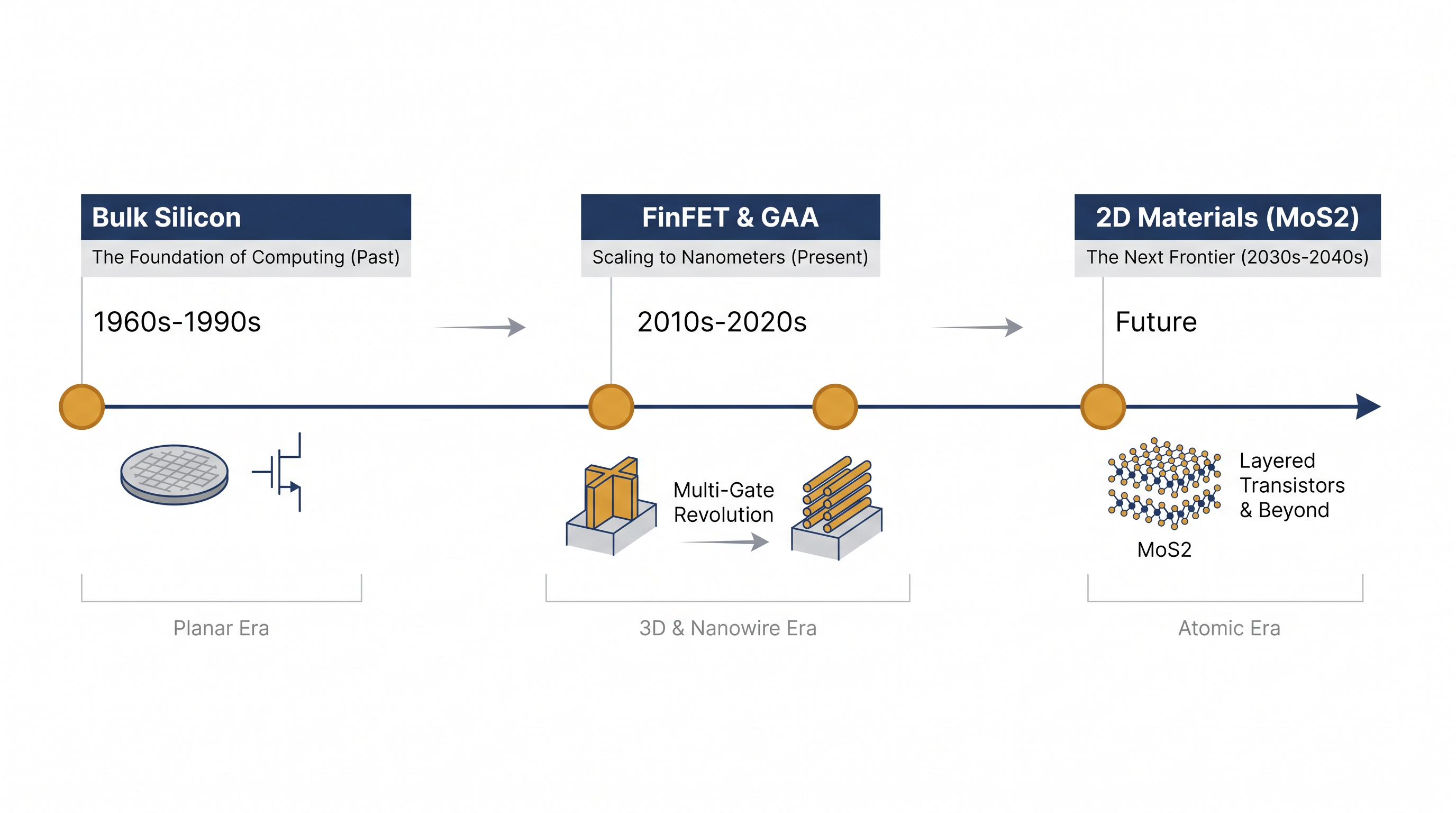

Industry roadmaps project that 2D-material transistors will not enter high-volume commercial manufacturing until the late 2030s or early 2040s. Node names like "1.6nm" or "14A" arriving in the next few years will still rely on silicon nanosheets.[3]

Ultimately, the 0.42nm buffer is a risk-reduction milestone on a long-dated option. It proves that the fundamental physics of post-silicon computing are viable, ensuring that when silicon finally exhausts its physical limits, the foundational science for its successor will be ready.[3][4]
