How the 6LoWPAN Adaptation Layer Squeezes 1280-Byte IPv6 Packets Into 127-Byte Smart Home Radios

In September 2011, the Internet Engineering Task Force published RFC 6282, a specification that fundamentally altered how battery-powered devices interact with the internet. Before this document finalized the IP Header Compression (IPHC) scheme, the idea of assigning a native IPv6 address to a coin-cell-powered door sensor was mathematically unworkable. The internet runs on large, verbose packets; low-power radios run on tiny, constrained frames. RFC 6282 provided the exact compression algorithms needed to bridge that gap, establishing the modern 6LoWPAN adaptation layer.[1]

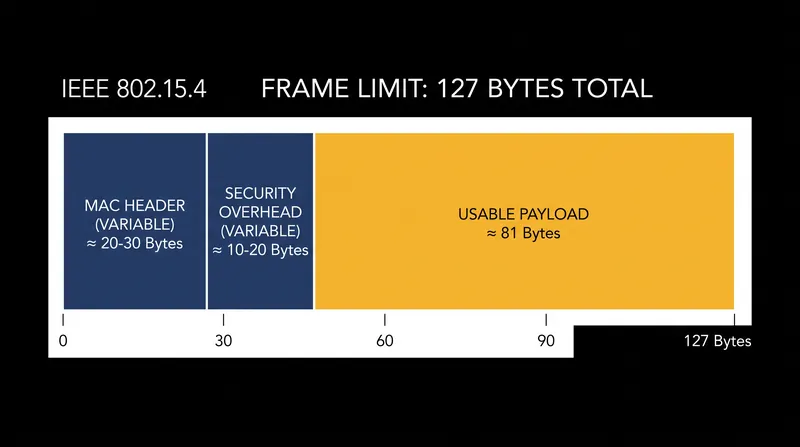

The physical constraint governing smart home networks is the IEEE 802.15.4 radio standard. It is designed for minimal energy consumption, allowing devices to run for years on a single battery. But that efficiency comes with a strict physical limit. As the Internet Engineering Task Force states in RFC 4944, "The IEEE 802.15.4 standard specifies a maximum physical receive packet size of 127 octets." Once the mandatory media access control (MAC) and security headers are attached, a device is left with roughly 81 bytes of usable payload per transmission.[2][6]

That 81-byte limit collides immediately with the architecture of the modern internet. The IPv6 protocol mandates a minimum maximum transmission unit (MTU) of 1280 bytes. Furthermore, a standard IPv6 header consumes 40 bytes on its own, and a User Datagram Protocol (UDP) header takes another 8 bytes. If a smart bulb attempts to send a standard internet packet over an 802.15.4 radio, the headers alone consume nearly 60 percent of the available space before a single byte of actual application data is transmitted.[6]

Early smart home ecosystems bypassed this mathematical mismatch by abandoning internet protocols entirely at the device level. Protocols like Zigbee and Z-Wave rely on proprietary, lightweight languages for the mesh network, requiring a plugged-in hub to translate those local messages into IP traffic for the router. The Thread protocol, launched in 2014, rejected that translation model. Thread promised native end-to-end IP connectivity, meaning every device would speak IPv6 directly. To deliver on that marketing claim, Thread required a mechanism to shrink internet traffic.[2]

That mechanism is 6LoWPAN—an acronym for IPv6 over Low-Power Wireless Personal Area Networks. Sitting exactly between the network layer (IPv6) and the data link layer (802.15.4), 6LoWPAN acts as a highly specialized packing algorithm. It performs two primary functions: stateless header compression and payload fragmentation.[3]

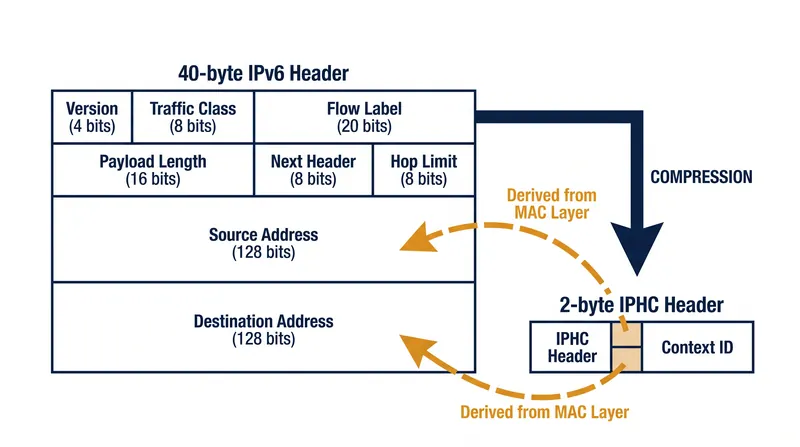

The most critical operation is the IP Header Compression (IPHC) defined in RFC 6282. IPHC does not compress data using traditional dictionary algorithms like ZIP; instead, it elides information that can be inferred from the surrounding context. An IPv6 header contains a 16-byte source address and a 16-byte destination address. In a local mesh network, those IP addresses are often mathematically derived directly from the device's physical MAC addresses.[1][4]

Because the 802.15.4 MAC layer already broadcasts the sender and receiver MAC addresses to physically route the radio wave, transmitting the full IPv6 addresses in the payload is redundant. The 6LoWPAN adaptation layer strips those 32 bytes out entirely. The receiving node simply reconstructs the valid IPv6 addresses by reading the MAC headers and appending the standard network prefix.[1][3]

The compression extends beyond addresses. Standard IPv6 headers include fields for traffic class, flow labels, and payload length. In a constrained network where most traffic is simple UDP state updates—like a thermostat reporting a temperature change—these fields are highly predictable. 6LoWPAN replaces these verbose fields with a compact dispatch byte that tells the receiver which fields were omitted and what default values to assume.[1][6]

The net result of this algorithmic pruning is severe. A standard 40-byte IPv6 header and an 8-byte UDP header can be compressed down to as little as 6 bytes, and in certain ideal conditions, just 2 bytes. By reclaiming that space, 6LoWPAN expands the usable application payload of a secured 802.15.4 frame from roughly 33 bytes to over 70 bytes.[1][5]

Even with aggressive header compression, a smart home device will occasionally need to transmit a payload larger than 81 bytes—such as a cryptographic certificate during the initial pairing process, or a firmware update. Because IPv6 requires a link to support at least 1280-byte packets, 6LoWPAN must handle the overflow. It does this through a standardized fragmentation layer.[3][6]

When an IPv6 packet exceeds the physical frame limit, the 6LoWPAN layer slices it into smaller chunks. It prepends a fragmentation header to each chunk, containing a datagram tag to identify which packet the chunk belongs to, and an offset value to indicate where this specific chunk fits in the sequence. The receiving node holds the chunks in a buffer until all pieces arrive, then reassembles the original 1280-byte IPv6 packet before passing it up to the application layer.[6]

While fragmentation satisfies the IPv6 specification, it introduces severe penalties in a low-power mesh. If a single fragment is corrupted by radio interference—a common occurrence in the crowded 2.4 GHz band—the entire 1280-byte packet must be discarded and retransmitted. This spikes the radio's active time, draining the battery. Consequently, Thread application developers are strictly instructed to keep routine payloads under the single-frame threshold, relying on fragmentation only for rare administrative tasks.[4]

The original 6LoWPAN specification, RFC 4944, included provisions for mesh routing directly within the adaptation layer, using a "mesh-under" topology where the 802.15.4 nodes forwarded frames before they were reassembled into IP packets. Thread explicitly discards this approach. Instead, Thread utilizes a "route-over" topology, where routing decisions are made at the network layer using the standard IPv6 Routing Protocol for Low-Power and Lossy Networks (RPL).[2][4]

The marketing language surrounding Thread often claims it "speaks the language of the internet." This is technically true at the application layer, but it obscures the heavy lifting occurring beneath the surface. A Thread border router—typically a smart speaker or display—is not just passively passing traffic. It is actively running the 6LoWPAN adaptation layer in reverse, decompressing the IPHC headers and reassembling fragments so that the packets entering the home's Wi-Fi network look like standard, uncompressed IPv6 traffic.[2]

The success of the modern smart home standard, Matter, rests entirely on this capability. By abstracting the severe physical limits of 802.15.4 radios behind a standardized compression algorithm, 6LoWPAN allows software developers to write code for a battery-powered sensor exactly as they would for a server. The 127-byte limit remains absolute, but the adaptation layer ensures the internet never notices.[7]
