Twenty-Megahertz Wi-Fi Channels Swamp Two-Megahertz 802.15.4 Radios: Why Zigbee Meshes Drop Packets Without Interstitial Channel Planning

Zigbee and Thread smart home networks drop packets and go offline because their narrow two-megahertz radio channels are physically overwhelmed by twenty-megahertz Wi-Fi transmissions sharing the same 2.4-gigahertz spectrum. The only reliable solution is interstitial channel planning, which manually forces the low-power mesh into the narrow frequency gaps between standard Wi-Fi channels.[1][2]

The 2.4-gigahertz Industrial, Scientific, and Medical (ISM) band is the most crowded airspace in modern technology. It spans just 83.5 megahertz of total bandwidth, stretching from 2400 to 2483.5 megahertz. Within that tiny slice of spectrum, nearly every wireless protocol must fight for a chance to transmit.[2]

Wi-Fi dominates this space by design, utilizing the IEEE 802.11 standard to blast high-speed data across wide frequency bands. A standard 2.4-gigahertz Wi-Fi channel consumes 20 megahertz of spectrum, accounting for nearly a quarter of the entire available ISM band. When a router downloads a large file, it fills that space completely.[2]

In stark contrast, smart home sensors use the IEEE 802.15.4 standard, which prioritizes battery life over bandwidth. Protocols like Zigbee and Thread operate on channels that are exactly two megahertz wide. They transmit tiny payloads—often just a few bytes to report a temperature or turn on a lightbulb.[1]

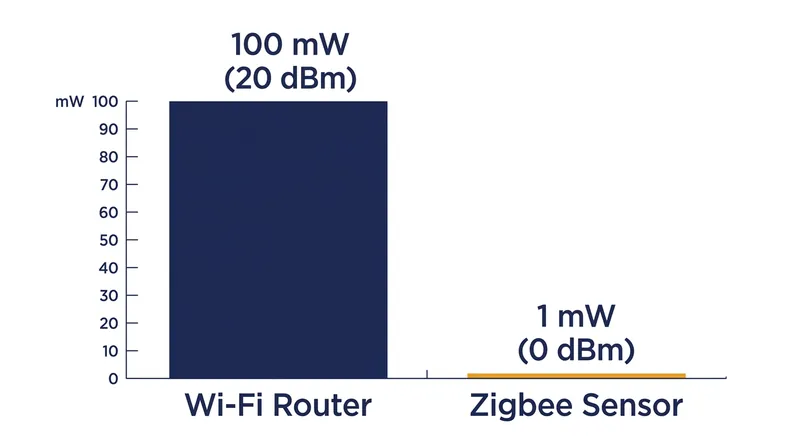

"The physics of the situation are fundamentally asymmetrical," notes the Factlen Editorial Team in our spectrum analysis. "You have a 100-milliwatt Wi-Fi router screaming across a 20-megahertz highway, while a 1-milliwatt door sensor tries to whisper across a 2-megahertz bike lane." When those lanes overlap, the whisper is entirely erased.[5]

The Myth of the Self-Healing Mesh

Smart home marketing heavily promotes the concept of the "self-healing mesh." Brands promise that if one Zigbee or Thread router goes offline, the network will automatically reroute traffic through another node. This framing suggests that the protocol is immune to environmental disruption.

That marketing language obscures a critical engineering reality: routing algorithms cannot fix a physical layer failure. If the ambient radio frequency noise floor rises above the signal strength of the transmitter, the receiver simply cannot hear the data. No amount of alternative routing can bypass a completely jammed spectrum.[3]

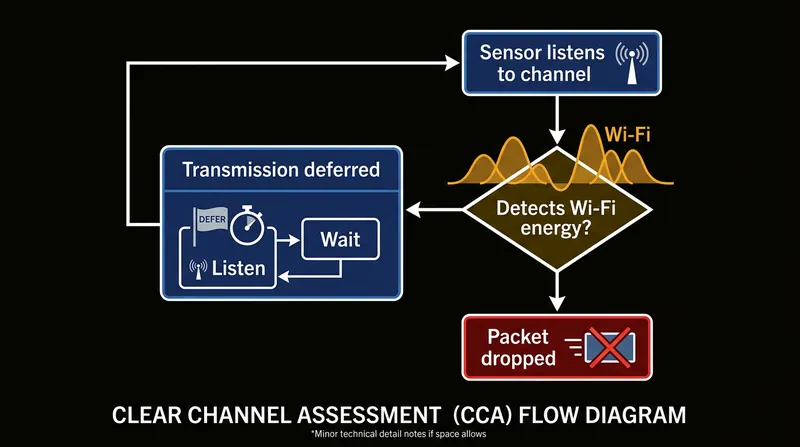

The failure mechanism is rooted in a protocol feature called Clear Channel Assessment (CCA). Before an 802.15.4 device transmits a packet, it listens to the channel to see if anyone else is talking. If it detects energy above a certain threshold, it backs off and waits.[1][3]

When a Wi-Fi router is actively streaming data on an overlapping frequency, the Zigbee device's CCA check constantly fails. The sensor waits, checks again, and finds the channel still busy. Eventually, the device times out, the packet is dropped, and the smart home hub reports the sensor as offline.[3]

"If the CCA threshold is exceeded by Wi-Fi energy, the 802.15.4 node will defer transmission indefinitely," explains a technical application note from Silicon Labs. "This leads to severe packet loss and apparent network failure, even when the devices are fully functional and within range of each other."[3]

Mapping the Spectral Collision

To understand why this happens, network engineers map the exact center frequencies of both protocols. In North America, the 2.4-gigahertz Wi-Fi spectrum is divided into 11 overlapping channels. To avoid interfering with themselves, enterprise Wi-Fi networks exclusively use channels 1, 6, and 11.[2][4]

Wi-Fi channel 1 is centered at 2412 megahertz, channel 6 at 2437 megahertz, and channel 11 at 2462 megahertz. Because each channel is 20 megahertz wide, channel 6 actually occupies the spectrum from 2427 to 2447 megahertz. Any other signal within that 20-megahertz block will suffer interference.[2]

The 802.15.4 standard divides the same ISM band into 16 distinct channels, numbered 11 through 26. These channels are spaced five megahertz apart, starting at 2405 megahertz and ending at 2480 megahertz. Because they are only two megahertz wide, they fit neatly into the band, but they directly overlap with the wider Wi-Fi channels.[1]

For example, Zigbee channels 16, 17, 18, and 19 all fall squarely within the 20-megahertz blast radius of Wi-Fi channel 6. If a smart home hub automatically selects channel 17 while the home's primary Wi-Fi router is operating on channel 6, the two networks are on a permanent collision course.[4][5]

"Most consumer hubs default to Zigbee channel 11 or 15 out of the box," according to documentation from the Connectivity Standards Alliance. "However, if the local Wi-Fi environment changes, the hub rarely performs a dynamic channel change, leaving the mesh vulnerable to sudden degradation."

The Interstitial Strategy

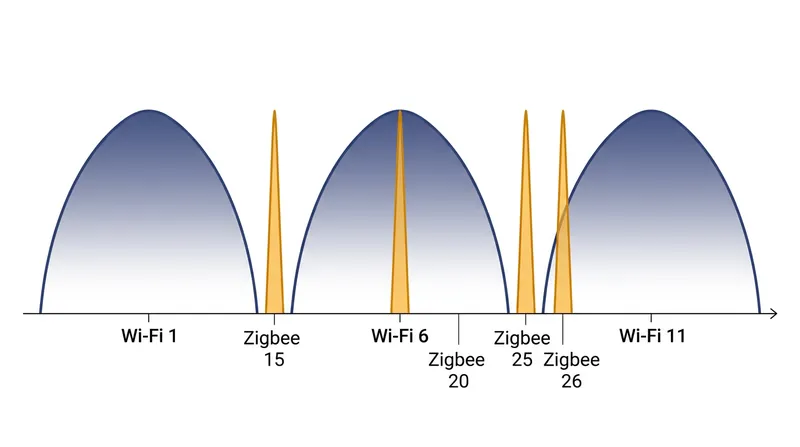

The solution to this spectral overlap is interstitial channel planning. Because enterprise Wi-Fi networks strictly adhere to the 1, 6, and 11 channel layout, there are narrow frequency gaps—spectral nulls—between the edges of these 20-megahertz Wi-Fi channels.[4]

Factlen's frequency mapping confirms that four specific 802.15.4 channels sit perfectly within these gaps. Zigbee channel 15, centered at 2425 megahertz, sits between Wi-Fi 1 and 6. Channel 20, at 2450 megahertz, sits between Wi-Fi 6 and 11. Channel 25, at 2475 megahertz, sits just above Wi-Fi 11.[5]

Channel 26, at 2480 megahertz, is also technically clear of Wi-Fi 11, but it comes with a significant caveat. Because it sits at the very edge of the ISM band, many 802.15.4 radios reduce their transmit power on channel 26 to comply with strict out-of-band emission regulations set by the Federal Communications Commission.[1][3]

"Placing a Zigbee network on channel 15, 20, or 25 avoids the primary energy lobes of a properly configured Wi-Fi network entirely," notes wireless analysis firm MetaGeek in their coexistence guidelines. "This single configuration change can reduce packet loss from over 50 percent down to near zero."[4]

Implementing this strategy requires manual intervention. Users must log into their smart home hub, disable automatic channel selection, and force the mesh onto one of the known safe interstitial channels. They must then ensure their Wi-Fi router is locked to channels 1, 6, or 11 rather than scanning automatically.[3][4]

The Threat of Channel Bonding

While interstitial planning solves the problem in standard environments, a newer Wi-Fi feature threatens to erase these safe harbors entirely. Channel bonding, introduced with the 802.11n standard, allows routers to combine two 20-megahertz channels into a single 40-megahertz block to increase throughput.[2]

When a router bonds channels in the 2.4-gigahertz band, it consumes over half of the available spectrum. A 40-megahertz transmission centered on channel 3 will completely obliterate Zigbee channels 11 through 19, leaving no interstitial gaps in the lower half of the band.[2][5]

"Using 40-megahertz channels in the 2.4-gigahertz band is generally considered hostile to neighboring networks," the IEEE 802.11 working group notes in its deployment best practices. Despite this, many consumer routers ship with channel bonding enabled by default to maximize advertised speed test results.[2]

For smart home enthusiasts, the defense against channel bonding is strict network administration. Disabling 40-megahertz widths on the 2.4-gigahertz Wi-Fi band preserves the interstitial gaps for IoT devices, while high-bandwidth devices like laptops and televisions can be moved to the 5-gigahertz or 6-gigahertz bands.[3][4]

Engineering a Quieter Future

The long-term solution to 2.4-gigahertz congestion is migrating high-bandwidth traffic away from the ISM band entirely. Modern Wi-Fi 6E and Wi-Fi 7 standards open up vast swaths of spectrum in the 6-gigahertz range, providing gigabit speeds without interfering with legacy smart home protocols.[2]

Alternatively, some smart home manufacturers are abandoning the 2.4-gigahertz band in favor of sub-gigahertz frequencies. Protocols like Z-Wave operate around 900 megahertz, where they enjoy significantly better wall penetration and zero interference from Wi-Fi routers or microwave ovens.

Until those transitions are complete, the stability of the modern smart home relies on careful spectrum management. The invisible airspace inside a house is a finite resource, and treating it as an infinite commodity guarantees dropped packets and unresponsive light switches.[5]

By understanding the physical dimensions of radio channels and manually separating the wide Wi-Fi highways from the narrow Zigbee bike lanes, users can restore the reliability that smart home marketing promises. The self-healing mesh works perfectly, provided it is given the physical space to speak.[3][5]
