IBM Launches $2 Billion Anderon Subsidiary to Build Dedicated 300mm Quantum Wafer Fabrication Facility

The era of bespoke, hand-crafted quantum computers is ending. In a landmark move that signals the industrialization of quantum technology, IBM and the U.S. Department of Commerce have finalized a $2 billion agreement to launch Anderon, America's first standalone quantum wafer fabrication facility.[1]

Headquartered in Albany, New York, the newly minted subsidiary represents a massive injection of capital into the physical infrastructure of next-generation computing. The project pairs $1 billion in federal incentives from the CHIPS and Science Act with a matching $1 billion cash investment from IBM.[2]

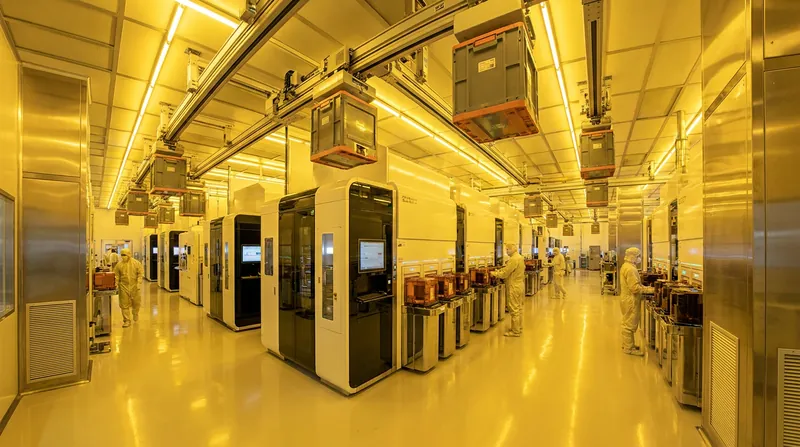

But the true significance of Anderon lies not just in the dollar amount, but in the specific manufacturing standard it introduces to the quantum realm: the 300-millimeter wafer. By scaling up to this industry-standard size, Anderon aims to transition quantum chip production from the slow, small-batch processes of university cleanrooms into the continuous, automated cadence of classical semiconductor fabrication.[3]

To understand why this matters, one must look at how quantum processors have historically been built. Most quantum development today relies on 200-millimeter wafers or smaller, often processed in research laboratories where iteration cycles are painstakingly slow and yields are highly variable.[2]

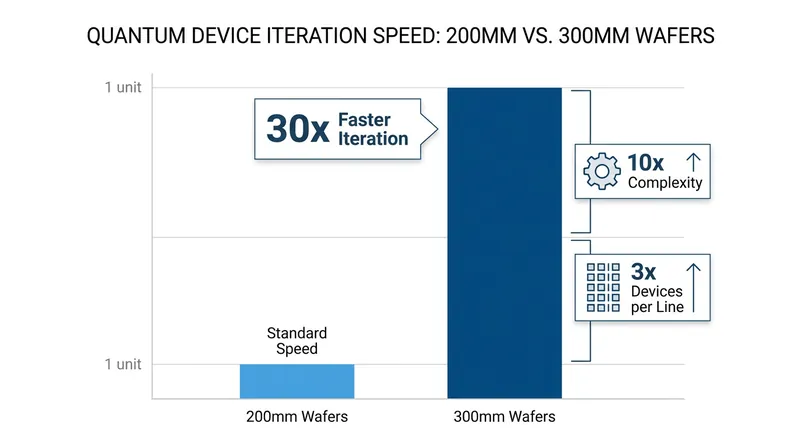

The leap to 300-millimeter fabrication is a mechanical and economic multiplier. According to IBM's research division, processing at this larger scale allows engineers to pack tenfold more complexity onto a single wafer while simultaneously tripling the number of devices moving down the production line.[2]

The net result is a staggering 30-fold increase in the speed of device iteration. When researchers can test, fail, and redesign quantum circuits thirty times faster, the timeline for achieving fault-tolerant, utility-scale quantum computing compresses dramatically.

Anderon is designed to operate as a "pure-play foundry." In the classical semiconductor world, companies like TSMC revolutionized the industry by separating chip design from chip manufacturing. They build the multi-billion-dollar factories so that other companies can simply design the chips and outsource the production.[2]

Until now, the quantum industry lacked this separation. Startups building superconducting quantum computers had to raise massive amounts of venture capital not just to design their processors, but to build the highly specialized cleanrooms and fabrication lines required to physically construct them.

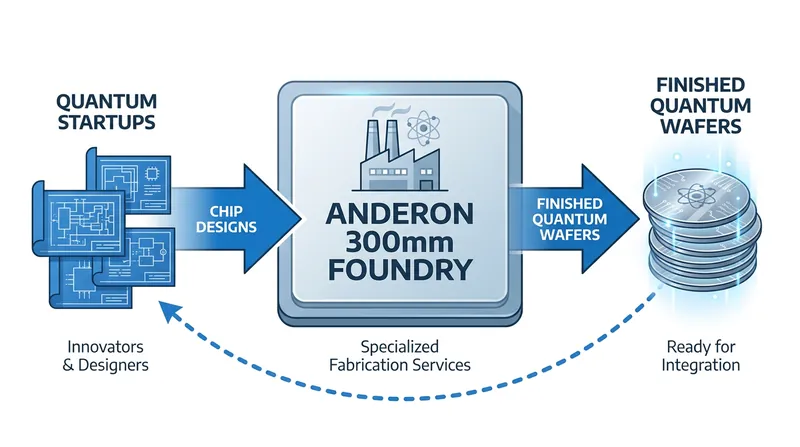

By operating as an independent entity, Anderon will offer its 300-millimeter manufacturing services to competing quantum hardware vendors. Armed with established process design kits and in-line wafer testing, a quantum startup will be able to submit a design to Anderon and receive production-grade superconducting wafers in return, bypassing years of infrastructure development.[2]

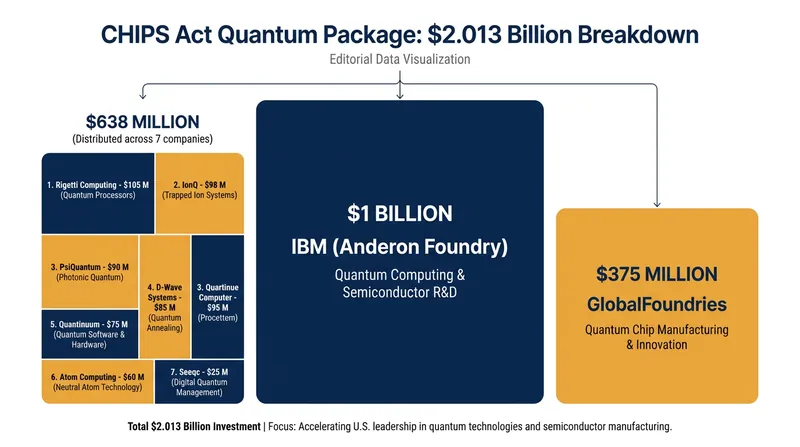

The creation of Anderon is the centerpiece of a much broader, highly calculated industrial policy maneuver by the U.S. government. The $1 billion allocated to IBM is part of a larger $2.013 billion CHIPS Act quantum portfolio distributed across nine different companies.[1][3]

This distribution reveals a deliberate tiering in America's strategy. While IBM receives half the total funding to build dedicated manufacturing infrastructure, GlobalFoundries is receiving $375 million to establish a quantum-focused business line for advanced packaging and cryogenic control systems.[1]

The remaining funds are distributed as smaller equity investments—ranging from $38 million to $100 million—to seven other companies, including D-Wave, Rigetti, and PsiQuantum. This structure highlights the government's primary bet: that superconducting silicon, the modality championed by IBM, is currently the only quantum architecture ready to leverage production-grade 300-millimeter fabrication.[1][3]

Superconducting qubits, which rely on electrical circuits cooled to near absolute zero, have long been the frontrunner in the quantum race due to their compatibility with existing semiconductor manufacturing techniques. The Anderon facility will initially focus entirely on producing these superconducting qubit wafers and their supporting electronics.[3]

However, the physics of quantum computing remains deeply unsettled, introducing a layer of strategic uncertainty. While superconducting circuits are currently the most manufacturable, competing modalities like trapped-ion, neutral-atom, and photonic quantum computing offer different theoretical advantages in error correction and coherence times.[3]

If a breakthrough occurs in one of these alternative architectures, the massive investment in superconducting infrastructure could theoretically face obsolescence. This is precisely why the Department of Commerce structured the remaining $500 million of the CHIPS package as a hedge, taking minority equity stakes in companies pursuing those alternative physics.[1]

Despite this uncertainty, the establishment of Anderon forces a necessary maturation of the industry. By standardizing the physical substrate of quantum computing, the facility allows the broader ecosystem to shift its focus from basic materials science to advanced systems engineering and software development.

The global context adds urgency to this transition. The U.S. investment arrives amid a rapidly escalating international spending race, with China deploying an estimated $15 billion into quantum technologies and Japan committing over $7 billion to a combined semiconductor and quantum industrialization agenda.[2]

By anchoring the supply chain in Albany, New York, the U.S. is moving to ensure that the physical means of quantum production remain domestic. As Anderon spins up its automated production lines, it promises to transform quantum computing from a bespoke scientific endeavor into a scalable, industrialized reality.
