How Commuting Stabilizer Measurements Detect Quantum Flips Without Collapsing Superpositions

The entangling of data qubits with an auxiliary ancilla qubit to perform a quantum non-demolition parity check is the exact moment a quantum computer decides whether it can survive its own noise. This step extracts classical information about an error without measuring, and thus collapsing, the quantum data itself. It is the mechanical heart of quantum error correction.[1]

Without this mechanism, the industry's roadmap to fault-tolerant computation is a fiction. Qubits are inherently fragile, evolving in a continuous analog state space where they are susceptible to environmental noise and control imperfections. They suffer bit flips, where a zero becomes a one, and phase flips, where the sign of their delicate superposition reverses.[2]

In classical computing, error correction is trivial: the system simply reads the bit, checks if it flipped, and overwrites it if necessary. Quantum mechanics forbids this direct approach. The moment a physicist or a control system directly measures a qubit in a superposition, the wave function collapses into a definitive zero or one, destroying the computation.[1]

To circumvent this, researchers rely on a mathematical framework known as the stabilizer formalism, first introduced in 1997. Instead of measuring the qubits directly, the system measures specific properties of the entangled group. This allows the hardware to detect that an error occurred, and exactly what kind of error it was, while leaving the underlying quantum information perfectly intact.[3]

The No-Cloning Problem

Because the quantum no-cloning theorem prevents engineers from simply duplicating data to create backups, quantum error correction requires encoding a single logical qubit across a highly entangled web of many physical qubits. If one physical qubit in the web suffers a bit or phase flip, the broader logical state remains coherent.[1]

The most widely adopted blueprint for this architecture is the surface code, which arranges physical qubits on a two-dimensional checkerboard lattice. In this layout, qubits are divided into two distinct categories: data qubits, which hold the encoded logical state, and measure qubits, often called ancillas, which act as the system's diagnostic sensors.

The surface code protects the logical qubit by continuously running parity checks across neighboring data qubits. These checks are defined by stabilizers, which are multi-qubit Pauli operators. A Pauli operator is simply a mathematical matrix representing a specific quantum rotation, such as an X-gate for a bit flip or a Z-gate for a phase flip.[1]

"The surface code is currently one of the most promising quantum error-correcting codes, favored by many research groups because of its relative tolerance to error and its suitability for 2D chip layouts," notes a 2025 analysis of topological codes. The architecture avoids long-range entangling gates, relying entirely on nearest-neighbor interactions.

Parity Checks and Commuting Operators

The genius of the stabilizer formalism lies in the concept of commuting operators. In quantum mechanics, if two operators commute, their corresponding observables can be measured simultaneously without one measurement disturbing the outcome of the other. The stabilizers are specifically chosen so that they commute with the logical operators of the encoded qubit.[1][3]

Because they commute, measuring the stabilizer does not collapse the stored logical superposition. The system is essentially asking the qubits a collective question, such as whether a block of four qubits shares the same parity, without ever asking what the specific state of any individual data qubit is.[2]

In a standard surface code, there are two types of stabilizers. Plaquette operators, which consist of Pauli-Z gates, detect bit flips. Vertex operators, which consist of Pauli-X gates, detect phase flips. A valid, error-free logical state exists in the simultaneous positive-one eigenspace of all these stabilizer operators.[1]

If a physical error occurs, the state is knocked out of this positive-one eigenspace. The affected stabilizer will then yield a negative-one eigenvalue when measured. This mathematical shift is entirely predictable, allowing the system to force an arbitrary, continuous analog error to behave like a discrete digital fault that can be tracked.[2]

The Role of Ancilla Qubits

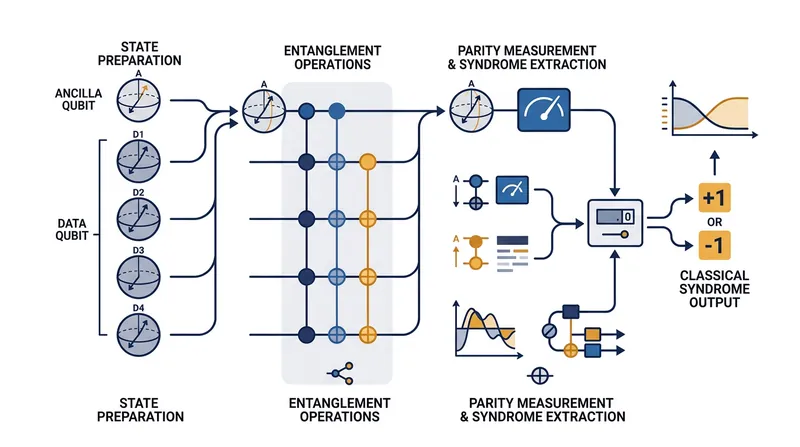

To actually extract this eigenvalue without touching the data qubits, the system employs the ancilla qubits. The process begins by initializing an ancilla qubit in a known state, typically a definitive zero. The hardware then executes a highly choreographed sequence of entangling gates between the ancilla and its four neighboring data qubits.

This entangling sequence imprints the parity of the data qubits onto the ancilla. For a Z-stabilizer, the system uses controlled-NOT gates; for an X-stabilizer, it uses controlled-phase gates. Crucially, the information flows only in one direction: from the data qubits to the ancilla, leaving the data qubits' superposition undisturbed.[1]

Once the entangling sequence is complete, the control hardware physically measures the ancilla qubit. If the ancilla reads as a zero, the stabilizer is in the positive-one eigenspace, indicating no error. If the ancilla reads as a one, the stabilizer has flipped to the negative-one eigenspace, signaling that one of the adjacent data qubits has suffered a fault.

This measurement is a quantum non-demolition operation. The data qubits are never directly observed, yet the system successfully extracts the exact location and type of the physical error. The ancilla is then reset to zero, and the cycle repeats, typically taking about one and a half microseconds per round on modern superconducting hardware.

Extracting the Error Syndrome

The collective output of all the ancilla measurements across the two-dimensional lattice forms what physicists call the error syndrome. It is essentially a classical map of positive and negative values that highlights exactly where the quantum state has frayed.[1]

Because a single physical error will typically flip two adjacent stabilizers, the syndrome appears as a pair of defects on the lattice. A classical computer running a decoding algorithm, often a minimum-weight perfect matching or union-find algorithm, analyzes this syndrome in real time to pair up the defects and deduce the most likely chain of errors.[3]

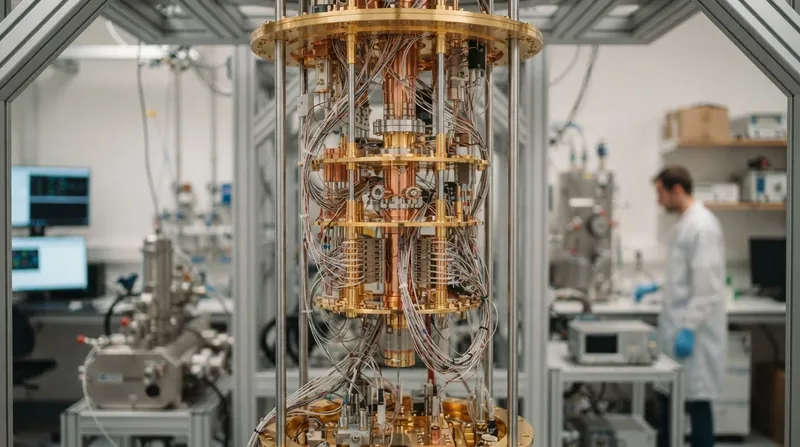

"The decoder, based on a union-find algorithm, is designed to operate in real time alongside superconducting qubits and represents a key step toward practical fault-tolerant quantum computing," a 2026 hardware report confirmed. The classical software must solve this matching problem faster than the qubits decohere.

Once the classical decoder identifies the fault, the system does not necessarily need to apply a physical microwave pulse to correct the qubit. Instead, it can simply track the error in software, updating its Pauli frame to account for the flipped bit or phase during subsequent logical operations.[2]

Surface Codes and Scaling

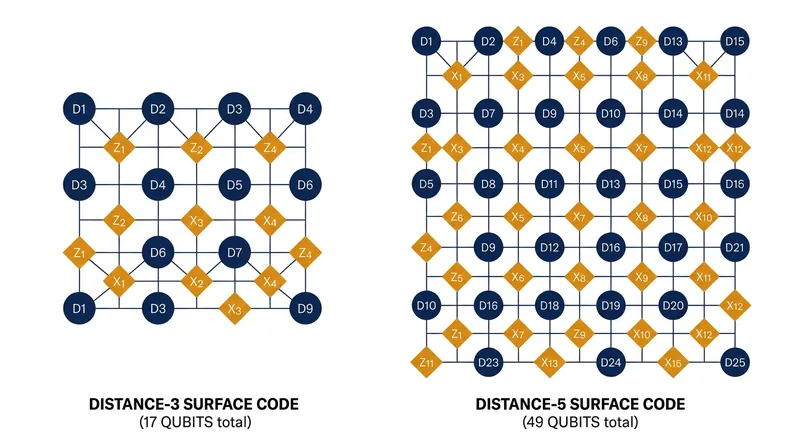

The error-correcting power of a surface code is defined by its distance. A distance-d code can reliably correct up to half of that distance in simultaneous physical errors. The smallest viable implementation is a distance-3 code, which can correct a single error and requires 17 physical qubits, comprising nine data qubits and eight ancillas.

To correct two simultaneous errors, the system must scale up to a distance-5 code. This requires a lattice of 49 physical qubits, comprising 25 data qubits and 24 ancillas. In 2024, researchers successfully orchestrated 25 consecutive cycles of stabilizer measurements on a 49-qubit patch, marking the largest realization of a quantum error-correcting code to date.

The theoretical promise of the surface code is that as the distance increases, the logical error rate should drop exponentially. The 49-qubit experiment was designed to prove this scaling behavior, comparing the performance of the distance-5 code against the smaller, 17-qubit distance-3 baseline on the exact same superconducting processor.

The results confirmed the mechanism, but highlighted the steep cost of overhead. The larger distance-5 code achieved a logical error rate of 2.914 percent per cycle, modestly outperforming the distance-3 code, which suffered a 3.028 percent error rate per cycle. The code size successfully suppressed the noise, but only by a narrow margin.

The Fidelity Bottleneck

This marginal improvement reveals the harsh reality of current quantum hardware. Tripling the physical qubit count from 17 to 49 yielded only a four percent relative reduction in logical errors. The system is operating below the theoretical error threshold, but it is hovering so close to the edge that adding qubits barely moves the needle.[3]

The bottleneck is the fidelity of the two-qubit entangling gates used during the stabilizer measurements. Every time an ancilla interacts with a data qubit, the gate itself introduces a small probability of a new error. If the physical gate error rate is too high, the act of measuring the stabilizers introduces more faults than the code can correct.[2]

"In theory, logical errors should be reduced if physical errors are sufficiently sparse in the quantum processor," the 2026 hardware analysis noted. "In practice, demonstrating reduced logical error requires scaling up a device to support a code which can correct at least two errors, without sacrificing state-of-the-art performance."

For surface codes to deliver the exponential error suppression promised by the stabilizer formalism, physical two-qubit gate fidelities must sustainably exceed 99.9 percent. Until commercial architectures can reliably cross that threshold across hundreds of qubits, commuting stabilizer measurements will remain a brilliant mathematical mechanism waiting for the hardware to catch up.[3]
