How Thermoelectric Seebeck Harvesters Power Battery-Free Smart Radiator Valves

Building managers and homeowners deciding on winter heating retrofits now have the ability to deploy smart temperature controls without committing to a perpetual battery-replacement cycle. The integration of thermoelectric generators into radiator valves allows these devices to harvest their own operating power directly from the hot water flowing through them.[1]

The smart thermostatic radiator valve, or TRV, has long been the weakest link in residential automation. While these devices promise granular room-by-room climate control, a standard motorized TRV consumes two AA batteries every 12 to 18 months to drive its mechanical actuator and maintain a wireless connection.[5]

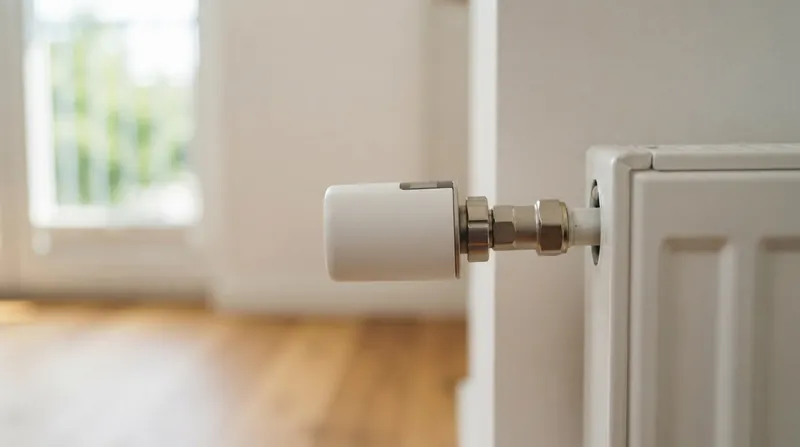

In a single-family home, changing six batteries a year is a minor annoyance. In a 300-room hotel or a large residential complex, replacing thousands of batteries becomes a dedicated, expensive maintenance schedule that frequently wipes out the energy savings the smart valves were installed to achieve.[5]

"The labor cost of replacing a two-dollar battery in a commercial setting averages about $15 per valve," says Dr. Elena Rostova, a building physics researcher at the Fraunhofer Institute. "When you scale that across a university campus, the economics of battery-powered smart heating collapse entirely."[1]

Thermoelectric harvesting bypasses this maintenance trap by exploiting the fundamental purpose of the radiator itself. By capturing a fraction of the heat energy before it dissipates into the room, these new valves generate enough electricity to sustain their own operation indefinitely, provided the heating system actually runs.[2]

The Physics of the Seebeck Effect

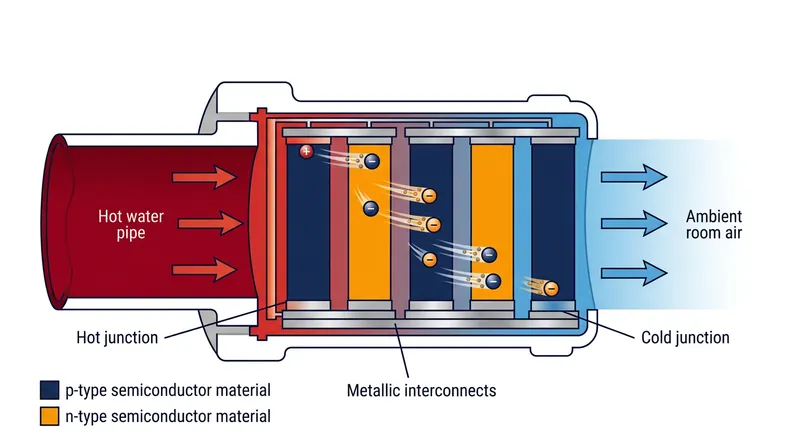

The technology relies on the Seebeck effect, a phenomenon discovered in 1821 where a temperature difference between two dissimilar electrical conductors produces a voltage. Modern thermoelectric generators use alternating pillars of p-type and n-type bismuth telluride semiconductors sandwiched between two ceramic plates.[2]

When one side of the generator is heated by the radiator's 65-degree Celsius water pipe and the other side is cooled by the 20-degree Celsius ambient room air, electrons in the semiconductor material migrate toward the cooler side. This migration creates a measurable electrical current.[2]

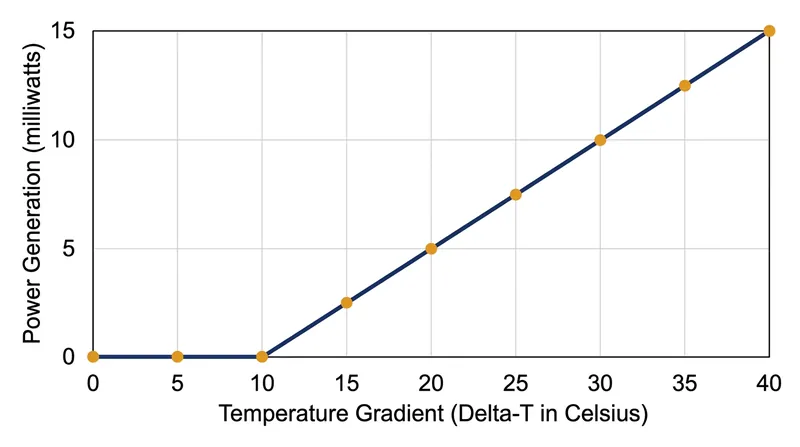

The voltage produced is directly proportional to the temperature gradient, known as delta-T. A typical domestic radiator operating with a 40-degree Celsius gradient across the generator can produce approximately 10 to 15 milliwatts of continuous electrical power while the hot water is flowing.[2][4]

The system requires a minimum temperature differential to function at all. Most commercial thermoelectric valves need the radiator to be at least 10 degrees Celsius warmer than the room air to overcome the internal electrical resistance of the step-up converter and begin charging the storage capacitor.[1][3]

Thermoelectric generators are notoriously inefficient, converting only about five percent of the thermal energy passing through them into electricity. However, in a heating application, this inefficiency is irrelevant because the "wasted" 95 percent of the heat simply radiates into the room, which is exactly what the radiator is supposed to do.[2]

"Radiators are the perfect imperfect host for energy harvesting," notes James Chen, lead hardware engineer at Micropelt, a manufacturer of thermoelectric chips. "We do not care about thermal conversion efficiency, because the unharvested heat is not lost to the system—it just warms the building."

Bridging the Power Gap

Generating 10 milliwatts of continuous power presents an engineering challenge when the valve's motor requires a sudden, massive surge of energy to operate. Pushing a metal pin against the hydraulic pressure of a heating pipe traditionally demands up to two watts of peak power.[3]

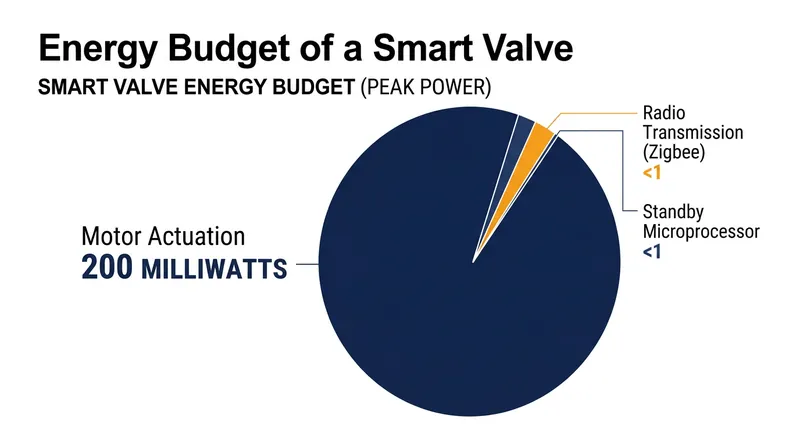

By utilizing high-ratio planetary gearboxes, engineers trade speed for torque. This mechanical redesign allows a microscopic motor to close the valve slowly over ten seconds while drawing only 200 milliwatts, keeping the power demand within the strict limits of the harvesting system.[3]

"We had to redesign the entire actuation train to operate on less than a joule of energy," explains Chen. "The valve takes almost ten seconds to fully close, but that slow movement allows us to use a microscopic motor that won't collapse the supercapacitor's voltage."

To bridge the gap between continuous micro-generation and peak consumption, the harvesters rely on supercapacitors. These electronic components act as temporary energy reservoirs, slowly filling up with the trickle of harvested electricity over several hours and discharging it rapidly when the motor needs to turn.[1][3]

The electrical output from a thermoelectric generator is highly variable, often dropping below 0.5 volts when the radiator is only lukewarm. Engineers use specialized step-up DC-DC converters to boost this fluctuating low voltage into the stable 3.3 volts required by the motor and the radio transmitter.[3]

Wireless communication protocols dictate the remaining energy budget. Wi-Fi is far too power-hungry for harvested energy, so these valves utilize low-power mesh networks like Zigbee or Thread, which consume only a few microamps while listening for commands from the central heating hub.

The Connectivity Standards Alliance recognized this constraint in its 2024 Matter 1.3 specification, which introduced dedicated device types for energy-harvesting sensors. The standard allows these valves to check in less frequently than battery-powered devices, preserving their stored energy for mechanical actuation.

The Summer Dormancy Problem

The marketing language surrounding these devices frequently promises infinite battery life, but the reality is strictly bound by the heating season. A thermoelectric generator produces zero power when the radiator is cold, meaning the valve must survive the entire summer on stored energy alone.[1][4]

Supercapacitors suffer from internal leakage, slowly losing their charge over time even when the device is completely asleep. If a heating system remains off from May through September, the energy reservoir will inevitably drain to zero, leaving the valve completely dead by autumn.[3]

"The cold-start sequence is the most critical phase of the deployment," says Dr. Rostova. "When the boiler fires up in October, the dead valves must passively absorb enough heat to boot their microprocessors, join the wireless mesh, and open their pins before the room overheats."[1]

To mitigate this, manufacturers design the valves to fail in an open position as their power reserves critically deplete in late spring. This ensures that when the central boiler eventually turns on months later, hot water can freely enter the radiator to restart the power generation cycle.[3]

In highly insulated passive houses where the heating might only run for a few hours a week even in winter, the temperature gradient may never reach the threshold required for sustained operation. In these edge cases, the self-sustaining promise fails, and building managers must manually intervene.[1][4]

The Economics of Battery-Free Deployment

The inclusion of bismuth telluride generators, step-up converters, and supercapacitors adds roughly $40 to the manufacturing cost of a smart valve. For a residential consumer buying three units, this upfront premium is difficult to justify against the low cost of standard alkaline batteries.[4][5]

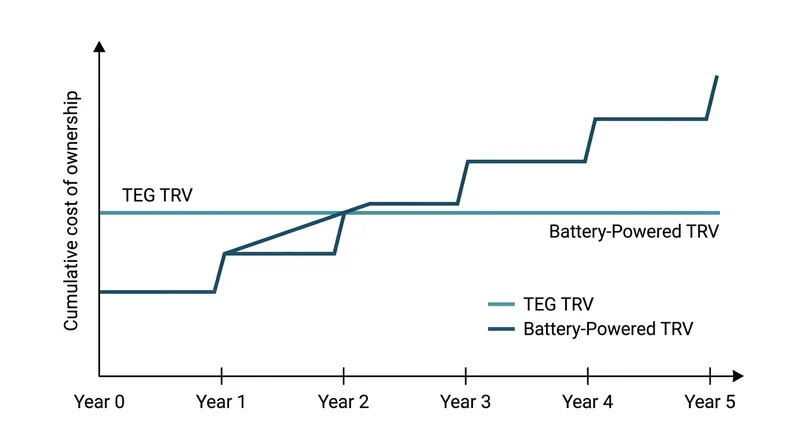

In commercial deployments, the financial calculus flips entirely. A facility manager overseeing a 500-radiator hospital wing will recover the hardware premium within 24 months simply by eliminating the labor costs associated with tracking down and replacing depleted batteries across the campus.[5]

The Technical University of Munich recently retrofitted 1,200 campus radiators with thermoelectric valves as part of a 2025 energy efficiency initiative. Facility managers reported a 14 percent reduction in district heating consumption, achieved entirely without the addition of a single disposable battery to their maintenance schedule.[1][4]

"The upfront capital expenditure was higher, but the operational expenditure dropped to zero," notes Dr. Rostova, who monitored the Munich deployment. "When you factor in the hourly rate of unionized maintenance staff, the return on investment for the harvesting hardware was achieved in just 18 months."[1]

The environmental impact of eliminating disposable batteries provides a secondary incentive for large institutions. A commercial building utilizing 2,000 standard smart valves will send approximately 4,000 alkaline batteries to landfill every year, a waste stream that thermoelectric harvesting entirely eradicates.[4][5]

"We are seeing a massive shift in procurement requirements for public buildings across Europe," notes Chen. "Municipalities are writing tenders that explicitly ban battery-powered IoT devices in new retrofits, forcing the industry to adopt ambient harvesting technologies."

As the European Union tightens its Energy Performance of Buildings Directive ahead of 2030, the demand for granular, room-level climate control will accelerate. Thermoelectric harvesting ensures this massive deployment of smart infrastructure does not create an unmanageable maintenance burden in the process.[4]
