How System Architects Balance SRAM, DRAM, and NAND Flash to Prevent Processing Bottlenecks

System architects designing the next generation of processors face a strict silicon budget. They decide exactly how much space to allocate to on-chip cache, external memory, and permanent storage, balancing computational speed against manufacturing cost. Their next opportunity to shift this balance arrives with the upcoming 2-nanometer fabrication nodes, which will force a recalculation of how much fast memory can physically fit on a single die. Every millimeter of silicon dedicated to storage is a millimeter taken away from processing cores, making the memory hierarchy one of the most heavily debated aspects of modern chip design.[5]

For anyone configuring a server, building a workstation, or simply trying to understand why a device feels sluggish, the actionable takeaway is straightforward. Buyers should prioritize on-chip cache (SRAM) for latency-sensitive tasks like gaming or high-frequency trading, maximize main memory (DRAM) for large datasets and virtualization, and rely on NVMe storage (NAND flash) purely for bulk capacity. Understanding how these three distinct memory types interact explains why simply adding a larger hard drive rarely solves a fundamentally slow system.[5]

The memory hierarchy exists because no single semiconductor technology can be fast, dense, and cheap simultaneously. A modern CPU operates at billions of cycles per second, requiring data instantaneously to keep its execution pipelines full. If the processor waits for data to arrive, processing stalls entirely. To prevent this bottleneck, architects layer memory types, placing the fastest, most expensive memory closest to the processor cores and the slowest, cheapest memory furthest away. As the MIT OpenCourseWare curriculum notes, this structure ensures the system functions at the speed of the fastest memory while offering the capacity of the cheapest.[2][3]

Static Random Access Memory (SRAM) sits at the absolute top of this hierarchy. Built directly into the CPU die as L1, L2, and L3 cache, SRAM uses a complex flip-flop circuit—typically requiring six individual transistors per bit—to hold data without needing constant electrical refreshing. This stable, always-ready design allows SRAM to deliver data in one to two nanoseconds, perfectly matching the processor's blistering clock speed. When the CPU needs an instruction immediately, SRAM is the only technology capable of providing it without introducing a delay.[2]

However, that six-transistor design consumes a massive amount of physical space on the silicon wafer. SRAM is incredibly fast but notoriously low-density and prohibitively expensive to manufacture at scale. A modern desktop processor might feature only 32 to 96 megabytes of L3 cache, yet that tiny capacity can occupy more than half of the total chip area. Expanding the SRAM capacity further would require making the entire processor physically larger, drastically reducing the number of chips yielded per wafer and driving consumer costs to unsustainable levels.[1]

When the CPU cannot find the data it needs in the SRAM cache—a situation known as a cache miss—it reaches out to the main memory, which is built using Dynamic Random Access Memory (DRAM). According to the SPEAR ITN research network, DRAM provides a "high-density, low-cost" alternative by pairing a single access transistor with a single storage capacitor. Because it requires only one transistor per bit instead of six, manufacturers can pack vastly more memory into the same physical footprint, allowing a standard desktop to affordably house 32 to 64 gigabytes of capacity.[3]

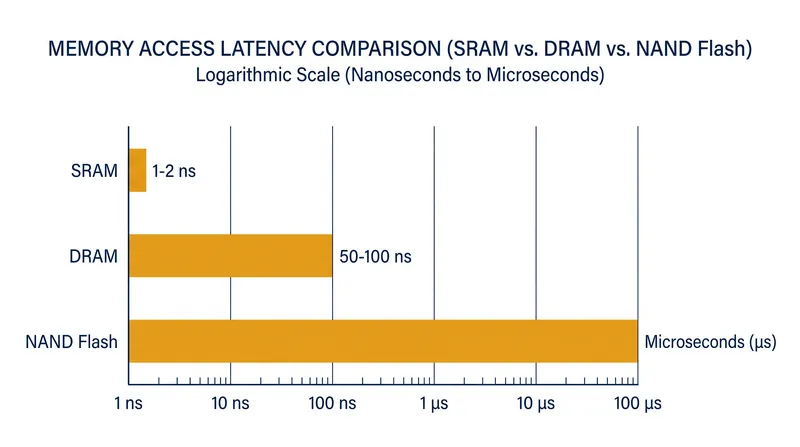

The trade-off for this density is a severe latency penalty. Because the microscopic capacitors leak electrical charge, DRAM must be constantly refreshed—thousands of times per second—just to retain its data. This continuous refresh cycle, combined with the physical distance the signal must travel from the CPU socket to the motherboard memory slots, pushes DRAM access latency to between 50 and 100 nanoseconds. It is roughly 50 times slower than SRAM, forcing the processor to sit idle for hundreds of clock cycles while it waits for the requested data to arrive.[2][3]

Both SRAM and DRAM share one critical limitation that prevents them from serving as permanent storage: they are entirely volatile. The moment the power supply is cut, the flip-flops reset and the capacitors drain, wiping all stored data instantly. To retain operating systems, applications, and user files when the device is turned off, the system requires a non-volatile solution at the base of the hierarchy. Without this permanent foundation, a computer would need to have its operating system reinstalled from scratch every time it was booted up.[1]

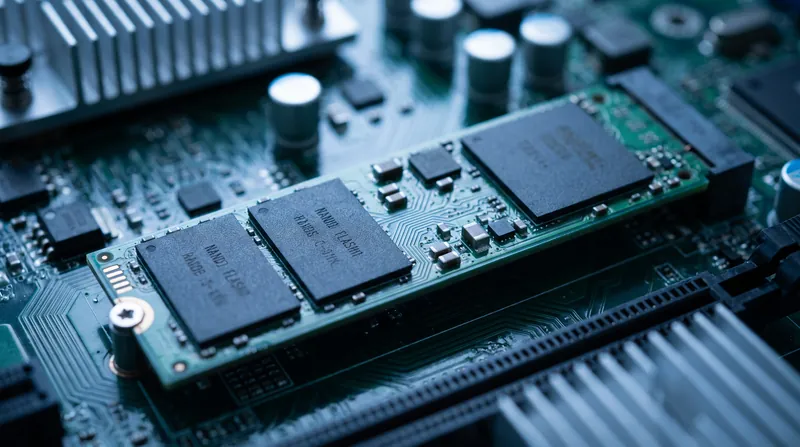

NAND flash memory fills this permanent storage role, serving as the foundation for modern solid-state drives (SSDs), USB thumb drives, and mobile device storage. Unlike volatile RAM, NAND flash uses specialized floating-gate or charge-trap transistors that physically trap electrons within an isolated semiconductor layer to represent binary data. Because these electrons remain securely trapped even when the electrical current stops flowing entirely, NAND flash holds its state indefinitely, providing the persistent, reliable storage required to keep data safe during power cycles and system reboots.[1]

By stacking these memory cells vertically in complex 3D structures—sometimes reaching over 200 layers high—manufacturers achieve massive data density, allowing multiple terabytes of storage to fit on a drive the size of a stick of gum. The inevitable trade-off for this density is speed. Accessing data in NAND flash takes tens of microseconds, making it thousands of times slower than DRAM and millions of times slower than SRAM. If a CPU attempted to run a program directly from NAND flash, the system would freeze completely while waiting for the data.[1][4]

The system's memory controller acts as the high-speed traffic director across this entire hierarchy. It utilizes complex algorithms to predict which data the CPU will need next, pulling it from the slow NAND flash, loading it into the spacious DRAM, and finally staging it in the ultra-fast SRAM cache just milliseconds before the processor actually requests it. When this predictive pre-fetching works correctly, the user experiences the instantaneous speed of SRAM combined with the massive, persistent capacity of NAND flash.[2][3]

Researchers are actively developing emerging non-volatile memory (NVM) technologies, such as Magnetoresistive RAM (MRAM) and Phase-Change Memory (PCM), attempting to bridge the massive performance gap between DRAM's speed and NAND's persistence. However, ResearchGate's 2020 analysis of emerging memory chips highlights that while these new non-volatile options exist, they still face significant challenges in achieving the density and cost-effectiveness of traditional NAND. Until manufacturing techniques improve dramatically, these alternatives remain confined to niche industrial applications and specialized enterprise servers rather than mainstream consumer electronics.[4]

Until a universal memory technology matures enough to replace all three tiers simultaneously, the strict division of labor will remain the foundation of computer engineering. System architects will continue to balance the blistering speed of SRAM, the affordable capacity of DRAM, and the persistent density of NAND flash to keep processors fed and data secure. The next decade of performance gains will rely just as much on managing the traffic between these memory types as it will on increasing the raw speed of the processor itself.[5]
