How Saltatory Conduction and Myelin Sheaths Propagate the Action Potential at 100 Times the Speed

When a human hand brushes against a hot stove, the reflex to pull away executes in milliseconds. That rapid response requires an electrical signal to travel from the sensory receptors in the skin, up the arm to the spinal cord, and back to the muscles—a round trip that must occur faster than the tissue can burn.

In human peripheral nerves, these signals, known as action potentials, can travel at speeds up to 150 meters per second. This remarkable velocity is not a baseline property of nerve cells, but rather the result of a highly specialized biological insulation called the myelin sheath, which fundamentally alters how electricity moves through the body.[1][2]

Neurons communicate by passing electrical impulses along their axons, which are long, cable-like projections extending from the cell body. In an unmyelinated axon, the action potential propagates continuously as a wave. Voltage-gated sodium channels open sequentially along the entire length of the membrane, allowing positively charged sodium ions to rush into the cell and depolarize it.

While reliable, this continuous propagation is incredibly slow, typically moving at just 0.5 to 10 meters per second. If human nerves relied solely on unmyelinated conduction, a signal from the toe would take several seconds to reach the brain, making real-time movement impossible.[1][2]

To solve this biological speed limit, jawed vertebrates evolved the myelin sheath hundreds of millions of years ago. Myelin is a lipid-rich substance produced by specialized glial cells—oligodendrocytes in the central nervous system and Schwann cells in the peripheral nervous system.

These cells wrap themselves concentrically around the axon, forming a dense, electrically insulating layer that prevents ions from leaking across the axonal membrane. This insulation acts much like the rubber coating on a copper wire, ensuring that the electrical current travels efficiently down the length of the nerve fiber without dissipating into the surrounding tissue.[4][5]

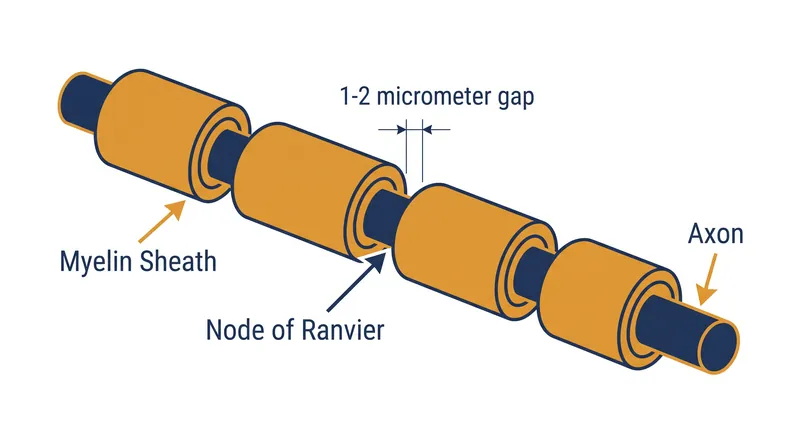

However, the myelin sheath is not a continuous, unbroken tube. It is segmented, interrupted at regular intervals by microscopic unmyelinated gaps known as the nodes of Ranvier. These gaps expose the axonal membrane directly to the extracellular fluid.

As Maurizio De Pittà of the University of Chicago detailed in a 2017 preprint on neurophysiology, 'Myelinated axons look like strings of sausages under a microscope, and because of their white appearance they are integral components of the white matter of the brain.' The nodes act as the critical junctions between these insulated segments.[4]

The nodes of Ranvier are incredibly small, typically measuring just 1 to 2 micrometers in length, which represents roughly 0.1 percent of the length of the myelinated segment, or internode. Despite their microscopic size, these nodes are the absolute engine of high-speed neural transmission.

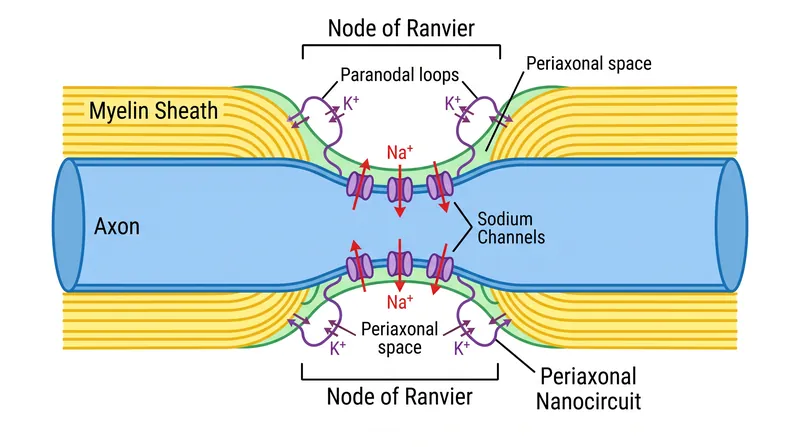

The axonal membrane at the nodes is densely packed with voltage-gated sodium channels, containing between 2,000 and 12,000 channels per square micrometer. This extreme concentration ensures that when the electrical signal arrives, a massive influx of sodium ions can rapidly regenerate the action potential to its full original strength.[4]

In stark contrast, the axonal membrane beneath the myelin sheath contains a sparse distribution of these channels, averaging only about 25 per square micrometer. Because the myelin prevents ion leakage, the electrical charge generated at one node spreads rapidly and passively through the intracellular fluid to the next node. This passive spread, known as electrotonic conduction, is nearly instantaneous. The electrical current moves through the insulated internode much faster than a continuous wave of channel openings could ever achieve, bypassing the slow biochemical process of ion exchange.[4]

When the electrical charge reaches the next node of Ranvier, it triggers the dense cluster of sodium channels to open, regenerating the action potential at full strength before it degrades. The signal effectively 'hops' from one node to the next down the entire length of the axon. This jumping mechanism is called saltatory conduction, derived from the Latin word 'saltare,' meaning to leap. By skipping the insulated sections, the action potential avoids the time-consuming process of opening and closing channels along every micrometer of the nerve fiber.[1][4]

The impact of saltatory conduction on neural performance is profound and transformative. By restricting the time-consuming process of ion channel opening exclusively to the nodes, the myelin sheath increases the conduction velocity of an action potential by a factor of 20 to 100 compared to an unmyelinated axon of the exact same diameter. This massive multiplier is what allows complex vertebrates to process sensory information, maintain balance, and execute rapid motor commands in real time, fundamentally shaping the speed at which we interact with the physical world.[2][5]

As Klaus-Armin Nave and Hauke B. Werner of the Max Planck Institute of Experimental Medicine wrote in the 2021 Annual Review of Neuroscience, 'Myelination of axons provides the structural basis for rapid saltatory impulse propagation along vertebrate fiber tracts, a well-established neurophysiological concept.' Their research highlights that this structural adaptation was a major prerequisite for vertebrates to inhabit new ecological niches, as it allowed for the evolution of larger bodies and longer limbs without sacrificing the reaction times necessary for survival.[5]

Beyond sheer speed, saltatory conduction fundamentally shifts the energy economics of the entire nervous system. After an action potential passes, the neuron must expend energy in the form of adenosine triphosphate (ATP) to pump the sodium ions back out and restore the resting membrane potential. In an unmyelinated axon, this ion exchange occurs along every single micrometer of the membrane, requiring massive amounts of ATP to maintain the electrical balance of the cell. This high energy demand limits how many signals the nerve can fire.[2][5]

In a myelinated axon, the ion exchange is restricted almost entirely to the nodes of Ranvier. Because the surface area of the nodes is a tiny fraction of the total axon length, the total number of ions that cross the membrane during an action potential is drastically reduced. Consequently, the sodium-potassium pumps have far less work to do, making saltatory conduction highly metabolically efficient. This energy savings is what allows the human brain to support billions of neurons without consuming an impossible amount of calories.[2][5]

The precise dynamics of this propagation have been the subject of extensive computational modeling in recent years. In a 2019 study published in PLOS Computational Biology, researchers Helmut Schmidt and Thomas R. Knösche developed mathematical frameworks to simulate how structural parameters influence transmission speed. They confirmed that while axon diameter and myelin thickness strongly dictate velocity, the length of the nodes of Ranvier has a lesser effect. Their models allow scientists to predict how changes in myelin structure impact the overall timing of neural networks.[3]

Schmidt and Knösche also explored the phenomenon of ephaptic coupling, where the electrical fields generated by one axon influence the firing thresholds of its immediate neighbors. Their models demonstrated that 'action potentials between nearby axons can synchronise and slow down their propagation speed,' revealing that white matter tracts are not just isolated wires. Instead, they are dynamically interacting bundles where the timing of one signal can physically alter the speed of another, adding a layer of complexity to how the brain synchronizes information.[3]

Recent empirical studies have further complicated the traditional view of myelin as a simple, inert insulator. Research published in the journal Cell has shown that saltatory conduction involves a highly sophisticated periaxonal nanocircuit. The microscopic space between the axon and the myelin sheath contains a tightly regulated fluid environment that actively shapes the electrical properties of the propagating signal. This suggests that myelin does not just passively block current, but actively participates in managing the electrical environment required for the action potential to jump successfully.[6]

The critical importance of this system becomes devastatingly clear in demyelinating diseases such as multiple sclerosis. When the immune system mistakenly attacks and degrades the myelin sheath, the underlying axonal membrane is exposed to the extracellular fluid. Because this internodal membrane lacks the dense concentration of sodium channels necessary to propagate the signal continuously, the action potential weakens as it travels. If the demyelination is severe enough, the electrical current leaks out entirely, and the signal fails to reach its destination.[4]

This signal failure manifests as the severe neurological symptoms associated with multiple sclerosis, including muscle weakness, loss of coordination, vision problems, and cognitive impairment. Without the myelin to insulate the axon and facilitate the jump between nodes, the evolutionary advantage of saltatory conduction is completely lost. Medical researchers are currently focused on developing therapies that can either protect the existing myelin from autoimmune attacks or stimulate the remyelination of damaged axons to restore the jumping mechanism of the action potential.[4]

The evolution of the myelin sheath represents a brilliant biological compromise to the physical constraints of electricity. To achieve the 150-meter-per-second conduction velocities required by human physiology using unmyelinated axons, the axons would need to be immensely thick to reduce internal electrical resistance. If the human nervous system relied on such structures, the spinal cord would need to be the diameter of a tree trunk to accommodate the necessary wiring, and the skull would have to be the size of a small car.[2]

Instead, by wrapping axons in a lipid insulator and forcing the electrical signal to leap across microscopic gaps, vertebrates achieved high-speed, energy-efficient neural processing within a remarkably compact anatomical footprint. The 100-fold speed increase provided by saltatory conduction remains one of the most consequential evolutionary innovations in the history of the nervous system. It is the invisible mechanism that allows us to perceive the world, process thoughts, and move our bodies with the seamless speed that defines human life.[2][5]
