How Power-Split Devices Blend Series and Parallel Hybrid Architectures for Maximum Efficiency

For a hybrid vehicle to actually save fuel, one non-negotiable condition must hold: the internal combustion engine must be allowed to run at its most efficient rotational speed, completely divorced from how fast the wheels are turning. In a traditional car, the engine's speed is locked to the wheels through fixed gears. If that constraint remains in a hybrid, the efficiency gains evaporate. Today, that constraint is broken by a mechanism called the power-split device, a piece of engineering that dictates whether a daily commuter burns fuel efficiently or wastes it fighting mechanical drag.[4]

For a buyer staring at a dealership lot, the choice between a mild hybrid, a full hybrid, and a plug-in hybrid often comes down to battery size and tax incentives. But the true differentiator—the hardware that determines how that battery's energy is deployed—is the transmission architecture. The power-split device, often marketed as an electronic continuously variable transmission (e-CVT), is the bridge that allows a vehicle to act as an electric car in city traffic and a gas-powered car on the highway, without the driver ever feeling the transition.[4][7]

To understand the power-split device, one must first understand the two architectures it replaces: series and parallel hybrids. In a series hybrid, the gas engine never touches the wheels; it only spins a generator to create electricity for the electric motor. This is highly efficient in stop-and-go traffic but suffers massive energy conversion losses at highway speeds, where turning mechanical energy into electricity and back into mechanical energy is inherently wasteful.[4]

In a parallel hybrid, both the gas engine and the electric motor are mechanically connected to the wheels. They work together to provide torque, which is excellent for highway passing but forces the gas engine to operate across a wide, inefficient RPM range as the car accelerates from a stop. The power-split device was invented to merge these two architectures, capturing the low-speed efficiency of a series hybrid and the high-speed direct drive of a parallel hybrid.[7]

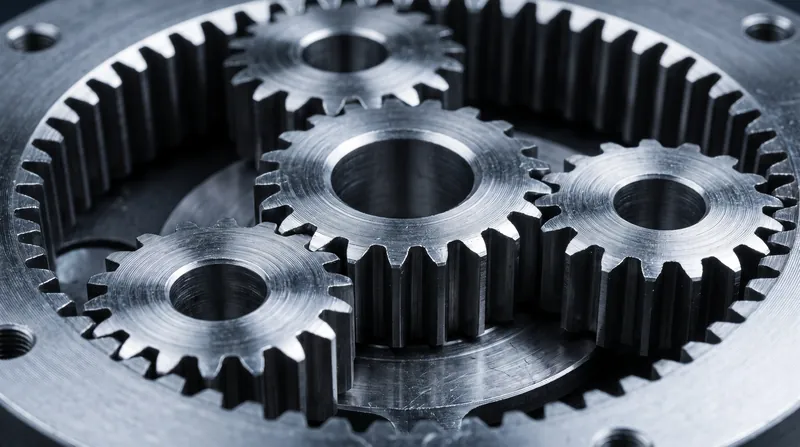

The heart of a power-split device is a planetary gearset. Unlike a traditional transmission with discrete cogs, a planetary gearset consists of a central "sun" gear, surrounded by "planet" gears held in a carrier, all enclosed within an outer "ring" gear. By connecting the gas engine, a primary electric motor, and a secondary electric motor to different parts of this gearset, engineers can route power in multiple directions simultaneously.[1][5]

When a driver accelerates from a stoplight, the power-split device locks the gas engine and relies entirely on the electric motors, drawing power from the battery. As speed increases and the battery depletes, the system starts the gas engine. But instead of sending all that mechanical power to the wheels, the planetary gearset splits it: some torque goes directly to the wheels in a parallel mode, while the rest spins a generator to create electricity for the electric motors in a series mode.[5][7]

This splitting of power allows the gas engine to sit at its absolute most efficient rotational speed—often around 2,000 revolutions per minute—while the vehicle accelerates from 30 to 60 miles per hour. The electric motors absorb the difference in rotational speed, effectively acting as an electronic continuously variable transmission. There are no belts, no pulleys, and no shifting gears, just a seamless blending of torque managed by software.[7]

However, the single-mode power-split device has a critical vulnerability at highway speeds: electrical circulation. As the vehicle pushes past 65 miles per hour, the rotational speeds within the planetary gearset force one of the electric motors to spin backward, acting as a generator, while the other motor consumes that electricity to drive the wheels.[6]

This loop of converting mechanical energy to electrical energy and back to mechanical energy introduces a parasitic loss of up to 15 percent. For a driver with a long highway commute, this electrical circulation penalty eats into the fuel savings achieved in the city, making the single-mode power-split less ideal for sustained high-speed travel.[6]

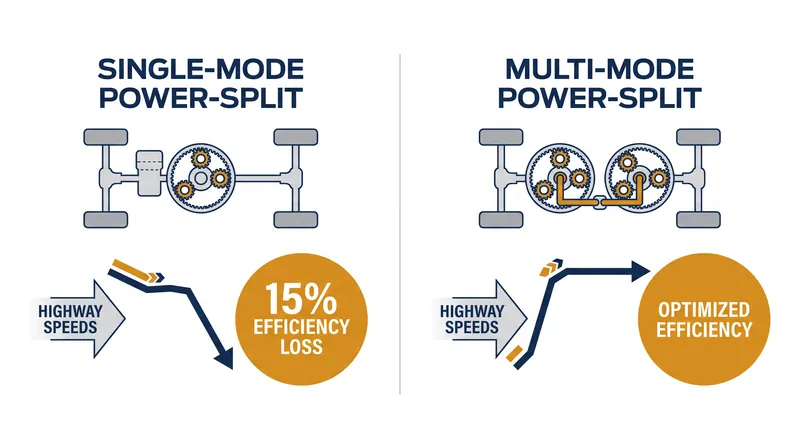

To solve this, engineers developed the multi-mode power-split architecture, most notably utilized in the Voltec powertrain system. By adding a second planetary gearset and a series of mechanical clutches, a multi-mode system can physically lock out the electrical circulation loop at highway speeds.[2][3]

When the vehicle reaches cruising speed, the clutches engage to connect the gas engine more directly to the wheels, bypassing the electrical conversion process entirely. This allows the vehicle to operate as a highly efficient parallel hybrid on the highway, while retaining the ability to decouple the engine for series-hybrid operation in urban environments.[2][5]

For the consumer, the difference between a single-mode and multi-mode power-split device dictates the vehicle's optimal use case. A single-mode system excels for urban rideshare drivers and suburban commuters, maximizing efficiency in variable traffic. A multi-mode system, while heavier and more complex, provides a no-compromise solution for drivers who split their time between city streets and interstate highways.[1][8]

What remains uncertain is how long power-split architectures will remain relevant. As battery costs fall and charging infrastructure expands, the automotive industry is pivoting toward pure battery-electric vehicles, which require no gas engine and therefore no power-split device. The mechanical complexity of blending two power sources may eventually be priced out of the market.[8]

Yet, for the next decade of the energy transition, the power-split device remains the critical bridge. It is the mechanical translator that allows a century-old combustion technology to speak the language of modern electric propulsion, ensuring that every drop of fuel is extracted with maximum efficiency regardless of where the vehicle is driven.[8]
