How a Winglet's Cant Angle and Toe Angle Reduce Induced Drag by Managing Tip Vortices

In 1977, NASA aerodynamicist Richard Whitcomb published a parametric study demonstrating that adding nearly vertical extensions to an aircraft's wingtips could reduce induced drag by roughly 20 percent. That single geometric addition fundamentally altered commercial aviation, providing a mechanism to increase efficiency without extending the physical wingspan beyond standard airport gate limits.[1]

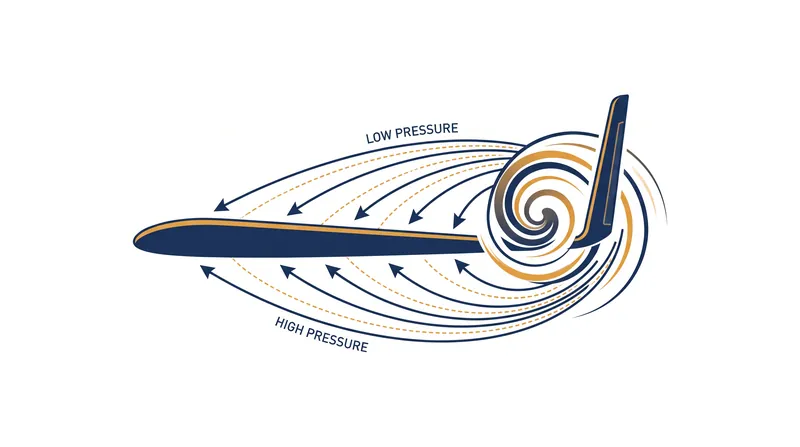

The physical mechanism relies on intercepting the high-pressure air that rolls from the bottom of the wing to the low-pressure upper surface during flight. This spillage creates a rotating wake of turbulent air known as a wingtip vortex, which generates induced drag and pulls the aircraft backward.[3]

As Smithsonian Magazine notes, these vertical extensions "act like sails on a boat," catching the crossflow of the vortex. Because the air in the vortex is rotating inward, the winglet's airfoil generates a lift force that points slightly forward, creating a small but measurable thrust component that offsets the drag.[3]

To maximize this forward thrust, engineers manipulate two primary geometric variables: the cant angle and the toe angle. The cant angle is the outward tilt of the winglet relative to the vertical plane, dictating how the extension interacts with the spanwise flow of the main wing.[5]

Studies published in the E3S Web of Conferences indicate that varying the cant angle directly alters the spanwise lift distribution. A lower cant angle—meaning the winglet stands closer to perfectly vertical—maximizes the diffusion of the tip vortex by creating a physical barrier to the rolling air.[6]

However, a purely vertical winglet creates a sharp 90-degree intersection with the main wing, leading to severe interference drag where the boundary layers of the two surfaces collide. Consequently, modern commercial designs typically employ a cant angle between 15 and 60 degrees, blending the transition to maintain smooth airflow.[5][7]

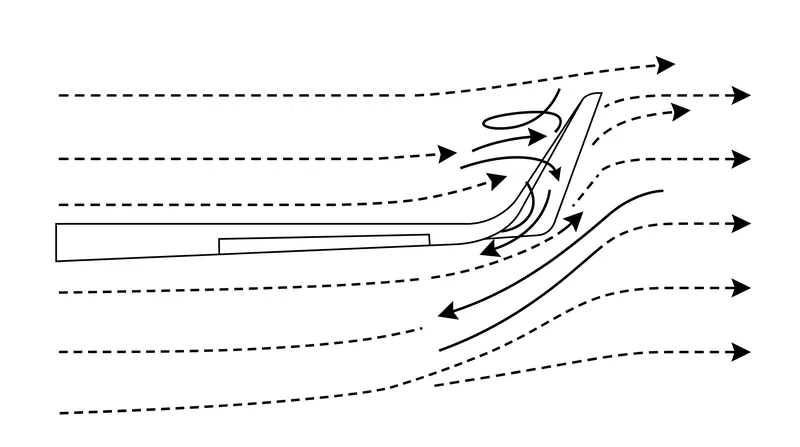

The second critical variable is the toe angle, which functions similarly to the toe-in on an automobile's steering alignment. It represents the twist of the winglet's leading edge relative to the free-stream airflow of the aircraft's forward motion.[2]

Research from the University of Central Florida demonstrates that adjusting the toe angle aligns the winglet's airfoil with the local flow field generated by the vortex, rather than the straight-ahead path of the aircraft. Because the vortex air is rotating, the local wind hits the winglet from a different direction than the free stream.[2]

AIP Publishing data shows that a negative toe angle—pointing the leading edge slightly outward by -2 to -5 degrees—often yields the best aerodynamic performance. This specific twist maintains an optimal local angle of attack within the rotating air, preventing the winglet itself from stalling.[4]

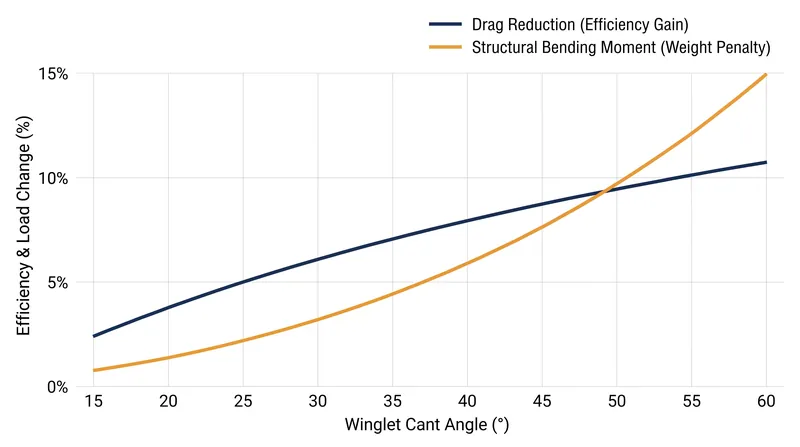

The engineering challenge lies in the structural penalty. Winglets increase the aerodynamic load at the extreme tip of the wing, which acts as a long lever arm. This amplifies the root bending moment—the twisting force applied where the wing attaches to the fuselage.[1][7]

Increasing the cant angle outward effectively increases the wingspan, which further exacerbates this bending moment. Structural engineers must therefore reinforce the wing root with additional aluminum or composite material, adding weight that directly offsets the aerodynamic fuel savings.[7]

By fine-tuning the toe angle, aerodynamicists can extract maximum forward thrust from the vortex without requiring a larger, heavier winglet or a more extreme cant angle. This allows designers to balance the aerodynamic gains against the structural mass penalty.[2][4]

This geometric optimization is particularly critical at transonic speeds. NASA's 1989 numerical studies on low aspect ratio wings confirmed that winglet effectiveness varies significantly as an aircraft approaches Mach 0.8, where compressibility effects alter the behavior of the air.[7]

At these high subsonic velocities, the precise combination of twist and outward tilt prevents the formation of localized shock waves at the winglet junction. By managing both the cant and toe angles, engineers ensure that the drag reduction remains net-positive across the aircraft's entire cruise profile.[1][7]
