Luminance Contrast and Shape Coding: How Game Design Replaces Color for Information Transfer in Colorblind Modes

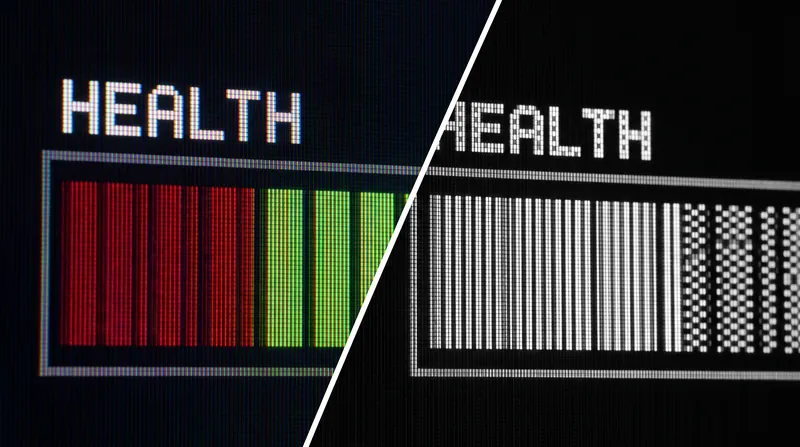

The moment that matters is the UI compositing pass—the final millisecond before a frame hits the display where a game engine decides how to communicate survival. If a developer relies on a red health bar turning green to signal a heal, they have already failed. For the 8 percent of men and 0.5 percent of women globally who live with red-green color vision deficiencies, that specific hue shift is functionally invisible. The outcome is determined not by the color chosen, but by the underlying luminance contrast and the geometric shape that carries it.[1][2]

The stakes in competitive and high-speed gaming are absolute. A player missing a visual cue by 100 milliseconds loses the engagement. Historically, developers leaned on color as a crutch: red for enemies, blue for friendlies, purple for epic loot. But when those colors are stripped of their hue and viewed through the lens of deuteranopia, they often share the exact same brightness value, blending into an unreadable gray mass.[8][9]

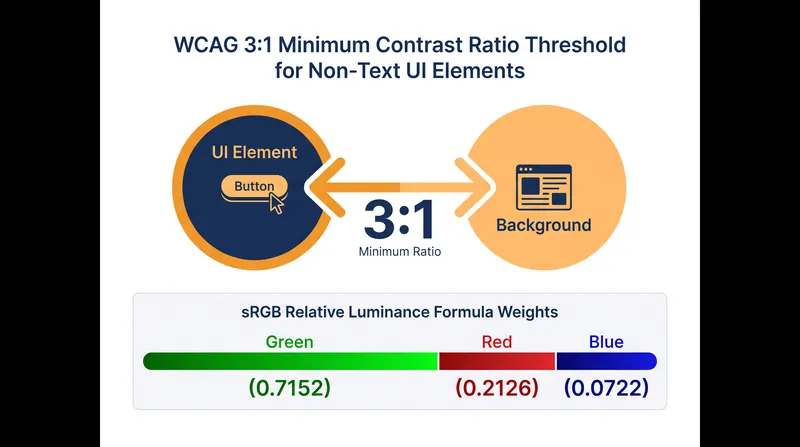

The solution rewires how information transfer works at a fundamental level. Instead of swapping palettes or applying heavy post-process filters, modern accessibility guidelines mandate a minimum 3:1 luminance contrast ratio for non-text UI elements. This means the mathematical brightness of an icon must be exactly three times higher or lower than its background, guaranteeing legibility regardless of the player's specific photoreceptor function.[2][7]

Luminance is calculated using a specific formula that weights colors based on human perception. The standard sRGB calculation heavily favors green light (weighted at 0.7152) while suppressing blue (0.0722) and red (0.2126). When developers design their interfaces in grayscale first, they ensure that the contrast ratio survives any form of dichromacy.[4][9]

But luminance alone is not a complete safety net. The second pillar of accessible information transfer is shape coding—the practice of attaching critical data to 2 distinct geometric silhouettes. If a hostile area is marked by a jagged triangle and a safe zone by a smooth circle, the color fill becomes entirely secondary to the read.[3][5]

When the W3C formalized WCAG 2.0 in 2008, they established a core directive that now drives modern game UI: "Color is not used as the only visual means of conveying information, indicating an action, prompting a response, or distinguishing a visual element." This dual-channel approach—luminance plus shape—eliminates the need for colorblind filters that often wash out a game's carefully crafted aesthetic.[1][6]

The shift is measurable across the industry. Major studios now integrate these 2 distinct standards directly into their engine pipelines, treating accessibility bugs as critical launch blockers rather than post-release patches. When a loot drop uses a unique 3D model for a rare item rather than just a purple glow, the information is instantly parsed by every single player in the lobby.[5]

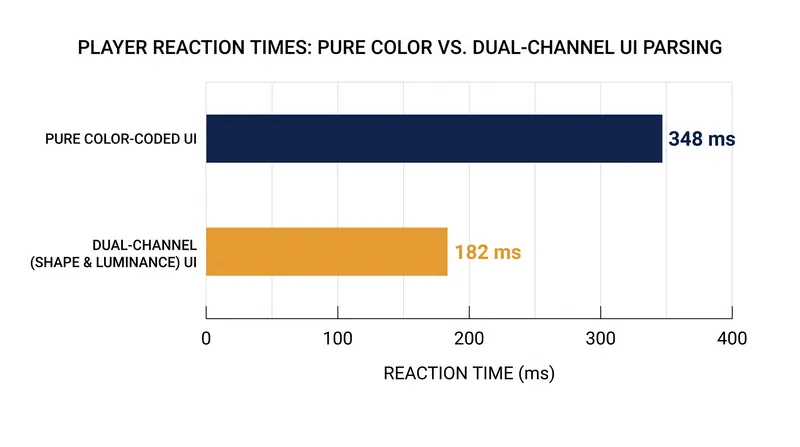

The final metric for success is reaction time. When information transfer is decoupled from color, the resulting user interface is faster to read and harder to miss under the chaotic pressure of a live match. The studios that master this dual-channel design do not just build more accessible games; they build fundamentally better visual systems where every player receives the exact same data at the exact same time.[3][6]
