Disabling TV Dynamic Tone Mapping for HGiG: How Hard Clipping Prevents Double Tone Mapping and Preserves HDR Game Highlights

A modern OLED television can push 1,000 nits of peak brightness, yet millions of players are staring at washed-out, 400-nit gray skies. The hardware is not failing. The culprit is a software conflict known as double tone mapping, where two devices fight over the same image.

High dynamic range (HDR) signals must be compressed to fit a screen's physical limits. When a game console and a television both apply their own compression algorithms simultaneously, the result is a flattened picture. Shadows lose their depth, and bright highlights are prematurely dimmed.

Fixing this visual degradation requires understanding the HDR Gaming Interest Group (HGiG) standard. Formed in 2018 by industry giants like Microsoft and Sony, HGiG offers a specific, counterintuitive solution to the double-processing problem: hard clipping.[2]

How Dynamic Tone Mapping Washes Out Games

To understand the fix, players must first understand the flaw. Movies and television shows are mastered at static brightness levels, typically 1,000 or 4,000 nits. Because most consumer televisions cannot reach 4,000 nits, they use Dynamic Tone Mapping (DTM) to adapt the image.

DTM processing analyzes the video frame-by-frame and compresses the brightest parts so they fit within the screen's physical limits. This works exceptionally well for passive video, but video games are rendered dynamically in real-time. The game engine already knows exactly how bright a spark should be.

When a PlayStation 5 or Xbox Series X outputs a tone-mapped signal, it has already compressed the image for the display. If the television leaves DTM enabled, it processes that already-compressed signal a second time, crushing the dynamic range.

Industry guidelines dictate that the game engine should handle all tone mapping on the graphics processing unit, optimized for a specific display. If the television adds its own mapping, it processes the image twice and makes the entire scene look flat.[1]

The HGiG Solution: Hard Clipping Explained

The solution is to disable the television's internal processing entirely. This is exactly what the HGiG setting does on modern LG, Sony, and Samsung displays. The television simply steps out of the way and trusts the console's math.

The Factlen Editorial Team's technical synthesis notes that HGiG mode tells the monitor to follow the console's tone-mapped signal without adding its own processing. Instead of smoothly rolling off the brightness as it approaches the panel's limit, HGiG enforces a strict hard clip.[1]

The television tracks the exact brightness requested by the game until it hits its absolute physical maximum. If an OLED panel maxes out at 800 nits, it will display a 600-nit requested highlight at exactly 600 nits. Any detail requested above 800 nits is simply clipped to pure white.

This sounds destructive, but it is actually the optimal behavior for interactive media. Because the television hard clips at a known, fixed value, the console can be calibrated to never send a signal above that exact threshold.

Why Hard Clipping is Better for Calibration

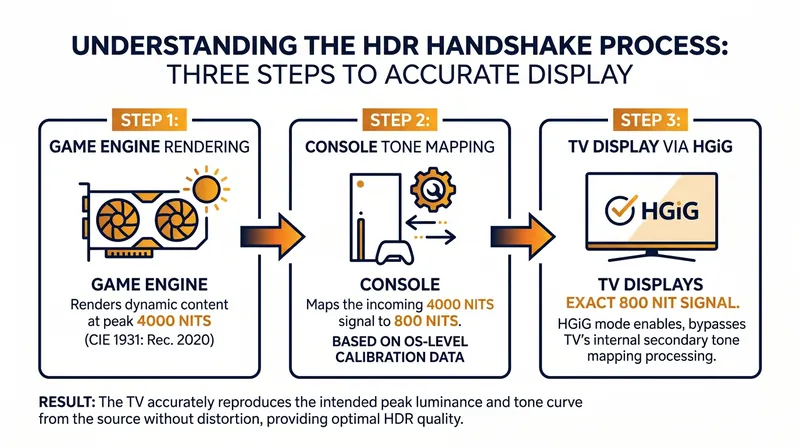

This digital handshake relies on the system-level HDR calibration tools built into modern consoles and operating systems. Players adjust a series of test patterns until a sun or a checkerboard disappears into a white background.

That calibration process measures the exact point where the television hard clips. If the user clicks the slider until the pattern vanishes at 800 nits, the console records 800 nits as the absolute ceiling. From that moment on, the game engine caps its internal rendering at that limit.

Because the console never sends a 1,000-nit signal, the television's hard clip is never actually triggered during gameplay. The peak brightness of the display is retrieved directly from the operating system, allowing the game to utilize the panel's full capability.

If DTM were left on during this calibration, the television would constantly adjust the test pattern's brightness behind the scenes. The user would end up setting the console to an inaccurate ceiling, ruining the baseline math for every game they play.

The EOTF Curve and Creator Intent

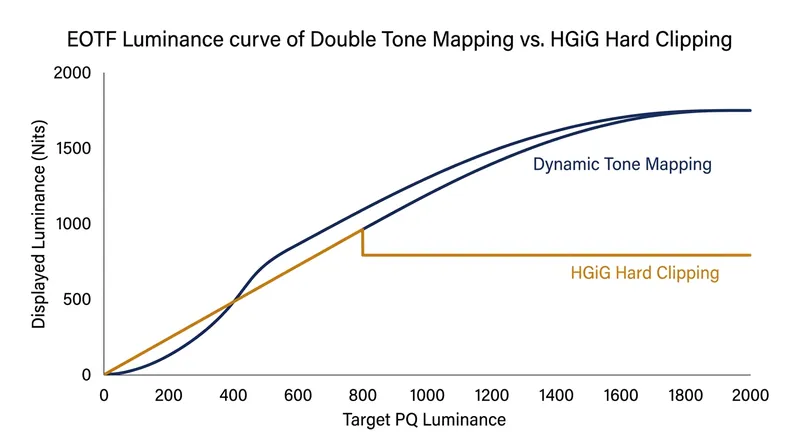

The technical term for this brightness tracking is the Electro-Optical Transfer Function (EOTF) curve. It dictates exactly how much electrical signal translates to how much physical light. Standard DTM alters the EOTF curve, lifting mid-tones to make the overall image look brighter.[3]

That artificial lift deviates from the developer's artistic intent, turning a moody horror game into a brightly lit action scene. HGiG forces the television to track the EOTF curve perfectly. A shadow intended to output at 0.05 nits will output at exactly 0.05 nits.[4]

This strict adherence to the curve ensures that specular highlights—like neon signs, flashlights, or reflections on water—retain their intense, piercing quality against dark backgrounds. The contrast ratio remains exactly as the studio designed it.

HGiG is a passive standard that simply makes the television reproduce an image exactly as it came from the source. By eliminating the secondary compression layer, an 800-nit specular highlight rendered by the engine is displayed exactly at 800 nits.

When to Break the Rules

While HGiG is the technically accurate standard, it is not universally preferred by every player in every environment. Accuracy does not always equal perceived visibility. Because HGiG tracks the EOTF curve strictly, the Average Picture Level (APL) of the game remains relatively low.

In a pitch-black room, this accurate APL looks spectacular and realistic. However, in a sunlit living room, the ambient light can overpower the shadow detail on the screen, making the game look too dim to play comfortably.

In those specific bright-room scenarios, re-enabling Dynamic Tone Mapping can be a practical compromise. The television will artificially lift the mid-tones, sacrificing creator intent for basic visibility so the player can actually see the environment.

For players seeking the definitive, next-generation visual experience in a controlled lighting environment, the technical formula remains incredibly strict. Calibrate the console's operating system, enable the television's HGiG profile, and let the game engine do the math.
