Overdriving LCD Panel Voltages Cuts Motion Smear at the Cost of Inverse Ghosting Coronas

When the first 240Hz gaming monitors arrived in 2017, manufacturers faced a physical bottleneck. Liquid crystals simply could not twist fast enough to keep up with the frames. To solve this, engineers turned to a brute-force electrical solution known as pixel overdrive.

At its core, an LCD panel relies on physical movement. To change a pixel's color, the monitor applies a voltage that physically rotates a liquid crystal, altering how much backlight passes through. This process takes time, and if the crystal is too slow, the previous frame bleeds into the next.

That bleed manifests as ordinary ghosting. Players see a dark, low-contrast smear trailing behind moving objects, which softens the image and makes tracking targets difficult. A 240Hz monitor can reduce motion blur by 75 percent compared to a 60Hz display, but only if the pixels can actually transition fast enough.[5]

The mechanics of voltage overshoot

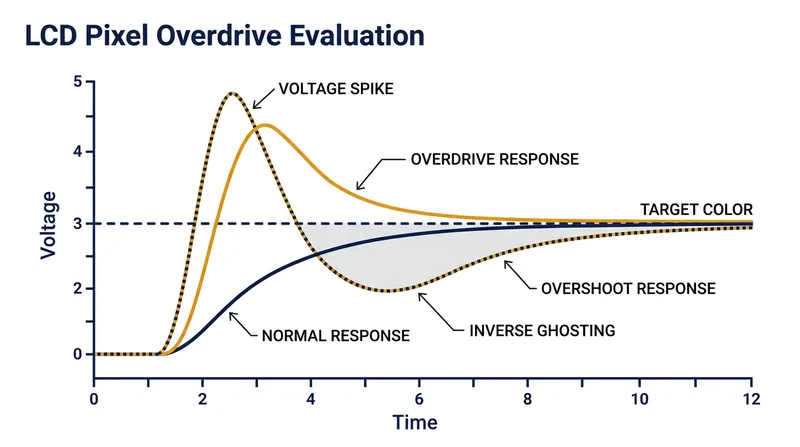

Overdrive solves the speed problem by applying a deliberate voltage spike. Instead of sending the exact electrical current required for the target shade, the monitor's timing controller sends a massive surge to jolt the crystal into position, then immediately cuts the power back to the correct level.

This electrical whip forces sluggish pixels to switch states faster than their native response time. When tuned correctly, the crystal lands exactly on its target color just as the new frame renders, eliminating the dark smear of traditional ghosting and preserving motion clarity.

However, this brute-force approach carries a severe trade-off. If the voltage spike is too aggressive, the crystal rotates too far. It overshoots the intended color and has to bounce back, displaying an incorrect, highly visible shade for a fraction of a second before settling.

"Coronas, also known as overdrive artifacts, or inverse ghosting, is caused by the pixel overshooting its final color value," explains Blur Busters in their motion artifact documentation. This confirms that the artifact is a direct result of pushing the hardware beyond its natural limits.[1]

Instead of a dark smear, moving objects leave behind a bright, pale, or oddly colored halo. Because the human eye is drawn to high-contrast edges, a bright corona is often vastly more distracting than the blur it was meant to fix.

"Too much pixel overshoot often looks worse than the original blur because your eye catches the bright halo immediately," states KTC's engineering guide on panel tuning. This makes finding the correct balance critical for competitive players who rely on visual clarity.[2]

Panel technologies and their unique vulnerabilities

The severity of ghosting and overshoot depends heavily on the underlying panel technology. Vertical Alignment panels are notorious for slow transitions in dark scenes. Manufacturers often apply extreme overdrive to these panels to compensate, which frequently results in aggressive inverse ghosting when moving through shadows.

In-Plane Switching panels have historically offered better color accuracy but struggled with response times. Modern Fast IPS displays have largely closed the gap, but budget models still rely on heavy overdrive to claim a 1-millisecond response time on the box, hiding the resulting coronas in the fine print.

Twisted Nematic panels were the original speed leaders in competitive esports. While their native response times are naturally faster, pushing a TN panel to its absolute limit with maximum overdrive will still produce visible halos, proving that no liquid crystal is immune to the physics of overshoot.

Manufacturers obscure these differences by using proprietary names for their overdrive settings. ASUS calls it Trace Free, BenQ uses AMA, and others simply label it Response Time. Regardless of the marketing term, the underlying mechanism remains identical: injecting excess voltage to force a faster physical transition.

Testing methodologies and pursuit cameras

Identifying inverse ghosting requires specialized testing tools. Since 2013, the industry standard has been the Blur Busters UFO test, which scrolls an alien spacecraft across the screen at specific pixel-per-second velocities. This predictable motion allows users to clearly see whether the UFO leaves a dark trail or a bright corona.[1]

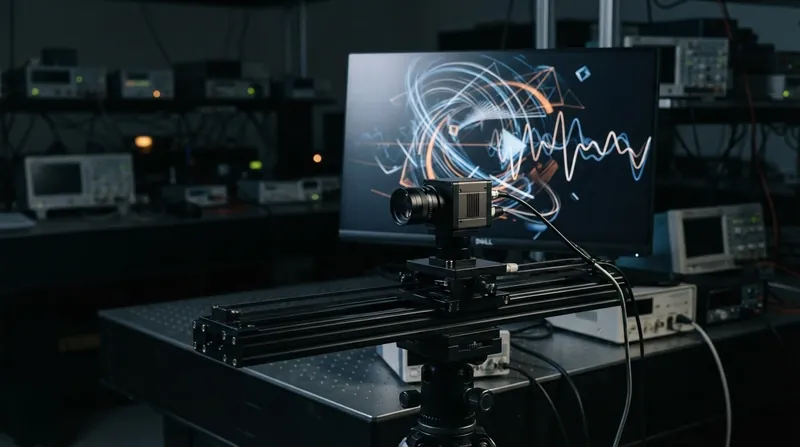

Capturing these artifacts on camera is notoriously difficult because standard photography cannot replicate how the human eye tracks motion. Reviewers use pursuit cameras mounted on motorized rails to physically follow the moving image, accurately recording the blur and overshoot exactly as a player would perceive it.[1]

These pursuit camera tests reveal that the highest overdrive setting on almost any monitor is virtually unusable. The extreme modes exist primarily so the manufacturer can legally claim a 1-millisecond response time in marketing materials, while the actual usable setting is usually the middle option.

The variable refresh rate trap

Finding the perfect overdrive setting is relatively simple on a fixed refresh rate. A user can test different levels and select the highest option that does not produce bright halos. But variable refresh rate technologies like AMD FreeSync and NVIDIA G-Sync complicate this balance entirely.

These systems constantly fluctuate the monitor's refresh rate to match the graphics card's output, meaning the duration of a single frame is always changing. A fixed overdrive profile is usually tuned for the panel's maximum speed, where frame times are the shortest and pixels need the most help.[4]

A voltage spike designed to force a transition within a 4.16-millisecond window at 240Hz works perfectly at that speed. But if the game drops to 60 frames per second, that same voltage spike is applied to a 16.6-millisecond window, giving the pixel far too much time to react.[7]

With so much extra time, the aggressive voltage pushes the pixel wildly past its target. A monitor that looks perfectly clean at maximum refresh will suddenly exhibit severe inverse ghosting the moment the frame rate dips during a demanding scene, punishing the player with visual artifacts.

Hardware solutions and the OLED bypass

To combat this, premium displays utilize variable overdrive. Monitors equipped with dedicated hardware, such as a physical NVIDIA G-Sync module, dynamically scale the overdrive voltage down as the frame rate drops. This prevents overshoot at low frame rates while maintaining crisp transitions at the top end.[3]

"Variable overdrive avoids these concerns and is a key benefit offered by the G-sync module," notes TFTCentral in their technical breakdown of adaptive sync technologies. This dynamic scaling is essential for maintaining motion clarity across a fluctuating frame rate.[3]

Without variable overdrive, players are forced to compromise. They must choose a conservative overdrive setting that prevents coronas at 60Hz, even if it means accepting a slight amount of traditional ghosting when the game runs at 240Hz, sacrificing peak clarity for consistency.

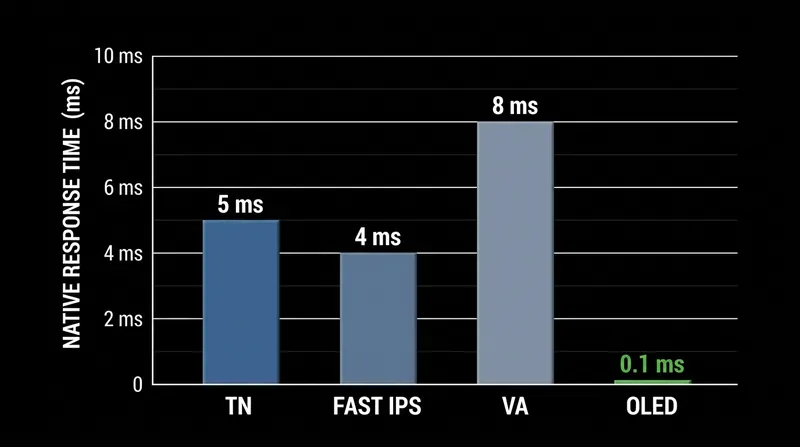

The ultimate solution to the overdrive problem is abandoning liquid crystals entirely. OLED displays use self-emissive pixels that turn on and off individually, achieving native response times of roughly 0.1 milliseconds without any voltage manipulation or physical movement.[6]

Because OLED pixels switch states almost instantaneously, they do not require overdrive circuitry. They deliver pristine motion clarity across the entire refresh rate range, completely bypassing the decades-old compromise between dark smears and bright coronas.
