Dimensional Stability and the X5.5 Standard: How Core Materials Actually Dictate Furniture Lifespans

A facility manager outfitting a new corporate headquarters or a homeowner investing in a permanent home office faces an immediate material decision: whether to pay a premium for solid wood or rely on engineered cores like particleboard and veneer. When they finalize that purchase, they are placing a bet on how many years the surface will survive daily impacts, shifting loads, and ambient humidity. To remove the guesswork from that decision, buyers rely on the Business and Institutional Furniture Manufacturers Association (BIFMA), which defines exactly what a desk must endure before it reaches the market.[1]

The benchmark for this performance is the ANSI/BIFMA X5.5 standard, which governs desk and table products. Updated most recently in 2021 to replace the older 2014 standard edition, this protocol replaces subjective claims of commercial grade durability with a brutal gauntlet of physical stress tests. Furniture testing laboratories subject these pieces to thousands of cycles of applied weight, simulating 10 years of heavy use in a matter of weeks.[1][4][5]

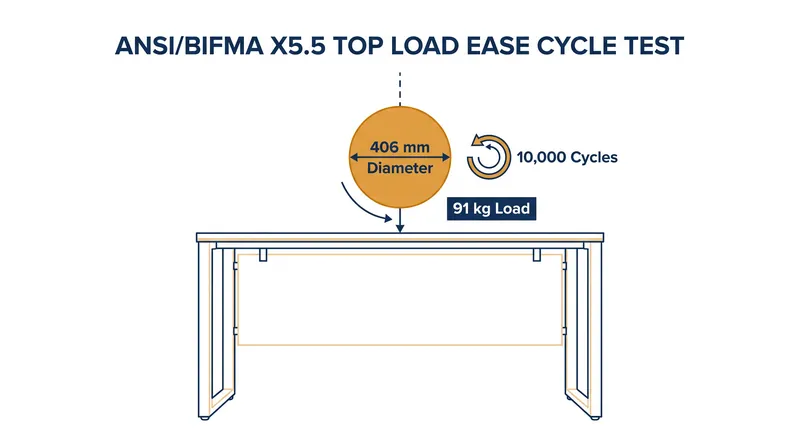

"Furniture in office environments can take a lot of abuse," notes UL Solutions, a global safety science company that conducts these evaluations. To ensure products maintain their integrity, laboratories execute specific procedures like the top load ease cycle test. Under the X5.5 standard, this requires dropping a 406-millimeter diameter bag weighing 91 kilograms onto the desk surface for 10,000 consecutive cycles.[2][5]

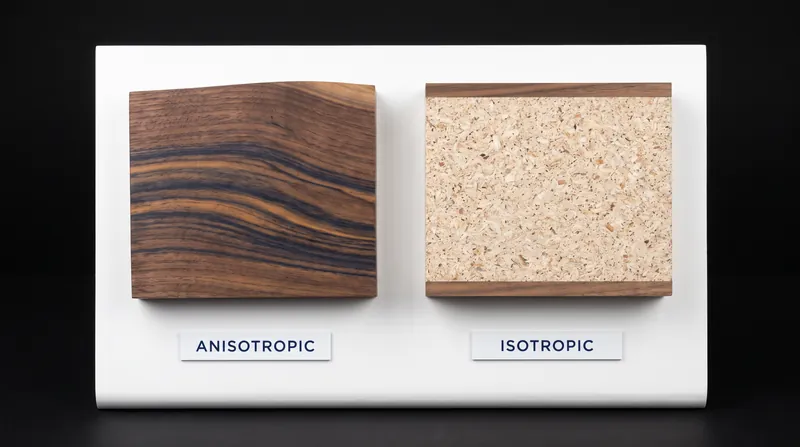

It is under these extreme loads that the structural differences between solid wood, particleboard, and veneer become quantifiable. The common consumer assumption is that solid hardwood—milled directly from a tree—is inherently superior to engineered alternatives. However, solid wood is an anisotropic material, meaning its strength and physical behavior change depending on the direction of the grain.

When exposed to fluctuations in ambient humidity and temperature, solid wood naturally expands and contracts. Across a wide surface like a 2-meter conference table or an executive desk, this movement creates internal tension. If the wood is locked into a rigid steel frame, that tension eventually releases through warping, bowing, or splitting along the grain lines.

Engineered woods, particularly high-density particleboard and medium-density fiberboard (MDF), are manufactured specifically to eliminate this directional weakness. By breaking wood down into individual particles or fibers and binding them with synthetic resins under high heat and pressure, manufacturers create an isotropic core. This core possesses uniform strength in all directions and remains dimensionally stable regardless of environmental changes.

To achieve the aesthetic of solid wood without the structural volatility, manufacturers apply a wood veneer—a slice of real hardwood typically 1 to 3 millimeters thick—over the engineered core. The Wood Veneer Factory highlights that this composite approach is fundamentally more stable than solid wood. Because the engineered core does not expand or contract significantly, the veneer layer remains flat and secure, preventing the surface from cracking under the 91-kilogram impacts demanded by the BIFMA X5.5 cycle tests.[3][5]

The testing protocols also evaluate the stability of the entire unit. The X5.5 standard includes a stability test that applies a 57-kilogram vertical load combined with a 34-kilogram load positioned exactly 25 millimeters from the edge of the desk. A desk must resist tipping or collapsing under this uneven weight distribution. Engineered cores, which can be manufactured to precise densities and weights, allow designers to calculate and control the center of gravity more accurately than with natural wood, which varies in density from board to board.[5]

Furthermore, the 2021 revision of the standard introduced new requirements for unattached table top retention. If a top is not permanently fixed to its base, it must withstand a horizontal force of 111 Newtons without dislodging. The dimensional stability of particleboard ensures that mounting hardware and friction pads maintain consistent contact with the frame, whereas a warped solid wood top might lift away from its supports, failing the test.[5]

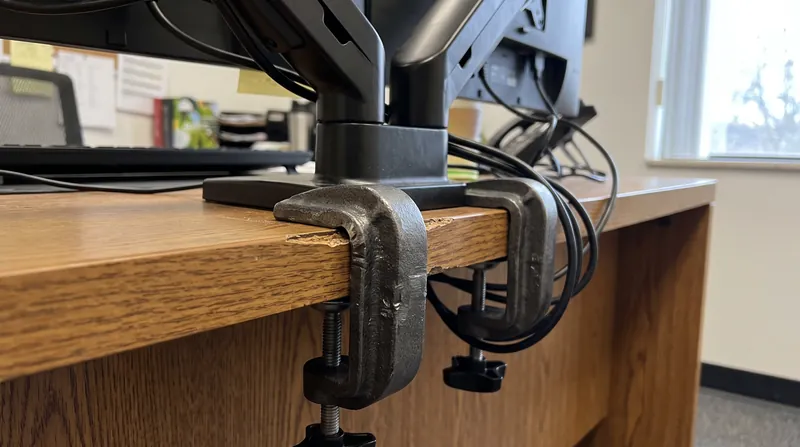

Micom Laboratories, an independent testing facility, notes that the X5.5 standard also covers accessory components like monitor arms, which exert concentrated torque on the edge of the desk. When a heavy monitor exceeding 10 pounds is extended on an arm, it acts as a lever. Particleboard cores must be dense enough to prevent the clamp from crushing the material or tearing through the edge.[4]

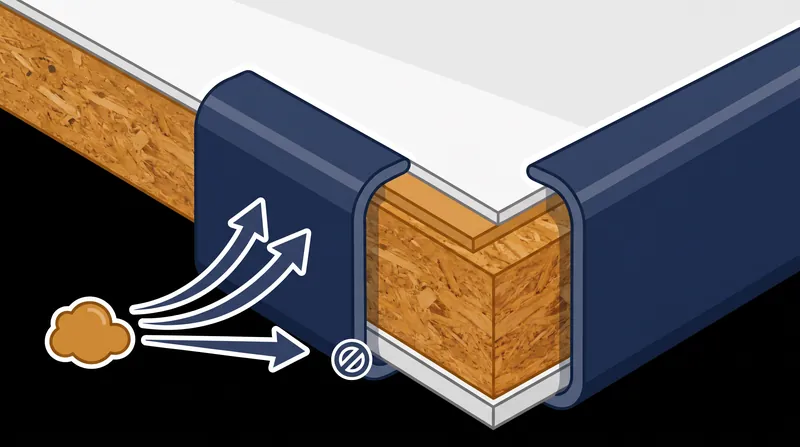

While engineered cores excel in dimensional stability and initial load-bearing tests, they do carry a specific vulnerability: moisture penetration at the seams. If the edge banding that seals a particleboard core is compromised, water can seep into the composite material. Unlike solid wood, which dries and recovers, particleboard swells permanently when wet, destroying the structural integrity of the desk.

Consequently, the true lifespan of an engineered desk depends heavily on the quality of its edge sealing and surface laminates. High-pressure laminates (HPL) and thermally fused laminates (TFL) are often applied over particleboard to create a non-porous barrier that resists scratches, spills, and the harsh chemical disinfectants increasingly used in commercial spaces.[1]

The choice between these materials dictates the long-term maintenance burden. Solid wood requires ongoing care—oiling, sealing, and refinishing—to maintain its surface, though it offers the unique advantage of being repairable if deeply scratched. Engineered cores with veneer or laminate finishes are effectively maintenance-free, but cannot be sanded down if the surface is breached.

For the buyer, the ANSI/BIFMA X5.5 certification serves as the great equalizer. Whether a desk is constructed from premium solid oak or a cost-effective particleboard with a laminate finish, passing the standard guarantees it can survive the baseline physical demands of a working environment. The certification shifts the purchasing decision away from assumptions about material superiority and toward verifiable engineering.[1][2]
