Dimensional Stability in Hardwoods: How Tangential, Radial, and Longitudinal Movement Dictate Furniture Survival

On September 1, 2026, as autumn heating systems switch on across North America, indoor humidity levels begin their annual plunge, triggering a microscopic but powerful mechanical process inside every piece of solid wood furniture. The transition from humid summer air to dry winter heating forces wood cells to release bound water, causing the material to physically shrink.

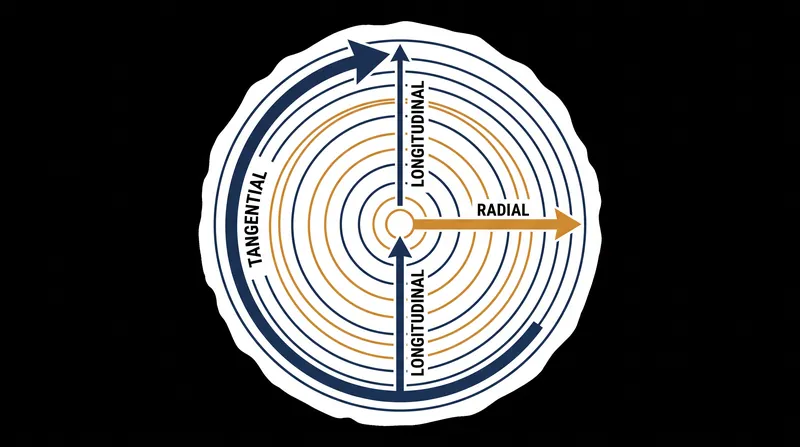

"Wood is an anisotropic material, meaning it shrinks and swells differently in three distinct directions," notes the USDA Forest Service's Wood Handbook. This dimensional change is not a defect; it is a permanent physical property of the material that persists for centuries after the tree is felled.

For a homeowner buying a dining table or a renter investing in a solid oak dresser, the survival of that piece depends entirely on whether the builder accounted for tangential, radial, and longitudinal movement. If the joinery fights the wood's natural expansion and contraction, the tension will eventually tear the piece apart.[1]

The most volatile of these three directions is tangential movement—shrinkage parallel to the growth rings. According to the USDA Forest Products Laboratory, tangential dimensional change coefficients for common hardwoods like white oak can reach 0.00365 per 1 percent change in moisture content.

In practical terms, a 36-inch-wide plain-sawn oak table can expand or contract by more than half an inch between August and February. If that tabletop is rigidly screwed to a steel base, the wood will literally pull itself apart, resulting in a loud crack echoing through the dining room as the fibers separate.

Radial movement, which occurs perpendicular to the growth rings from the pith to the bark, is significantly less severe. Purdue Extension data shows that radial shrinkage is typically only half as much as tangential shrinkage across most North American hardwood species.[1]

This mathematical reality drives the premium market for quarter-sawn lumber. By milling the log so the growth rings are roughly perpendicular to the board's face, sawyers produce wood that moves radially rather than tangentially across its width, drastically increasing its stability.

"Quarter-sawn boards exhibit roughly half the seasonal movement of plain-sawn boards," explains chairmaker Jeff Lefkowitz, detailing why specific grain orientations are selected for critical furniture components where dimensional stability is paramount.

The third axis, longitudinal movement along the length of the grain, is so minimal that furniture makers generally ignore it. Research published in the National Center for Biotechnology Information confirms that longitudinal shrinkage from green to oven-dry conditions is typically between 0.1 and 0.2 percent total.[2]

Because a board changes width but not length, joining two pieces of wood at a 90-degree angle—such as a table apron attached to a wide top—creates a structural conflict. The top wants to expand across the apron, which refuses to stretch along its length.

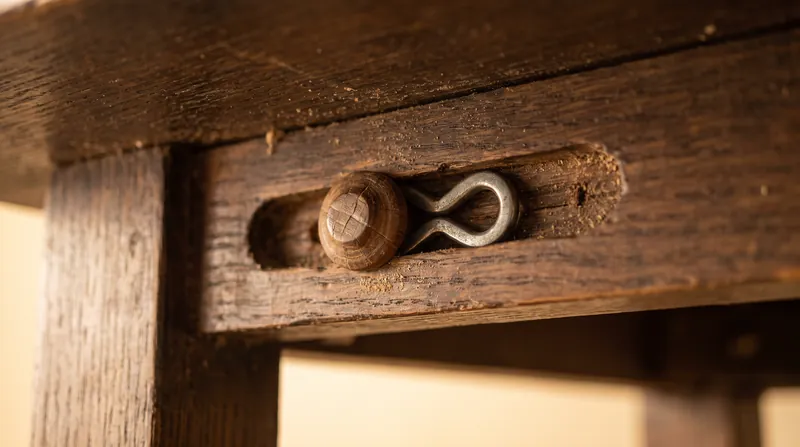

To resolve this, traditional joinery relies on mechanical workarounds rather than brute force. Techniques like mortise and tenon joints are oriented to allow the wood to move, while tabletops are attached using wooden buttons, figure-eight fasteners, or slotted screw holes.[3]

These fasteners clamp the top down vertically but allow it to slide horizontally as the seasons change. "If you try to stop wood from moving, the wood will always win," a common maxim in the Australian Wood Review underscores the futility of rigid glue-ups in cross-grain situations.

Mass-market furniture often bypasses these complex joinery requirements by using engineered materials like medium-density fiberboard or plywood covered in a thin wood veneer. Because these core materials are dimensionally stable and lack continuous grain, they do not require sliding joints.[1]

However, when mass-manufacturers do attempt to use solid wood without traditional movement-accommodating joinery, the failure rate spikes. A solid wood panel glued tightly into a frame will inevitably crack the frame or split the panel as it shrinks during the winter.[3]

The cellular mechanics behind this movement are driven by the hydroxyl groups in the cellulose and hemicellulose of the wood cell walls, which attract and release water molecules based on the surrounding relative humidity.[2]

As long as the ambient relative humidity fluctuates, the wood's moisture content will seek equilibrium, expanding the cell walls when absorbing moisture and contracting them when drying out in a heated environment.

The longevity of a solid wood piece is dictated by the builder's fluency in this microscopic geometry. Buyers inspecting a prospective heirloom should look underneath: if the top is rigidly glued or screwed directly to the frame without slots or clips, the piece is on a countdown to its first major humidity swing.[4]
