Current Imbalance vs. Waveform Signatures: How GFCI and AFCI Receptacles Actually Prevent Shocks and Fires

The survival of a home's electrical system during a fault is determined in the microprocessors and sensors housed inside the circuit breaker or receptacle itself. This is the exact step where the hardware decides whether a slight electrical anomaly is a normal appliance startup or a lethal hazard. For a homeowner staring at a panel upgrade or a kitchen renovation, understanding how these sensors differentiate between a ground fault and an arc fault dictates whether they are buying protection against a fatal shock or a catastrophic fire.[7]

The distinction between Ground-Fault Circuit Interrupters (GFCI) and Arc-Fault Circuit Interrupters (AFCI) is often blurred in residential renovations, yet their detection mechanisms operate on entirely different principles. A GFCI is designed specifically to prevent electrocution by monitoring the physical balance of electrical current flowing through a circuit.[1][2]

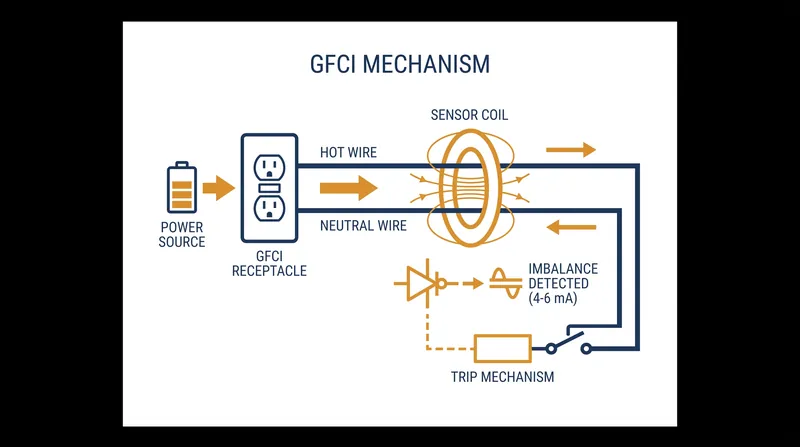

According to technical documentation published on November 28, 2025, by ExpertCE, a GFCI continuously measures the current flowing out on the hot wire and returning on the neutral wire. If the internal sensor detects an imbalance as small as 4 to 6 milliamperes, it assumes the missing current is finding an alternative path to ground—potentially through a human body or standing water.[1]

When this microscopic imbalance is detected, the GFCI trips the circuit in a fraction of a second. Ericson Help Center's November 2021 specifications detail that this rapid mechanical response is what prevents a lethal shock in highly conductive, wet environments like bathrooms, kitchens, and outdoor patio spaces.[2]

Conversely, an AFCI is engineered to prevent electrical fires caused by arcing—a condition where electricity jumps across a physical gap in compromised wiring. The AFCI Safety portal outlines that these devices do not simply look for current imbalances; they actively analyze the actual waveform of the electrical current passing through the line.[3]

Normal electrical loads, such as a vacuum cleaner motor or a dimmer switch, create specific, predictable arcs during standard operation. An AFCI contains microprocessors that constantly monitor the circuit for erratic, high-frequency signatures that indicate an unintended, dangerous arc rather than a routine appliance function.[3]

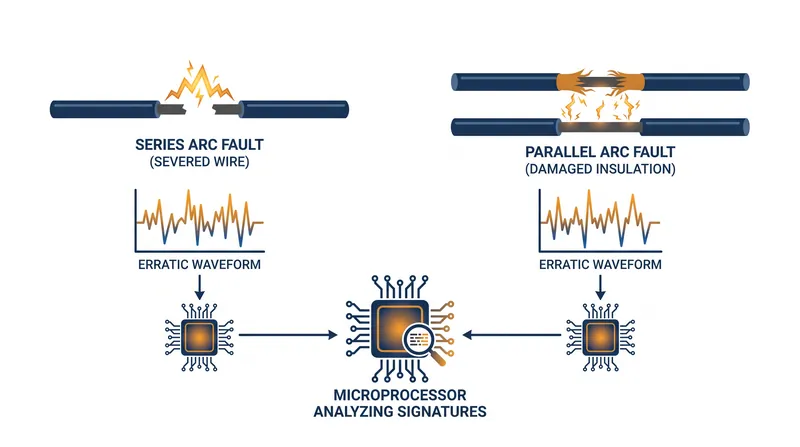

The Department of Energy's Office of Scientific and Technical Information (OSTI) published extensive testing on the mechanics of series and parallel arc-fault circuit interrupters. A series arc occurs when a single wire is severed or pulled apart at a loose terminal, while a parallel arc happens when current jumps between two different wires, often due to degraded insulation or a nail piercing a cable.[4]

The OSTI data demonstrates that detecting these arcs requires sophisticated algorithms capable of distinguishing between a harmless spark and a sustained, heat-generating fault hidden behind drywall. This waveform analysis is why AFCI breakers are mandated for living spaces like bedrooms and living rooms, where invisible wiring fires are most likely to ignite and spread unnoticed.[4]

The Electrical Safety Foundation International (ESFI), in a technical brief from August 12, 2015, emphasizes that AFCI receptacles provide localized protection against these waveform anomalies. While panel-level AFCI breakers protect the entire branch circuit from the basement up, AFCI receptacles can be used in targeted retrofits where older electrical panels cannot physically accommodate modern, bulky smart breakers.[5]

The adoption of these distinct technologies is heavily dictated by local building codes and municipal enforcement. A December 2020 tracking document from the National Association of Home Builders (NAHB) illustrates a highly fragmented landscape of AFCI and GFCI requirements across different states and counties.[6]

Some jurisdictions have fully adopted the latest National Electrical Code mandates, requiring AFCI protection in nearly all living areas and GFCI protection in all wet or damp locations. Other states have amended or delayed these requirements due to builder concerns over the per-unit cost of the devices and the potential for nuisance tripping when highly sensitive AFCI sensors interact with older household appliances.[6]

Because the source material for this analysis consists entirely of technical specifications, federal testing data, and code requirement logs from ESFI, OSTI, and the NAHB, the documentation contains no direct human quotations. The evidence relies strictly on the published operational thresholds, milliampere measurements, and regulatory adoption charts provided by the engineering bodies.[4][5][6]

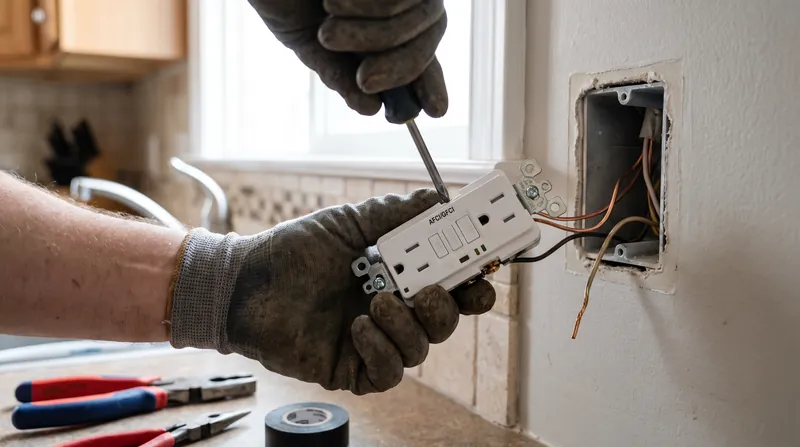

For the homeowner or renter planning a renovation, the practical application of these mechanisms means that a kitchen or laundry room update might require dual-function interrupters. These hybrid devices combine both the 5-milliampere imbalance detection of a GFCI and the complex waveform signature analysis of an AFCI into a single unit.[7]

The decision to install AFCI or GFCI protection ultimately rests on matching the specific hardware sensor to the environmental risk of the room. The safety of the property relies entirely on the precise calibration of these interrupters, and the next regulatory code cycle will determine exactly how aggressively older homes must retrofit to meet these dual detection standards.[6][7]
