Coefficient of Performance: Why Heat Pump Water Heaters Break the 100% Efficiency Barrier

Standing in the plumbing aisle of a Denver hardware store on a Tuesday morning, a homeowner replacing a failed water heater faces a yellow EnergyGuide label that appears to violate the laws of thermodynamics. The sticker on a standard electric tank promises an efficiency of 95 percent, while the identical-looking heat pump model sitting next to it claims 330 percent.[2][5]

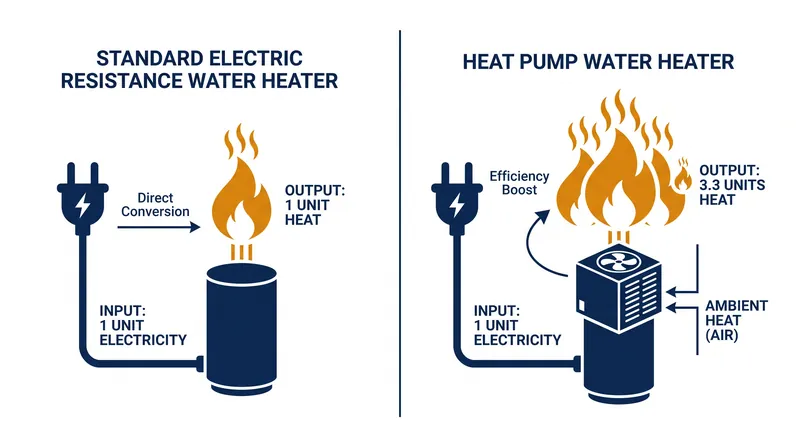

That impossible-sounding figure is the Coefficient of Performance (COP), the metric that separates traditional water heating from the current generation of heat pump technology. For a century, electric resistance heaters operated on a strict one-to-one ratio: one unit of electrical energy in produced exactly one unit of heat energy out.[4]

Heat pump water heaters abandon that equation entirely. Instead of generating heat by running electrical current through a metal element, they use electricity to operate a compressor and fan, scavenging ambient heat from the surrounding air and moving it into the water tank.[3][6]

"ENERGY STAR certified heat pump water heaters can use up to 70 percent less energy than standard models," the federal specification notes, a reduction achieved entirely by moving existing thermal energy rather than creating it from scratch.[5]

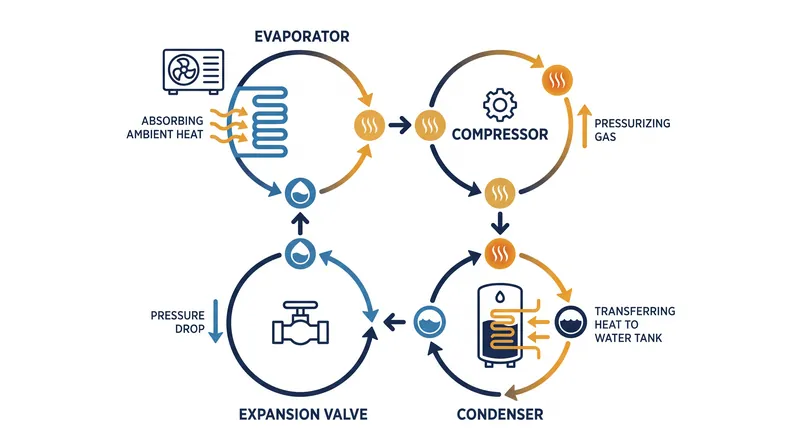

The mechanics rely on a closed-loop refrigerant cycle mounted on top of the storage tank. A fan pulls basement or utility room air across an evaporator coil filled with cold, low-pressure liquid refrigerant. The refrigerant absorbs the ambient heat and boils into a gas.[3]

A compressor then squeezes that gas, drastically raising its temperature and pressure. This superheated vapor travels through a condenser coil wrapped around the water tank, transferring its heat through the metal wall and into the water.[6]

As the heat transfers, the refrigerant cools and condenses back into a liquid, passing through an expansion valve that drops its pressure and temperature, readying it to absorb more heat from the room.[3][7]

The efficiency of this cycle is measured by the COP. A COP of 3.3 means that for every kilowatt-hour of electricity consumed by the compressor and fan, the system delivers 3.3 kilowatt-hours of heat to the water.[4]

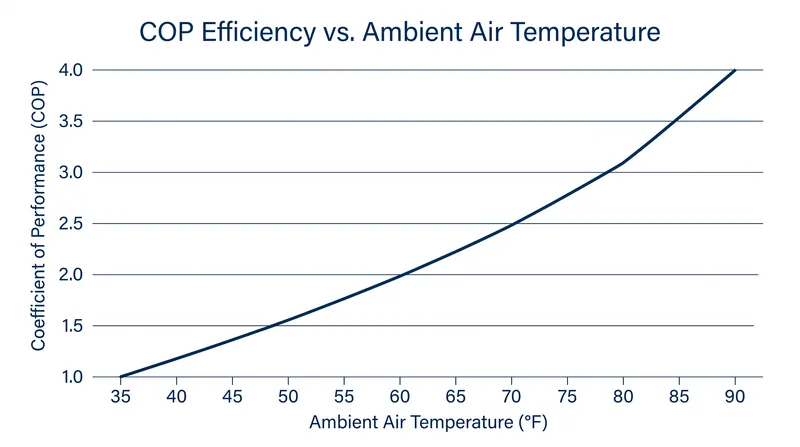

However, this performance is not static. Because the system relies on ambient heat, its efficiency fluctuates with the weather and the temperature of the room it occupies.[4][7]

Industry engineers at Deppmann highlight this variability in their 2022 technical guidance, noting that as the ambient air temperature drops, there is less thermal energy available to harvest. The compressor must work harder and run longer to extract the same amount of heat.[4]

To account for seasonal changes, the industry uses the Seasonal Coefficient of Performance (SCOP), which averages the efficiency across a range of typical operating temperatures rather than a single laboratory setpoint.[7]

For the homeowner, this thermal extraction has a secondary, localized effect: it cools and dehumidifies the space where the unit is installed. A heat pump water heater operating in a damp Michigan basement acts as a free dehumidifier, discharging cool, dry air as a byproduct of heating the water.[6][8]

Regulatory bodies have updated their testing frameworks to capture these real-world dynamics. The Water Heating Authority points to the transition from the older Energy Factor (EF) to the Uniform Energy Factor (UEF), a metric designed to more accurately reflect how heaters perform under actual household draw patterns.[2]

The American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE) codifies these performance baselines in standards like ASHRAE 90.1. The 2022 iteration of the standard sets stringent minimum efficiency requirements that effectively mandate heat pump technology for many commercial and high-rise residential applications.[1]

The National Renewable Energy Laboratory (NREL) has developed sophisticated simulation models to predict how these units will perform across different climate zones and housing types, helping utilities and policymakers design rebate programs.[3]

The NREL models reveal that while the baseline efficiency is high, the systems face challenges during periods of high demand. If a family takes three consecutive showers, the heat pump alone may not recover the tank temperature fast enough.[3]

To prevent cold showers, manufacturers design these units as "hybrids." They include traditional electric resistance elements that activate automatically when the water temperature drops too rapidly, sacrificing the high COP temporarily to meet the immediate demand.[5][6]

The American Council for an Energy-Efficient Economy (ACEEE) published research in 2014 exploring model predictive control—smart algorithms that learn a household's water usage patterns and pre-heat the tank during off-peak hours, minimizing the need for the inefficient resistance elements.[6]

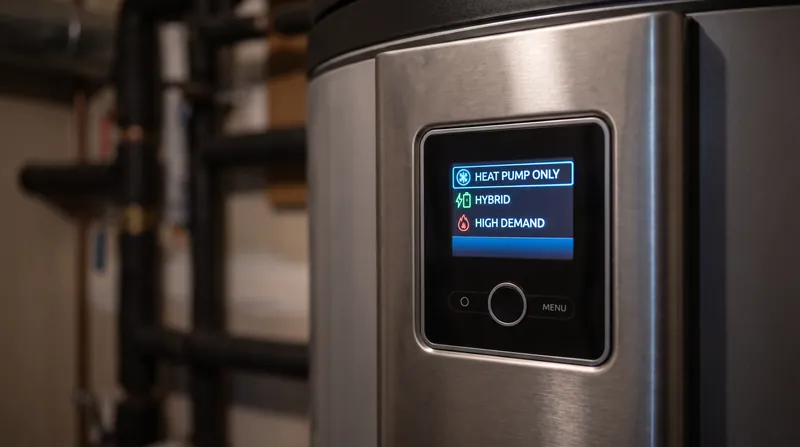

This intelligence is becoming standard as the technology matures. Modern units connect to home Wi-Fi networks, allowing users to track their COP in real-time and forcing the unit into "heat pump only" mode to maximize savings, or "high demand" mode when guests visit.[5][8]

For the renter or buyer evaluating a property, the presence of a heat pump water heater signals a fundamental shift in the building's energy profile. The 100 percent efficiency ceiling has been permanently broken, replaced by a system that treats the ambient air of the home as a thermal battery.[2][8]
