Converting Momentum to Heat: How Dynamic Braking Stops 14,000-Ton Freight Trains Without Friction

On June 20, 2000, as a heavy freight train began its descent down a steep grade, the locomotive engineer reached for the selector handle, shifting it from power to brake. The diesel engine's roar dropped to a low idle, replaced instantly by the high-pitched whine of traction motors and the roar of roof-mounted cooling fans. This moment, detailed in the Transportation Safety Board of Canada's investigation report R00H0004, highlights the critical transition from pulling a 14,000-ton train to holding it back.[4]

The system keeping that massive weight from accelerating out of control is not the friction of brake shoes against steel wheels. It is dynamic braking—a mechanism that converts the train's kinetic energy into electrical current, and then entirely into heat.[1]

To understand how a locomotive slows down without mechanical friction, one must first look at how it moves. A modern diesel-electric locomotive, such as the EMD GT46MAC detailed in Progress Rail's service manuals, does not use its diesel engine to turn the wheels directly.[6]

Instead, the 4,000-horsepower diesel engine spins a massive main alternator. This alternator generates electricity, which is fed down to traction motors mounted directly on the axles. It is a purely electrical transmission system, chosen because electric motors can deliver maximum torque at zero revolutions per minute to get heavy loads moving.[6]

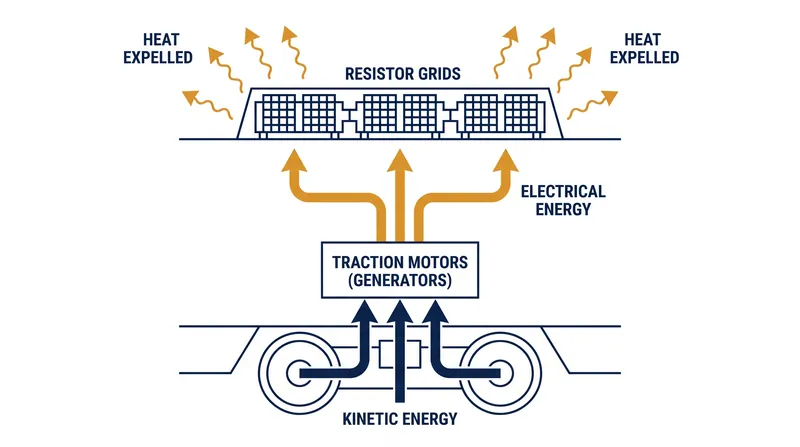

Dynamic braking simply reverses this architecture. When the engineer engages the dynamic brake, heavy electrical contactors reconfigure the circuit. The main alternator stops sending power to the axles. Instead, the forward momentum of the train forces the wheels to turn the traction motors.[1][7]

Driven by the wheels, these traction motors become electrical generators. They resist the turning motion, creating a powerful drag on the axles. According to Trains Magazine's 2024 technical overview, this electromagnetic resistance is what actually slows the train, capable of holding back thousands of tons on a descending mountain grade without a single brake shoe touching a wheel.[1]

But generating electricity creates a secondary physics problem: the energy must go somewhere. In a fully electrified urban transit system, this current is pushed back into the overhead catenary wires—a process known as regenerative braking.[5]

Freight locomotives operating on non-electrified tracks have no catenary to absorb the power. If the electrical circuit is not completed, the traction motors cannot generate resistance. The solution sits in a raised housing on the locomotive's roof: the grid resistor bank.[7]

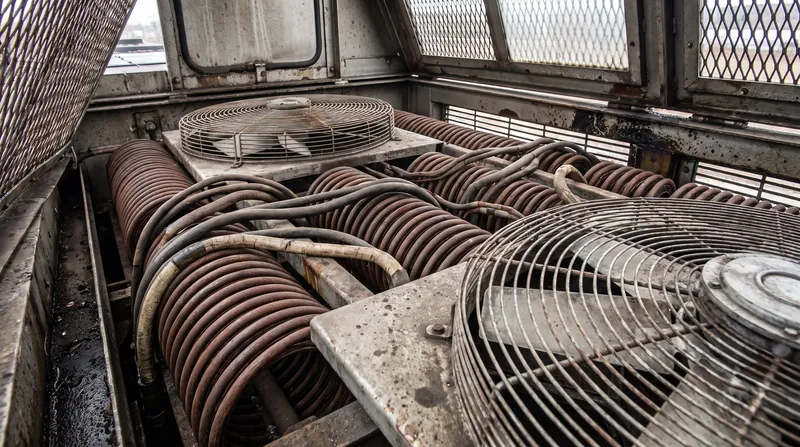

The grid resistor bank is a series of heavy metallic coils, often made of specialized steel alloys, designed to do nothing but safely absorb massive amounts of electrical current and convert it into heat.[2]

As the traction motors pump hundreds of amps of current into these grids, the metal rapidly heats up, often glowing a dull red under heavy braking loads. To prevent the grids from melting, high-capacity blower fans force ambient air across the coils, blasting the heat out into the atmosphere.[2]

A 2004 patent filed for a "Locomotive dynamic braking grid package configuration" illustrates the engineering challenge of packaging these grids. The design must maximize surface area for cooling while withstanding the intense thermal cycling and physical vibration of a moving locomotive.[2]

The economic impact of this heat generation is profound. Friction brakes—which use compressed air to press composite shoes against the steel wheels—wear out rapidly. They also heat the wheels themselves, which can lead to thermal expansion, micro-cracking, and catastrophic wheel failure on long descents.[4][5]

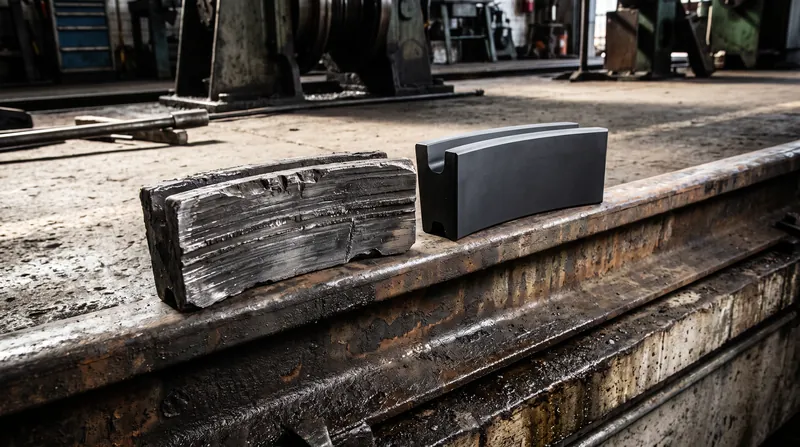

By relying on dynamic brakes for the majority of speed control, railroads save millions of dollars annually in brake shoe replacement and wheel truing. The air brakes are kept in reserve, used primarily for final stopping, holding a parked train, or emergency applications.[1][7]

However, dynamic braking has strict physical limitations. Because the resistance is generated by the spinning of the motors, the braking effort drops off sharply as the train slows down. Below roughly 10 mph, the motors do not spin fast enough to generate meaningful current, requiring the engineer to blend in the friction air brakes to bring the train to a complete halt.[1][6]

Furthermore, the system is entirely dependent on the thermal capacity of the roof grids. If the cooling fans fail, or if the engineer demands too much braking effort for too long, the grids can overheat. Modern locomotive computers will automatically reduce braking effort to protect the grids, a fail-safe that shifts the braking burden back to the friction shoes.[4][6]

The sheer volume of energy dissipated by these grids has caught the attention of efficiency engineers. A study by the University of Illinois at Urbana-Champaign focused on "Recovering Railroad Diesel-Electric Locomotive Dynamic Brake Energy," quantifying the megawatt-hours of potential power currently lost to the atmosphere as heat.[3]

Researchers are actively developing battery-electric tender cars that can be coupled to diesel locomotives. Instead of routing the dynamic braking current to the roof grids, the power would be stored in the battery tender, ready to be fed back into the traction motors for the next uphill climb.[3][7]

Until those battery systems become commercially viable at a freight-rail scale, the grid resistor bank remains the industry standard. It is a brute-force engineering solution that elegantly solves the problem of momentum, turning the kinetic energy of a moving mountain of steel into a column of hot air.[7]
