Decoding the NFRC Window Label: Why U-Factor and SHGC Matter More Than a Basic Energy Star Sticker

Window salespeople routinely tell homeowners that an Energy Star certification is the only metric that matters when replacing drafty glass. The National Fenestration Rating Council (NFRC) and the Department of Energy contradict this directly: Energy Star is merely a binary pass/fail threshold for broad climate zones, while the NFRC label provides the continuous mathematical values that actually dictate how a window performs in a specific house.

Relying solely on the blue sticker often leads buyers in transitional climates to install glass that traps unwanted heat in July or bleeds furnace warmth in January.[1][2][4]

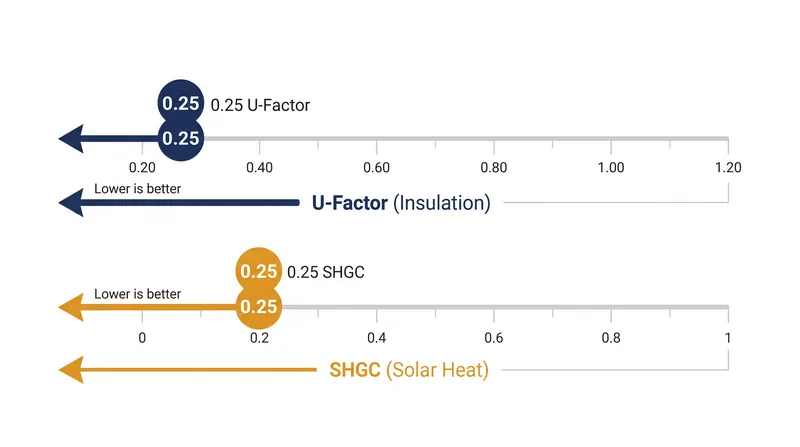

The NFRC label breaks a window's performance into three primary numbers: U-Factor, Solar Heat Gain Coefficient (SHGC), and Visible Transmittance (VT). As the Efficient Windows Collaborative notes in its technical documentation, these ratings evaluate "the entire window assembly, not just the glass," factoring in the frame material, gas fills, and spacers. A standard single-pane aluminum window might carry a U-Factor of 1.20, while a modern triple-pane vinyl unit drops that figure to 0.15.[3]

U-Factor measures insulation—specifically, how much non-solar heat flows through the window. It ranges from 0.20 to 1.20, and unlike R-value in wall insulation, a lower U-Factor is better. In a northern climate like Minnesota, upgrading from a 0.40 to a 0.25 U-Factor window can reduce winter heating loads by 15% to 20%. The Window Source of Kentucky emphasizes that buyers in cold zones should prioritize this number above all others to stop furnace heat from escaping.[8]

Solar Heat Gain Coefficient (SHGC) measures how much solar radiation passes through the glass and becomes heat inside the home. SHGC is expressed as a number between 0 and 1. A rating of 0.25 means 25% of the available solar heat enters the room. DC Pines Roofing, based in Houston, points out that southern homes require an SHGC below 0.25 to prevent air conditioning systems from being overwhelmed during 100-degree summer afternoons.[6]

The tension between U-Factor and SHGC defines window selection. A window optimized for a low U-Factor often utilizes heavy low-emissivity (Low-E) coatings and argon gas, which inadvertently lowers the SHGC. In a climate like Chicago, a homeowner might actually want a higher SHGC (around 0.40) on south-facing windows to capture free passive solar heating in January, while maintaining a low U-Factor (0.27) to keep that heat indoors.[4][9]

Visible Transmittance (VT) measures how much natural light enters the space, scored from 0 to 1. Heavy Low-E coatings that drop the SHGC to 0.20 often drag the VT down to 0.40, creating a permanently tinted, gloomy interior. APCO notes that balancing SHGC and VT is the primary challenge for manufacturers, as buyers want the heat blocked without sacrificing the view.[5]

Air Leakage (AL) and Condensation Resistance (CR) sometimes appear as optional metrics on the NFRC label. AL is measured in cubic feet per minute per square foot of window area, with the industry standard requiring a rating of 0.30 or lower. However, Glass Rite points out that installation quality dictates real-world air leakage far more than the factory rating.[7]

The financial stakes of misreading these labels are substantial. Replacing 15 windows in a standard single-family home costs between $12,000 and $25,000 in 2026. Installing a low-SHGC window in a heating-dominated climate forces the furnace to work harder, negating the expected utility savings. The NFRC label ensures buyers pay for the specific thermal performance their zip code demands, rather than a generic national standard.[1][9]
