US Foundry Produces First Monolithic 3D Chip, Promising 1000x Energy Efficiency for AI

The prevailing narrative in artificial intelligence hardware is built on a fundamental misconception: that the primary bottleneck throttling modern AI is a lack of raw compute power. This assumption drives the industry’s relentless push to pack more transistors onto flat pieces of silicon and crank up clock speeds, under the belief that faster processors are the only way to make models like ChatGPT and Claude run more efficiently. Marketing materials from leading chipmakers reinforce this idea, focusing heavily on teraflops and core counts. However, the empirical evidence suggests that the industry is solving the wrong problem. The actual constraint is not how fast a chip can calculate, but how quickly it can be fed.[4]

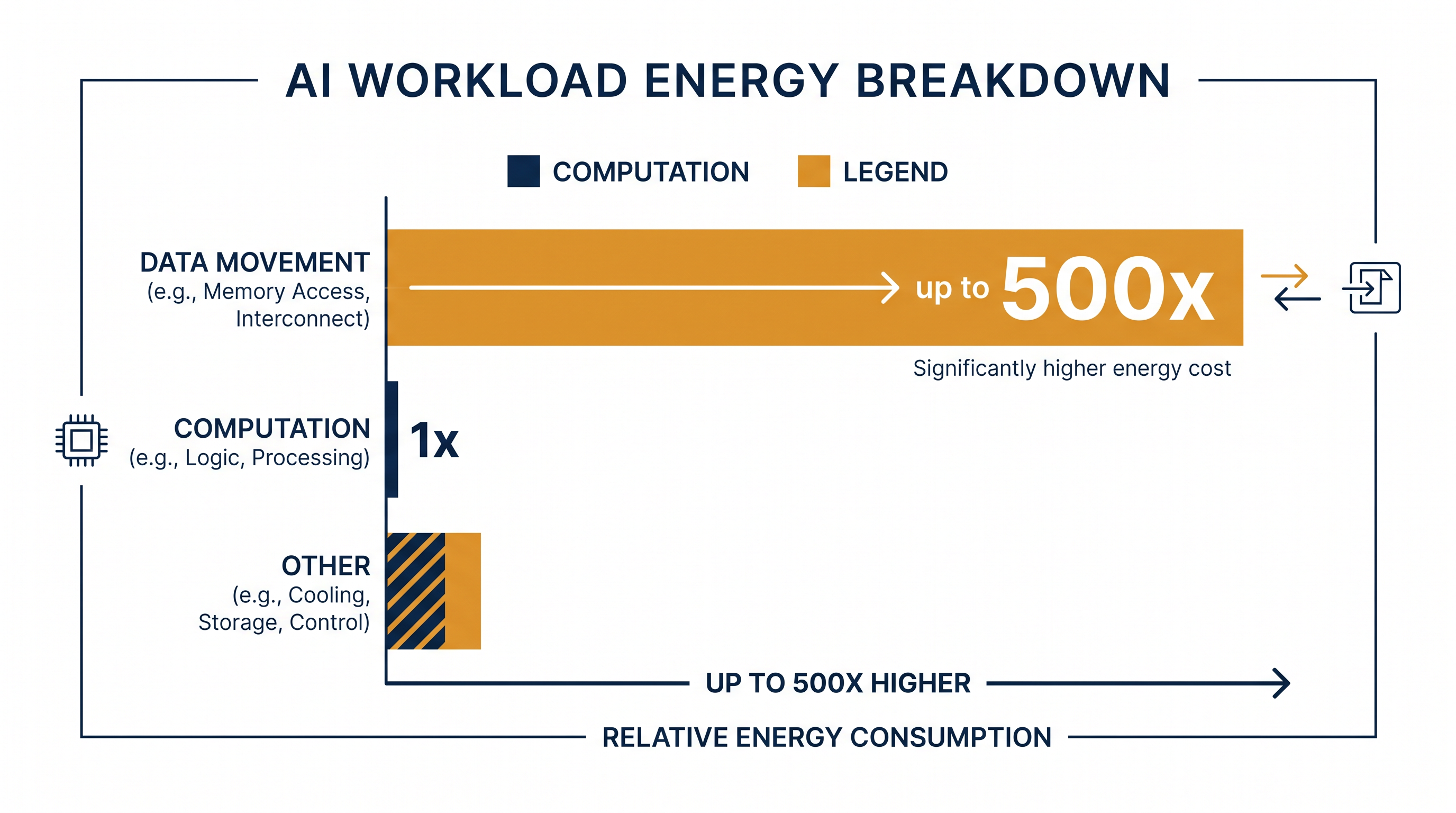

Hardware analyses consistently point to a different culprit, known in engineering circles as the "memory wall." This refers to the time and energy wasted shuttling data back and forth between memory arrays and processing units. In traditional two-dimensional chip architectures, components are arranged on a single plane, forcing data to travel along congested horizontal pathways. According to recent architectural studies, moving data across a standard 2D chip consumes up to 500 times more energy than the actual computation itself. Every inference run through a large language model requires loading billions of weights from memory, making data movement—not processing—the true limiting factor in AI performance.[4]

The solution to the memory wall is not a faster processor, but a completely different physical architecture. A collaborative research team from Stanford University, Carnegie Mellon, MIT, and the University of Pennsylvania has provided concrete evidence that this architectural shift is viable. The consortium recently demonstrated the first monolithic three-dimensional integrated circuit successfully manufactured in a commercial U.S. foundry. By stacking memory and logic directly on top of one another, the design fundamentally alters how data moves through the silicon, bypassing the horizontal traffic jams that plague conventional accelerators.[1][2]

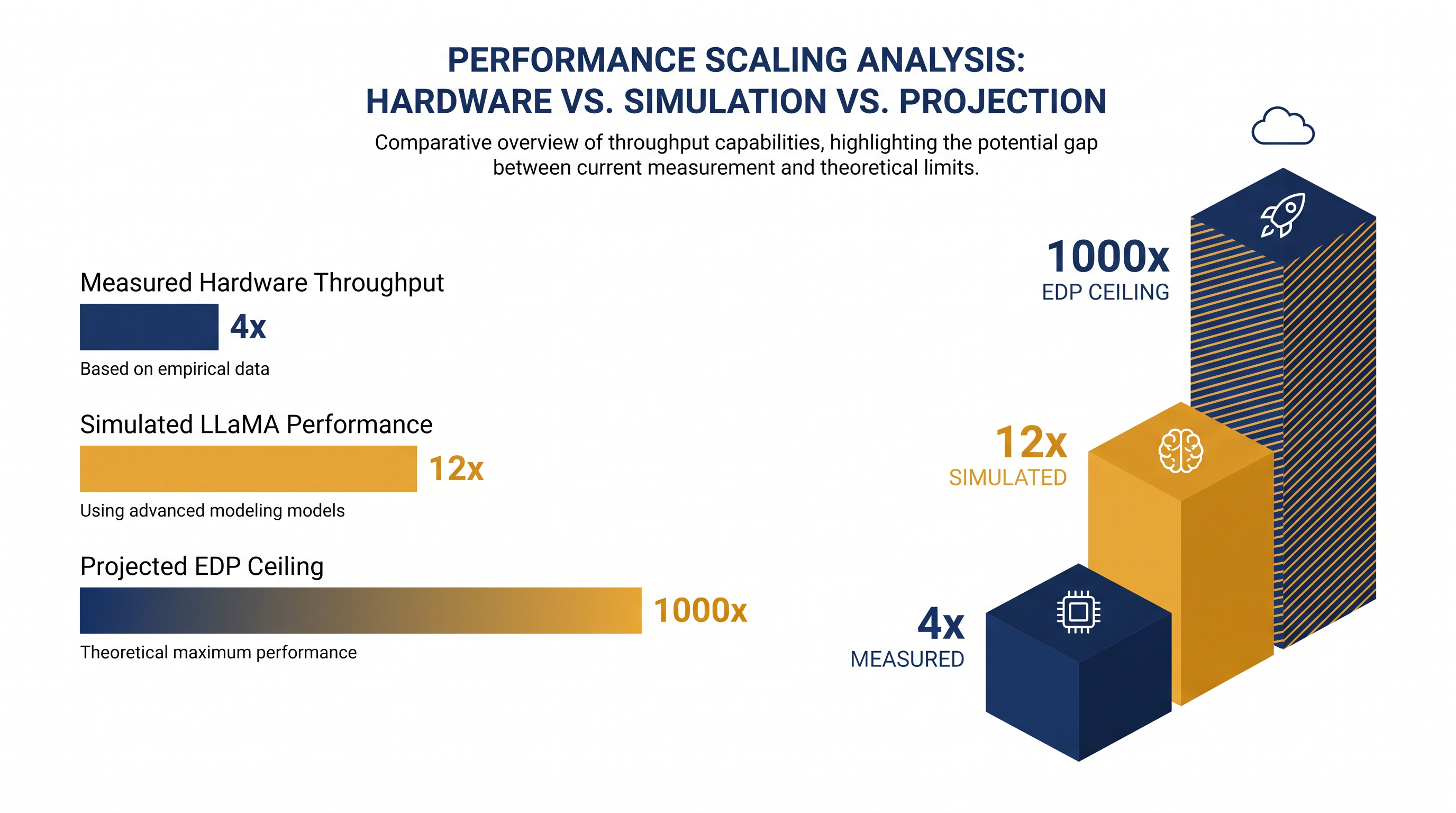

To understand the significance of this development, it is necessary to separate what actually shipped from what was merely announced. The headlines surrounding the project have been dominated by claims of a "1000x improvement in energy efficiency." While that figure makes for compelling marketing, it is a theoretical projection for future, highly scaled iterations of the technology. What actually sits on the test bench today is a physical prototype that delivers a measured 4x improvement in throughput compared to equivalent 2D designs operating at similar latency and footprint. The 4x hardware reality is the verified breakthrough; the 1000x claim remains an aspiration.[1][2]

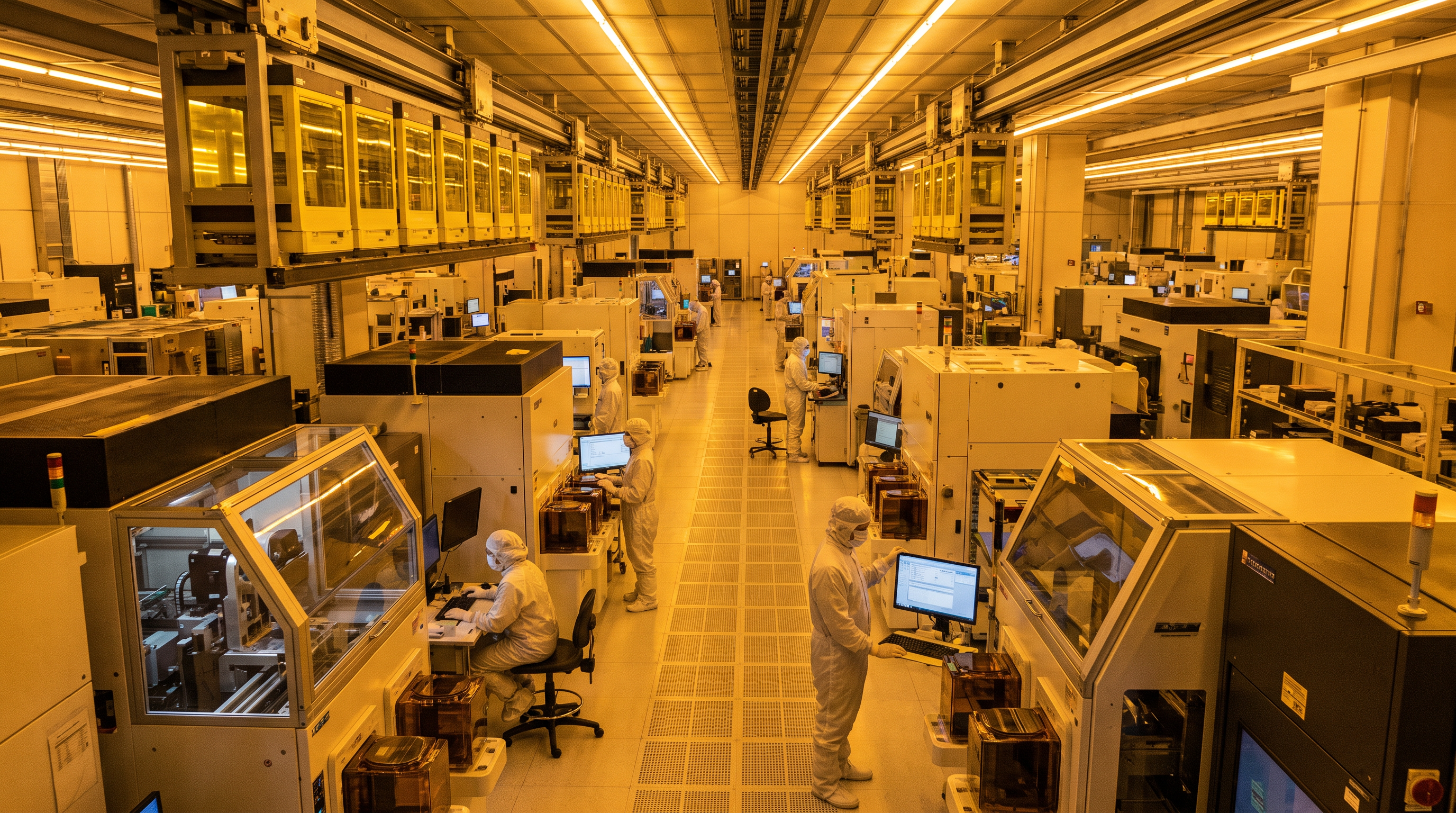

The physical reality of the prototype offers a clear view into the mechanics of the achievement. The chip was manufactured at SkyWater Technology's 200mm production line using a mature 90-nanometer to 130-nanometer process. It is not attempting to compete with TSMC's cutting-edge 2-nanometer nodes on raw transistor miniaturization. Instead, it competes entirely on geometry. By utilizing a commercial foundry rather than a university cleanroom, the research team proved that advanced vertical architectures can be fabricated using existing, mature manufacturing equipment, provided the process is carefully controlled.[2][6]

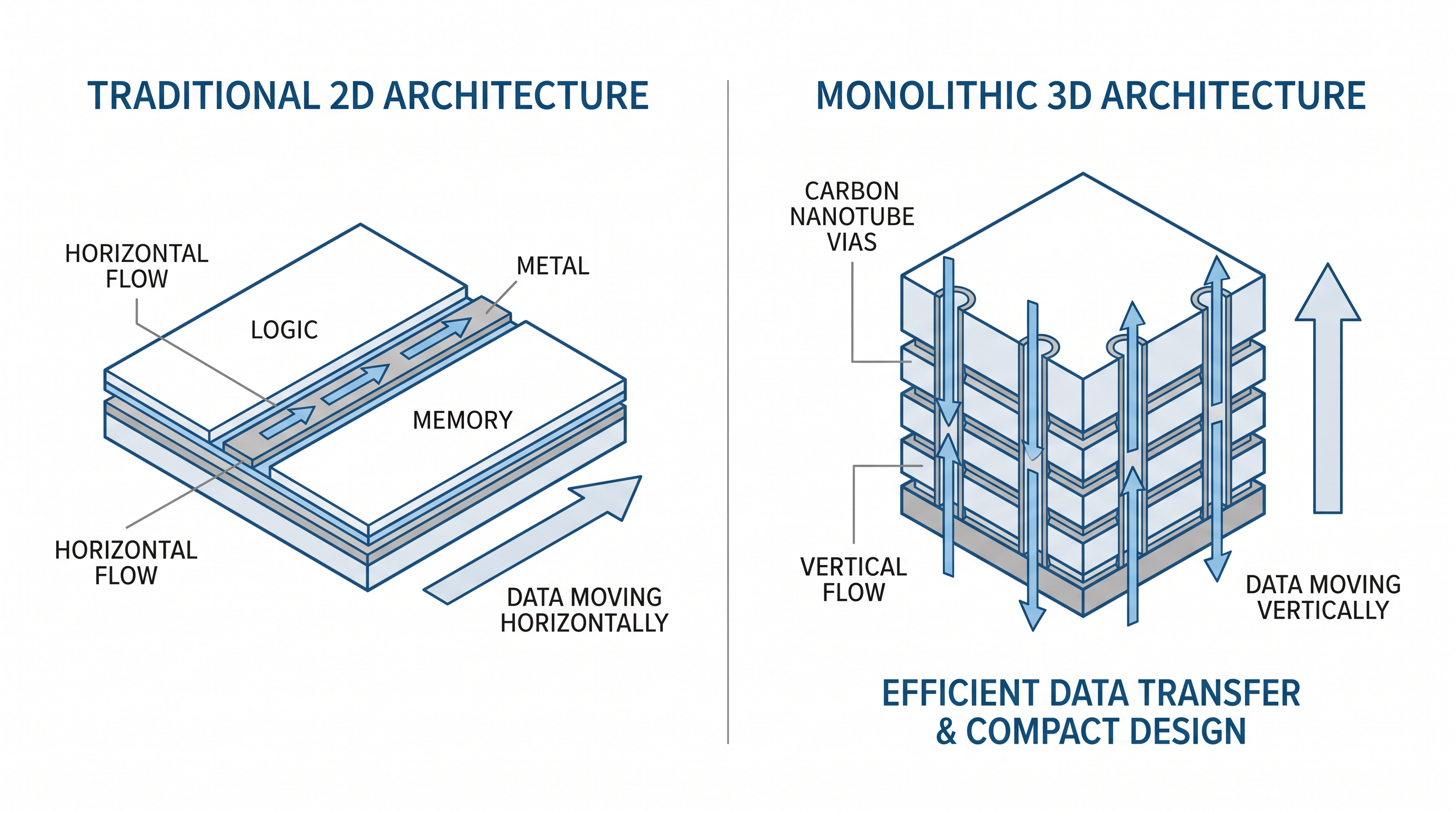

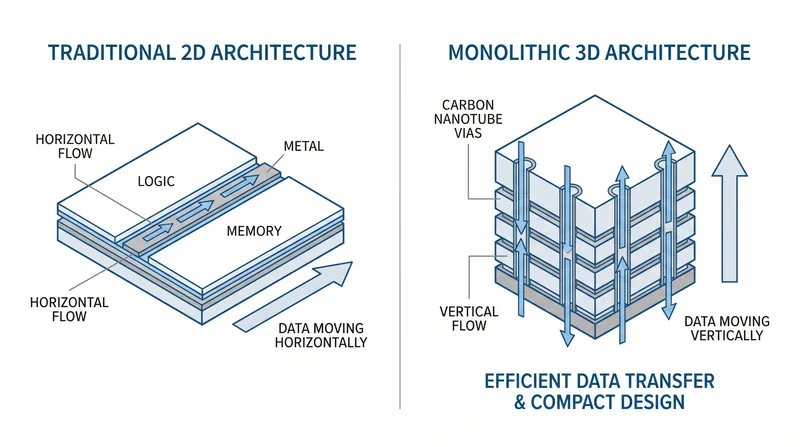

It is important to distinguish this monolithic 3D approach from the "advanced packaging" techniques currently used by major semiconductor companies. Current 3D chips typically rely on fabricating separate, finished dies and then bonding them together using through-silicon vias (TSVs). That approach works, but the connections between the layers remain relatively coarse and sparse. The Stanford-led monolithic method builds each layer sequentially on the exact same wafer in one continuous process. This allows for nanoscale interlayer vias that are vastly denser than traditional TSVs, creating a tightly woven network of vertical interconnects.[3][5]

The primary reason monolithic integration has eluded commercial foundries until now is thermal management. Building multiple layers on a single wafer typically requires high-temperature processes that would melt or severely degrade the delicate circuitry already fabricated on the lower levels. The breakthrough that enabled the SkyWater prototype is a strictly controlled low-temperature fabrication process. The engineering team designed the entire manufacturing sequence around a thermal budget of approximately 415 degrees Celsius, protecting the underlying layers while still allowing for the sequential deposition of new components.[2][6]

The materials used in the stack are equally critical to the chip's success. The prototype integrates conventional silicon CMOS logic on the base layer with resistive RAM (RRAM) and carbon nanotube field-effect transistors (CNFETs) on the upper tiers. RRAM provides fast, non-volatile memory that switches states quickly and consumes less power than traditional SRAM or DRAM. Meanwhile, the carbon nanotubes serve as the ultra-dense vertical "vias" connecting the layers. This specific combination of materials allows the chip to achieve high-density memory storage directly adjacent to the compute units without exceeding the strict thermal budget.[2]

The performance data from the physical prototype confirms the viability of the architecture. In automated electrical characterization tests, the monolithic 3D chip achieved its four-fold throughput gain by drastically shortening the physical distance data must travel. Instead of data moving horizontally across a sprawling silicon city, it moves vertically through the carbon nanotube vias—functioning much like high-speed elevators in a skyscraper. This dense vertical integration significantly reduces memory access latency and cuts the idle time of the compute cores, directly addressing the inefficiencies of the memory wall.[1][5]

Beyond the physical silicon tested on the bench, the researchers provided extensive simulation data to project the architecture's ceiling. The team modeled taller stacks incorporating additional tiers of both memory and compute units. When these simulated designs were subjected to real-world artificial intelligence workloads—specifically models derived from Meta's open-source LLaMA architecture—the results showed up to a 12-fold performance improvement. These simulations suggest that as the manufacturing process matures and allows for more layers, the throughput gains will scale non-linearly for data-heavy generative AI tasks.[1][2]

This brings the analysis back to the heavily publicized "1000x" efficiency claim. The metric cited by the researchers is the energy-delay product (EDP), a combined measurement that captures both processing speed and energy consumption. The 100-fold to 1,000-fold EDP improvement is a projected ceiling that assumes continued vertical scaling, perfect manufacturing yields, and the successful integration of embedded cooling technologies. It is a mathematically sound projection based on the elimination of horizontal data movement, but it is crucial to recognize it as a theoretical limit rather than a current hardware specification.[1][2]

The most significant evidence of the project's success is arguably its location. Moving a monolithic 3D architecture out of an academic laboratory and into SkyWater's commercial fabrication facility validates that U.S. foundries can produce these advanced structures. SkyWater executives noted that translating cutting-edge academic concepts into a process that a commercial fab could actually execute was an enormous challenge. Proving that it can be done domestically provides a strategic blueprint for the semiconductor industry, demonstrating that innovation in chip geometry can occur without relying exclusively on the most advanced, overseas lithography nodes.[1][6]

The economic implications for AI infrastructure are substantial. Currently, high-bandwidth memory (HBM) accounts for over half the total cost of top-tier AI training accelerators like NVIDIA's H100. The industry is paying a massive premium simply to place memory as close to the processor as possible using 2.5D packaging. If monolithic 3D integration can eventually replace expensive HBM packaging with dense, on-die vertical memory, the fundamental economics of AI hardware could shift, lowering the barrier to entry for training and deploying large-scale models.[4]

However, the evidence regarding commercial viability remains incomplete. What the prototype has not yet proven is commercial yield at scale. In monolithic integration, a single microscopic defect in a lower layer can ruin the entire vertical stack, rendering the chip useless. While SkyWater and the research consortium have proven it is physically possible to build a functional monolithic 3D chip, they have not yet demonstrated that it is profitable to manufacture them by the millions. Yield optimization will be the primary hurdle determining whether this technology reaches the data center.[6]

The timeline for enterprise deployment is also a factor that requires realistic framing. While the prototype is functional today, integrating this architecture into commercial AI accelerators will take years of sustained engineering. The semiconductor industry will need to adapt electronic design automation (EDA) software to design true 3D structures, develop new testing protocols for vertical layers, and engineer novel thermal management systems to dissipate the concentrated heat generated by stacked logic and memory. The hardware ecosystem must evolve before these chips can be slotted into server racks.[3]

Ultimately, the evidence confirms that the memory wall can be breached using monolithic vertical integration, and that commercial foundries possess the capability to manufacture these structures today. The marketing hype surrounding immediate 1000x efficiency gains should be discarded in favor of the verified data: a 4x hardware throughput improvement and a viable path to 12x gains for AI workloads. This verified reality is more than sufficient to force a redesign of how the industry approaches artificial intelligence compute, shifting the focus from shrinking transistors to stacking them.[1][4]
