The 7-Millisecond Torsional Release Threshold: How the ISO 11088 Standard Calculates Ski Binding Release Values to Prevent Tibial Fractures

When a skier catches an edge at 40 miles per hour, the human tibia has a functional window of roughly 7 milliseconds before the twisting force of a 180-centimeter ski snaps the bone. The kinetic energy of the fall travels up the ski, through the boot, and directly into the lower leg. To prevent a spiral fracture, the mechanical connection between the boot and the ski must sever itself before that energy reaches the bone's elastic limit. That exact breaking point is not a guess; it is a heavily regulated mathematical threshold.[5]

The mechanical fuse responsible for this split-second decision is the ski binding. It must perform two contradictory jobs: hold the boot firmly in place during aggressive, high-G carving, and eject it the instant the torque approaches the tibia's structural limit. If the binding releases too early, the skier suffers a pre-release at high speed. If it releases too late, the bone or ligaments fail.[6]

The international benchmark governing this mechanism is ISO 11088. First introduced to supersede the older German DIN 7881 standard in 1993, the 2023 revision of ISO 11088 dictates the assembly, adjustment, and inspection of the entire ski-binding-boot (S-B-B) system. It is the universal language spoken by every certified ski technician in the world.[1][4]

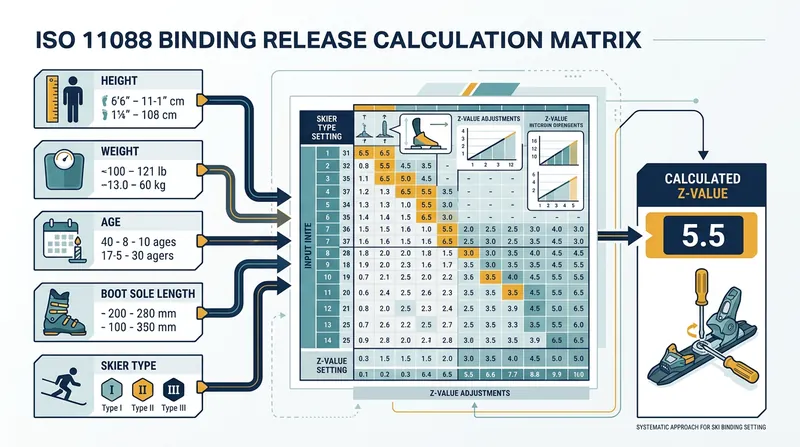

Ski shops worldwide rely on ISO 11088 to calculate what is still colloquially known as the DIN setting—a dimensionless number that determines the exact torque required to release the binding. The calculation matrix factors in the skier's height, weight, age, boot sole length, and skier type, ranging from cautious beginners to aggressive experts.[4][8]

The physics of the boot sole length play a critical role in this calculation. A longer boot sole acts as a longer lever against the binding's release mechanism. Because this longer lever amplifies the twisting force applied by the ski, the binding will reach its release torque sooner. Consequently, the ISO 11088 matrix assigns a lower required release setting for a larger boot to achieve the same actual torque on the leg.[6][8]

The underlying mathematics of these settings are anchored in decades of biomechanical research, most notably the tibia-fracture data compiled by Ernst Asang in Munich, Germany. Binding engineers use this data to map the exact forces a human leg can withstand before catastrophic failure.[5]

According to engineering documentation from Howell SkiBindings, the structural limits are highly specific: "The average adult male tibia reaches its elastic limit (fractures) at ~11.3 daNm during slow-torsion and ~25 daNm during slow forward-bending." These figures represent the absolute maximum load the bone can take before the elastic deformation becomes a permanent break.[5]

During a dynamic, twisting fall, the binding's toe piece must measure this torsional force—designated in the standard as +MZ and -MZ—and physically open before the 11.3 daNm threshold is breached. The 7-millisecond window represents the critical duration in which the binding must clear the boot to prevent the kinetic energy from fully transferring into the skeletal structure.[5]

Forward-bending falls, which typically trigger the heel piece to release (measured as +MY), have a higher tolerance. Because the tibia is structurally stronger in forward bending—withstanding up to 25 daNm—the heel spring is compressed to a significantly higher tension than the toe piece.[1][5]

However, the universal application of these thresholds has faced increasing scrutiny, particularly regarding female skiers. The baseline ISO 11088 calculations rely heavily on statistical averages derived from male biomechanics, which often overestimate the torsional strength of a female skier's tibia and the tensile strength of their anterior cruciate ligament (ACL).[3][9]

As noted in a biomechanical study published in the National Center for Biotechnology Information, the real-world consequences of this discrepancy are measurable. The researchers state plainly: "Failure of binding release associated with a knee injury is significantly higher among females compared to males."[3]

To address this disparity, the ISO 11088 standard includes a specific, though often overlooked, provision. It allows for a 15 percent deviation between the measured release moments of a binding and the individual release moments determined by the standard's baseline setting tables. This downward adjustment can be applied upon the skier's request to better match their actual bone density and ligament strength.[1][3]

The clinical impact of this 15 percent reduction is substantial. Researchers utilizing a Wintersteiger Speedtronic adjustment system tested the self-release capabilities of female skiers using both the standard ISO settings and the 15 percent reduced settings.[3]

The study concluded that four times more female recreational skiers were able to successfully self-release their skis with the adjusted settings compared to the default ISO recommendations. This simple mathematical adjustment directly translates to a massive reduction in the risk of season-ending knee injuries.[3]

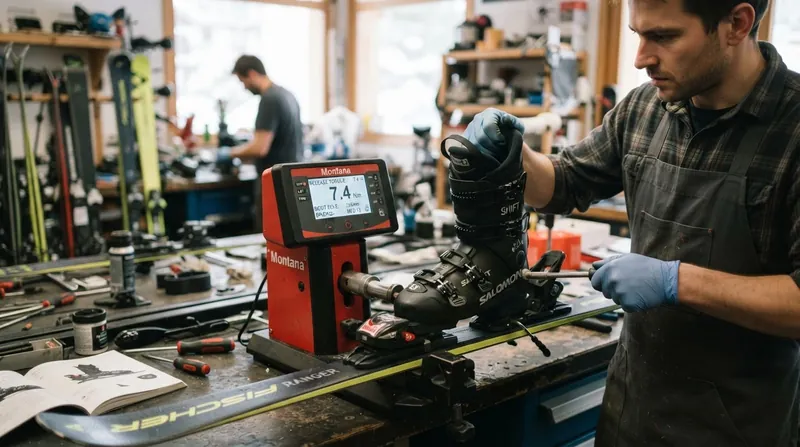

Verifying that a binding actually releases at these precise microsecond and torque tolerances requires specialized diagnostic equipment. Ski technicians cannot simply turn the screw to the correct number and hand the skis to the customer; they must physically test the mechanical release.[7][8]

Shops use mechanical testing devices, such as the F504 tester, to apply controlled rotational and forward-leaning forces to the mounted boot. The machine confirms that the binding's physical release matches the calculated ISO 11088 matrix within a strict inspection range of plus or minus 30 percent, or ±6 Nm for twist.[1][7]

The margin between a safe ejection and a spiral fracture is dictated entirely by a spring compressed to a highly specific tension. As binding manufacturers continue to refine their designs to address the disparity in female injury rates, the ISO 11088 standard serves as the baseline for every adjustment. The next time a skier steps into their bindings, the safety of their lower legs relies on that precise calibration—and the mechanical guarantee that the system will sever the connection before the bone absorbs the fall.[1][9]
