The Sliding Filament Model: How Myosin Heads Walk Along Actin Filaments to Generate Force

The fundamental debate in mid-20th-century muscle physiology centered on how tissue could shorten without its constituent parts shrinking. One camp argued that muscle proteins must fold or coil like a spring, physically reducing their own length to generate force.

The opposing view, introduced independently in 1954 by research teams led by Andrew Huxley and Hugh Huxley, proposed that the proteins never change length at all, but instead slide past one another like interlocking fingers. This conceptual leap—the sliding filament model—transformed the understanding of biological movement, revealing that the immense power of a sprinter's thigh or a beating heart is driven by trillions of microscopic molecular motors rowing in asynchronous harmony.[5]

The mechanism relies on the precise architecture of the sarcomere, the fundamental contractile unit of striated muscle. Under a microscope, skeletal and cardiac muscles display a distinct banding pattern. The dark regions, known as A bands, consist primarily of thick filaments made of the protein myosin. The lighter regions, or I bands, contain thin filaments composed of actin. The boundaries of each sarcomere are marked by Z discs, which anchor the actin filaments and form the structural scaffolding of the muscle fiber.[2][3]

When a muscle contracts, the distance between the Z discs shrinks, pulling the entire sarcomere inward. Yet, as researchers observed through interference microscopy, the width of the dark A band remains perfectly constant. Only the I bands and the central H zone—the area where actin and myosin do not overlap—become narrower. This optical evidence proved that the thick and thin filaments do not contract or fold; they simply increase their degree of overlap as the actin is pulled toward the center.[3][5]

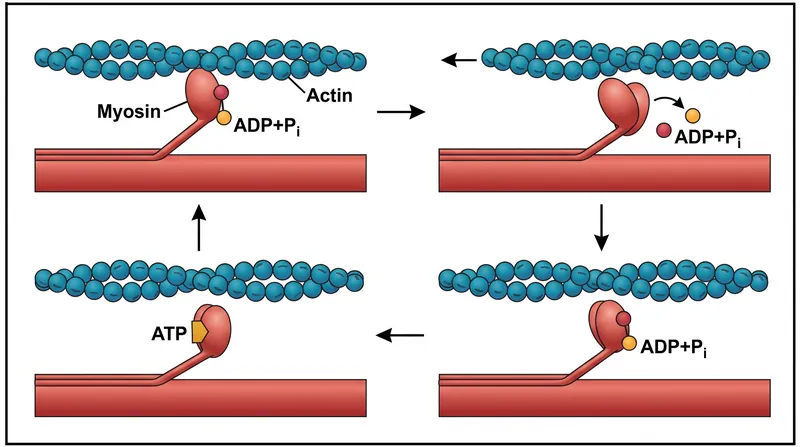

The engine driving this sliding motion is the myosin cross-bridge cycle, a biochemical process that converts chemical energy into mechanical work. Each myosin thick filament is studded with hundreds of globular heads, which extend outward toward the adjacent actin filaments. According to the University of Cape Town's Department of Anaesthesia, "The myosin heads move the actin filaments in a similar fashion to the way in which an oar propels a rowboat," binding to specific sites on the actin track and pulling it toward the center of the sarcomere.[1]

The cycle begins in a resting state, where the myosin head is detached from actin and holds a partially hydrolyzed molecule of adenosine triphosphate (ATP), split into adenosine diphosphate (ADP) and inorganic phosphate. In this cocked position, the myosin head stores potential energy, much like a stretched spring waiting to be released. The binding sites on the actin filament are physically blocked by regulatory proteins, preventing unwanted contractions that would otherwise lock the muscle in a state of permanent tension.[2][4]

When a nerve impulse stimulates the muscle fiber, it triggers the rapid release of calcium ions from an intracellular storage network called the sarcoplasmic reticulum. These calcium ions flood the sarcomere and bind directly to troponin, a specialized regulatory protein situated along the actin filament. This binding event causes a critical conformational shift in a companion protein, tropomyosin, physically pulling it away from the binding sites and exposing the bare actin track to the waiting myosin heads. This excitation-contraction coupling bridges the electrical signal and the mechanical response.[1][2]

With the sites exposed, the myosin head immediately binds to the actin filament, forming a physical cross-bridge between the thick and thin filaments. This attachment triggers the release of the inorganic phosphate, which initiates the power stroke.

During the power stroke, the myosin head pivots sharply, pulling the actin filament approximately 10 nanometers toward the center of the sarcomere. This microscopic displacement is the fundamental unit of movement that powers all voluntary and involuntary striated muscle action. The collective force of these strokes generates the tension required to lift a weight or pump blood.[4][5]

The mechanical force generated by a single myosin head is minuscule, but a single thick filament contains roughly 300 heads, and a typical muscle fiber contains hundreds of thousands of sarcomeres arranged in series and parallel. Because the myosin heads cycle asynchronously—some pulling while others detach and reset—they produce a smooth, continuous contraction rather than a jerky, stuttering motion.

This asynchronous cycling ensures that the actin filament does not slip backward between individual power strokes. The sheer volume of these interactions allows a human bicep to generate substantial lifting power from proteins that are individually invisible to the naked eye.[2][5]

Following the power stroke, the myosin head remains tightly bound to the actin filament in a state known as rigor, having released its ADP molecule. To detach and prepare for the next pull, the myosin head must bind a fresh molecule of ATP. The arrival of ATP breaks the cross-bridge, separating the myosin from the actin track. In the absence of ATP, such as after death, the cross-bridges cannot break, resulting in the stiffening of muscles known as rigor mortis.[1][3]

Once detached, the myosin head acts as an enzyme, hydrolyzing the new ATP molecule into ADP and phosphate. The energy released by this chemical reaction is used to swivel the myosin head back into its original, cocked position.

The motor is now reprimed and ready to bind to the next available site further down the actin filament, provided that calcium levels remain elevated and the binding sites remain exposed. This resetting phase is just as critical as the power stroke, as it ensures the motor is continuously loaded with potential energy for the next cycle.[1][4]

This continuous cycle of attachment, pulling, detachment, and repriming is highly energy-intensive. Approximately 75 percent of the ATP energy consumed during muscle contraction is released as heat, which is why vigorous exercise dramatically raises body temperature and induces sweating.

The remaining 25 percent is captured as mechanical work, a thermodynamic efficiency comparable to a well-tuned internal combustion engine. The constant demand for ATP requires muscles to maintain dense networks of mitochondria and extensive blood supplies. Without this continuous vascular delivery of oxygen and nutrients, the cross-bridge cycle would quickly grind to a halt.[1][6]

AI

When the nerve signal ceases, calcium pumps actively transport the ions back into the sarcoplasmic reticulum, clearing them from the intracellular fluid. As calcium concentrations fall, troponin and tropomyosin return to their resting positions, once again shielding the actin binding sites.

Without the ability to form cross-bridges, the thin filaments passively slide back to their original positions, and the muscle relaxes, ready to be stretched or stimulated again. This relaxation phase requires energy just as the contraction phase does, as the calcium pumps rely on ATP to move ions against their concentration gradient.[2][3]

The lever arm hypothesis provides the structural explanation for how the myosin head generates movement. High-resolution crystallographic studies reveal that the myosin head consists of a catalytic motor domain, which binds actin and ATP, and an elongated neck region that acts as a lever arm.

The hydrolysis of ATP induces subtle conformational changes in the motor domain, which are amplified by the lever arm into a large, sweeping rotation that drives the filament forward. This structural arrangement acts as a biological gear system, maximizing the output of a single chemical reaction.[4][6]

This mechanical amplification is crucial for the efficiency of the cross-bridge cycle. A sub-nanometer shift at the ATP binding pocket translates into a multi-nanometer displacement at the end of the lever arm. The length and stiffness of this lever arm determine the velocity and force characteristics of different myosin isoforms, explaining why some muscles are optimized for rapid, explosive movements while others are built for sustained, slow-twitch endurance. Evolution has fine-tuned these lever arms across different species and muscle types to meet specific physiological demands.[4][6]

While the sliding filament model is universally accepted for striated skeletal and cardiac muscle, its application to smooth muscle involves different regulatory pathways. Smooth muscle lacks the highly organized sarcomere structure and relies on the phosphorylation of myosin light chains rather than the troponin-tropomyosin complex to initiate contraction.

Nevertheless, the fundamental principle of actin and myosin filaments sliding past one another remains the core mechanism of force generation across all muscle types. This universal reliance on sliding filaments underscores the evolutionary success of the actomyosin motor complex in driving biological movement.[1][6]

Modern biophysical techniques, including optical tweezers and single-molecule fluorescence, continue to refine the understanding of the cross-bridge cycle. Researchers can now measure the force and step size of individual myosin molecules, revealing the stochastic, thermally-driven nature of protein dynamics.

The next frontier in muscle physiology involves mapping the precise atomic transitions that occur during phosphate release, seeking to capture the exact millisecond the molecular spring is tripped and force is born. These ongoing investigations ensure that the model first proposed in 1954 remains a living, evolving framework at the cutting edge of molecular biology.[4][6]
