The Modular Arithmetic That Establishes a Shared Secret Over an Insecure Channel

Marketing language often describes encryption as a digital vault, implying that security relies on how thick the steel is. But the actual capability of modern secure communications relies on something much more fragile: the ability of two strangers to agree on a secret key while a hostile network watches their every move. The common assumption—and the claim often repeated in simplified security brochures—is that secure communication requires two parties to secretly exchange a password beforehand. If that were true, the modern internet could not function. In 1976, Whitfield Diffie and Martin Hellman published a paper in the IEEE Transactions on Information Theory that proved this assumption mathematically false. They demonstrated that two parties could establish a shared secret over a completely insecure, monitored channel without ever transmitting the secret itself.[1]

The protocol they introduced, now known as the Diffie-Hellman key exchange, does not actually exchange a key. Instead, it allows two parties to jointly derive one using modular arithmetic. As Cloudflare's technical documentation explains, the algorithm relies on a trapdoor function—a mathematical operation that is trivial to compute in one direction but practically impossible to reverse. Specifically, it uses the discrete logarithm problem.[4]

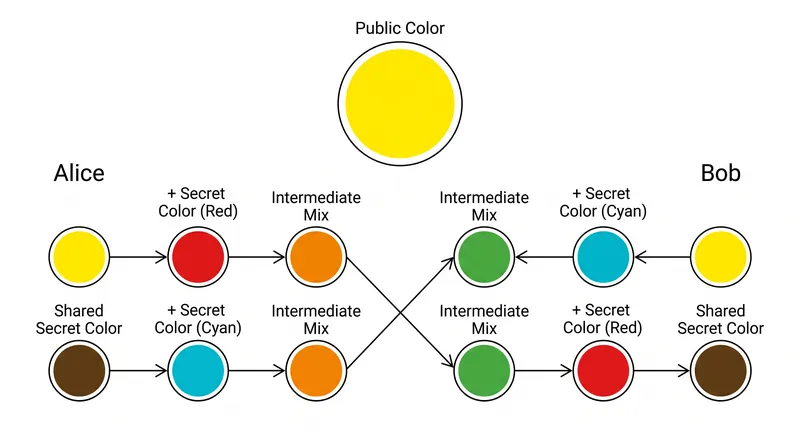

To understand the mechanism, cryptographers often use a paint-mixing analogy. Alice and Bob publicly agree on a common starting color, say, yellow. This color is transmitted in the clear; anyone listening to the network can see it. Alice then selects a secret color, red, and mixes it with the yellow to produce orange. Bob selects his own secret color, cyan, and mixes it with the yellow to produce green.[6]

Alice and Bob then exchange their mixed colors across the public channel. The eavesdropper sees the orange and the green, but because un-mixing paint is practically impossible, they cannot determine Alice's or Bob's original secret colors. Finally, Alice takes Bob's green paint and mixes in her secret red, while Bob takes Alice's orange paint and mixes in his secret cyan. Both arrive at the exact same final color—a shared brown—which becomes their encryption key.[6]

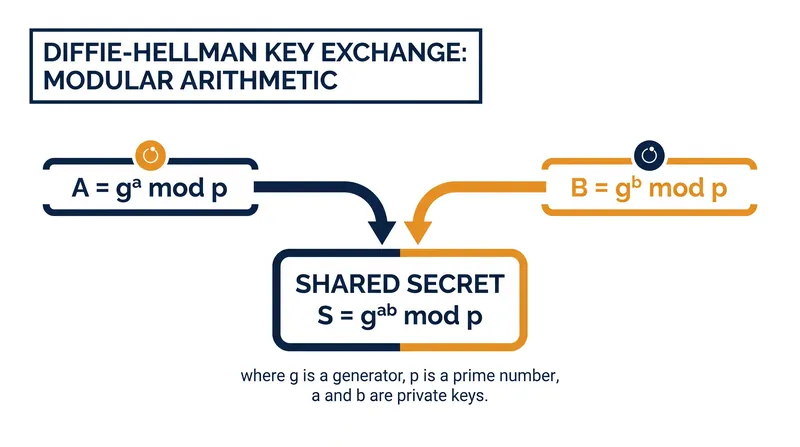

In reality, the "colors" are massive prime numbers. According to IETF RFC 2631, the protocol begins with two public parameters: a large prime number (p) and a generator (g). Alice chooses a private integer (a) and calculates her public value as A = g^a mod p. Bob chooses a private integer (b) and calculates B = g^b mod p. They exchange A and B over the network.[2]

Once exchanged, Alice computes the shared secret by raising Bob's public value to her private exponent: S = B^a mod p. Bob does the inverse, calculating S = A^b mod p. Because of the commutative property of exponents in modular arithmetic, both calculations yield the exact same result: g^(ab) mod p. This resulting number is the shared secret, which is then used as a symmetric key to encrypt subsequent traffic using algorithms like AES.[2]

The security of this entire operation rests entirely on the size of the prime number. If the prime is too small, modern computers can brute-force the discrete logarithm and derive the private keys from the public values. In the early days of the internet, 512-bit primes were common, largely due to US export restrictions on cryptography. Today, RFC 5114 standardizes much larger parameters, specifically defining 1024-bit and 2048-bit Modular Exponential (MODP) groups for use in IETF protocols.[3]

However, generating massive, cryptographically secure prime numbers on the fly is computationally expensive. To speed up the handshake, many servers and VPN vendors shipped systems that relied on standardized, pre-computed prime groups—using the exact same prime for millions of different connections. This implementation shortcut, often marketed as an optimization feature, created a massive vulnerability.[7]

In May 2015, a team of computer scientists published the Logjam attack on WeakDH.org, exposing the fatal flaw in prime reuse. The researchers demonstrated that the most efficient algorithm for breaking a Diffie-Hellman connection—the number field sieve—consists of four steps. The first three steps depend only on the prime number, not on the specific connection. If an attacker pre-computes those first three steps for a specific prime, they can break individual connections using that prime in near real-time.[5]

The Logjam team showed that a man-in-the-middle attacker could force a server to downgrade its connection to 512-bit export-grade cryptography. Because 8.4% of the top one million domains supported these weak "DHE_EXPORT" ciphers, the researchers were able to pre-compute the most common 512-bit prime and actively decrypt traffic. "The Logjam attack allows a man-in-the-middle attacker to downgrade vulnerable TLS connections to 512-bit export-grade cryptography," the researchers wrote.[5]

More alarmingly, the researchers calculated that a state-level adversary with a budget of a few hundred million dollars could perform the pre-computation for the most common 1024-bit primes. Because millions of HTTPS, SSH, and VPN servers globally used the same handful of 1024-bit primes, breaking just one of them would allow an intelligence agency to passively decrypt a massive fraction of the world's internet traffic.[5]

To mitigate these vulnerabilities, the industry has largely migrated away from traditional finite-field Diffie-Hellman toward Elliptic Curve Diffie-Hellman (ECDH). As Cloudflare notes in its TLS handshake documentation, elliptic curves provide the same level of security with significantly less computational overhead. Instead of relying on the discrete logarithm of massive primes, ECDH relies on the algebraic structure of elliptic curves over finite fields.[4]

Modern implementations also mandate the use of Ephemeral Diffie-Hellman (DHE or ECDHE). In an ephemeral setup, the server generates a brand new private key for every single connection, rather than reusing a static key. This provides perfect forward secrecy. Even if an attacker records years of encrypted traffic and later manages to compromise the server's long-term identity key, they cannot decrypt the historical data, because the temporary Diffie-Hellman keys used for the actual encryption were discarded immediately.[4]

It is crucial to note that Diffie-Hellman, by itself, provides zero authentication. It guarantees that Alice and Bob share a secret, but it does not prove that Bob is actually Bob. An active attacker can intercept Alice's public value, send her their own, and do the same to Bob—establishing two separate secure channels and reading everything in the middle. To prevent this, Diffie-Hellman is always paired with a digital signature algorithm, where the server signs its public parameters to prove its identity.[7]

Fifty years after its publication, the Diffie-Hellman key exchange remains the bedrock of internet privacy. Every time a browser connects to a secure website, a VPN tunnel is established, or a secure messaging app initiates a chat, the underlying modular arithmetic is executing exactly as proposed in 1976. The parameters have grown from theoretical concepts to 2048-bit standardized groups, but the mathematical trapdoor continues to hold.[1][7]
