How the OAuth 2.0 Authorization Code Flow Isolates Passwords from Third-Party Applications

In October 2012, the Internet Engineering Task Force published RFC 6749, a 76-page document that quietly rewired how the internet handles permissions. Before its release, third-party applications routinely asked users to hand over their raw usernames and passwords just to import a contact list or sync a calendar. The publication of the OAuth 2.0 Authorization Framework introduced a mechanism to "obtain limited access to an HTTP service" without exposing credentials, replacing that dangerous practice with a system of delegated access. By standardizing how applications request permissions, the framework established the foundation for the modern, interconnected web.[1]

The core of that system is the Authorization Code flow. When a user clicks a button to connect a third-party application to their Microsoft or Google account, they are triggering a sequence designed specifically to keep their password hidden from the application they are trying to use. The framework achieves this by physically separating the application requesting access from the server verifying the user's identity. This separation ensures that the application only receives the specific data it requested, and nothing more.[1][2]

Despite how it is frequently marketed by identity providers, native OAuth 2.0 is strictly an authorization protocol, not an authentication protocol. As Okta's technical documentation clarifies, "OAuth 2.0 is a framework that controls authorization to a protected resource such as an application or a set of files, while OpenID Connect and SAML are both industry standards for federated authentication." Authentication verifies who the user actually is, while authorization merely determines what an application is allowed to do on their behalf.

This distinction is frequently blurred in commercial software products. Companies routinely sell "OAuth login" solutions, but the underlying capability of the OAuth 2.0 framework provides zero cryptographic proof of a user's identity. It only proves that a user—whoever they happen to be—successfully granted permission for an application to take a specific action. Relying on OAuth 2.0 alone for user authentication is a fundamental architectural error that the industry has spent years trying to correct through additional protocol layers.[4]

The Authorization Code flow begins when a client application redirects the user's web browser to the authorization server's designated `/authorize` endpoint. Microsoft's Entra documentation notes that this initial request includes the specific permissions, or "scopes," the application wants to obtain—such as `offline_access` or `mail.read`. The request also includes a pre-registered redirect URI, which tells the authorization server exactly where to send the user once the permission prompt has been completed. By initiating the request this way, the application clearly declares its intentions before any data is exchanged.[2]

At this point in the sequence, the client application steps entirely out of the loop. The user interacts directly with the authorization server—such as Microsoft, Google, or a corporate identity provider—to log in and review the requested permissions. Because this interaction happens exclusively on the authorization server's own domain, the third-party application never sees the user's keystrokes, their password, or the multi-factor authentication prompt. The application is completely blind to the mechanics of how the user proves their identity.[2][5]

Once the authorization server verifies the user and confirms they consent to the requested scopes, it redirects the user's browser back to the client application using the provided URI. However, it does not send the sensitive access token during this redirect. Instead, the server sends a temporary, single-use string called an "authorization code." This code is essentially a cryptographic IOU, representing the user's consent but providing no actual access to their data. It is a placeholder that must be redeemed before any resources can be accessed.[3][5]

This initial handoff occurs over the "front channel"—the user's web browser. Because browser redirects can be intercepted by malicious extensions, compromised local networks, or malware residing on the device, the authorization code itself is intentionally useless on its own. Auth0's implementation guidelines emphasize that this specific flow "can only be used for confidential applications (such as Regular Web Applications) because the application's authentication methods are included in the exchange and must be kept secure." An attacker who steals the authorization code cannot use it without also possessing the application's private credentials.[5]

To obtain the actual access token, the client application opens a direct, server-to-server connection with the authorization server's `/token` endpoint. This connection is known as the "back channel." During this exchange, the application presents the temporary authorization code along with its own client ID and a highly guarded client secret. This step proves the application's own identity to the server, ensuring that the entity redeeming the code is the exact same entity that requested it in the first place.[3][5]

Only after verifying both the validity of the authorization code and the client application's credentials does the authorization server issue the access token. This token is a cryptographic key that the application can use to access the requested resources on the user's behalf. It is typically formatted as a JSON Web Token (JWT) and carries a strict expiration time—often as short as fifteen minutes—to limit the potential damage if the token is eventually compromised. The server may also issue a refresh token, allowing the application to maintain access without forcing the user to log in again.[1][5]

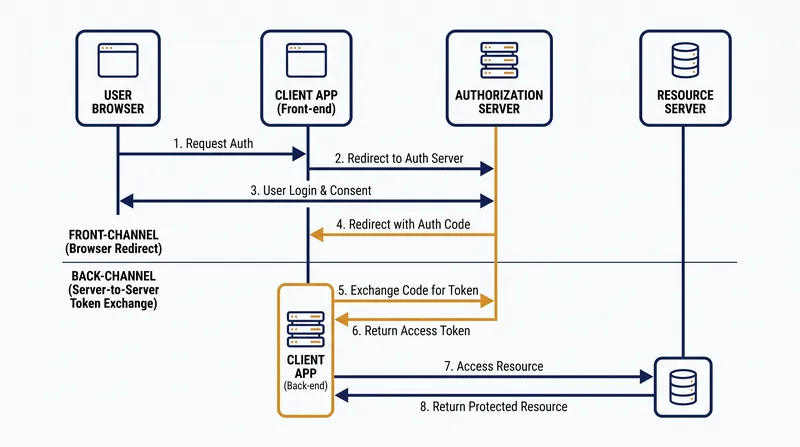

Because the access token is transmitted exclusively over the back channel, it is never exposed to the user's web browser or the local device environment. This two-step exchange—delivering the code via the front channel and retrieving the token via the back channel—is exactly what makes the Authorization Code flow secure enough for enterprise applications, healthcare portals, and financial services. It isolates the most sensitive credentials from the most vulnerable attack surfaces, ensuring that even a fully compromised web browser cannot easily leak the cryptographic keys required to access backend APIs.[3]

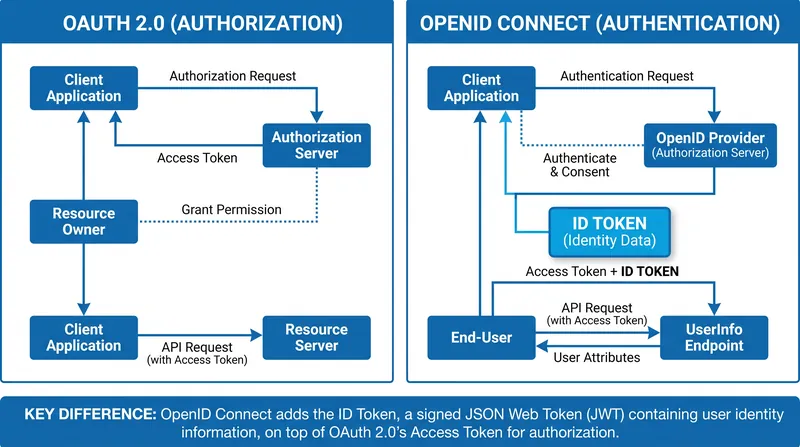

To bridge the persistent gap between authorization and authentication, the software industry built OpenID Connect (OIDC) directly on top of the OAuth 2.0 framework. Kantega SSO's engineering team explains that OIDC does everything OAuth does, but adds a standardized identity layer to the final back-channel response. When an application requests the `openid` scope during the initial redirect, the authorization server knows to generate an ID token alongside the standard access token. This addition transforms a pure delegation protocol into a comprehensive federated identity solution.[4]

While the OAuth 2.0 access token is meant to be consumed by a backend API, the OIDC ID token is meant to be consumed by the client application itself. This ID token contains verifiable cryptographic claims about the authentication event, finally answering the question of who the user is, rather than just what the application is allowed to do. It provides the application with the user's profile information, such as their email address and the exact time they logged in.[4]

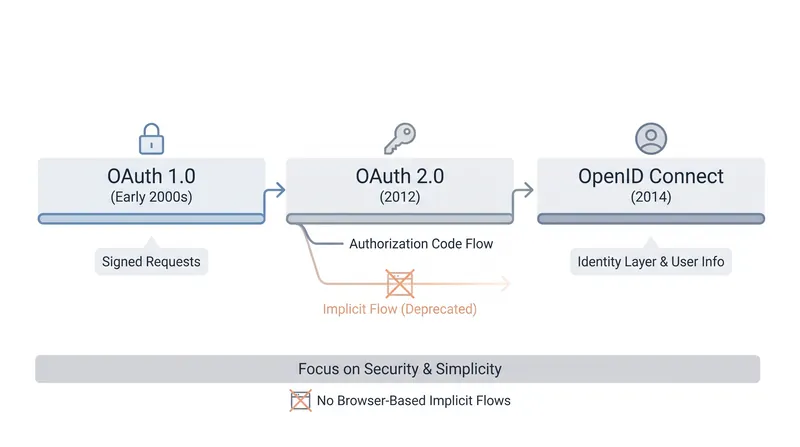

The industry's reliance on the Authorization Code flow has only deepened as browser security models continue to evolve. Older mechanisms defined in the original RFC 6749 specification, such as the Implicit flow which sent access tokens directly through the front-channel browser redirect, are now actively deprecated by the IETF due to the severe risk of token leakage and interception. Modern security best practices dictate that no sensitive credential should ever be passed through a URL fragment, cementing the back-channel exchange as the only acceptable method for retrieving tokens.[1]

Today, the Authorization Code flow stands as the absolute baseline for secure delegated access across the internet. By enforcing a strict architectural boundary between the identity provider verifying the password and the third-party application requesting the data, the protocol ensures that a breach of a connected app does not compromise the user's underlying identity. It is a mechanism that prioritizes isolation, proving that the safest way to handle a user's password is to ensure the application never sees it at all.[2][5]
