The Mechanics of the US Strategic Petroleum Reserve: How Drawdowns, Exchanges, and Storage Capacity Govern Energy Security

Deep beneath the surface of the Texas and Louisiana Gulf Coast, massive subterranean salt domes hold the United States' ultimate energy insurance policy. The Strategic Petroleum Reserve (SPR) is authorized to store up to 714 million barrels of crude oil in artificial caverns, making it the largest emergency stockpile in the world. Designed to mitigate the economic damage of severe supply disruptions, the reserve operates as a complex physical and financial mechanism rather than a simple storage tank.[1][2]

The utility of the SPR lies not just in the volume of oil it holds, but in the specific mechanics of how that oil is stored, extracted, and delivered to the global market. Rather than relying on above-ground steel tanks, the Department of Energy utilizes solution-mined salt caverns. Fresh water is pumped into naturally occurring salt formations to dissolve the salt, and the resulting brine is extracted, leaving behind a massive cylindrical void.[5]

This geological approach offers distinct advantages for long-term energy security. Salt is naturally impermeable to crude oil, and the immense geological pressure seals any micro-fractures, preventing leaks into the surrounding environment. Furthermore, the natural temperature gradient within the caverns—warmer at the bottom and cooler at the top—creates convection currents that constantly circulate the oil, maintaining its consistency without the need for mechanical stirring.[5]

The physical infrastructure spans four heavily guarded sites: Bryan Mound and Big Hill in Texas, and West Hackberry and Bayou Choctaw in Louisiana. These specific locations were selected for their immediate proximity to major commercial pipeline networks and marine terminals. This positioning ensures that when a drawdown is ordered, the extracted oil can be rapidly integrated into the existing commercial logistics network and moved to refineries.[2]

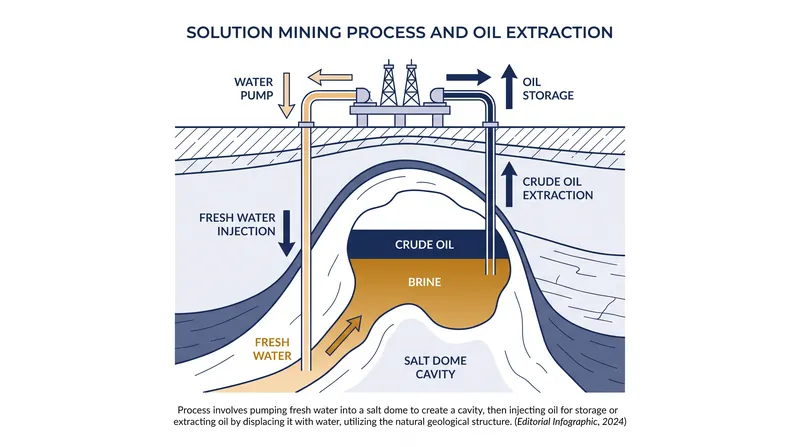

When a president authorizes an emergency drawdown, the extraction process relies on basic fluid dynamics. Because oil is less dense than water and floats on top of it, fresh water is pumped into the bottom of the salt cavern. The rising water physically displaces the crude oil, pushing it up to the surface through a separate extraction pipe where it is routed to distribution manifolds.[2][5]

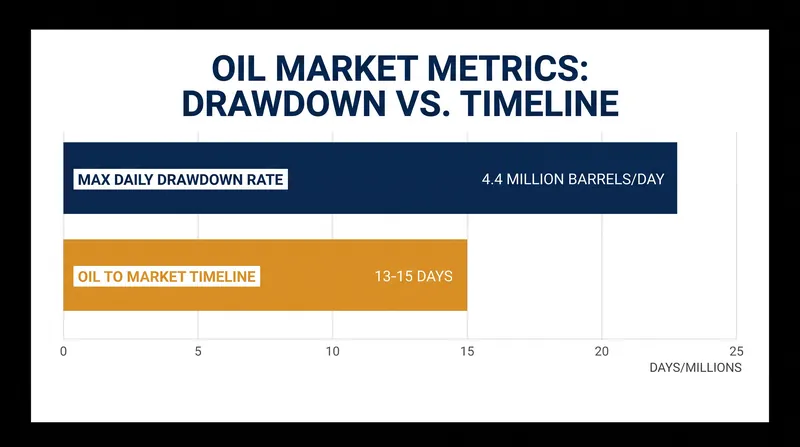

However, the system is bound by strict physical constraints that dictate its market impact. The maximum theoretical drawdown rate across all four sites combined is 4.4 million barrels per day. Once a presidential order is given, it takes approximately 13 to 15 days for the first barrels to enter the open market, as the oil must traverse the SPR's internal pipelines, be loaded onto vessels or commercial pipelines, and reach commercial terminals.[2][3]

The SPR operates under three primary deployment mechanisms. The most significant is a 'full drawdown,' triggered by a severe energy supply interruption. The president can also authorize a 'limited drawdown' of up to 30 million barrels to prevent a localized supply shock from escalating into a national crisis, providing a more surgical tool for market stabilization.[3]

Beyond direct sales, the Department of Energy frequently utilizes 'exchange agreements.' In the aftermath of localized disruptions—such as a hurricane knocking out Gulf Coast shipping channels—refiners can request a short-term loan of SPR crude. The borrowing company must return the oil within a specified timeframe, plus an additional premium of oil, effectively paying interest in barrels rather than dollars.[3]

The market impact of these drawdowns is a subject of intense economic analysis. Research from the CU Denver Business School examined the efficacy of SPR releases in stabilizing prices. The findings indicate that while announcements of SPR drawdowns can provide immediate psychological relief to markets, the physical delivery of the oil is what ultimately narrows the spread between supply and demand during a genuine shortage.[4]

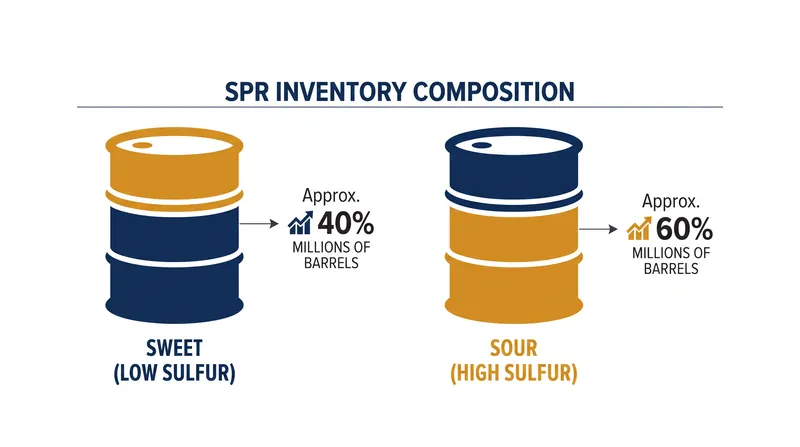

The composition of the reserve is also highly engineered to match domestic refining capabilities. The SPR stores both 'sweet' (low sulfur) and 'sour' (high sulfur) crude oil. This distinction is critical because different US refineries are calibrated to process specific grades of crude. Maintaining a diversified inventory ensures that the SPR can supply the exact type of feedstock required by the refineries that remain operational during a crisis.[2][3]

As the infrastructure ages, maintaining this capability requires continuous physical maintenance. The caverns themselves undergo 'creep,' a geological process where the salt slowly closes in on the void, gradually reducing total storage capacity over decades. Additionally, the constant injection of fresh water during drawdowns dissolves more salt, altering the cavern's shape and structural integrity, requiring careful monitoring and periodic life-extension investments.[3][5]

Ultimately, the Strategic Petroleum Reserve functions as a physical shock absorber rather than a financial price-setting mechanism. By holding millions of barrels in geological stasis, ready to be deployed within two weeks, the system provides a hard physical backstop against the volatility of global energy supply chains, ensuring that temporary disruptions do not permanently cripple the domestic economy.[1][6]
