The Mechanics of Solid-State Batteries: How Electrolyte, Anode, and Cathode Differ from Lithium-Ion

Solid-state batteries are exactly what they sound like: batteries that use a solid material instead of a liquid to move energy around. This single material swap allows manufacturers to use pure lithium metal for the anode, doubling the energy a battery can hold while eliminating the risk of fire. It is the most significant leap in energy storage since the commercialization of the lithium-ion battery in the 1990s.[5]

If you are waiting to buy an electric vehicle until it can drive 600 miles and charge in ten minutes, this is the technology you are waiting for. But while the chemistry works perfectly in a laboratory, manufacturing these cells at a commercial scale requires solving a massive mechanical problem: keeping solid materials perfectly pressed together as they expand and contract during use.[3]

To understand why this is so difficult, you have to look at how current lithium-ion batteries fail. Every battery has three main parts: a cathode (the positive side), an anode (the negative side), and an electrolyte (the medium in the middle).[1]

In today's lithium-ion batteries, that electrolyte is a liquid solvent. When you charge the battery, lithium ions swim through this liquid from the cathode to the anode. When you use the battery, they swim back. The liquid is highly efficient at moving ions, ensuring the battery can deliver power quickly when you press the accelerator.[5]

However, that liquid is also highly flammable. If the battery gets too hot, or if it is punctured in a crash, the solvent can ignite, causing a thermal runaway event that is notoriously difficult to extinguish. This fundamental safety flaw dictates how current battery packs are engineered, requiring heavy cooling systems and protective armor.[1]

Furthermore, the liquid limits what materials we can use for the anode. Currently, anodes are made of graphite, which acts like a sponge to safely absorb the lithium ions. Graphite is heavy and takes up a lot of space, but it prevents the lithium from forming "dendrites"—microscopic, needle-like structures that grow out of pure lithium and can pierce the battery's internal separator, causing a short circuit.[7]

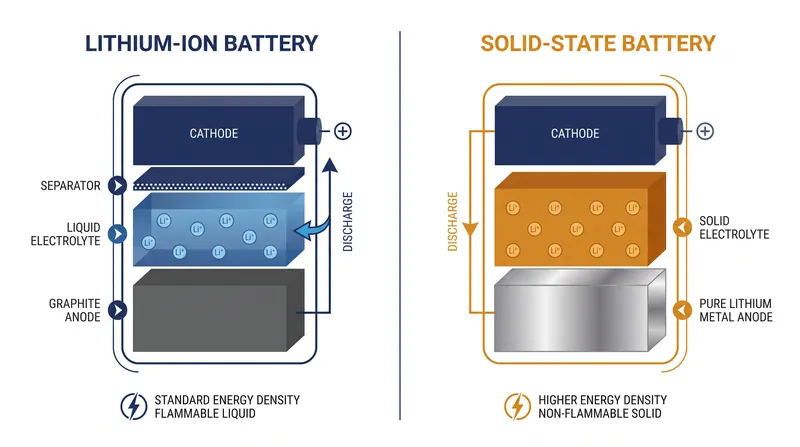

This is where the solid-state revolution begins. By replacing the liquid electrolyte with a solid layer—typically a ceramic, glass, or polymer—engineers create a physical barrier that is too tough for dendrites to pierce. The solid electrolyte acts as both the ion highway and the structural separator.

Because the solid electrolyte blocks dendrites, manufacturers no longer need the heavy graphite sponge. They can use an anode made of pure lithium metal. This single change removes massive amounts of dead weight and volume from the cell.[7]

Switching to a lithium metal anode is the holy grail of battery chemistry. It drastically shrinks the size and weight of the battery while holding significantly more energy. This is how automakers plan to double EV range without making the vehicles heavier, or maintain current ranges while cutting the battery size in half.[2]

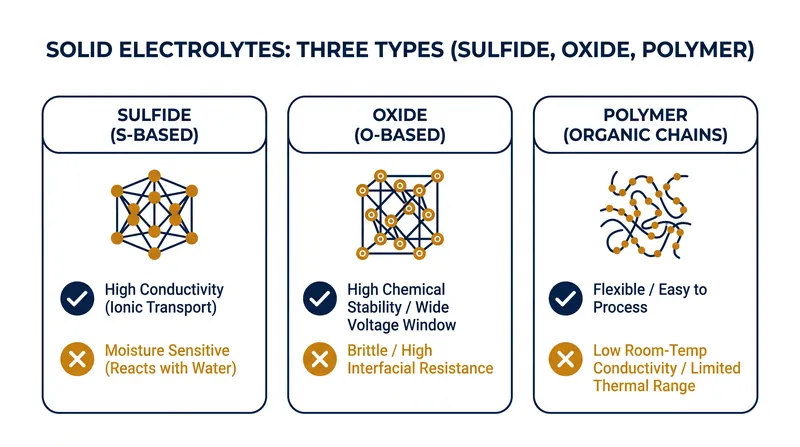

However, choosing the right solid material for the electrolyte is a massive engineering compromise. There are three main candidates, and each has a fatal flaw that researchers are racing to solve before mass production can begin.[3]

Sulfide-based solid electrolytes are currently the most popular choice because they conduct ions almost as quickly as liquids do. This means they can support ultra-fast charging. Unfortunately, sulfides react poorly with moisture, producing toxic hydrogen sulfide gas if exposed to air, which requires expensive, perfectly dry manufacturing environments.[6]

Oxide-based electrolytes, which are essentially advanced ceramics, are incredibly stable and safe. They do not react with air and can withstand high voltages. But ceramics are brittle. They are difficult to manufacture in the ultra-thin, flexible sheets required for modern battery packs, often cracking under stress.[2]

Polymer electrolytes are flexible, easy to manufacture, and cheap. The catch is that they do not conduct ions well at room temperature. A polymer solid-state battery often needs to be heated to 60 degrees Celsius (140 Fahrenheit) just to function properly, which drains energy and requires complex thermal management systems.[1]

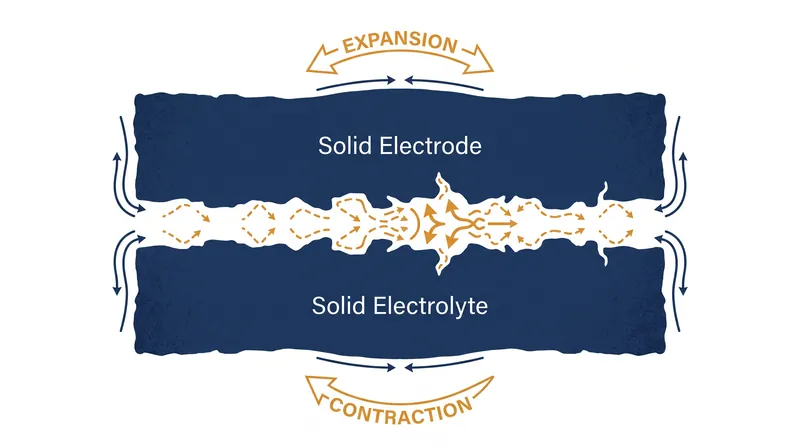

Beyond choosing the material, the biggest hurdle to commercialization is "interfacial resistance." In a liquid battery, the liquid naturally flows into every microscopic pore of the cathode and anode, ensuring perfect contact for the ions to travel across.[6]

In a solid-state battery, you are pressing two hard solids together. At a microscopic level, surfaces are rough. If the solid electrolyte and the electrodes do not maintain perfect, flush contact, the ions cannot cross the gap, and the battery stops working.[7]

This problem gets worse as the battery is used. When a battery charges and discharges, the anode and cathode physically swell and shrink. Over hundreds of cycles, this "breathing" motion can cause the solid electrolyte to crack or pull away from the electrodes, destroying the battery's capacity.[3]

To combat this, current solid-state prototypes require high external pressure—literally clamping the battery cells together with heavy metal plates to force the layers to stay in contact. This added weight eats into the energy density gains of the lithium metal anode, creating a frustrating engineering loop.[4]

Despite these challenges, the transition is inevitable. The life-cycle benefits, from reduced fire risk to lower overall material usage per kilowatt-hour, make solid-state the definitive next step. While mass-market EV adoption may still be years away, the fundamental mechanics of the technology are already proven, shifting the battle from chemical discovery to mechanical engineering and manufacturing scale.[4]
