The Mechanics of Marine Insurance: Comparing Hull & Machinery and Protection & Indemnity Coverage

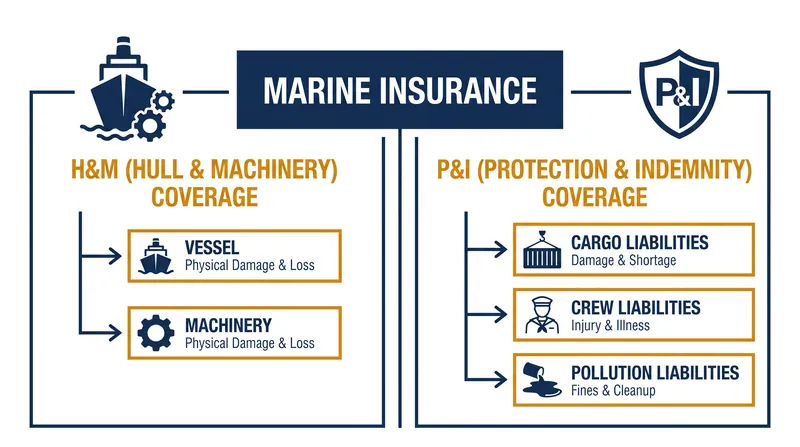

At its core, marine insurance is divided into two distinct but interlocking halves: Hull & Machinery (H&M) protects the physical ship, while Protection & Indemnity (P&I) covers the liabilities the ship creates. This dual architecture ensures that when a vessel strikes a reef, the cost of repairing the steel is handled separately from the cost of cleaning up the spilled oil. It is the foundational mechanism that allows heavy industry to operate on the open ocean without risking total financial collapse from a single incident.[2][3]

This division of risk is not an accident of history, but a deliberate systems-engineering approach to financial liability. By separating the finite value of the asset from the potentially infinite cost of third-party damages, the maritime industry creates a resilient safety net. It prevents single-point financial failures by routing different types of claims to the capital structures best equipped to absorb them.[1][6]

Hull & Machinery insurance functions much like comprehensive auto insurance, but scaled to industrial assets worth hundreds of millions of dollars. It covers physical damage to the vessel's hull, its propulsion machinery, and its onboard equipment caused by perils of the sea, fire, explosion, or piracy. The policy is fundamentally tied to the physical integrity of the ship itself.[3][4]

The primary trigger for an H&M claim is physical loss or damage to the insured asset. If a container ship suffers a catastrophic engine failure in the mid-Atlantic, the H&M policy covers the cost of towing the vessel to port and repairing or replacing the damaged machinery. It is designed to protect the shipowner's capital investment and satisfy the mortgage requirements of the banks financing the fleet.[4]

However, H&M policies are strictly capped by the insured value of the vessel. They are not designed to absorb the open-ended liabilities that a major maritime casualty can generate. If a vessel destroys a port crane or causes a massive environmental disaster, the resulting claims will rapidly exceed the value of the ship itself, leaving a critical gap in coverage.[3][5]

This is where Protection & Indemnity (P&I) coverage takes over. Unlike H&M, which is typically purchased from commercial insurance syndicates on the open market, P&I is traditionally provided by mutual associations known as P&I Clubs. These clubs operate on a fundamentally different financial model than commercial underwriters.[2][5]

P&I Clubs are cooperatives owned by the shipowners themselves, pooling their resources to mutualize third-party risks. P&I covers the liabilities that H&M explicitly excludes: cargo damage, crew injuries, wreck removal, and environmental pollution. Because these risks are mutualized across thousands of vessels globally, the clubs can offer limits of liability that commercial markets would struggle to underwrite alone.[1][2]

The interface between these two policies is most visible during a collision. When two vessels collide, the financial fallout is complex, involving damage to both ships, potential loss of life, and environmental hazards. The standard industry approach to this scenario highlights the interlocking nature of the coverage and how the two systems communicate.[1]

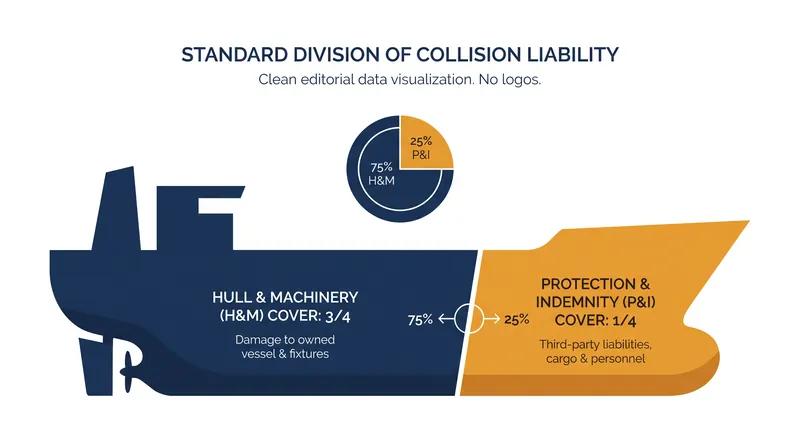

Under standard collision liability clauses, the H&M policy typically covers three-quarters (3/4ths) of the liability for damage caused to the other vessel. The remaining one-quarter (1/4th) falls to the P&I Club. This specific fractional split is a structural feature designed to force cooperation between the two insurers.[1][6]

This split forces both the commercial underwriters and the mutual clubs to collaborate on the claims-handling process. It ensures that neither side can unilaterally settle a claim in a way that prejudices the other, creating a system of checks and balances within the maritime claims infrastructure. Both parties must agree on the apportionment of blame and the settlement figures.[1][5]

Beyond collisions, the boundaries between the two policies dictate how downstream consequences are managed. If a vessel grounds and requires salvage, the H&M policy generally covers the salvage award. The primary goal of a salvage operation is saving the physical asset and its cargo, which aligns directly with the H&M underwriter's exposure.[3][4]

Conversely, if the grounded vessel cannot be saved and becomes a hazard to navigation, the local port authority will mandate its removal. Wreck removal is classified as a third-party liability. The staggering costs associated with cutting up and removing a sunken hull fall squarely on the P&I Club, as the vessel is no longer an asset to be saved, but a liability to be mitigated.[2][6]

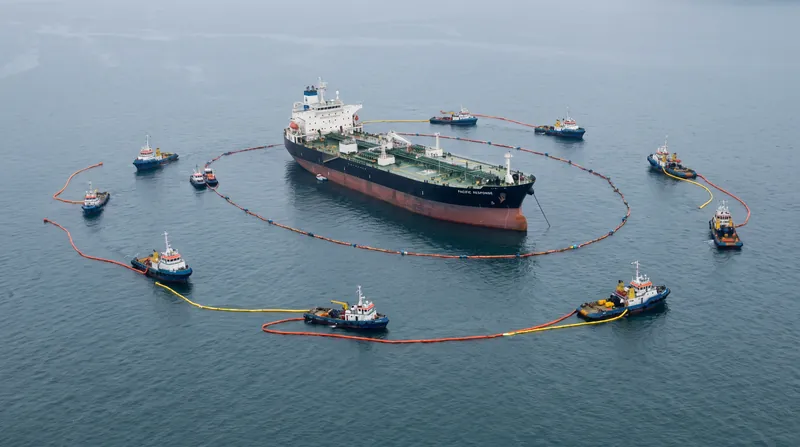

Environmental liabilities follow a similar logic. The H&M policy pays to patch the hole in the hull, but the P&I Club pays for the fleet of skimmers, booms, and cleanup crews required to remediate the resulting oil spill. The physical repair is finite; the environmental remediation is potentially boundless.[1][2]

The system is not without friction. Disputes frequently arise at the margins, particularly concerning "sue and labor" expenses—costs incurred by the shipowner to mitigate a loss before it becomes catastrophic. Determining whether a specific preventative action was taken primarily to save the hull (H&M) or to prevent a spill (P&I) requires precise legal adjudication and often results in complex cost-sharing agreements.[1][5]

Despite these complexities, this bifurcated insurance model remains the bedrock of global shipping. It allows commercial markets to price the quantifiable risk of steel and machinery, while mutual clubs absorb the volatile, systemic risks of operating heavy industry on the open ocean. Together, they form a complete financial ecosystem that keeps global supply chains moving.[2][4][6]
