The Mechanics of K-Means Clustering: How Unsupervised Learning Partitions Data and Determines Optimal K

K-means clustering is a foundational algorithm in unsupervised machine learning, designed to find hidden structures in unlabeled data. It operates on a simple premise: partition a dataset into a pre-defined number of distinct, non-overlapping subgroups, where each data point belongs to the group with the nearest mean.[1]

The algorithm does not know what the groups represent; it only knows mathematical distance. By iteratively assigning points to the closest center and recalculating that center, K-means transforms chaotic scatter plots into organized, mathematically cohesive segments.[5]

The mechanics rely on a four-step loop. First, the algorithm initializes by randomly placing a specific number of centroids—the theoretical centers of the future clusters—into the data space. This number is represented by the variable 'k'.[2]

Second, the assignment phase begins. The algorithm calculates the distance, typically using Euclidean geometry, between every single data point and each of the initial centroids. Every point is then assigned to the centroid it is closest to, forming the initial, albeit rough, clusters.[1]

Third, the update phase recalculates the actual center of these newly formed clusters. The centroid is moved to the exact mathematical mean of all the data points currently assigned to its group.[5]

Finally, the algorithm repeats the assignment and update phases. Because the centroids moved, some data points may now be closer to a different centroid. The loop continues until convergence—the point where centroids no longer move, and data point assignments remain entirely static.[2]

While the iterative mechanism is straightforward, the algorithm's fatal flaw is its namesake: the letter K. The algorithm cannot determine how many clusters naturally exist in the data; the human operator must dictate the value of K before the process begins.[1]

Choosing the wrong K yields mathematically valid but practically meaningless results. If K is too low, distinct groups are mashed together into a useless average. If K is too high, natural groups are artificially sliced into hyper-specific, uninterpretable fragments.[4]

To solve the K problem, data scientists rely on two primary evaluation metrics. The first is the Elbow Method, which calculates the Within-Cluster Sum of Squares (WCSS)—the total variance within each cluster across different values of K.[4]

As K increases, WCSS naturally decreases because smaller clusters have less internal variance. Plotting WCSS against K typically reveals a curve that bends sharply and then flattens out. This inflection point, or "elbow," represents the threshold where adding more clusters yields rapidly diminishing returns in variance reduction.[6]

However, the Elbow Method is often ambiguous. In real-world datasets with overlapping groups, the curve may be smooth, lacking a distinct elbow. This weak evidence forces analysts to guess the optimal partition based on a subjective reading of a gentle curve.[4]

When the elbow is unclear, the Silhouette Score provides a more rigorous alternative. This metric evaluates both cohesion (how close a point is to its own cluster) and separation (how far it is from the nearest neighboring cluster).[3]

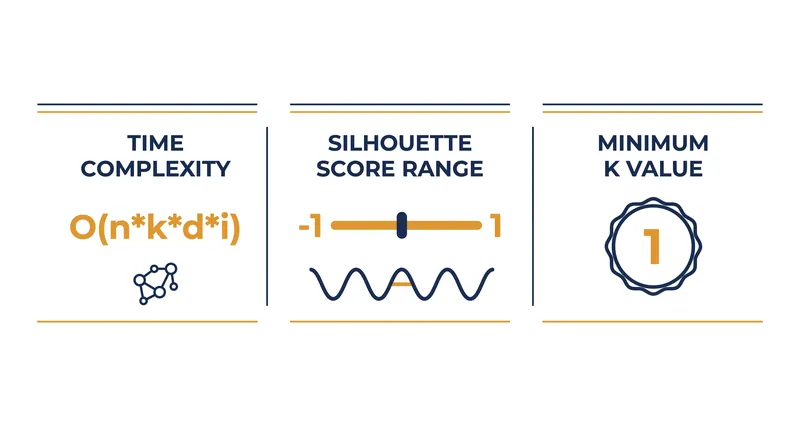

The Silhouette Score ranges from -1 to 1. A score near 1 indicates the point is perfectly clustered, 0 indicates overlapping clusters, and negative scores suggest the point was assigned to the wrong group entirely.[3]

By calculating the average Silhouette Score across all data points for different values of K, analysts can pinpoint the exact number of clusters that maximizes separation and cohesion, providing a definitive mathematical answer even when the Elbow Method fails.[6]

Despite these evaluation tools, K-means has strict limitations. It assumes clusters are spherical and equally sized, making it highly ineffective at identifying elongated, concentric, or irregularly shaped data distributions.[1]

Furthermore, because it relies on mean values, K-means is extremely sensitive to outliers. A single anomalous data point can drag a centroid far from the true center of a dense cluster, skewing the entire partition and ruining the model's accuracy.[2]

Finally, K-means suffers from the "curse of dimensionality." As the number of variables in the dataset increases, the concept of Euclidean distance loses its meaning, causing all points to appear equidistant and rendering the algorithm useless without prior dimensionality reduction.[5]
