The M0 = μAS Term: How the Moment Magnitude Scale Calculates the Total Energy Release of an Earthquake

The moment magnitude scale calculates the total energy released by an earthquake by multiplying three physical properties of the earth: the rigidity of the rock, the area of the fault that ruptured, and the distance the fault slipped. This relationship is expressed in the equation M0 = μAS, which forms the basis of the modern seismic scale and replaces the amplitude-based measurements that fail during massive geological events.[2][6]

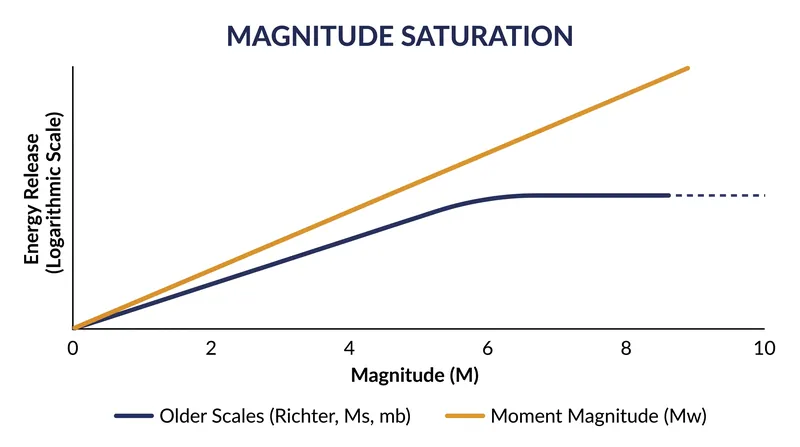

The shift to this physical calculation solved a critical failure in early seismology known as magnitude saturation. When Charles F. Richter developed his famous scale in 1935, he designed it to measure the peak amplitude of seismic waves recorded by Wood-Anderson seismographs in Southern California. The Richter scale worked perfectly for moderate, local tremors. However, when a fault ruptured across hundreds of kilometers, the low-frequency energy overwhelmed the instruments, causing the scale to max out and severely underestimate the size of the largest quakes.[4][6]

To capture the true scale of planetary mechanics, seismologists needed a metric tied to the physical fault itself, rather than the shaking felt at a distance. In 1979, Thomas C. Hanks and Hiroo Kanamori published a landmark paper in the Journal of Geophysical Research that formalized the moment magnitude scale (Mw). Their system bypassed the seismograph needle entirely and instead calculated the seismic moment, denoted as M0.[2][6]

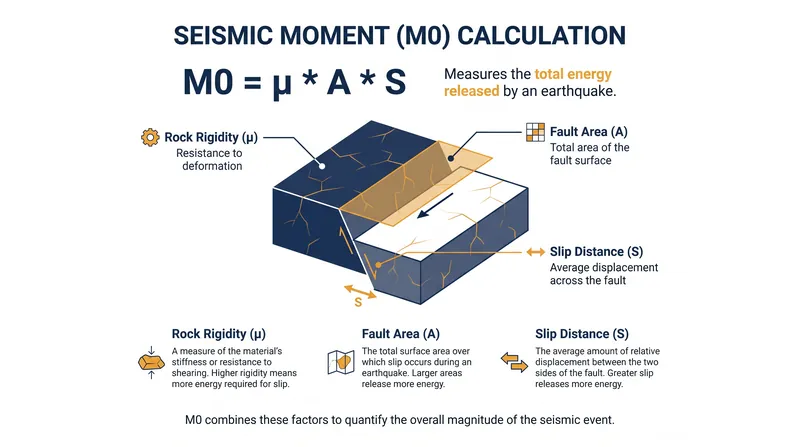

The seismic moment is a direct measure of the work done by the earth during a rupture. The first variable in the equation, μ (mu), represents the shear modulus or rigidity of the crustal rock. In typical continental crust, this value sits around 30 billion pascals. Harder rock requires more stored stress to break, meaning a rupture in highly rigid basalt releases more energy than the same displacement in softer sedimentary layers.[3][6]

The second variable, A, represents the total area of the fault surface that slipped, measured in square meters. Because researchers cannot physically travel 15 kilometers underground to measure a fracture, they infer this area by analyzing the ultra-long-period seismic waves that radiate outward after the initial shock.[3][6]

The final variable, S (sometimes written as D), is the average slip, or the physical distance the two sides of the fault moved past one another. During a moderate magnitude 5.0 event, the slip might be measured in centimeters. In a magnitude 9.0 megathrust earthquake, the slip can exceed 20 meters across a fault area the size of a small country.[3][6]

Multiplying these three factors together—rock rigidity, fault area, and slip distance—yields the seismic moment in Newton-meters or dyne-centimeters. As the Incorporated Research Institutions for Seismology (IRIS) explains, "The seismic moment defines how much force is needed to generate the recorded waves." It is a pure, physical accounting of the geological violence.[3]

However, a raw seismic moment produces an unwieldy number with dozens of zeroes, making it difficult for public communication. To translate this physical energy back into the familiar 1-to-10 format, Hanks and Kanamori applied a logarithmic conversion: Mw = 2/3 log10(M0) - 10.7.[2][6]

This specific logarithmic scaling means that the energy release scales exponentially. An increase of one full integer on the moment magnitude scale represents a 31.6-fold increase in total energy. Moving up two integers represents exactly a 1,000-fold increase.[6]

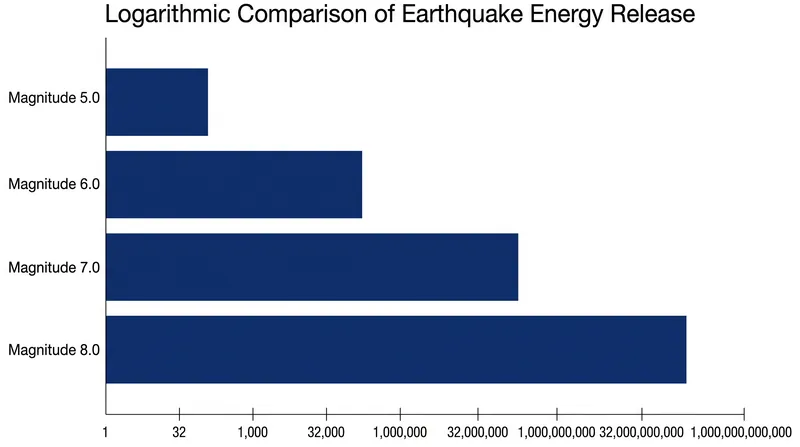

The sheer scale of this exponential growth explains why the M0 calculation is so vital. A magnitude 8.0 earthquake does not just shake slightly harder than a magnitude 5.0 event; it releases 31,622 times more total energy. Because the crustal shear modulus (μ) remains relatively constant, generating that massive energy spike requires the fault area and slip distance to be tens of thousands of times larger.[6][7]

Older scales completely missed this volume of energy. As researchers at Michigan Technological University note, "With the Richter scale, a single sharp jolt measures higher than a very long intense earthquake that releases more energy." A massive subduction zone quake might shake for five minutes, releasing vast amounts of low-frequency energy that a peak-amplitude scale simply ignores.[4]

Today, the moment magnitude scale is the global standard for any seismic event larger than a magnitude 4.0. The U.S. Geological Survey relies on it entirely for major events, stating that "moment magnitude provides an estimate of earthquake size that is valid over the complete range of magnitudes, a characteristic that was lacking in other magnitude scales."[1][6]

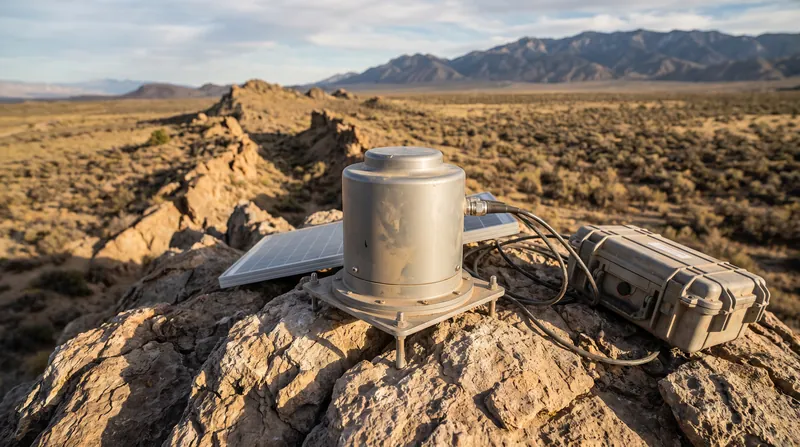

Modern broadband seismometers and GPS-based geodetic stations now feed data directly into the M0 equation in real-time. When a major earthquake strikes, automated systems calculate the fault area and slip within minutes, allowing tsunami warning centers to accurately predict oceanic displacement.[1][6]

Despite its mathematical elegance, the M0 calculation still carries inherent uncertainties. The shear modulus is rarely uniform across a 500-kilometer fault line, and slip distances can vary wildly between the epicenter and the fault edges. Seismologists must use average values, which means initial magnitude estimates are frequently revised in the days following an event as more precise geodetic data is processed.[5][7]

By anchoring our measurement of earthquakes to the physical dimensions of the rupture rather than the shaking of a needle, the moment magnitude scale aligns human observation with geological reality. It ensures that when the earth moves, we measure the actual work it performed, not just the vibrations we felt.[7]
