The Abbe Limit: Why the Wavelength of Light, Not Lens Quality, Sets the Hard Boundary on Optical Resolution

In 1873, working at the Carl Zeiss optical factory in Jena, Germany, physicist Ernst Abbe published a paper containing a deceptively simple equation: d = λ / (2 NA). He had been hired to bring mathematical rigor to lens manufacturing, which until then relied heavily on trial and error. Abbe's calculation proved that the ultimate barrier to seeing the microscopic world was not the craftsmanship of the glass, but the physical dimensions of light itself.[4]

The core argument of Abbe's work—and the foundation of modern optical physics—is that the diffraction limit is not an engineering defect to be polished away. It is a fundamental property of wave mechanics. The strongest intuitive counter-argument is that a larger, more perfectly curved lens should gather more detail. But this fails because light waves spread out when they pass through any aperture, inherently blurring the information they carry.[1][7]

When a beam of light passes through the circular opening of a microscope, it diffracts. Instead of forming an infinitely small point on the sensor or the retina, the light waves interfere with each other, creating a central bright spot surrounded by fainter concentric rings. This pattern is known as an Airy disk. As Shanghai Optics notes in their 2025 technical review, "No matter how perfect a lens is, the image of a point source will always be a diffraction pattern, not a point."[6]

Six years after Abbe's publication, the British physicist Lord Rayleigh formalized exactly how this blurring restricts our vision. He established what is now called the Rayleigh criterion. According to Lumen Learning's physics curriculum, "The Rayleigh criterion specifies the minimum separation between two light sources that may be resolved into distinct objects."[3]

Rayleigh determined that two adjacent points can only be distinguished if the center of one Airy disk falls outside the first dark ring of the other. If they are closer than that, the two disks merge into a single oblong blur, and the information is permanently lost to the observer. "The Rayleigh criterion for the bare minimum resolution of two point sources is that the center of the diffraction pattern of one is directly over the first minimum of the diffraction pattern of the other," explains the HyperPhysics reference database.[5]

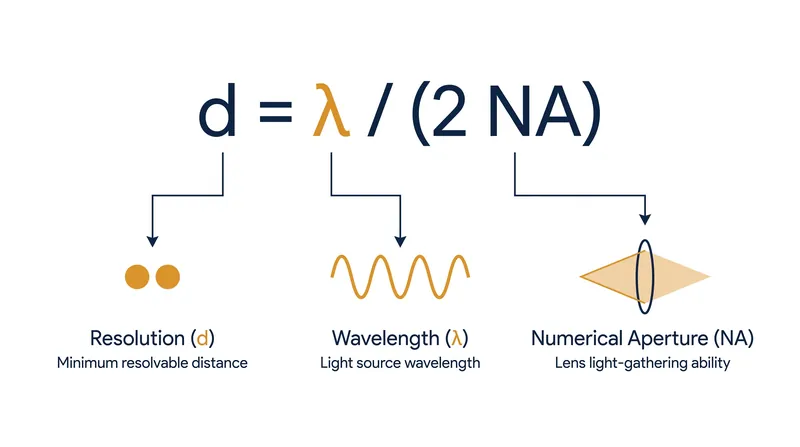

The mathematics of this boundary are dictated by Abbe's formula, where λ represents the wavelength of the light being used, and NA stands for the numerical aperture of the lens. The numerical aperture is a measure of the lens's ability to gather light, calculated by multiplying the refractive index of the medium between the lens and the specimen by the sine of the half-angle of the light cone entering the lens.[2][4]

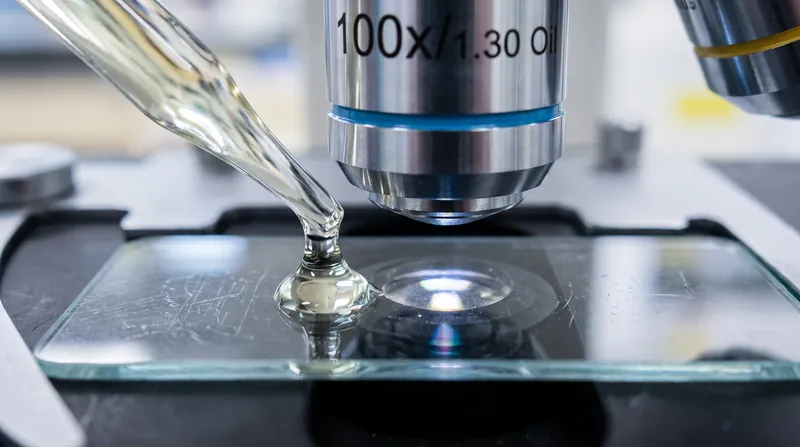

To push the resolution limit as low as possible, microscopists must either decrease the wavelength or increase the numerical aperture. Visible light has a wavelength ranging from roughly 400 nanometers for violet to 700 nanometers for red. The refractive index of air is 1.0, meaning a perfect lens in air has a maximum theoretical NA of 1.0. By using immersion oil—which has a refractive index of about 1.5—scientists can push the NA up to approximately 1.4.[1][2]

Plugging those absolute best-case numbers into Abbe's equation—a 400-nanometer wavelength divided by twice the numerical aperture of 1.4—yields a hard physical floor of roughly 200 nanometers. Anything smaller than 200 nanometers cannot be resolved by a traditional optical microscope, no matter how much money is spent on the optics.[4][7]

This 200-nanometer boundary neatly divides the biological world. A typical human cell is about 10,000 nanometers across, and a standard bacterium like E. coli is about 1,000 nanometers long. Both are easily visible. But a single virus particle typically ranges from 20 to 100 nanometers. Under the rules of classical optics, viruses are strictly invisible.[1]

For decades, the only way to see past this limit was to abandon light entirely. Electron microscopes, developed in the 1930s, use beams of electrons instead of photons. Because the quantum mechanical wavelength of an electron is thousands of times smaller than that of a visible photon, electron microscopes can resolve structures down to a fraction of a nanometer, easily capturing viruses and even individual atoms.[4]

However, electron microscopy comes with a severe biological cost. The technique requires placing the sample in a hard vacuum and often coating it in heavy metals like gold or osmium. This instantly kills any living specimen. To watch the dynamic, real-time processes of life—proteins folding, synapses firing, cells dividing—scientists desperately needed a way to use light.

The solution arrived not by breaking the laws of physics, but by sidestepping them using the time domain. A suite of technologies collectively known as super-resolution microscopy emerged, earning the 2014 Nobel Prize in Chemistry. As detailed in a University of Utah microscopy tutorial, these methods rely on fluorescent molecules attached to the biological structures of interest.

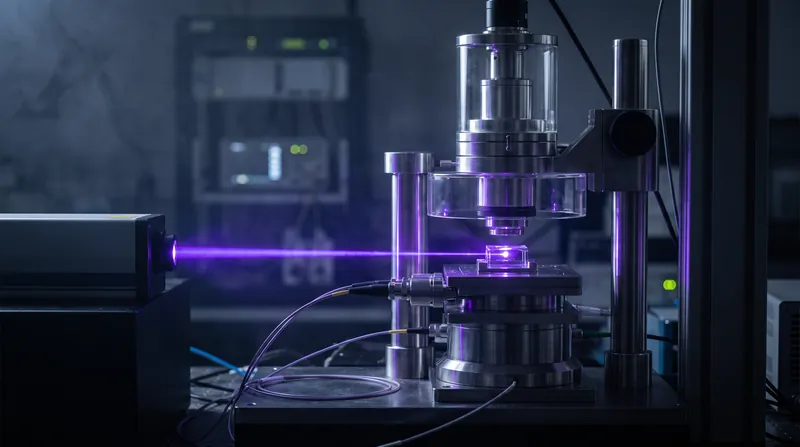

Instead of trying to resolve all the molecules at once—which would result in a hopelessly blurred diffraction pattern—super-resolution techniques use specialized lasers to turn the fluorescent molecules on and off sequentially. By capturing thousands of images where only a sparse few molecules are glowing at any one time, computers can calculate the exact center of each Airy disk and mathematically reconstruct an image with a resolution of 10 to 20 nanometers.[7]

The development of super-resolution imaging proves that while the Abbe limit remains a mathematically absolute constraint on a single continuous wave of light, it is no longer the final boundary of human observation. By understanding the exact nature of the diffraction barrier, physicists were able to map its edges and, eventually, build a door right through it.[7]
