How a 20-Nucleotide Guide RNA Sequence Directs the Cas9 Nuclease to a Specific Genomic Locus

A bioengineer designing a CRISPR-Cas9 intervention controls exactly one variable to determine where the enzyme will cut a genome: a 20-nucleotide sequence of guide RNA. By synthesizing this short string of genetic letters to match a target locus, researchers dictate the precise location where the Cas9 nuclease will bind, unwind the DNA double helix, and sever both strands. The enzyme executes this cut only after it encounters a specific three-letter molecular checkpoint, at which point the guide RNA locks onto its complement and triggers the cleavage.

The foundation of this programmable system was established in 2012, when researchers demonstrated that two separate RNA molecules used by bacterial immune systems could be fused into one. In their landmark paper, the team reported, "We show that the dual-tracrRNA:crRNA, when engineered as a single RNA chimera, also directs sequence-specific Cas9 dsDNA cleavage." This single guide RNA (sgRNA) simplified the delivery mechanism, requiring only the Cas9 protein and the synthetic RNA strand to execute a precise genomic edit.[1][2]

The physical architecture of this targeting mechanism relies on a strict sequence of events, beginning with the Protospacer Adjacent Motif (PAM). The wild-type Cas9 enzyme from Streptococcus pyogenes (SpCas9) cannot bind to DNA based on the guide RNA sequence alone; it must first physically interact with a PAM sequence, specifically the nucleotides NGG (where N is any base). This requirement acts as a fail-safe, preventing the enzyme from indiscriminately cutting the host's own genome.[1][6]

Once SpCas9 recognizes the NGG motif, the enzyme induces a localized melting of the DNA double helix. This unwinding exposes the target strand, allowing the 20-nucleotide guide RNA to begin base-pairing. The pairing initiates at the "seed region"—the 10 to 12 nucleotides immediately adjacent to the PAM—and zips outward. If the seed region matches the DNA perfectly, the enzyme undergoes a massive conformational shift.[4][6]

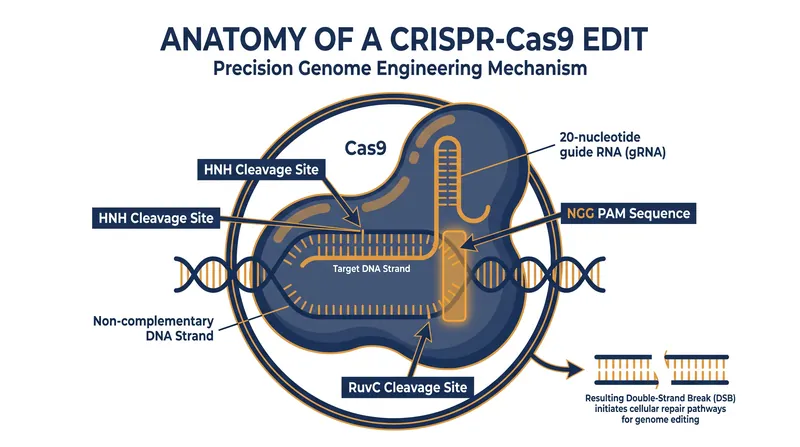

High-resolution crystal structures published in 2014 revealed the mechanics of this shift. As the guide RNA hybridizes with the target DNA, the Cas9 protein repositions its two distinct nuclease domains, HNH and RuvC. The HNH domain swings into place to cleave the DNA strand complementary to the guide RNA, while the RuvC domain cuts the non-complementary strand, resulting in a blunt double-strand break exactly three base pairs upstream of the PAM.[6]

However, the system's tolerance for genetic mismatches presents a significant hurdle for clinical applications. While the seed region requires near-perfect complementarity, the distal end of the 20-nucleotide sequence—furthest from the PAM—can often tolerate up to three or four mismatched bases without aborting the cleavage event. This flexibility leads to off-target effects, where Cas9 cuts unintended genomic loci that share partial homology with the target.[4]

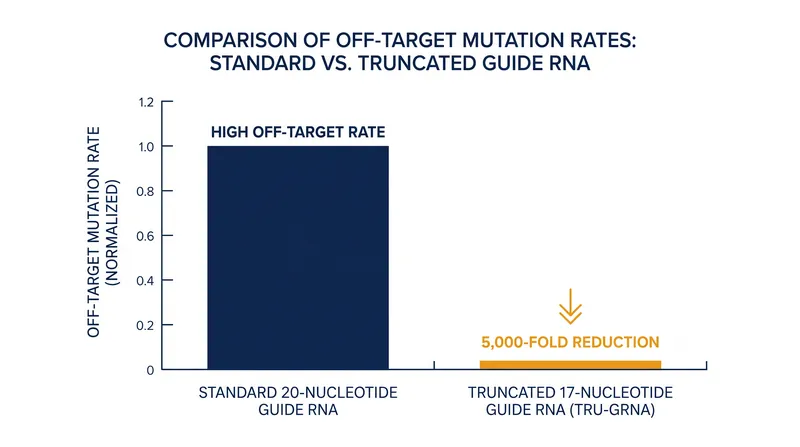

Researchers at Massachusetts General Hospital addressed this fidelity problem in 2014 by altering the length of the guide RNA itself. Counterintuitively, they discovered that providing the enzyme with less targeting information increased its precision. By truncating the guide RNA from 20 nucleotides down to 17 or 18, the team created a system that was far more sensitive to mismatches.[3]

The truncated guide RNAs (tru-gRNAs) possess just enough binding energy to stabilize the Cas9 complex when the sequence is a perfect match. If even a single mismatch occurs, the reduced binding energy is insufficient to trigger the conformational change required for cleavage. The Massachusetts General Hospital team reported that this modification "can decrease off-target mutations by as much as 5,000-fold" compared to standard 20-nucleotide guides, without sacrificing on-target efficiency.[3]

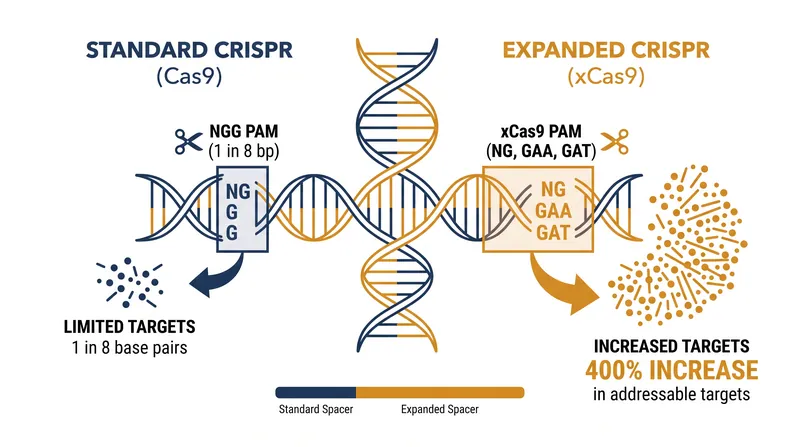

While truncating the guide RNA solves the fidelity problem, the strict NGG PAM requirement creates a separate limitation: targeting space. Because SpCas9 requires an NGG sequence to initiate binding, researchers can only edit loci that sit immediately adjacent to this motif. In the human genome, an NGG sequence occurs roughly once every eight base pairs, leaving substantial portions of the genome inaccessible to standard CRISPR interventions.[1][5]

To overcome this barrier, bioengineers have focused on mutating the Cas9 protein itself rather than the guide RNA. In 2018, researchers evolved a variant called xCas9, which features 14 specific amino acid substitutions in its PAM-interacting domain. These structural changes allow the enzyme to recognize a much broader array of PAM sequences, including NG, GAA, and GAT.[5]

The expanded PAM compatibility fundamentally alters the mathematics of genomic editing. By relaxing the NGG constraint, the xCas9 variant increases the addressable targeting space by approximately 400 percent. "xCas9 expands the targeting space of SpCas9 by recognizing NG, GAA, and GAT PAMs," the researchers noted, effectively opening up previously uneditable disease-causing mutations to CRISPR-based correction.[5]

Synthesizing these two distinct approaches reveals an inverse relationship in CRISPR optimization. Modifying the Cas9 protein expands the total number of editable sites by up to fourfold, but modifying the guide RNA length is required to compress the off-target error rate by three orders of magnitude. Clinical applications must integrate both strategies, pairing engineered Cas9 variants with optimized guide RNA architectures to achieve both broad accessibility and absolute precision.[8]

The evidence supporting these mechanisms is robust in vitro, but translating these kinetic models to living human cells introduces significant uncertainty. The three-dimensional structure of chromatin—how tightly DNA is spooled around histone proteins—can physically block Cas9 from accessing a valid PAM site, regardless of the guide RNA's sequence. Predictive models currently struggle to account for this epigenetic interference.[7]

Furthermore, the intracellular degradation rate of the synthetic guide RNA remains a variable in therapeutic design. If the sgRNA degrades too quickly, the editing efficiency plummets; if it persists too long, the probability of rare off-target cleavage events increases. Bioengineers are currently testing various chemical modifications to the RNA backbone to precisely tune its half-life in human tissue.[2][7]

The next critical checkpoint for this technology lies in ongoing Phase I and II clinical trials for genetic blood disorders. These trials will provide the first definitive in vivo data on whether the optimized guide RNA sequences and engineered Cas9 variants can maintain their 5,000-fold specificity improvements when deployed across billions of human cells.[2][8]
