Liquid Crystal Alignment: How TN, IPS, and VA Panel Physics Dictate Gaming Monitor Response Times

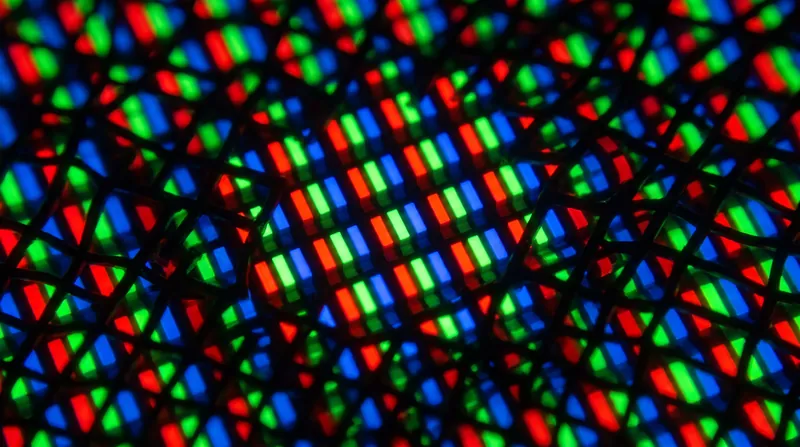

Inside a clean room in Hsinchu, Taiwan, a robotic arm aligns two polarized glass substrates exactly 4 micrometers apart, sandwiching a layer of liquid crystals that will dictate the competitive ceiling of the player who eventually buys the monitor. At 240 frames per second, a gaming display has exactly 4.16 milliseconds to draw a new image. If the crystals inside the panel cannot physically twist fast enough to block or pass the LED backlight, the previous frame bleeds into the current one, creating motion blur that obscures a moving target. The choice of how those molecules are arranged—Twisted Nematic (TN), In-Plane Switching (IPS), or Vertical Alignment (VA)—is a hard physical compromise between speed, color accuracy, and contrast.[6]

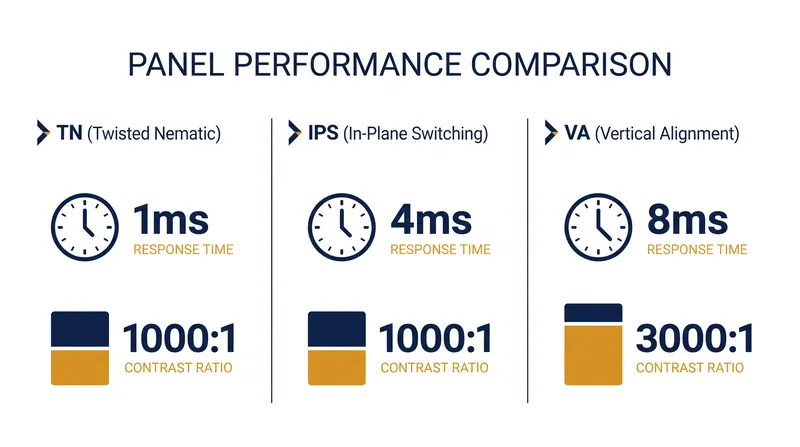

Twisted Nematic panels represent the oldest and fastest architecture in LCD gaming. As the 2006 Wikipedia reference on the TN field effect defines it, the technology relies on the precisely controlled realignment of liquid crystal molecules between different liquid crystal configurations under the influence of an applied electric field. These molecules naturally twist at a 90-degree angle between the glass plates. When voltage is applied, they untwist rapidly, aligning parallel to the electric field to block light. Because this untwisting motion requires minimal physical travel, TN panels routinely hit 1-millisecond gray-to-gray response times.[2]

That speed comes at a severe optical cost. The Unisystem technical breakdown notes that because the crystals do not align perfectly uniformly when voltage is applied, light leaks through at oblique angles. A player shifting their head just 15 degrees off-center will watch the colors on a TN panel invert, shift, and completely wash out. For a professional Counter-Strike player sitting perfectly still, the 1ms response time is non-negotiable; for anyone else, the color degradation is a stark and immediate visual downgrade.[4]

In-Plane Switching was engineered specifically to solve that color inversion. Instead of twisting perpendicular to the glass, IPS molecules remain parallel to the substrate and rotate like a compass needle when voltage hits them. HelloTech’s 2022 analysis states plainly that IPS monitors have the best viewing angles of all the panel types, maintaining color accuracy across 178-degree viewing angles. This horizontal rotation keeps the light dispersion uniform, ensuring that a red pixel looks exactly the same whether viewed head-on or from the side of the desk.[5]

The trade-off for that color stability is latency. Rotating a molecule horizontally through the viscous liquid crystal fluid takes more time than simply letting it untwist. For years, IPS panels hovered around 4 to 5 milliseconds of response time—fast enough for standard desktop use, but a fatal liability in high-stakes esports. Recent advancements in Fast IPS or Nano IPS have driven that number down to 1ms on paper, though independent testing often places real-world transitions closer to 2.5ms under sustained gaming loads.[1][5]

Vertical Alignment panels take a third approach, standing the crystals perpendicular to the glass when no voltage is applied. This vertical stance blocks the backlight almost entirely, creating deep, true blacks. BenQ’s engineering documentation points out that while IPS panels typically max out at a 1,000:1 contrast ratio, VA panels routinely hit 3,000:1 or even 4,000:1. In a dark room playing a horror title or a space simulator, VA provides a depth of image that the other two architectures cannot physically replicate, making shadows actually look black rather than glowing gray.[3]

But standing crystals up and knocking them down is the slowest physical transition of the three. VA panels struggle specifically with dark-to-light transitions, often taking 8 to 12 milliseconds to shift from black to gray. In a fast-moving scene, this slow transition manifests as black smearing—a dark trail left behind moving objects. A 2011 ResearchGate study examining the effects of S-IPS, S-PVA, and TN panels in video gaming found that while VA offered superior static image quality, its motion handling lagged significantly behind TN in high-speed scenarios.[1][3]

To combat these physical limitations, manufacturers apply overdrive—sending a higher voltage spike to force the crystals to snap into position faster. While overdrive can push an IPS or VA panel closer to TN speeds, applying too much voltage causes the crystal to overshoot its target angle. The result is inverse ghosting or corona artifacts, where a bright halo trails behind moving objects, trading one visual flaw for another. Finding the exact voltage curve that accelerates the crystal without overshooting it remains the primary challenge for display engineers.[6]

The monitor market in 2026 reflects a narrowing of these physical gaps, though the foundational rules remain completely intact. TN panels are now almost exclusively relegated to 360Hz and 540Hz esports monitors where motion clarity supersedes all other metrics. IPS has become the default for roughly 80% of the gaming market, balancing 144Hz to 240Hz refresh rates with acceptable color reproduction. VA remains the niche choice for media consumption and cinematic gaming where contrast is paramount and motion blur is less noticeable.[6]

The liquid crystal layer is a physical mechanism, bound by fluid dynamics and electromagnetism. No firmware update can change how fast a molecule rotates in a viscous fluid. Buyers must decide which visual artifact—color shifting, gray blacks, or motion blur—they are most willing to tolerate, and purchase the panel architecture that minimizes the flaws that matter most to their specific library of games. The physics of the panel will always dictate the final image on the screen.[6]
