Trading CPU Cycles for Physics Stability: Euler, Verlet, and Runge-Kutta Quantified

The choice between Explicit Euler, Verlet, and Runge-Kutta integration comes down to a strict budget of CPU cycles versus the risk of a physics simulation tearing itself apart. Euler is cheap but volatile, Verlet excels at constrained objects like cloth and ragdolls, and Runge-Kutta (RK4) burns computational power to guarantee pinpoint accuracy for orbital mechanics and racing simulators. Every frame rendered in a physics-heavy title requires the engine to predict where an object will be a fraction of a second from now.[1][6]

This predictive math is numerical integration: taking an object's current position, velocity, and the forces acting upon it, and stepping it forward in time. "Integration is just a fancy word for moving things forward in time," writes Glenn Fiedler in his 2004 Gaffer On Games analysis. But how that step is calculated determines whether a stacked pile of virtual boxes rests quietly or vibrates until it explodes across the map.[1]

Explicit Euler is the default starting point for almost every physics engine because it requires exactly one derivative evaluation per time step. It takes the current velocity, multiplies it by the time delta (often 0.016 seconds for a 60Hz simulation), and adds it to the position. The math is lightweight, making it ideal for thousands of simple particle effects like sparks, rain, or distant debris.[1][2]

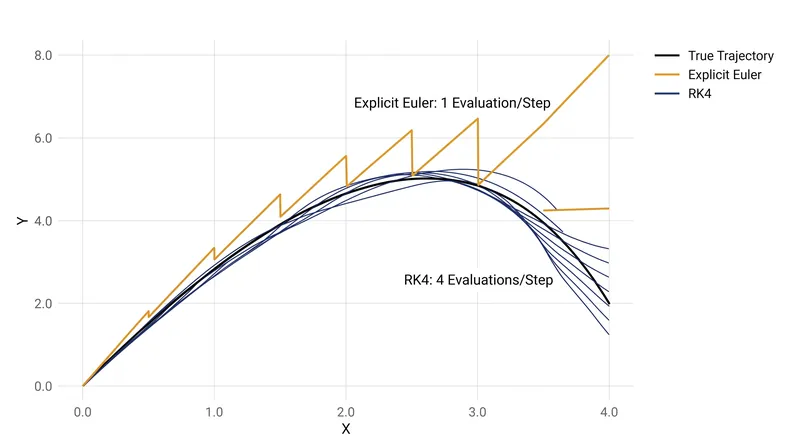

The catastrophic flaw in Explicit Euler is that it assumes the velocity remains constant throughout that 0.016-second window. In reality, forces like gravity or spring tension change continuously. Because Euler only samples the force at the beginning of the step, it consistently overshoots the true trajectory. Over multiple frames, this error accumulates, adding phantom energy to the system until a swinging pendulum swings higher with every arc and eventually breaks the simulation.[1][3]

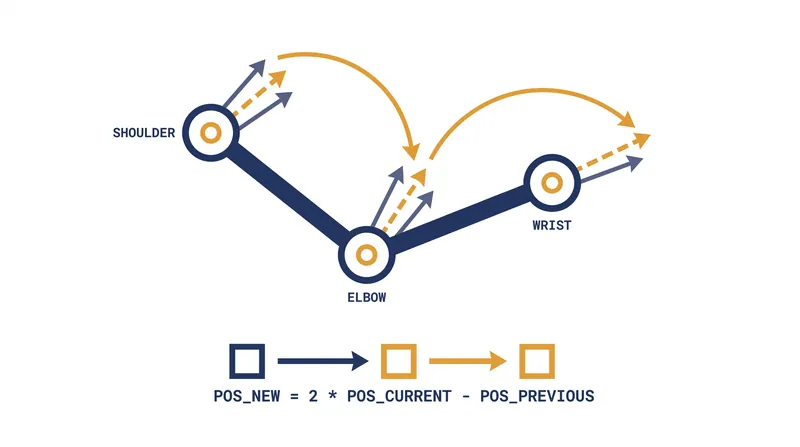

To fix Euler's instability without abandoning its speed, developers turn to Verlet integration. Johan Kåhrström's 2011 breakdown of the two methods highlights Verlet's unique approach: it discards explicit velocity entirely. Instead, it calculates the next position based on the current position and the previous frame's position, implicitly deriving the velocity from the difference between the two.[3]

This makes Verlet inherently stable and time-reversible. If a character model goes limp, the constraints holding their limbs together need to resolve without adding energy. Verlet handles these rigid constraints beautifully, which is why it became the industry standard for cloth simulation and ragdoll physics following its popularization in the early 2000s. The trade-off, however, is that changing the time step dynamically—a common trick to maintain frame rates—can instantly destabilize a Verlet system.[3][5]

When precision is non-negotiable, engines deploy the Runge-Kutta method, specifically the fourth-order variant known as RK4. Rather than blindly stepping forward based on the initial force, RK4 evaluates the derivatives four separate times: once at the start, twice at the midpoint, and once at the end of the time step. It then averages these samples using a weighted formula to plot a highly accurate curve.[1][4]

The cost of this accuracy is severe. A single RK4 step requires four times the computational overhead of an Euler step. For a game calculating the trajectory of 10,000 debris fragments, RK4 will instantly bottleneck the CPU. But for a space simulator tracking orbital mechanics, or a racing game where tire friction models demand absolute fidelity, RK4 ensures the vehicle doesn't drift off its mathematical rails.[1][2]

Jason Sachs' analysis of fluxions points out that intermediate methods, like the Trapezoidal rule or Heun's method, offer a middle ground. They evaluate the derivative twice, providing better stability than Euler without the crushing weight of RK4. These second-order methods are frequently used when Euler is too chaotic but RK4 is too expensive.[4]

Academic programs, such as Newcastle University's Game Engineering track, explicitly teach these numerical integration methods as foundational knowledge. Understanding why a simulation explodes is just as critical as knowing how to render a polygon. Students learn that applying the wrong integrator to a spring system will result in infinite oscillation, a classic hallmark of Euler failure.[5]

The engineering reality is that no modern title relies on a single integrator. A AAA engine will use RK4 for the player's vehicle, Verlet for the character's cape, and Euler for the exhaust smoke. The mastery of game physics lies not in finding the perfect equation, but in knowing exactly how much inaccuracy the player's eye will tolerate before the illusion shatters.[2][6]

Ultimately, the decision matrix is dictated by the hardware target. A mobile game running on a thermal-constrained ARM chip cannot afford RK4 for background objects, while a PC-exclusive simulator running on a modern 16-core processor has the thermal headroom to brute-force precision. The physics engine must scale its mathematical rigor to match the silicon it runs on.[6]
