How Signal Detection Theory Separates a Predictor's Sensitivity from Their Reporting Bias

For Signal Detection Theory to work, one binding constraint must hold: the reality being observed must be strictly binary—a signal is either present or absent—and it must be obscured by overlapping noise. If the environment is perfectly clear, or if the target exists on a continuous spectrum without a definitive truth state, the mathematics of the model collapse. In the real world, however, this constraint almost always holds. From a radiologist scanning an X-ray for a tumor to an algorithm filtering spam, decision-makers are constantly forced to categorize ambiguous information into binary outcomes.

The intuitive way to evaluate these decisions is to measure raw accuracy, but accuracy is a deeply flawed metric. If a rare disease affects only 1 in 1,000 people, a doctor who simply declares every patient healthy will achieve a 99.9% accuracy rate. They will also miss every single case of the disease. According to New York University's perception curriculum, the fundamental premise of the theory is that "information is always acquired in the presence of noise," meaning that evaluating performance without accounting for the base rate of the signal creates a dangerous illusion of competence.[4]

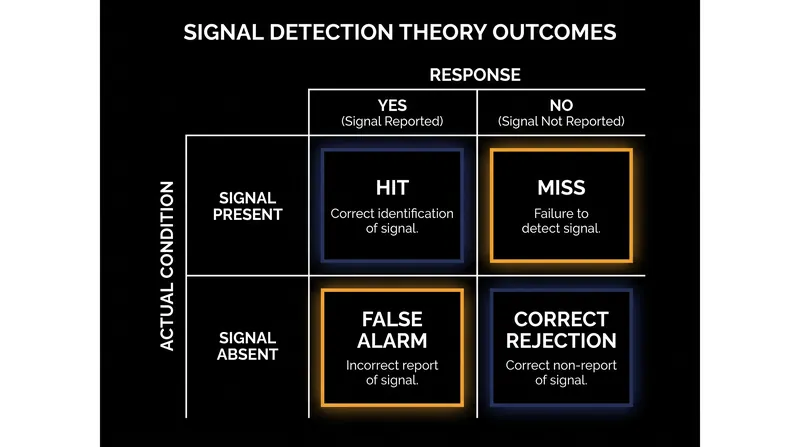

To dismantle this illusion, the framework breaks every binary decision into 4 possible outcomes. When a signal is present, the observer can either detect it (a "Hit") or fail to see it (a "Miss"). When the signal is absent—meaning only noise is present—the observer can either correctly ignore it (a "Correct Rejection") or hallucinate a signal that isn't there (a "False Alarm"). These four quadrants replace a single accuracy score with a matrix of tradeoffs.[5]

The core innovation of the theory, which originated in radar research during the 1950s, is that it uses these four outcomes to mathematically separate two completely different cognitive processes. The first is "sensitivity," denoted as d' (d-prime). The second is "response bias" or "criterion," denoted as c. By isolating these variables, researchers can look inside the black box of a decision.[6]

Sensitivity (d') measures the observer's actual ability to distinguish the signal from the noise. Imagine 2 overlapping bell curves: one representing the background noise, and the other representing the signal plus the noise. The distance between the peaks of these two curves is d'. A d' of 0 indicates chance performance, meaning the curves perfectly overlap and the observer is just guessing. Conversely, a d' of 4.6 indicates nearly perfect discrimination. Crucially, d' is a measure of underlying competence—it is the quality of the radar dish, the resolution of the MRI machine, or the acoustic acuity of the listener.[7]

But competence is only half the equation. The other half is the reporting bias (c). Because the signal and noise curves overlap, there is a zone of ambiguity where the observer isn't sure what they are seeing. To make a decision, they must draw a vertical line—a criterion—somewhere on the graph. As outlined in a January 2026 analysis by Cogn-IQ, the criterion c is defined as the distance from the intersection of the two distributions, measured in standard deviations. Anything to the right of the line, the observer calls a signal; anything to the left, they call noise.[6]

This criterion line is entirely independent of d'. An observer can shift it left or right based on the perceived costs and benefits of their decisions. If a radiologist shifts their criterion to the left, they adopt a "liberal" bias. They will catch more tumors, increasing Hits, but they will also subject more healthy patients to unnecessary biopsies, increasing False Alarms. If they shift the line to the right, adopting a "conservative" bias, they will reduce False Alarms but miss more actual tumors.[8]

This separation is where a skeptical eye becomes necessary, particularly in modern technology. When artificial intelligence companies market a new detection algorithm, they frequently boast about its "recall"—the percentage of actual signals it successfully caught. But recall is just another word for the Hit rate. By lowering the criterion c to an extremely liberal threshold, any system can achieve 100% recall, masking a mediocre d' behind a flood of False Alarms. As researchers in Psychological Science note, failing to separate these metrics means "researchers may draw erroneous conclusions about the underlying perceptual or cognitive mechanisms" at play.[3]

The utility of separating d' from c extends far beyond radar and radiology. In a 2010 study published in the Journal of Applied Behavior Analysis, researchers applied the theory to evaluate human observers scoring behavioral assessments. They found that when observers were trained to look for specific behaviors, their sensitivity (d') remained relatively stable, but their reporting bias (c) fluctuated wildly depending on the feedback they received from supervisors.[2]

Similarly, a 2020 paper in Frontiers in Psychology demonstrated how the framework clarifies linguistic research. When asking native speakers whether a sentence is grammatically acceptable, researchers historically struggled to tell if a speaker was genuinely bad at detecting grammatical errors, or just highly forgiving of them. By calculating d' and c, linguists can now prove that a speaker has perfect grammatical sensitivity but simply uses a very liberal reporting threshold.[1]

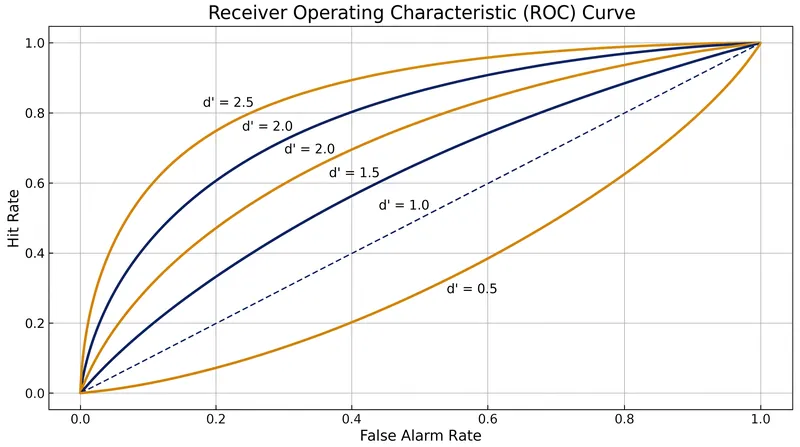

To visualize this dynamic, statisticians use a Receiver Operating Characteristic (ROC) curve. The ROC curve plots the Hit rate on the Y-axis against the False Alarm rate on the X-axis. A single observer's d' dictates the shape of the curve—the higher the d', the closer the curve bows toward the top-left corner. The observer's bias (c) simply dictates where they currently sit along that specific curve.[6]

Understanding this distinction dictates how organizations solve performance problems. If an employee has a low d', they need better training, better tools, or better data to help them separate signal from noise. But if they have a high d' and are simply making too many False Alarms, training won't help. They don't have a competence problem; they have an incentive problem. The organization needs to adjust the payoff matrix to encourage a more conservative criterion.[3]

The mathematics of the model prove that in any environment with overlapping noise, perfect performance is impossible. You cannot increase Hits without also increasing False Alarms, unless you fundamentally improve the underlying sensitivity d'. Every decision system, human or artificial, is forced to choose its preferred flavor of error.[4][7]

Stripping away the illusion of raw accuracy forces a more honest accounting of how decisions are made. The model reveals that the threshold for saying "yes" is a psychological and economic choice, entirely separate from the physical ability to see the truth. In a world increasingly governed by predictive algorithms and automated moderation, demanding the d' rather than the Hit rate is the only way to evaluate what a system is actually doing.[9]
