How Instruction Pipelining and Out-of-Order Execution Separate Latency from Throughput in a Modern CPU

In 1985, the Intel 80386 processor executed instructions strictly in the order they were written, taking multiple clock cycles to finish one before starting the next. Today, a modern consumer processor does not wait. Instead, it tears the instruction stream apart, guesses which way branches will go, and processes dozens of operations simultaneously out of sequence.

This fundamental shift in architecture separates two concepts that hardware marketing often conflates: latency and throughput. As AlgoMaster.io defines the distinction, latency is the time it takes for a single data packet or instruction to travel from source to destination, while throughput is the volume of data processed within a given timeframe.[3][6]

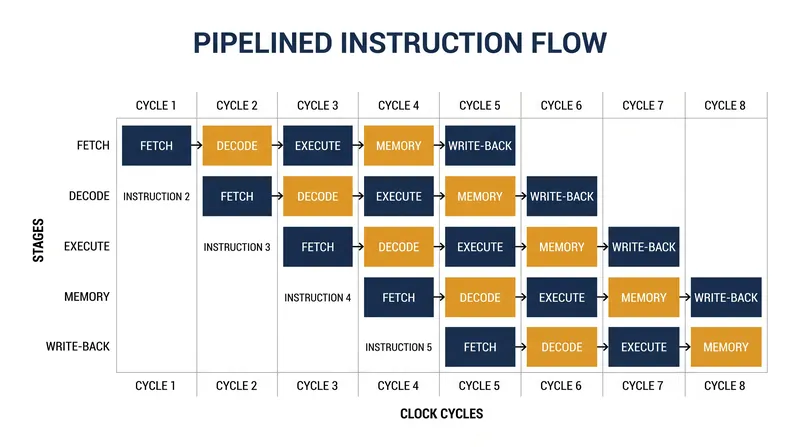

The baseline mechanism for increasing throughput without altering the clock speed is instruction pipelining. The University of Maryland Computer Science department illustrates this using an assembly line analogy. In a classic five-stage pipeline—comprising fetch, decode, execute, memory access, and write-back—the processor does not wait for an instruction to complete all five stages before fetching the next one.

Once the first instruction moves from fetch to decode, the fetch unit grabs the second instruction. Under ideal conditions, a five-stage pipeline can theoretically increase throughput by a factor of five, retiring one instruction every clock cycle even if each individual instruction still takes five cycles to traverse the pipeline.[5]

However, the theoretical maximum is rarely achieved because instructions are not independent. William Stallings, in Computer Organization and Architecture, outlines the hazards that disrupt this flow. If instruction B requires the result of instruction A, instruction B must stall in the pipeline until A completes its write-back stage.

This data dependency creates a bubble in the pipeline, wasting clock cycles. Marketing materials from chip manufacturers frequently tout deeper pipelines—sometimes stretching to 15 or 20 stages—as a path to higher clock speeds, but deeper pipelines suffer exponentially greater penalties when a stall or a branch misprediction forces the processor to flush the entire assembly line.[1]

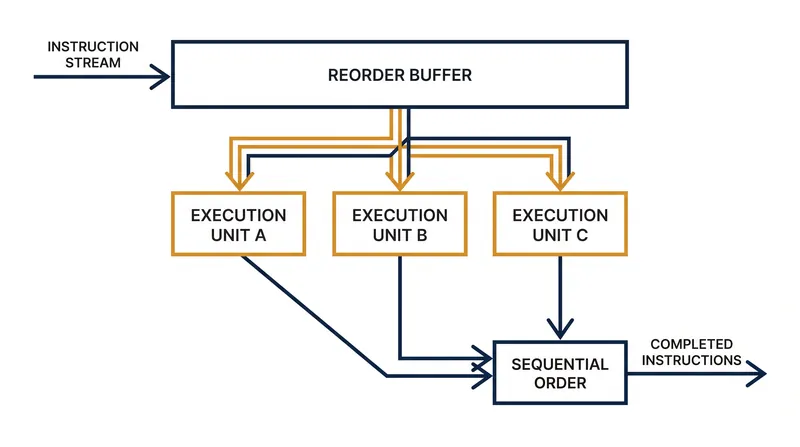

To prevent these stalls from crippling throughput, modern processors employ out-of-order execution. The Coding Gopher details how this mechanism breaks the strict sequential processing model. When a processor encounters a stalled instruction waiting for data from main memory, it does not halt the entire pipeline. Instead, an instruction dispatch unit looks ahead in the code for subsequent instructions that have all their required operands ready. It routes these independent instructions to available execution units, processing them while the older instruction waits.[2]

This capability requires massive silicon overhead. The processor must maintain a Reorder Buffer to ensure that, even though instructions execute chaotically, their results are committed to the architectural state in the exact order the programmer intended. If an exception occurs, the processor can discard the speculative out-of-order results and resume from the correct state. The Coding Gopher notes that this dynamic scheduling allows a CPU to keep its execution units fed, maximizing throughput even when individual instruction latency spikes due to cache misses.[2]

The irony of these advanced architectures is that they often increase the latency of a single instruction. The complex logic required to decode instructions, check dependencies, rename registers, and reorder the results takes time. Pekka Enberg, writing on parallel programming, points out that while single-thread performance has historically relied on these instruction-level parallelism techniques, the overhead eventually yields diminishing returns. The processor is doing significantly more work per instruction to figure out how to execute it in parallel with others.[4]

Because these reference materials focus strictly on mathematical models of instruction flow, they do not contain direct quotations from the hardware engineers who design them; however, the architectural consensus they document is universal. This separation of latency and throughput exposes the limitations of using clock speed as a primary metric for performance.

A 4.0 GHz processor with a narrow pipeline and no out-of-order capabilities will be vastly outperformed by a 3.0 GHz processor featuring a wide, superscalar out-of-order architecture. The latter might take longer in absolute nanoseconds to shepherd a single instruction from fetch to retirement, but it retires four to six instructions per clock cycle compared to the former's one.[1][6]

The physical limits of silicon and the speed of light dictate how fast a single electrical signal can traverse a logic gate. Because engineers cannot infinitely reduce latency, they have redesigned the processor to hide it.

By pipelining stages and executing out of order, modern CPUs ensure that while any single instruction may take longer to complete, the aggregate throughput of the system continues to scale. The next frontier in processor design relies not on finding more instruction-level parallelism, but on expanding thread-level parallelism and specialized accelerators to bypass the bottlenecks of the reorder buffer entirely.[4][6]
