How Hash Collisions Force Count-Min Sketches to Overestimate High-Velocity Data Bursts

In 2003, at the AT&T Labs research facility in Florham Park, New Jersey, computer scientists Graham Cormode and S. Muthukrishnan faced a fundamental physical limit of network infrastructure. Routers were processing gigabits of traffic per second, but the fast static random-access memory required to track every individual IP address was physically constrained.

They needed a way to count the frequency of items in a massive data stream without actually storing the items themselves. The solution they developed, published in a seminal paper, was the count-min sketch—a probabilistic data structure that traded perfect accuracy for a guaranteed, constant memory footprint.[1][2]

Over the next two decades, this algorithm became the invisible engine of the modern internet. It powers network traffic monitoring, natural language processing models, and highly efficient cache admission policies like TinyLFU. But the mathematical compromise that makes the sketch so fast creates a structural vulnerability.[4]

When a sudden, high-velocity burst of new items hits the stream, the sketch systematically overestimates their frequency. This is not a software bug, but a mathematical certainty baked into the algorithm's architecture, driven by the mechanics of hash collisions.

The sketch does not store the payload, the origin, or the timestamp of the incoming data. It only increments a mathematical counter, discarding the item immediately after processing to keep the memory footprint strictly bounded and predictable.

How the Grid Compresses Data

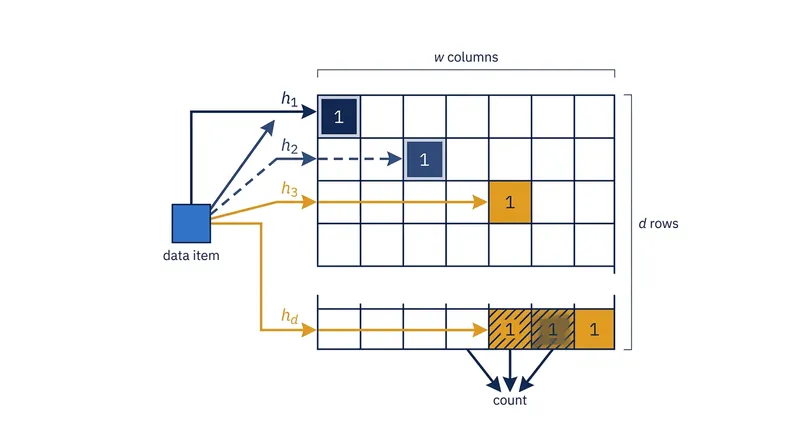

To understand why the sketch overestimates bursts, one must examine its internal structure. A count-min sketch consists of a two-dimensional array of integer counters, organized into rows and columns. The width determines the probability of a collision, while the depth determines the confidence level of the estimate.[1]

When a new item arrives in the stream—whether it is an IP address, a search query, or a word in a text corpus—it is processed by independent hash functions. Each function corresponds to one row in the grid and maps the item to a specific column index.

The algorithm then increments the counter at that specific intersection by one. Because the sketch does not store the item itself, multiple distinct items will inevitably be mapped to the same counter by the hash functions, a phenomenon known as a collision.

To query the estimated frequency of an item, the system calculates its hash locations and retrieves the values stored in those counters. Because collisions only ever add to a counter, the true frequency of the item is guaranteed to be no larger than the minimum value among those rows.[1]

This "minimum" rule is the core mechanism of the sketch. It effectively filters out the noise of other items that happened to share a hash bucket in one row, relying on the statistical improbability that they would share buckets across all independent rows.

This assumption holds true when the stream is dominated by a few heavy hitters that map to distinct buckets. The algorithm relies on the statistical improbability that high-frequency items will perfectly overlap across all independent hash functions.[2]

When High-Velocity Streams Collide

The count-min sketch operates flawlessly under normal conditions, particularly when the data follows a skewed Zipfian distribution. In these environments, a small number of heavy hitters account for the vast majority of the stream, while millions of other items appear only once or twice.[2]

However, high-velocity bursts—such as a distributed denial-of-service attack, a sudden trending hashtag, or a flash crowd event—violently disrupt this baseline distribution. A burst introduces a massive volume of distinct, previously unseen items in a fraction of a second.[9]

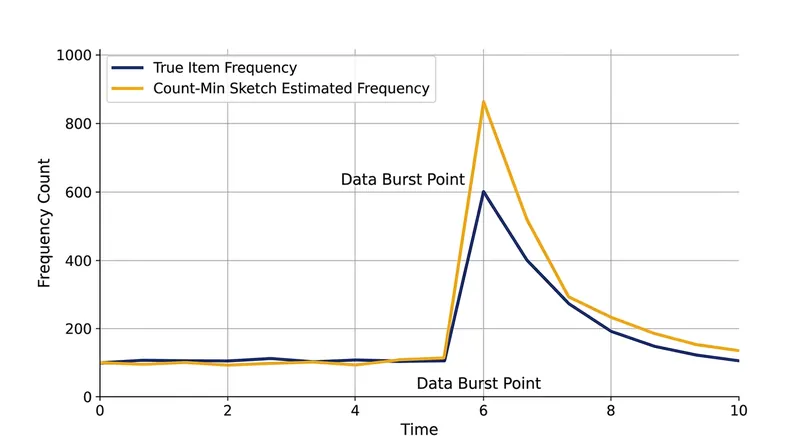

As these new items flood the sketch, they rapidly fill the available hash buckets across all rows. The probability of a collision, which is normally kept low by the width of the sketch, spikes dramatically as the background noise becomes dense and uniform.

For the specific item driving the burst, its counters are incremented not just by its own arrivals, but by the overlapping hashes of the surrounding noise. Because the noise is so dense, even the minimum value across its rows becomes artificially inflated.

Researchers analyzing these structures have quantified this effect. According to a 2021 study on burst detection published by the Association for Computing Machinery, standard count-min sketches struggle to isolate sudden spikes because "the heavy background noise in data streams severely degrades the accuracy of sketch-based burst detection."[9]

The researchers noted that traditional sketches are designed to capture the overall distribution of the stream over a long period. They are fundamentally ill-equipped to isolate sudden, short-lived anomalies that occur within a fraction of that monitoring window.[9]

The Limits of the Error Bound

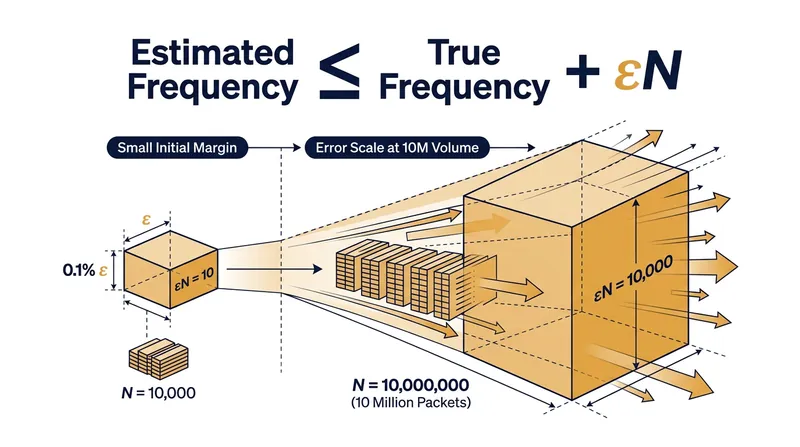

The original 2003 paper by Cormode and Muthukrishnan established a strict mathematical guarantee for the sketch. They proved that the estimated frequency will exceed the true frequency by at most a factor of a specific error bound multiplied by the total number of items processed in the stream.[1]

This bound is mathematically sound, but in the context of a high-velocity burst, the total volume grows at an exponential rate. As the volume increases, the acceptable error margin expands, rendering the theoretical guarantee practically useless for real-time anomaly detection.

Consider a network router processing 10 million packets in a single second. An error bound of 0.1 percent mathematically allows the sketch to overestimate a burst by 10,000 counts. If a security system is configured to trigger an alert for anomalies of 5,000 packets, the signal is entirely lost.

The overestimation is further compounded by the temporal nature of bursts. Traditional sketches aggregate frequencies over the entire lifetime of the stream. A burst that occurs in the final second of a 24-hour monitoring window is hashed into counters that have already been accumulating noise for 86,399 seconds.

To the sketch, a burst of 5,000 packets in the last second looks mathematically identical to a slow trickle of 5,000 packets spread evenly over the entire day. The algorithm has no concept of velocity, only total volume.

Conservative Updates and Elastic Sketches

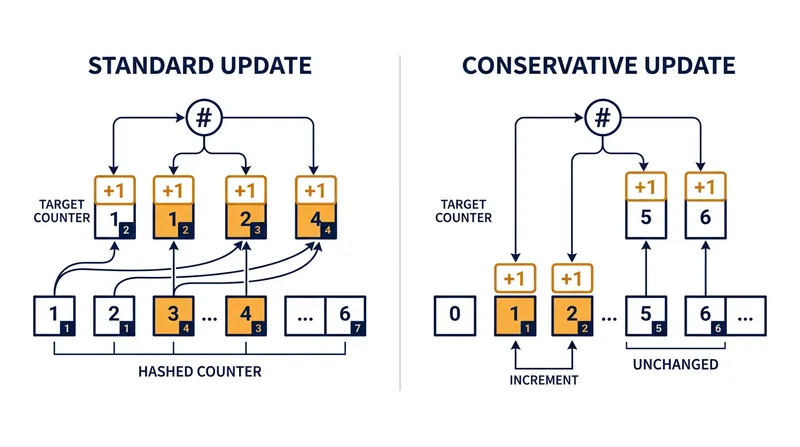

Over the past two decades, engineers have developed several structural modifications to mitigate this overestimation. The most widely adopted technique is the conservative update heuristic, which alters the fundamental way counters are incremented during the insertion phase.[8]

Instead of blindly adding one to all hashed counters, a conservative update first queries the current values and only increments the counters that hold the absolute minimum value. This prevents high-frequency items from unnecessarily inflating the counters of low-frequency items they happen to collide with.[8]

While conservative updates significantly reduce the overall error rate, they are not a panacea. A 2024 worst-case analysis published on arXiv demonstrated that conservative updates can still fail during highly concentrated adversarial bursts, as the minimum counters themselves become saturated by overlapping heavy hitters.[8]

More recent architectures attempt to solve the problem by physically separating the stream. The Elastic Sketch, introduced by Yang and colleagues in 2018, uses a dedicated heavy-hitter table to capture high-frequency items, relegating the count-min sketch to tracking only the low-frequency background noise.[5]

The heavy-hitter table acts as a shield for the count-min sketch. By absorbing the most frequent items, it ensures that the background noise remains sparse, preserving the accuracy of the underlying counters when a burst finally occurs.[5]

By preventing the heavy hitters from entering the sketch in the first place, the Elastic Sketch drastically reduces the collision rate for the remaining items. This hybrid approach maintains the constant memory footprint while significantly improving accuracy during sudden traffic spikes.[5]

Balancing Accuracy and Memory

Despite its known vulnerabilities to overestimation, the standard count-min sketch remains ubiquitous in modern software engineering. Its continued dominance is driven by the fact that for many applications, relative frequency is far more important than absolute numerical accuracy.

In 2015, researchers introduced TinyLFU, a highly efficient cache admission policy that uses a count-min sketch to track the popularity of accessed files. If the policy only needs to know whether one file is more popular than another, the uniform overestimation caused by a burst rarely changes their final ranking.[4]

The engineering reality is that fast memory remains finite, while network speeds and data volumes continue to increase exponentially. The count-min sketch offers a predictable, constant-time operation that exact-counting algorithms simply cannot match under heavy load.

As long as the internet continues to generate data faster than physical memory can scale, probabilistic structures will remain necessary. The count-min sketch survives not because it is perfectly accurate, but because its inaccuracies are mathematically predictable.

The systematic overestimation of high-velocity bursts is not a flaw to be eradicated, but a fundamental mathematical tax. It is the price systems pay for the ability to process infinite streams of data within a strictly finite physical space.
